FAQ : How To Manually Configure Access Point Mode on DIR-505 - Version 1.00
Technical Support Setup Procedure
FAQ : How To Manually Configure Access Point Mode on
DIR-505
Release date : 24/07/2012
Model Support : DIR-505
H/W:A1
S/W:1.03
-2-
FAQ : How To Manually Configure Access Point Mode on DIR-505 - Version 1.00
Technical Support Setup Procedure
Manual Access Point Mode DIR-505
Note : SharePort DIR-505
Access Point
1:DIR-505 Router/AP
LED
2: Configuration Note DIR-505
(SSID)
Configuration Note
Switch to Router/AP mode
Green LED
-3-
FAQ : How To Manually Configure Access Point Mode on DIR-505 - Version 1.00
Note :(SSID) product sticker DIR-505
3:(SSID)
http://dlinkrouter http://192.168.0.1
-4-
FAQ : How To Manually Configure Access Point Mode on DIR-505 - Version 1.00
DIR-505 IP Address DIR-505
IP Address
- (
Log in
4:SETUP>WIRELESS LAN SETUP Manual Internet
Connection Setup
-5-
FAQ : How To Manually Configure Access Point Mode on DIR-505 - Version 1.00
5:Operation Mode Access Point Save Settings
DIR-505 LED
6:Next
Next PPPoE
ADSL
-6-
FAQ : How To Manually Configure Access Point Mode on DIR-505 - Version 1.00
7:Next
(Wi-Fi Network Name : SSID) Wi-FI
Wi-FiNext
.
8:(Administrator)
DIR-505 Next
9:(: GMT+7) Next
-7-
FAQ : How To Manually Configure Access Point Mode on DIR-505 - Version 1.00
10 :Save DIR-505 LED
-8-
FAQ : How To Manually Configure Access Point Mode on DIR-505 - Version 1.00
Technical Support Setup Procedure
How To Manually Configure Access Point Mode on DIR-505
Note: SharePort Function is not available when DIR-505 is in Access
Point Mode
Step 1: Make sure the hardware switch on the DIR-505 is under ‘Router/AP’ mode. Wait for the LED
light to turn green before accessing the router.
Step 2: Look for the Configuration Note that comes with DIR-505 Packaging box. On your PC, search
for the Wi-Fi Name (SSID) and enter the Password that is written on the Configuration Note.
Switch to Router/AP mode
Green LED
-9-
FAQ : How To Manually Configure Access Point Mode on DIR-505 - Version 1.00
Note: The Wi-Fi Name (SSID) and Password is also available on the product sticker of your
DIR-505.
Step 3: After connected successfully to the Wi-Fi Name (SSID). Open browser, type in
http://dlinkrouter or http://192.168.0.1 (Default IP Address of DIR-505) to enter the DIR-505
configuration page. If you have changed the IP Address of DIR-505, please login with the IP Address
that you have configured.
Default password is blank. Please enter your password if you have changed it. Click Log In.
-10-
FAQ : How To Manually Configure Access Point Mode on DIR-505 - Version 1.00

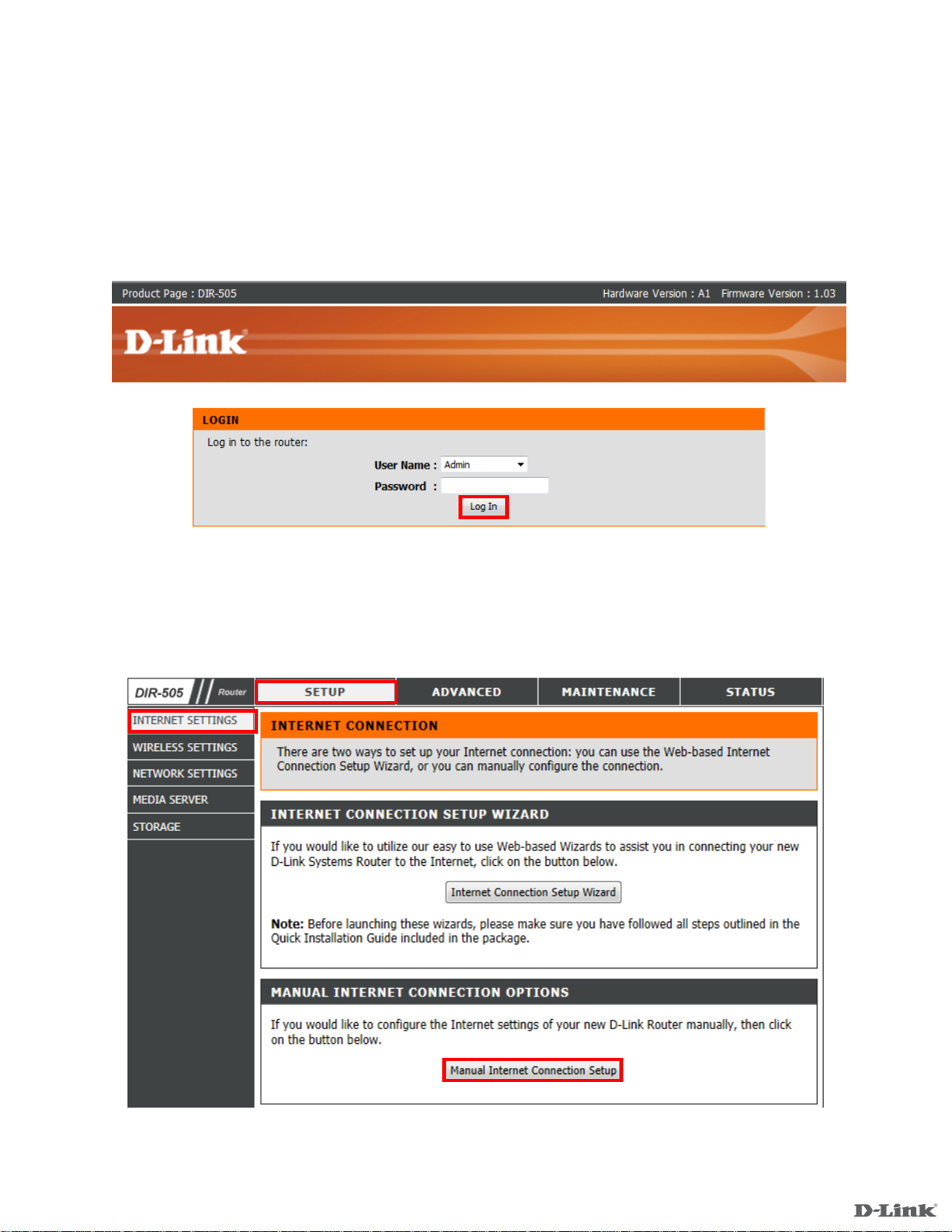

Step 4: Go to SETUP>INTERNET SETTINGS. Click on ‘Manual Internet Connection Setup’
button.
Step 5: Change the Operation Mode to ‘Access Point’. Click ‘Save Settings’. DIR-505 will reboot.
Wait for the LED light to turn green.
