D-Link DAP-1325 Manual de usuario

DAP-1325

Quick Install Guide

N300 Wi-Fi Range Extender

2DAP-1325 Install Guide

Package Contents

DAP-1325 N300 Wi-Fi Range Extender

Wi-Fi Conguration Card

Quick Install Guide

If any of the above items are missing, please contact your reseller.

• Make sure the area that you want to plug the extender into has a

strong connection to your router. Use a wireless laptop, tablet, or

mobile phone in that area to test the connection to verify.

• If your wireless router or access point does not support WPS, follow

the steps under Congure the DAP-1325 Using a Web Browser to

connect to the DAP-1325 and run the Setup Wizard. If you are not

sure how to enable WPS on your wireless router, please refer to your

router’s user manual.

Before You Begin

DAP-1325 Install Guide 3

Product Overview

LED Color Status Description

Status LED

Red Solid The device is powering on.

Amber Blinking The device is ready but not connected to a router.

Green

Solid Indicates that the DAP-1325 is securely connected

to your wireless router or access point.

Blinking The WPS button has been pushed and the device is

processing a connection.

Status LED

Signal

Strength

Indicators

Reset Button

WPS Button

Ethernet Port

Signal Strength Indicators

Very Weak (Amber)

Weak (1 x Green)

Good (2 x Green)

Strong (3 x Green)

4DAP-1325 Install Guide

Connect to Your Router

Using WPS

1Find an available outlet near your wireless router.

Plug in the DAP-1325 and wait until the Status

LED is blinking amber.

2Press the WPS (Wi-Fi Protected Setup) button

on your wireless router.

Within one minute, press the WPS button on

the DAP-1325. The Status LED will start to blink.

DAP-1320

WPS

DAP-1325 Install Guide 5

4When the Status LED turns solid green, this indicates that the DAP-1325 is

securely connected to your wireless router or access point. You can now unplug

and move the DAP-1325 to a location between your wireless router and the

area that you need wireless coverage.

If the signal strength indicators are showing one single

amber bar or if the DAP-1325 is not connecting, move

the DAP-1325 to a wall outlet closer to your wireless

router or access point.

6DAP-1325 Install Guide

Connect Your Wireless Devices

6Your device is now connected to the DAP-1325 and can connect to your wireless

router. If you want to change your network settings, password, etc., follow the

steps on the next page to congure the DAP-1325. To connect additional

devices, repeat step 5.

Your setup is complete!

Extended network

Original network

From your wireless device go to the Wireless Utility to display the available

wireless networks.

The SSID on the DAP-1325 will automatically be assigned the following:

• 2.4GHz (Your Router’s SSID)-EXT

The Wi-Fi password for the DAP-1325 will be the same as your router.

Repeat step 5 to connect additional Wi-Fi devices to the DAP-1325.

DAP-1325 Install Guide 7

Congure the DAP-1325

Using a Web Browser

Wi-Fi Name(SSID):

dlink-2c19

Wi-Fi Password:

gccnu80856

Web browser link:

http://dlinkap2c19.local.

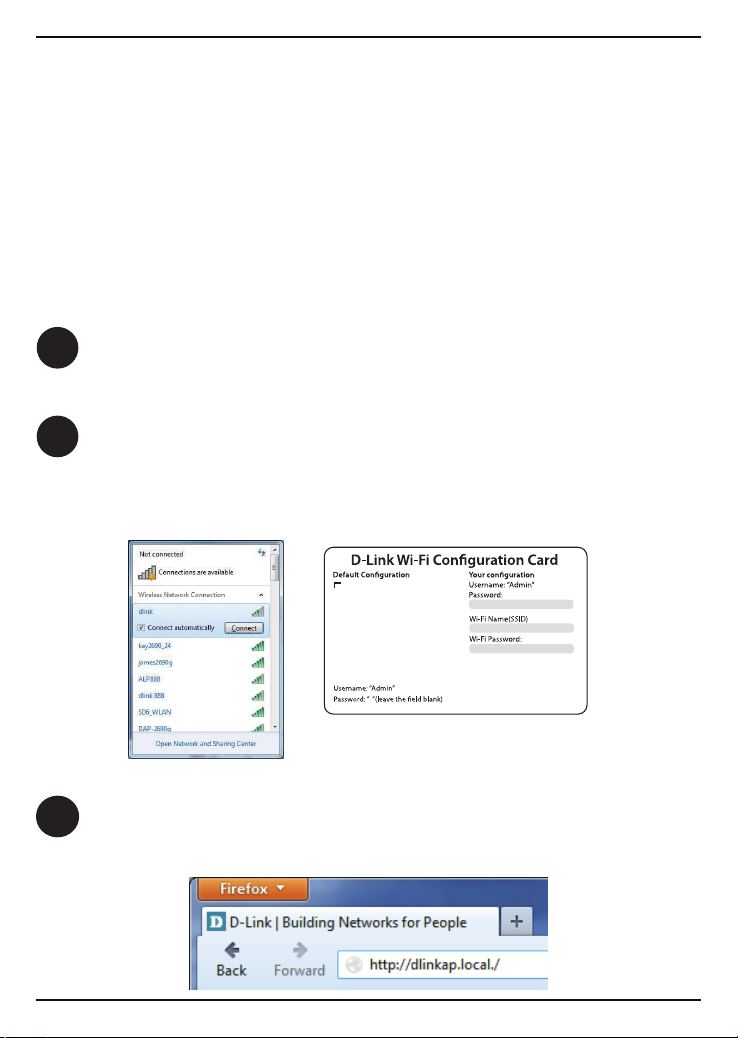

Open the wireless utility on your wireless device or computer. Select the Wi-Fi

Network name (from theWi-Fi Conguration Card) and enter the password.You

may also connect the DAP-1325 to your router or computer using an Ethernet

cable.

You may log into the web-based conguration utility on the DAP-1325 to perform the

following tasks:

• Upgrade rmware

• Change wireless and network settings

• Change the login password

1Plug the DAP-1325 in an available outlet near your router. You may move it to a

more suitable location after conguration.

Open a web browser (e.g. Internet Explorer, Firefox, Safari, Chrome) and enter

http://dlinkap.local./. You may also enter the IP address of the DAP-1325.

8DAP-1325 Install Guide

Once you connect, the login page will appear. Enter your password and click

Note: If this is the rst time logging in to the DAP-1325, you will be directed to the

Wizard automatically. Skip to step 6.

Note: The default IP address is 192.168.0.50. Once the DAP-1325 connects to your

router, it will get assigned a new IP address based on your router’s DHCP settings.

You will need to log in to your router and view the DHCP table to see what IP address

wasassignedtothe DAP-1325.The MACaddressis printed on thelabelon the device.

The home page will display your current status. A green check mark represents

a successful connection to your wireless router or Access Point. A red X means

there is not a connection to your router or access point. Click the Uplink Router

icon.

DAP-1325 Install Guide 9

Select your language from the drop-down menu and then click Next.

The WPS process will be started on the DAP-1325 automatically. Press the WPS

button on your wireless router or access point.

If you want to manually select the wireless network you want to extend, click

Wi-Fi and go to the next page. If you want to connect the DAP-1325 to a wired

network using an Ethernet cable, click Ethernet and skip to page 11.

10 DAP-1325 Install Guide

A list of detected wireless networks within range of the DAP-1325 will appear.

Click on the network you want to extend. If you want to manually type in the

Wi-Fi network name (SSID), click Manual at the bottom.

If your wireless network is secure/encrypted, enter the Wi-Fi password and

click Next to continue.

If you clicked“Wi-Fi”

If you clicked Manual, enter the SSID and security information (Wi-Fi password)

of the wireless network you want to extend and click Next to continue.

Skip to page 12 to continue
