DWL-G710 Wireless Range Extender

CD-ROM with Manual

Ethernet (CAT5e UTP/Straight-Through) Cable

If any of the above items are missing, please contact your reseller.

Using a power supply

with a different voltage

ratingwilldamageandvoidthe

warrantyofthis product.

It’s best to use a computer (with an Ethernet adapter) that is connected to a switch for

configuringtheDWL-G710.ThedefaultIPaddressfor theDWL-G710is192.168.0.30 with

a Subnet Mask of 255.255.255.0. You will need to assign your computer a Static IP

addresswithinthesamerangeastheDWL-G710’sIPaddressforthepurposeofconfiguring

the DWL-G710. See the Manual on the CD-ROM if you need assistance in assigning a

Static IP address for your network adapter.

Softwareandspecificationssubjecttochange without notice.DWL-G710.09132004

Connecting The DWL-G710 WirelessConnecting The DWL-G710 Wireless

Connecting The DWL-G710 Wireless

RanRan

Rangg

ge Extene Exten

e Extene Exten

e Extendd

der Ter T

er Ter T

er To Yo Y

o Yo Y

o Your Nour N

our Nour N

our Networketwork

etworketwork

etwork

A. Connect the power adapter tothe receptor on the rear panel ofthe DWL-G710 and

then plug the other end of the power adapter to a wall outlet or power strip. The

PowerLED will turnON to indicate proper operation.

B. UsingaEthernetcable,insert one end of thecabletotheLAN port on the rear panel

oftheDWL-G710and the other end ofthecableto a switch. Note:Youalso have the

option of connecting the DWL-G710 directly to the computer that will be used for

configuration.TheLinkLEDlightwillilluminatetoindicateaproperEthernetconnection.

C. Computers with 802.11g wireless adapters such as the DWL-G630 AirPlus™G

WirelessCardbusAdapterandtheDWL-G510AirPlus™GWirelessPCIAdaptercan

connectto theDWL-G710.

C.Antenna

Usedtowirelesslyconnect

to802.11g networks.

B.LAN Port

This is the connection for

Ethernet cables to your

Ethernet-enableddevice.

A.Receptorfor

Power Adapter

Reset Button

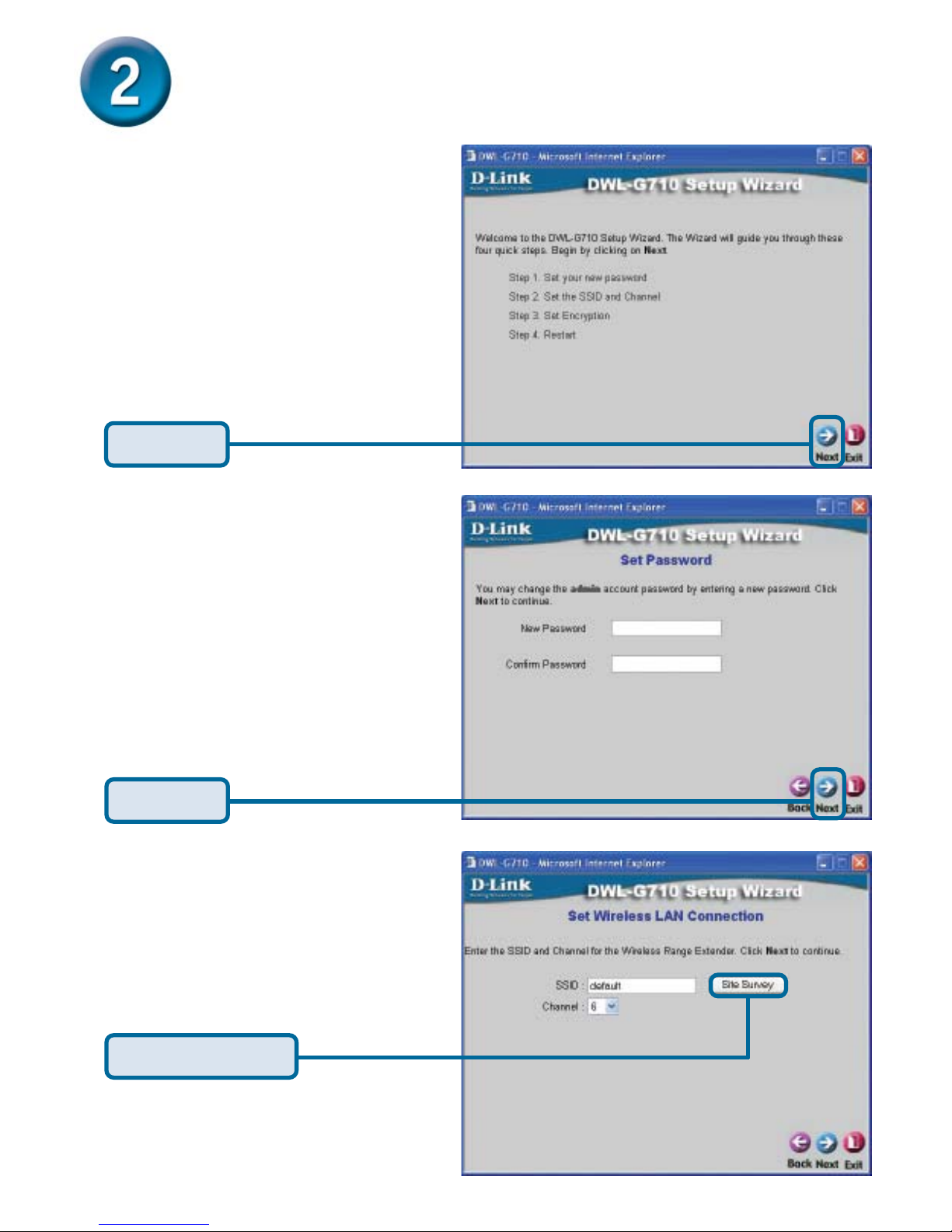

Using The Setup WizardUsing The Setup Wizard

Using The Setup Wizard

Open your Web

browser and type

http://192.168.0.30

intothe URL address

box. Then press the

Enter or Return key.

The logon pop-up screen

willappear.

Type admin for the

usernameandleavethe

passwordfieldblank.

Click OK

Onceyou havelogged in, the

Home screen will appear.

Click Run Wizard

Click Next

Set up your new password.

You have the optionto establish

apassword.

Set Wireless LAN Connection

By default the DWL-G710 SSID

is set to default with a Channel

setting of 6. Site Survey will

displayexisting deviceson your

wirelessnetwork.

Using The Setup Wizard (continued)Using The Setup Wizard (continued)

Using The Setup Wizard (continued)

You will see the

followingscreens.

Click Next

Click Site Survey

Site Survey

The Site Survey will display the

available SSID’s on your wireless

network.

ClickConnect

Click Next

Using The Setup Wizard (continued)Using The Setup Wizard (continued)

Using The Setup Wizard (continued)

Encryption

The DWL-G710 is capable of two

levelsofwireless encryption 64-bit

and128-bit.By defaultencryption

is disabled. You can change the

encryptionsettingstoenablemore

secure wireless communication.

Keysmay beentered in HEX (0-9,

A-F)orASCIIformat.Selectthekey

type and size you wish to use and

enterthe keyin the field provided.

Set Wireless LAN Connection

TheSSIDandChannelshouldnow

be set to the same settings as the

SSID that you selected.

Click Next

Click the radio button next to

theSSIDofthewirelessnetwork

whosesignalyouwishtorepeat.

Your Setup is Complete!our Setup is Complete!

our Setup is Complete!our Setup is Complete!

our Setup is Complete!

When you have completed the steps in this Quick Installation Guide,your connected

network should look similar to this:

Using The Setup Wizard (continued)Using The Setup Wizard (continued)

Using The Setup Wizard (continued)

ClickRestart

You will be returned to the Home tab. Please close all Internet browser windows.

Connecting to the DWL-G710Connecting to the DWL-G710

Connecting to the DWL-G710

UsingtheAirPlus™GWireless

Utillity included with the

AirPlus™G adapters, you can

browse and connect to the

DWL-G710.

The Link Info page of the

AirPlus™G utility will showthe

connectionstatusbetweenthe

DWL-G710 and AirPlus™G

wirelessadapter.

TheMACaddress of the DWL-G710islisted on the productstickeron the bottom

ofthe unit.Youshouldsee more than oneavailable device usingthe same SSID.

Selectthe DWL-G710 by selecting the MAC addressfrom the bottom of theunit.

Techniechni

echniechni

echnical Supportcal Support

cal Supportcal Support

cal Support

You can find software updates and user documentation on the D-Link website.

D-Linkprovides free technical support for customers withinthe United Statesand

withinCanada for the duration ofthe warranty period on thisproduct.

U.S. and Canadian customers can contact D-Link technical support through our

website,or byphone.

Tech Support for customers within the United States:

D-Link Technical Support over the Telephone:

(877)453-5465

24 hours a day, seven days a week.

D-Link Technical Support over the Internet:

http://support.dlink.com

email:[email protected]

Tech Support for customers within Canada:

D-Link Technical Support over the Telephone:

(800)361-5265

Monday to Friday, 7:30am to 12:00am EST

D-Link Technical Support over the Internet:

http://support.dlink.ca

email:[email protected]
