D-Link DWL-G520M Manual de usuario
DWL-AG700AP Install Guide
High-Gain Indoor Antenna
DWL-AG700AP Install Guide
DWL-AG700AP Install Guide
Version 1.0
DWL-G520M
Wireless 108G MIMO Desktop Adapter
2 D-Link Systems, Inc.
DWL-G520M Install GuideSystem Requirements
System Requirements
Minimum System Requirements:
A desktop computer with an available 32-bit PCI slot
At least 500MHz processor and 64MB of memory
An 802.11g Access Point (for Infrastructure mode)
Manual and
Software on CD
D-Link DWL-G520M
Wireless 108G MIMO
Desktop Adapter
Package Contents
D-Link Systems, Inc. 3
DWL-G520M Install Guide Hardware Overview
Hardware Overview
This is the connector that
fi ts into the PCI slot on your
computer’s motherboard.
32-bit connector
Used to wirelessly connect
to WiFi networks.
Smart Antenna
Indicates that the adapter
is properly installed when
the computer is on and
blinks when data is being
transmitted.
Link/Activity LED
4D-Link Systems, Inc.
DWL-G520M Install GuideDriver Installation
Turn on the computer and insert the D-Link DWL-G520M Driver
CD in the CD-ROM drive. The installation Wizard will automatically
appear.
Installing the Drivers
The step-by-step instructions that follow are shown in Windows XP.
The steps and screens are similar for the other Windows operating
systems.
Do NOT install the DWL-G520M Wireless 108G MIMO Desktop
Adapter into your computer before installing the driver software
from the D-Link CD!
Click Install Drivers
Click Next
If the Installation Wizard does not automatically start on your computer,
type “D:\Drivers\setup.exe.” If the Wizard does start, proceed to the
next screen.
D-Link Systems, Inc. 5
DWL-G520M Install Guide Driver Installation

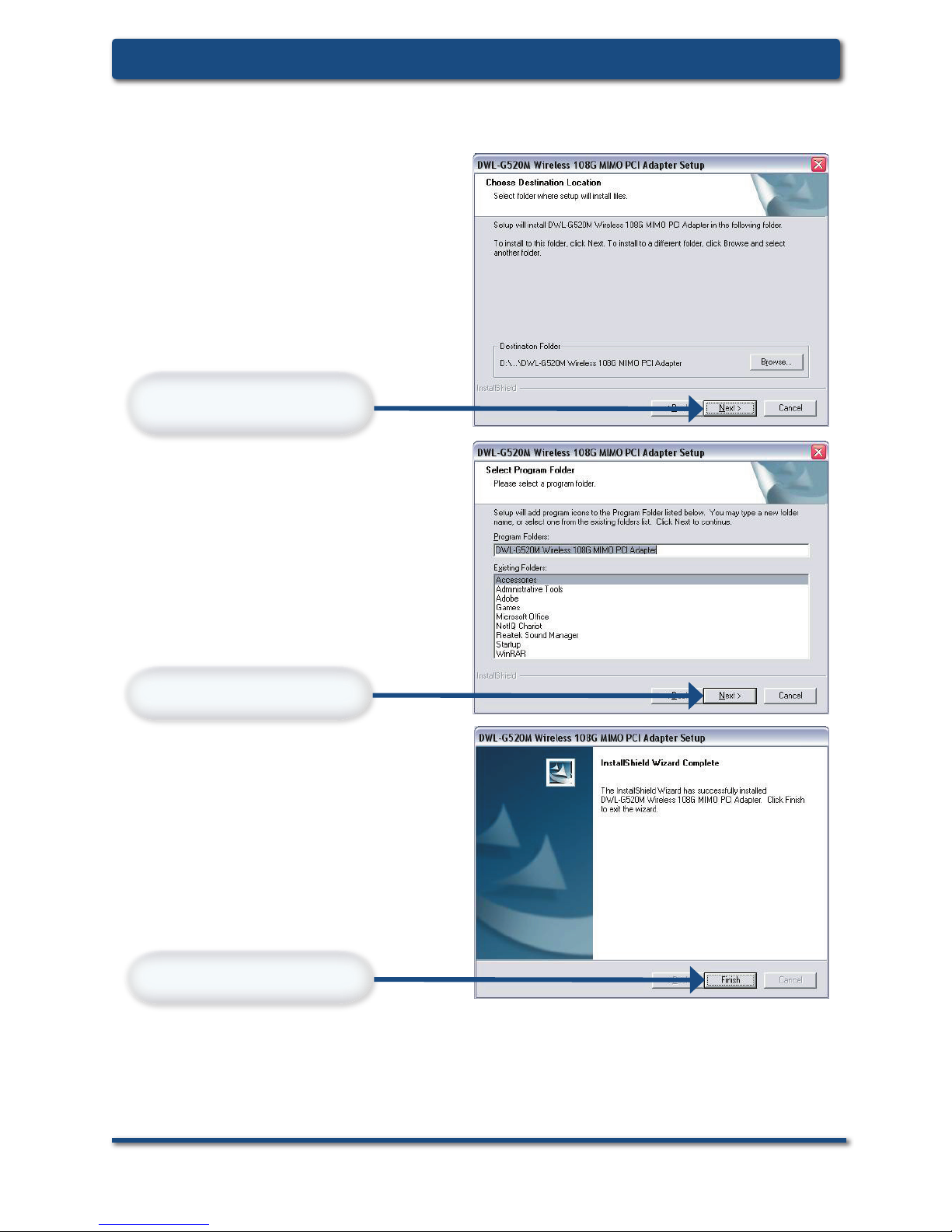

Installing the Drivers (continued)
Click Next
Click Finish
Click Next
Select “No, I will restart my computer later” and click Finish. Shut
down your computer and unplug its power cable. Remember to leave
the DWL-G520M Driver CD in the CD-ROM drive.
6D-Link Systems, Inc.
DWL-G520M Install GuideHardware Installation

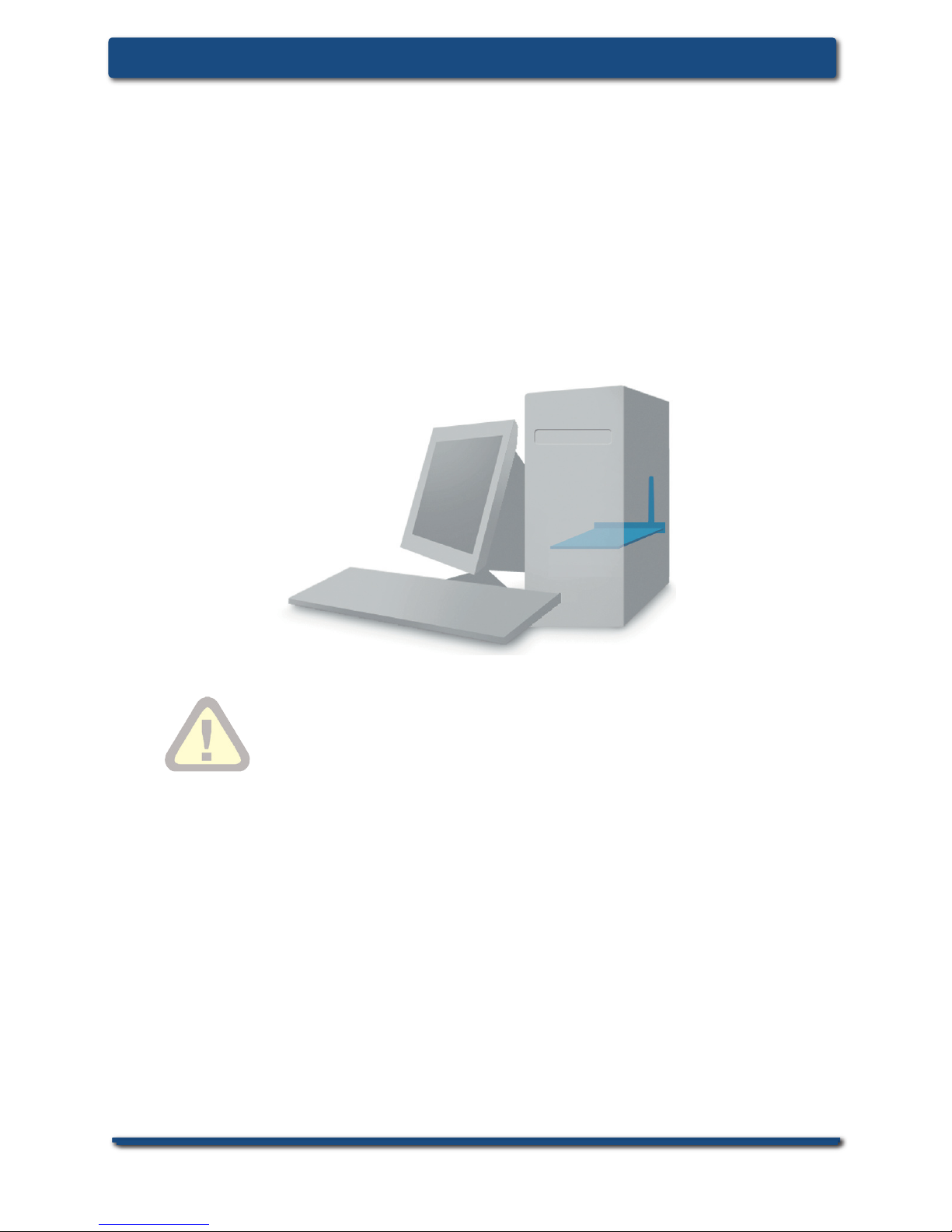

To avoid damage caused by static electricity, make sure to
properly ground yourself, by fi rst touching a metal part of your
computer to discharge any static electricity, before working
with the DWL-G520M Wireless PCI Adapter.
A. Make sure to turn off the computer and unplug the power
cord.
B. Remove the back cover of the computer.
C. Install the DWL-G520M carefully and fi rmly seat it into an
available PCI slot (which is usually white or cream colored).
Installing the DWL-G520M
D. Secure the DWL-G520M back panel shield with a screw.
E. Replace the computer’s cover.
F. Place the computer back in its normal position.
D-Link Systems, Inc. 7
DWL-G520M Install Guide Hardware Installation
Click Next
Select Install the
software automatically
(Recommended).
Click Continue Anyway.
Click Finish to complete
the installation.
Restart your Computer
When you restart your computer this Found New Hardware Wizard
screen will appear.
8D-Link Systems, Inc.
DWL-G520M Install GuideHardware Installation
If the utility icon does not
appear, double-click the
shortcut icon that has
appeared on your desktop.
After completing the Found New Hardware Wizard, the Confi guration
Utility will automatically start and the utility icon will appear in the
bottom right hand corner of the desktop screen (system tray). If
this icon appears GREEN, then you have successfully installed the
DWL-G520M, are connected to a wireless network, and are ready
to communicate!
Your Installation is Complete!
Double-click the utility icon to
use the confi guration utility.
D-Link Systems, Inc. 9
DWL-G520M Install Guide Using the Confi guration Utility
For Windows XP, if you wish to use the Wireless 108G MIMO utility,
please do the following:
Using the Utility in Windows XP
Click the XP networking
icon to use the Zero
Confi guration Wireless
Settings.
Click Advanced.
Uncheck Use Windows
to confi gure my wireless
network settings.
Click OK.
10 D-Link Systems, Inc.
DWL-G520M Install GuideUsing the Confi guration Utility
Using the Confi guration Utility
Status: Displays the MAC Address of the access point or wireless router
that is associated with the DWL-G520M.
SSID: Displays the Service Set Indentifier assigned to the wireless
network.
Profi le Name: Displays the current profi le being used.
Tx Rate: Displays the current data transmission rate.
Channel: Displays the channel information.
Signal Quality: Represents the wireless signal quality between the access
point and the DWL-G520M. The percentage coincides with the graphical
bar.
Signal Strength: Represents the wireless signal strength between the
access point and the DWL-G520M. The percentage coincides with the
graphical bar.
Data Rate: Graphically displays the statistics of data transmitted and
received.
