D-Link DFE-530TX+ Manual de usuario
Contents of Package:
Contents of Package:Contents of Package:
Contents of Package:
DFE-530TX+ Fast Ethernet Adapter
Quick Install Guide
CD-ROM, which includes driver software
If any of the above items are missing, please contact your reseller.
Pre
PrePre
Pre-
--
-installation Procedures:
installation Procedures:installation Procedures:
installation Procedures:
If you have already installed the DFE-530TX+ into a PCI slot, advanced users may utilize the
“Add New Hardware Wizard” to manually specify the location of the driver on the CD-ROM.
Otherwise, we strongly recommend canceling the “Add New Hardware Wizard” and
instead using the “Install Drivers” program in the CD-ROM.
Here is quick summary of the proper installation procedure:
• Run the driver installation from the DFE-530TX+ CD-
ROM.
• Turn Off the computer and install the DFE-530TX+ into
the PCI slot.
• Restart the computer to complete the installation.
Installing the DFE
Installing the DFEInstalling the DFE
Installing the DFE-
--
-530TX+ Drivers
530TX+ Drivers530TX+ Drivers
530TX+ Drivers
• Turn ON the computer.

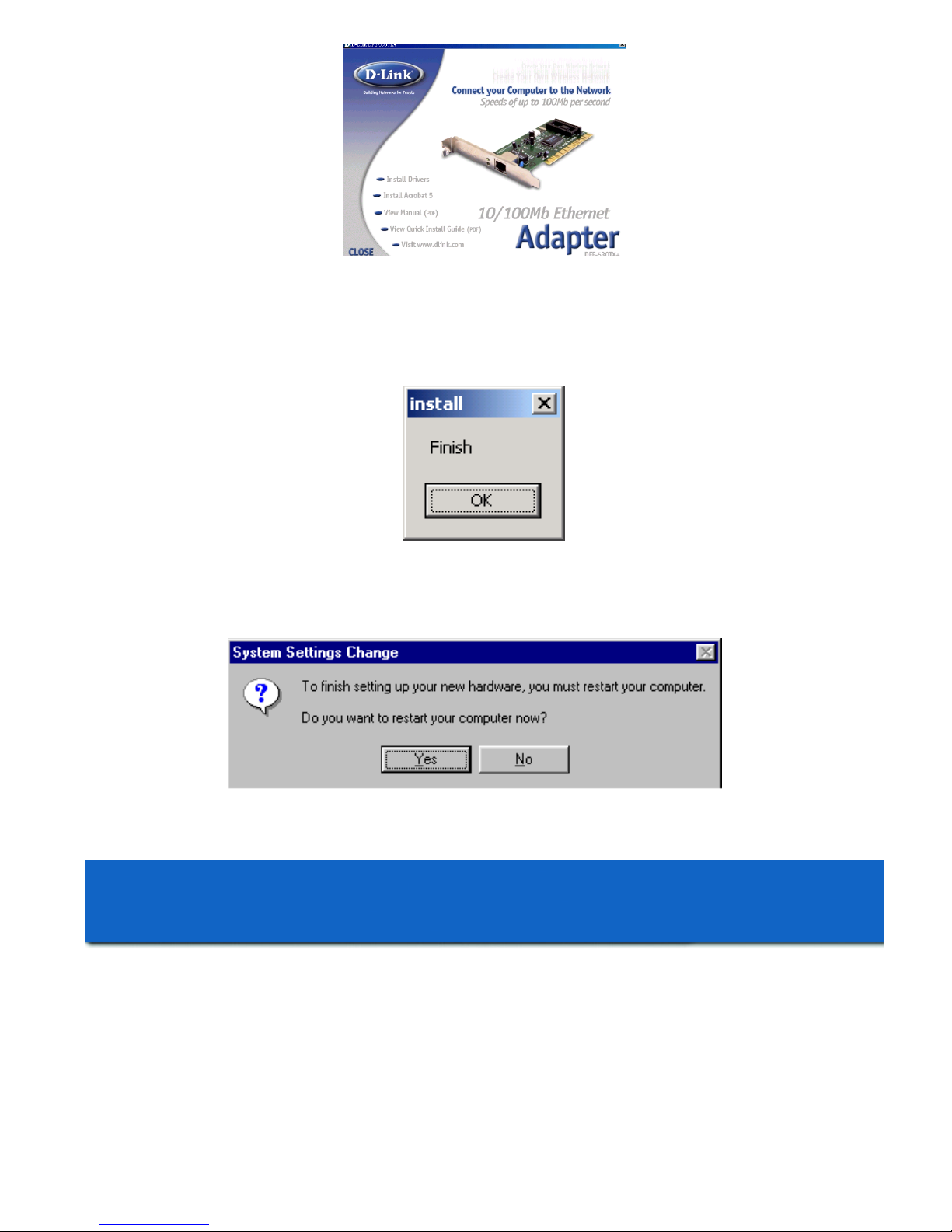

• Insert the driver CD, which is included with the
DFE-530TX+, into the CD-ROM drive. The
following window will appear.
DO NOT insert the DFE
DO NOT insert the DFEDO NOT insert the DFE
DO NOT insert the DFE-
--
-530TX+ into the computer’s PCI
530TX+ into the computer’s PCI530TX+ into the computer’s PCI
530TX+ into the computer’s PCI
slot before installing the dri
slot before installing the drislot before installing the dri
slot before installing the drivers.
vers.vers.
vers.
Click on “Install Drivers.”
For Windows 2000 and Windows ME users, the following screen will appear.
Click OK
For Windows 98/98SE users, this screen will be displayed.
Click No
N
ex
t
,
TURN
OFF
th
e compu
t
er an
d
N
ex
t
,
TURN
OFF
th
e compu
t
er an
dN
ex
t
,
TURN
OFF
th
e compu
t
er an
d
N
ex
t
,
TURN
OFF
th
e compu
t
er an
d
unplug the power cord.
unplug the power cord.unplug the power cord.
unplug the power cord.
Installing the DFE
Installing the DFEInstalling the DFE
Installing the DFE-
--
-530TX+ into the
530TX+ into the530TX+ into the
530TX+ into the
computer’s PCI slot
computer’s PCI slotcomputer’s PCI slot
computer’s PCI slot
DFE-530TX+ into the c
Note: To avoid static electric charges, please touch an unpainted screw on the
outside of the power supply before installing or working with the DFE-530TX+.
• Turn off your computer and unplug the power cord.
• Remove the back cover of your computer. (Refer to your computer’s manual
if needed.)
• Locate an available PCI slot. PCI slots are usually white or cream colored.
• Remove the backplate (the small piece of metal that covers the opening for the
PCI card on the back cover that you just removed.)
• Insert the DFE-530TX+ carefully and firmly into the PCI slot.
• Secure the DFE-530TX+ with the screw from the backplate.
• Replace your computer’s cover.
Finishing the Installation
Finishing the InstallationFinishing the Installation
Finishing the Installation
• TURN ON the computer.
For Windows 98/98SE and Windows ME users, the following screen will appear.
Click Yes, to restart the computer.
For Windows 2000 users, this screen will be displayed.
Click Yes, to complete the installation.
(Note: Windows 2000 will not require a restart.)
Checking the Installation
Checking the InstallationChecking the Installation
Checking the Installation
• Go to START>RUN.
• Type “winipcfg.” (In Win2000, type “ipconfig/all.”) In
some cases it may be necessary to “Release and Renew” the
IP address. Make sure to select the DFE-530TX+ as the
specified adapter in the pull down menu.
• If the IP address belongs to the same IP range and subnet
mask as the local network, then open the web browser and
test the Internet connection.
CONTACTING TECHNICAL SUPPORT
CONTACTING TECHNICAL SUPPORTCONTACTING TECHNICAL SUPPORT
CONTACTING TECHNICAL SUPPORT
You can find the most recent software and user documentation on the D-
Link website.
D-Link provides free technical support for customers
within the United States for the duration of the warranty
period on this product.
U.S. customers can contact D-Link technical support
through our web site, e-mail, or by phone.
United States technical support is available Monday
through Friday from 6:00 a.m. to 6:00 p.m. (PST.)
Web:
http://www.dlink.com
Email:
support@dlink.com
Phone:
949-788-0805 (option #4)
If you are a customer residing outside of the United States,
please refer to the list of D-Link locations that is included
in the User’s manual.
Building Networks for People
Printed in Taiwan
