D-Link DPE-101GI Manual de usuario





QUICK

INSTALLATION

GUIDE

INSTALLATIONSANLEITUNG

GUIDE D’INSTALLATION

GUÍA DE INSTALACIÓN

GUIDA DI INSTALLAZIONE



ENGLISH

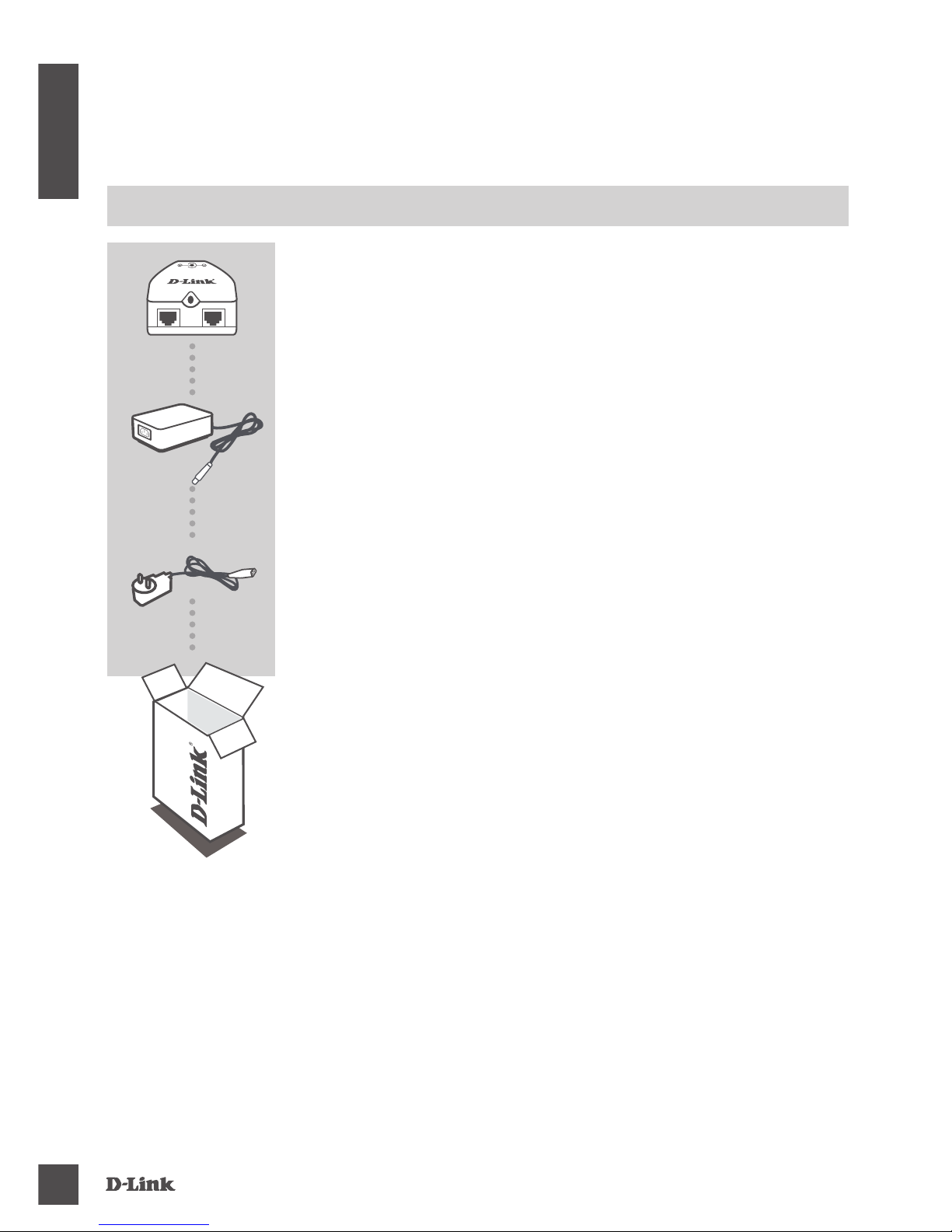

CONTENTS OF

PACKAGING

GIGABIT PoE INJECTOR

DPE-101GI

POWER ADAPTER

ADAPTER

POWER CORD X2

CONNECT THE ADAPTER TO A POWER OUTLET

If any of these items are missing from your packaging, contact

your reseller.

Warning: Please check the maximun power consumption of

your PoE device before connecting to DPE-101GI. Devices that

require more than 16 watts, may cause damage to the

DPE-101GI.

 3

ENGLISH

PRODUCT

SETUP



CONNECT TO POWER

CONNECT TO ROUTER/SWITCH/COMPUTER

CONNECT TO POWERED DEVICE

Power Outlet Power Adapter DPE-101GI

Switch Router

DPE-101GI

IP Camera

PoE Device

Access Point

DPE-101GI

Computer

Data In Port

P+DATA Out Port



ENGLISH

TROUBLESHOOTING



1. MY PoE DEVICE WILL NOT POWER ON OR THE CONNECTION IS UNSTABLE, EVEN

THOUGH POWER IS BEING SUPPLIED TO THE DPE-101G1?

- DPE-101GI supports up to 19.2 watts to Powered Device, however, the quality and length of the

Ethernet cable may impact the reception of the PoE power. Generally speaking, with standard

CAT.5e cable, the DPE-101GI can provide 16 watts for distances of up to 100 meters.

- DPE-101GI supplies power via pins 4, 5, 7, 8. Some legacy cables have only 4 pins 1, 2, 3, 6

that cannot deliver PoE power.

- Some PoE devices have multiple LAN ports, and not all LAN ports support PoE function. Please

ensure that the device is connected to the correct port.

2. MY PoE DEVICE DOES NOT HAVE A GIGABIT PoE PORT. CAN THE DPE-101GI SUPPLY

POWER TO MY DEVICE?

- Yes, both the Data Port and P+Data Port of the DPE-101GI comply with the IEEE802.3/3u/3ab

standard, and support 10/100/100M auto speed negotiation.



United Kingdom (Mon-Fri) website: http://www.dlink.co.uk FTP: ftp://ftp.dlink.co.uk

Home Wireless/Broadband 0871 873 3000 (9.00am–06.00pm, Sat 10.00am-02.00pm)

Managed, Smart, & Wireless Switches, or Firewalls 0871 873 0909 (09.00am- 05.30pm)

(BT 10ppm, other carriers may vary.)

Ireland (Mon-Fri)

All Products 1890 886 899 (09.00am-06.00pm, Sat 10.00am-02.00pm)

Phone rates: €0.05ppm peak, €0.045ppm off peak times



NOTES



UK www.dlink.co.uk

IRELAND www.dlink.ie

GERMANY www.dlink.de

FRANCE www.dlink.fr

SPAIN www.dlink.es

ITALY www.dlink.it








