D-Link DHP-P600AV Manual de usuario

User Manual

DHP-P600AV

Version 2.0 | 12/09/2016

PowerLine AV2 1000 Gigabit Passthrough Adapter

2D-Link DHP-P600AV

D-Link reserves the right to revise this publication and to make changes to the content herein without obligation to notify any

person or organization of such revisions or changes.

Manual Revisions

Trademarks

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United

States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of

their respective companies.

from D-Link Corporation, Inc.

Revision Date Description

1.0 March 16, 2015 • Initial release for hardware revision A1

2.0 July 06, 2016 • change product image to B1

Preface

3D-Link DHP-P600AV

Table of Contents

Product Overview..............................................................4

Package Contents...............................................................4

System Requirements........................................................4

Introduction.........................................................................5

Features................................................................................5

Hardware Overview ...........................................................6

LEDs...........................................................................................6

Connection .............................................................................7

Hardware Installation .......................................................8

Push Button Security .........................................................9

PowerLine Installation Considerations........................ 12

Important Safety Instructions....................................... 13

Troubleshooting..............................................................14

Technical Specications..................................................15

Regulatory Statements ...................................................16

4D-Link DHP-P600AV

Section 1 - Product Overview

DHP-P600AV

• D-Link DHP-P600AV PowerLine AV2 1000 Gigabit Passthrough Adapter

• Ethernet Cable

• Quick Install Guide

System Requirements

• Windows® 8, 7, Vista®, or XP®(with Service Pack 3)

• Ethernet network interface (10/100/1000 Mbps)

• PC with 1.5 GHz Processor

• 1 GB memory

Product Overview

Package Contents

5D-Link DHP-P600AV

Section 1 - Product Overview

Introduction

The DHP-P600AV is a fast, 1000 Mbps1PowerLine AV2 1000 Gigabit Passthrough Adapter which allows you to connect your

home computers, networking devices, and gaming devices through the most pervasive medium in your house - the electric

powerlines - and share Internet connections and printers, transfer les, play games, and more.2Its passthrough design includes

a noise lter to reduce interference, maximizing throughput and improving overall performance.

Features

• Provides Ethernet to PowerLine Connection

• Fast Data Transfer Rate of Up to 1000 Mbps1

• One Gigabit Ethernet Port

• Plug & Play, Easy Installation

• Push Button Security

• Passthrough Design

6D-Link DHP-P600AV

Section 1 - Product Overview

Hardware Overview

LEDs

Ethernet LED

• Solid. The Ethernet port is linked.

• O. There is no Ethernet connection.

Powerline LED

• Solid. The device is connected to a PowerLine network.

• Off. The device has not found any other compatible

PowerLine devices using the same encryption key.

The color indicates the PowerLine link rate:

• Green. The PowerLine link rate is excellent.

• Amber. The PowerLine link rate is good.

• Red. The PowerLine link rate is fair.

Power LED

• Solid. The device is receiving electrical power.

• Blinking. The device is under power saving mode or

simple connect button was pressed.

• O. The device is not receiving electrical power.

7D-Link DHP-P600AV

Section 1 - Product Overview

Hardware Overview

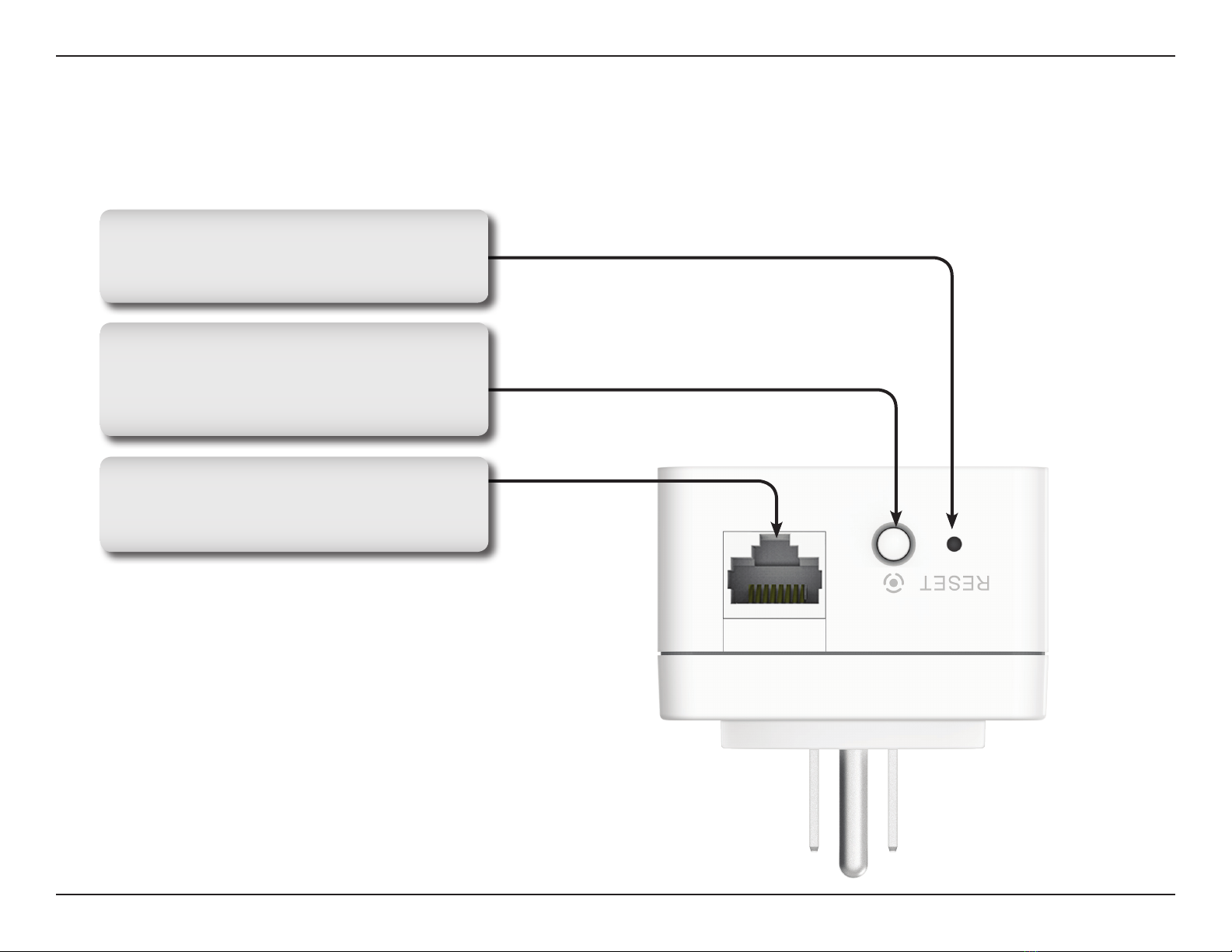

Connection

Simple Connect Button

Press to secure your network. Refer to

“Push Button Security” on page 9 for

more information.

Gigabit Ethernet Port

Connect a CAT5 Ethernet cable to your

PC or Ethernet device.

Reset Button

Press and hold the button for 5 seconds

to reset to the factory default settings.

8D-Link DHP-P600AV

Section 2 - Installation

Hardware Installation

Power

Plug the DHP-P600AV into an AC wall outlet or power strip.

Note:Power supply is conrmed when the Power LED on the DHP-P600AV is illuminated.

Connect the Ethernet Cable

Connect the included Ethernet cable to

the network cable connector located on

the DHP-P600AV and attach the other end

of the Ethernet cable to the network or PC.

Network connectivity is conrmed when

the Ethernet LED on the DHP-P600AV are

illuminated.

3ROOM A ROOM B

2ROOM B

1ROOM A

RouterInternet

DHP-P600AV

DHP-P600AV DHP-P600AV

RouterInternet

DHP-P600AV

9D-Link DHP-P600AV

Section 2 - Installation

Understanding PowerLine AV2 1000 Gigabit Passthrough Adapter Security

The PowerLine AV2 1000 Gigabit Passthrough Adapters on the same network must use an identical encryption

key. The default encryption key of each PowerLine AV2 1000 Gigabit Passthrough Adapter is HomePlugAV. All

PowerLine AV2 1000 Gigabit Passthrough Adapters with the default encryption key can communicate with each other.

It’s recommended to create a private encryption key for network security purpose. The private encryption key allows you to

protect your network from unauthorized access via the PowerLine network. To create a private encryption key instead of the

default encryption key, please follow the below steps:

1. All Adapters

Plug in all the adapters to be congured and make sure each device’s encryption key is set to HomePlugAV (default value).

If the encryption key is not set to the default value, press the reset button for 5 seconds to reset it to the default value.

2. First Adapter

Press Simple Connect Button of the rst adapter for no more than three seconds.

The Power LED will start blinking after you release the button. The adapter will create a private, randomly generated

encryption key that each PowerLine AV2 1000 Gigabit Passthrough Adapter will use.

Push Button Security

10D-Link DHP-P600AV

Section 2 - Installation

3. Second Adapter

Within two minutes of pushing the Simple Connect Button on the rst adapter, press the Simple Connect Button on second

adapter in your PowerLine network for no more than three seconds. The Power LED will start blinking after you release the

button.

Note: Both Simple Connect Buttons must be pressed within two minutes.

After the above network security setup steps, your PowerLine network will be securely congured with the same network

encryption key. The adapters will memorize the security settings even if they are unplugged.

Note: To change the private encryption key, please reset the adapter back to its default value by pressing the reset button

for 10 seconds and then follow the security setup procedure above.

4. Adding More Adapters

If you would like to add more than two adapters, press the Simple Connect Button of the additional adapter for no more

than three seconds. The Power LED will start blinking after you release the button.

Then press the Simple Connect Button of any adapter in your existing PowerLine network for no more than three seconds.

The Power LED will start blinking after you release the button.

Note: Both Simple Connect Buttons must be pressed within two minutes.

After the above network security setup steps, your PowerLine network will be securely congured with the same network

encryption key.
