D-Link DFE-538TX Manual de usuario

Contents of Package:

Contents of Package:Contents of Package:

Contents of Package:

DFE-538TX Fast Ethernet Adapter

Quick Install Guide

CD-ROM, which includes driver software

If any of the above items are missing, please contact your reseller.

Installing the DFE

Installing the DFEInstalling the DFE

Installing the DFE-

--

-538TX into the

538TX into the538TX into the

538TX into the

computer’s PCI slot

computer’s PCI slotcomputer’s PCI slot

computer’s PCI slot

Note: To avoid static electric charges, please touch an unpainted screw on the

outside of the power supply before installing or working with the DFE-538TX.

• Turn off your computer and unplug the power cord.

• Remove the back cover of your computer. (Refer to your computer’s manual if

needed.)

• Locate an available PCI slot. PCI slots are usually white or cream colored.

• Remove the backplate (the small piece of metal that covers the opening for the

PCI card on the back cover that you just removed.)

• Insert the DFE-538TX carefully and firmly into the PCI slot.

• Secure the DFE-538TX with the screw from the backplate.

• Replace your computer’s cover.

TURN OFF the

TURN OFF theTURN OFF the

TURN OFF the computer and

computer andcomputer and

computer and

unplug the power cord.

unplug the power cord.unplug the power cord.

unplug the power cord.

Installing the Drivers

Installing the DriversInstalling the Drivers

Installing the Drivers

• TURN ON the computer.

• Go to Settings>Control Panel>Network

Double-click on the Network icon.

At the “Network” window, click on the “Adapters” tab.

Click “Add”

Click on “Have Disk”

Type in the CD-ROM drive letter.

Click OK

-2-

Click OK

Click “OK” to accept the “Auto” speed mode. To choose a fixed speed

mode, make a selection from the “Speed/Duplex Mode” pull-down menu.

Click “OK” if you are not using IPX networking.

(Type the IPX network number into the “Network Address”

field, if you are using IPX networking.)

Click “OK” to accept default setting.

-3-

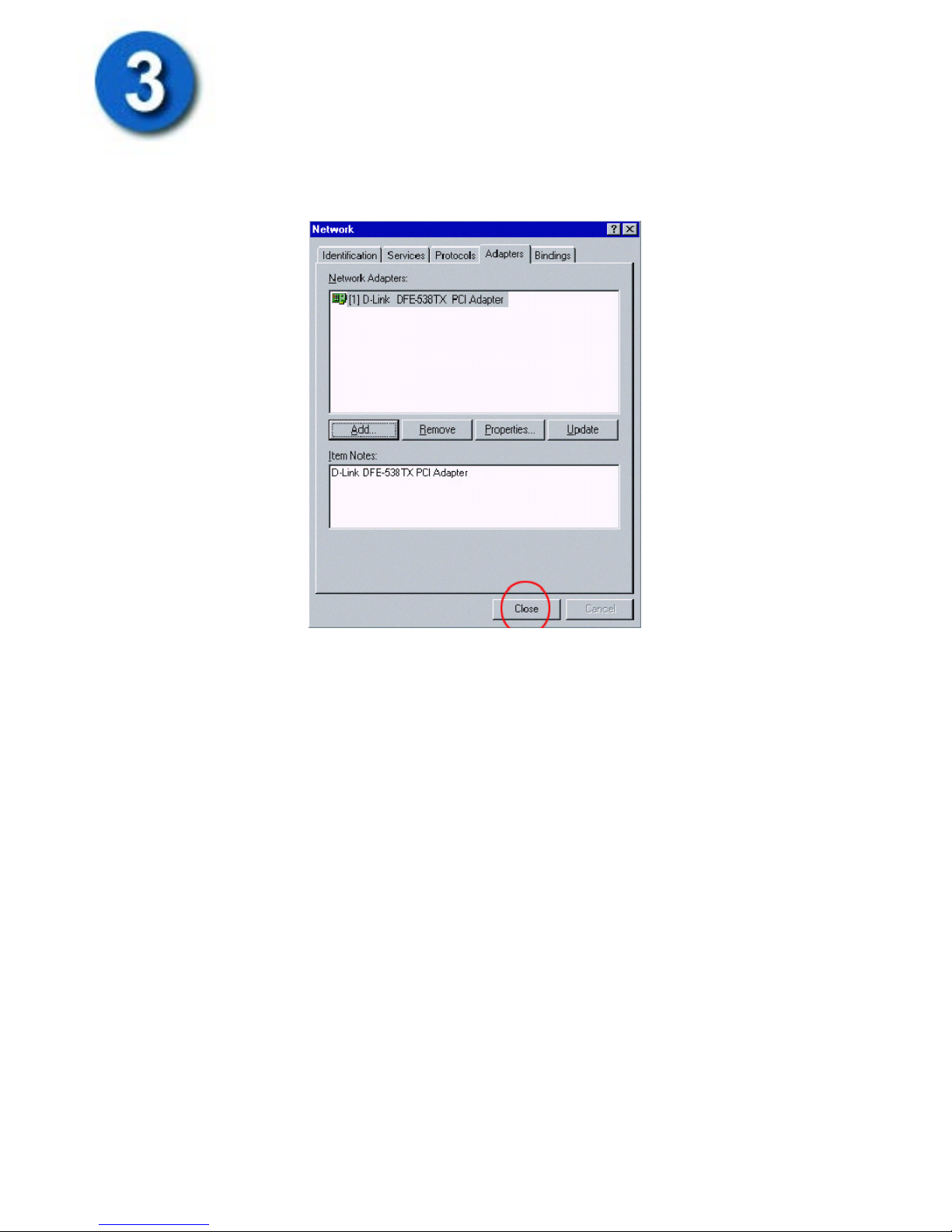

Checking the Installation

Checking the InstallationChecking the Installation

Checking the Installation

Go to Start>Settings>Control Panel

Double-click on the Network icon.

Under “Adapters,” check to see that the

“D-Link DFE-538TX PCI Adapter” is displayed.

Click “Close.” The installation is complete.

-4-
