D-Link DHP-P500AV Manual de usuario

USER MANUAL

DHP-P500AV/DHP-P501AV

VERSION 1.2

2D-Link DHP-P500AV/DHP-P501AV User Manual

Table of Contents

Product Overview ........................................................ 3

Package Contents ................................................... 3

Utility and System Requirements ............................3

Introduction .............................................................. 4

Features .................................................................. 4

EU type Hardware Overview ................................... 5

LEDs .................................................................. 5

Connection......................................................... 6

UK type Hardware Overview ................................... 7

LEDs .................................................................. 7

Connection......................................................... 8

FR type Hardware Overview ...................................9

LEDs .................................................................. 9

Connection....................................................... 10

Hardware Installation ................................................ 11

Push Button Security ............................................. 12

Using the Setup Wizard ............................................ 14

Conguration.............................................................15

Main....................................................................... 16

Security.................................................................. 18

PowerLine Installation Considerations ..................20

Troubleshooting ........................................................ 22

Technical Specications........................................... 23

Table of Contents

3D-Link DHP-P500AV/DHP-P501AV User Manual

Section 1 - Product Overview

DHP-P500AV

•D-LinkDHP-P500AVPowerlineAV500PassthroughAdapter

•CAT5EthernetCable

•CD-ROMwithSoftwareandUserManual

•QuickInstallGuide

DHP-P501AV

•D-LinkDHP-P500AVPowerlineAV500PassthroughAdapterX2

•CAT5EthernetCableX2

•CD-ROMwithSoftwareandUserManual

•QuickInstallGuide

Utility and System Requirements

•Windows® 7,WindowsVista®,XP(withServicePack3)

•GigabitAdapter(10/100/1000Mbps)

Product Overview

Package Contents

4D-Link DHP-P500AV/DHP-P501AV User Manual

Section 1 - Product Overview

Introduction

D-Link announces a fast, 500Mbps* Powerline AV 500 Passthrough Network Adapter which allows you to connect your

home computers, networking devices and gaming devices through the most pervasive medium in your house - the

electricpowerlines-andshareInternetconnections,printers,transferles,playgames,andmore.

Features

• ProvidesEthernettoPowerlineConnection

• FastDataTransferRateofUpto500Mbps*

• IntegratedPassthroughPowerSocketwithNoiseFiltering

• OneGigabitEthernetport

• Plug&Play,EasyInstallation

• EasytouseManagementUtility

• FirmwareUpgradeSupport

• PushButtonSecurity

* Maximum throughput based on theoretical transmission PHY rate. Actual date throughput will vary. Network conditions and environmental factors, including volume

oftrafcandnetworkoverhead,mayloweractualdatathroughputrate.Interferencefromdevicesthatemitelectricalnoise,suchasvacuumcleanersandhairdryers,

may adversely affect the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch, short wave radios,

or other powerline devices that do not follow the HomePlug AV and IEEE1901 standard.

5D-Link DHP-P500AV/DHP-P501AV User Manual

Section 1 - Product Overview

EU type Hardware Overview

LEDs

Power LED

•Solid. The device is receiving

electrical power.

•Blinking. The device is setting

itself up after reset or simple

connect button was pressed.

•Off. The device is not receiving

electrical power.

Ethernet LED

•Solid.TheEthernetportislinkedbutthereisnodatatrafc.

•Blinking. The device is transmitting data.

•Off. There is no Ethernet connection.

Powerline LED

•Solid. The device is connected to a Powerline network.

•Blinking. The device is transmitting data.

•Off. The device has not found any other compatible Powerline

devices using the same encryption key.

The color indicates the Powerline link rate:

•Green. The Powerline link rate is faster than 80 Mbps.

•Amber. The Powerline link rate is between 50 Mbps and 80 Mbps.

•Red. The Powerline link rate is less than 50 Mbps.

6D-Link DHP-P500AV/DHP-P501AV User Manual

Section 1 - Product Overview

EU type Hardware Overview

Connection

Gigabit Ethernet Port

Connect CAT5 Ethernet cable to

your PC or Ethernet device.

Simple Connect Button

Press to secure your network. Refer

to page 12 for more information.

Reset Button

Press and hold the button for 1

second to reset to factory default.

Passthrough Power Socket

Rating: 250V/16A maximum

Please do not plug devices into

the power socket that exceed

the product rating.

7D-Link DHP-P500AV/DHP-P501AV User Manual

Section 1 - Product Overview

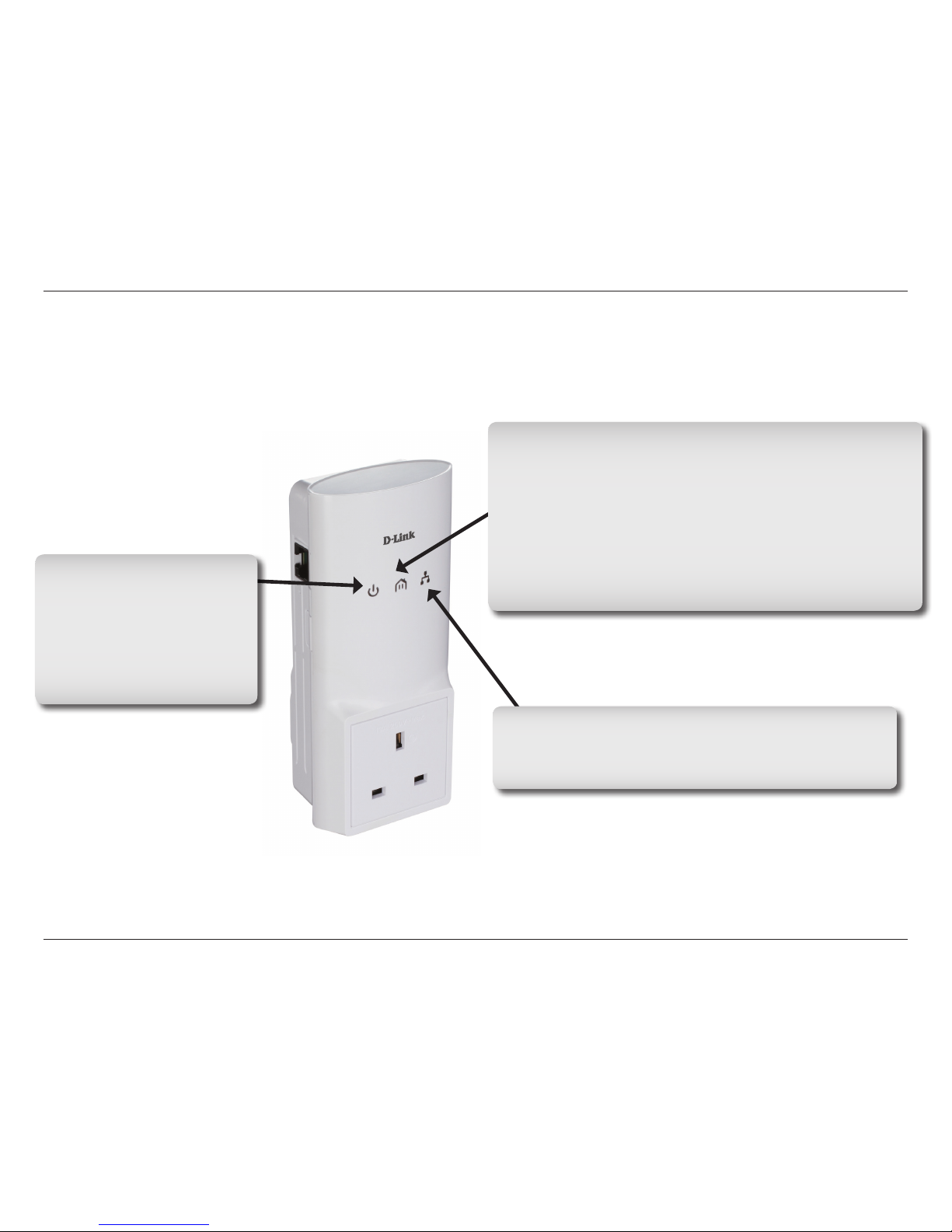

UK type Hardware Overview

LEDs

Power LED

•Solid. The device is receiving

electrical power.

•Blinking. The device is setting

itself up after reset or simple

connect button was pressed.

•Off. The device is not receiving

electrical power.

Ethernet LED

•Solid.TheEthernetportislinkedbutthereisnodatatrafc.

•Blinking. The device is transmitting data.

•Off. There is no Ethernet connection.

Powerline LED

•Solid. The device is connected to a Powerline network.

•Blinking. The device is transmitting data.

•Off. The device has not found any other compatible Powerline

devices using the same encryption key.

The color indicates the Powerline link rate:

•Green. The Powerline link rate is faster than 80 Mbps.

•Amber. The Powerline link rate is between 50 Mbps and 80 Mbps.

•Red. The Powerline link rate is less than 50 Mbps.

8D-Link DHP-P500AV/DHP-P501AV User Manual

Section 1 - Product Overview

UK type Hardware Overview

Connection

Gigabit Ethernet Port

Connect CAT5 Ethernet cable to

your PC or Ethernet device.

Simple Connect Button

Press to secure your network. Refer

to page 12 for more information.

Reset Button

Press and hold the button for 1

second to reset to factory default.

Passthrough Power Socket

Rating: 250V/13A maximum

Please do not plug devices into

the power socket that exceed

the product rating.

9D-Link DHP-P500AV/DHP-P501AV User Manual

Section 1 - Product Overview

FR type Hardware Overview

LEDs

Power LED

•Solid. The device is receiving

electrical power.

•Blinking. The device is setting

itself up after reset or simple

connect button was pressed.

•Off. The device is not receiving

electrical power.

Ethernet LED

•Solid.TheEthernetportislinkedbutthereisnodatatrafc.

•Blinking. The device is transmitting data.

•Off. There is no Ethernet connection.

Powerline LED

•Solid. The device is connected to a Powerline network.

•Blinking. The device is transmitting data.

•Off. The device has not found any other compatible Powerline

devices using the same encryption key.

The color indicates the Powerline link rate:

•Green. The Powerline link rate is faster than 80 Mbps.

•Amber. The Powerline link rate is between 50 Mbps and 80 Mbps.

•Red. The Powerline link rate is less than 50 Mbps.

10D-Link DHP-P500AV/DHP-P501AV User Manual

Section 1 - Product Overview

FR type Hardware Overview

Connection

Gigabit Ethernet Port

Connect CAT5 Ethernet cable to

your PC or Ethernet device.

Simple Connect Button

Press to secure your network. Refer

to page 12 for more information.

Reset Button

Press and hold the button for 1

second to reset to factory default.

Passthrough Power Socket

Rating: 250V/16A maximum

Please do not plug devices into

the power socket that exceed

the product rating.
