CY7B9911V

3.3V RoboClock+™

High Speed Low Voltage Programmable Skew

Clock Buffer

Cypress Semiconductor Corporation • 198 Champion Court • San Jose,CA 95134-1709 • 408-943-2600

Document Number: 38-07408 Rev. *D Revised June 20, 2007

Features

■All output pair skew <100 ps typical (250 max)

■3.75 to 110 MHz output operation

■User selectable output functions

❐Selectable skew to 18 ns

❐Inverted and non-inverted

❐Operation at 1⁄2and 1⁄4input frequency

❐Operation at 2x and 4x input frequency (input as low as

3.75 MHz)

■Zero input-to-output delay

■50% duty cycle outputs

■LVTTL outputs drive 50Ωterminated lines

■Operates from a single 3.3V supply

■Low operating current

■32-pin PLCC package

■Jitter 100 ps (typical)

Functional Description

The CY7B9911V 3.3V RoboClock+™ High Speed Low

Voltage Programmable Skew Clock Buffer (LVPSCB) offers

user selectable control over system clock functions. These

multiple output clock drivers provide the system integrator with

functions necessary to optimize the timing of high perfor-

mance computer systems. Each of the eight individual drivers,

arranged in four pairs of user controllable outputs, can drive

terminated transmission lines with impedances as low as 50Ω.

Theydeliverminimalandspecifiedoutputskewsandfullswinglogic

levels (LVTTL).

Each output is hardwired to one of nine delay or function

configurations. Delay increments of 0.7 to 1.5 ns are deter-

mined by the operating frequency with outputs that can skew

up to ±6 time units from their nominal “zero” skew position. The

completely integrated PLL allows external load and cancels

the transmission line delay effects. When this “zero delay”

capability of the LVPSCB is combined with the selectable

output skew functions, you can create output-to-output delays

of up to ±12 time units.

Divide-by-twoanddivide-by-four output functions are provided

for additional flexibility in designing complex clock systems.

When combined with the internal PLL, these divide functions

allow distribution of a low frequency clock that are multiplied

by two or four at the clock destination. This facility minimizes

clock distribution difficulty enabling maximum system clock

speed and flexibility.

TEST

REF

VCO AND

TIME UNIT

GENERATOR

SELECT

INPUTS

(THREE

LEVEL) SKEW

SELECT

MATRIX

4F0

4F1

3F0

3F1

2F0

2F1

1F0

1F1

4Q0

4Q1

3Q0

3Q1

2Q0

2Q1

1Q0

1Q1

FILTER

PHASE

FREQ

DET

Logic Block Diagram

[+] Feedback

CY7B9911V

3.3V RoboClock+™

Document Number: 38-07408 Rev. *D Page 2 of 14

Pin Configuration

Pin Definitions

Signal Name IO Description

REF I Referencefrequencyinput. Thisinput supplies the frequency and timing against which all functional

variations are measured.

FB I PLL feedback input (typically connected to one of the eight outputs).

FS I Three level frequency range select. See Table 1.

1F0, 1F1 I Three level function select inputs for output pair 1 (1Q0, 1Q1). See Table 2.

2F0, 2F1 I Three level function select inputs for output pair 2 (2Q0, 2Q1). See Table 2.

3F0, 3F1 I Three level function select inputs for output pair 3 (3Q0, 3Q1). See Table 2.

4F0, 4F1 I Three level function select inputs for output pair 4 (4Q0, 4Q1). See Table 2.

TEST I Three level select. See “Test Mode” on page 4 under the “Block Diagram Description” on page 3.

1Q0, 1Q1 O Output pair 1. See Table 2.

2Q0, 2Q1 O Output pair 2. See Table 2.

3Q0, 3Q1 O Output pair 3. See Table 2.

4Q0, 4Q1 O Output pair 4. See Table 2.

VCCN PWR Power supply for output drivers.

VCCQ PWR Power supply for internal circuitry.

GND PWR Ground.

1234323130

17161514 18 19 20

3F0

REF

GND

TEST

2F1

2Q1

2Q0

CCQ

2F0

GND

1F1

1F0

VCCN

1Q0

1Q1

GND

3Q1

3Q0

CCN

3F1

4F0

4F1

VCCQ

VCCN

4Q1

4Q0

GND

PLCC

CY7B9911V

[+] Feedback

CY7B9911V

3.3V RoboClock+™

Document Number: 38-07408 Rev. *D Page 3 of 14

Block Diagram Description

Phase Frequency Detector and Filter

The Phase Frequency Detector and Filter blocks accept inputs

from the Reference Frequency (REF) input and the Feedback

(FB) input. They generate correction information to control the

frequency of the Voltage Controlled Oscillator (VCO). These

blocks, along with the VCO, form a Phase Locked Loop (PLL)

that tracks the incoming REF signal.

VCO and Time Unit Generator

The VCO accepts analog control inputs from the PLL filter block.

It generates a frequency used by the time unit generator to

create discrete time units that are selected in the skew select

matrix. The operational range of the VCO is determined by the

FS control pin. The time unit (tU) is determined by the operating

frequency of the device and the level of the FS pin as shown in

Table 1.

Skew Select Matrix

The skew select matrix is comprised of four independent

sections. Each section has two low skew, high fanout drivers

(xQ0, xQ1), and two corresponding three level function select

(xF0, xF1) inputs. Table 2 shows the nine possible output

functions for each section as determined by the function select

inputs. All times are measured with respect to the REF input

assuming that the output connected to the FB input has 0tU

selected.

Table 1. Frequency Range Select and tUCalculation[1]

FS[2, 3] fNOM (MHz)

where N =

Approximate

Frequency(MHz)At

Which tU= 1.0 ns

Min Max

LOW 15 30 44 22.7

MID 25 50 26 38.5

HIGH 40 110 16 62.5

tU1

fNOM N×

------------------------

Table 2. Programmable Skew Configurations[1]

Function Selects Output Functions

1F1,2F1,

3F1, 4F1 1F0,2F0,

3F0, 4F0 1Q0,1Q1,

2Q0, 2Q1 3Q0, 3Q1 4Q0, 4Q1

LOW LOW –4tUDivideby 2 Divide by 2

LOW MID –3tU–6tU–6tU

LOW HIGH –2tU–4tU–4tU

MID LOW –1tU–2tU–2tU

MID MID 0tU0tU0tU

MID HIGH +1tU+2tU+2tU

HIGH LOW +2tU+4tU+4tU

HIGH MID +3tU+6tU+6tU

HIGH HIGH +4tUDivideby4 Inverted

Notes

1. For all three-state inputs, HIGH indicates a connection to VCC, LOW indicates a connection to GND, and MID indicates an open connection. Internal termination

circuitry holds an unconnected input to VCC/2.

2. The level to be set on FS is determined by the “normal” operating frequency (fNOM) of the VCO and Time Unit Generator (see). Nominal frequency (fNOM) always

appears at 1Q0 and the other outputs when they are operated in their undivided modes (see Table 2). The frequency appearing at the REF and FB inputs is fNOM

when the output connected to FB is undivided. The frequency of the REF and FB inputsis fNOM/2 or fNOM/4 when the part is configured for a frequency multiplication

using a divided output as the FB input.

3. When the FS pin is selected HIGH, the REF input must not transition upon power up until VCC has reached 2.8V.

[+] Feedback

CY7B9911V

3.3V RoboClock+™

Document Number: 38-07408 Rev. *D Page 4 of 14

Figure 1 shows the typical outputs with FB connected to a zero skew output.[4]

Test Mode

The TEST input is a three level input. In normal system

operation, this pin is connected to ground, allowing the

CY7B9911V to operate as described in “Block Diagram

Description” on page 3. For testing purposes, any of the three

level inputs can have a removable jumper to ground or be tied

LOW through a 100W resistor. This enables an external tester to

change the state of these pins.

If the TEST input is forced to its MID or HIGH state, the device

operates with its internal phase locked loop disconnected, and

input levels supplied to REF directly control all outputs. Relative

output-to-output functions are the same as in normal mode.

In contrast with normal operation (TEST tied LOW), all outputs

function based only on the connection of their own function

select inputs (xF0 and xF1) and the waveform characteristics of

the REF input.

Figure 1. The Typical Outputs with FB Connected to a Zero Skew Output

t0– 6t U

t0– 5t U

t0– 4t U

t0– 3t U

t0– 2t U

t0– 1t U

t0+1t U

+2t U

+3t U

+4t U

+5t U

+6t U

FB Input

REFInput

– 6tU

– 4tU

– 3tU

– 2tU

– 1tU

0tU

+1tU

+2tU

+3tU

+4tU

+6tU

DIVIDED

INVERT

(N/A)

LL/HH

3Fx

4Fx

(N/A)

1Fx

2Fx

Note

4. FB connected to an output selected for “zero” skew (that is, xF1 = xF0 = MID).

[+] Feedback

CY7B9911V

3.3V RoboClock+™

Document Number: 38-07408 Rev. *D Page 5 of 14

Operational Mode Descriptions

Figure 2 shows the LVPSCB configured as a zero skew clock buffer. In this mode the CY7B9911V is used as the basis for a low skew

clock distribution tree. When all the function select inputs (xF0, xF1) are left open, each of the outputs are aligned and drive a

terminated transmissionline to an independentload. The FBinput is tied toanyoutput in this configurationandtheoperating frequency

range is selected with the FS pin. The low skew specification, along with the ability to drive terminated transmission lines (with

impedances as low as 50Ω), enables efficient printed circuit board design.

Figure 3 shows a configuration to equalize skew between metal

traces of different lengths. In addition to low skew between

outputs, the LVPSCB is programmed to stagger the timing of its

outputs. Each of the four groups of output pairs is programmed

to different output timing. Skew timing is adjusted over a wide

range in small increments with the appropriate strapping of the

function select pins. In this configuration the 4Q0 output is sent

back to FB and configured for zero skew. The other three pairs

of outputs are programmed to yield different skews relative to the

feedback. By advancing the clock signal on the longer traces or

retarding the clock signal on shorter traces, all loads receive the

clock pulse at the same time.

In Figure 3 the FB input is connected to an output with 0 ns skew

(xF1,xF0 =MID)selected. The internal PLL synchronizes the FB

and REF inputs and aligns their rising edges to make certain that

all outputs have precise phase alignment.

Clock skews are advanced by ±6 time units (tU) when using an

output selected for zero skew as the feedback. A wider range of

delays is possible if the output connected to FB is also skewed.

Since “Zero Skew”, +tU, and –tU are defined relative to output

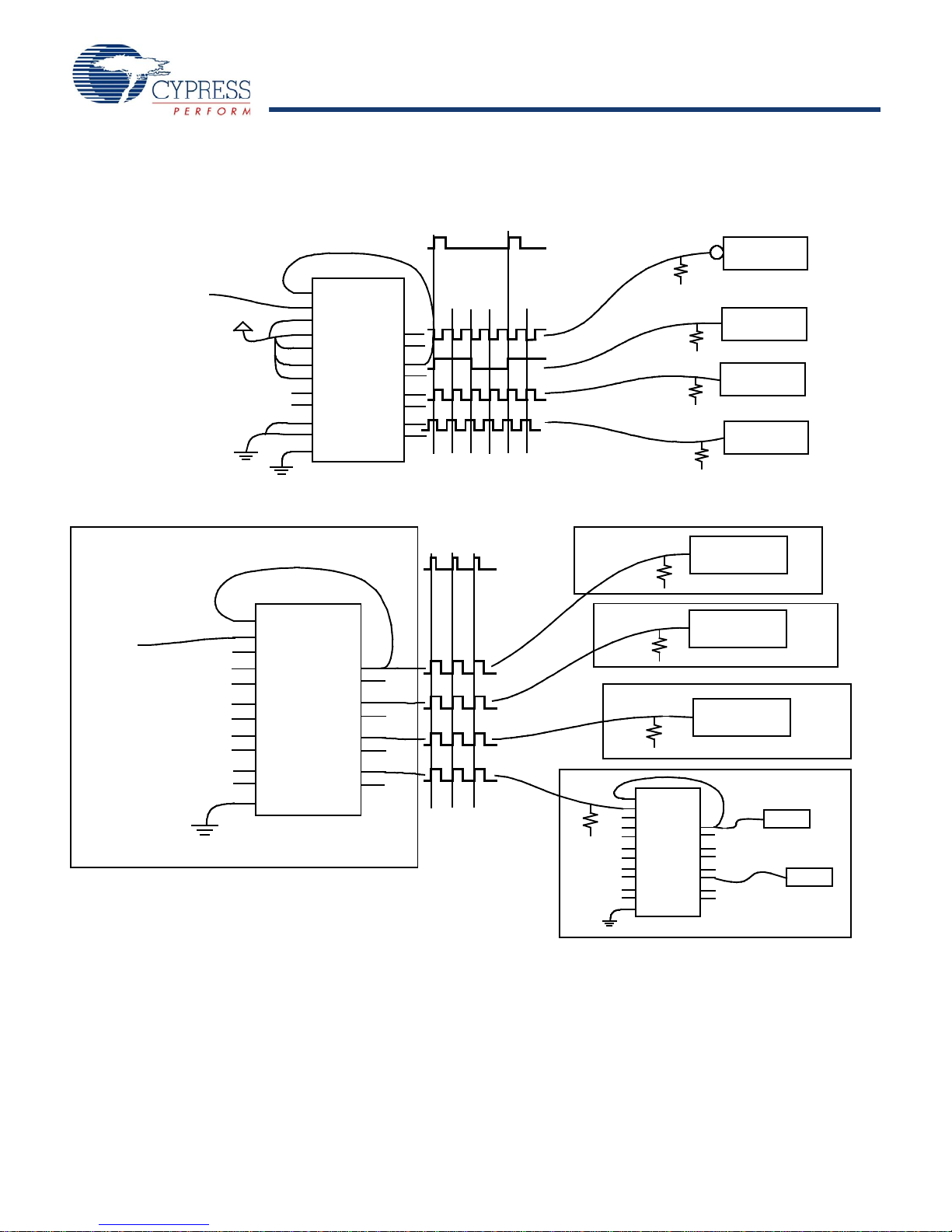

Figure 2. Zero Skew and Zero Delay Clock Driver

SYSTEM

CLOCK

LENGTH L1 = L2 = L3 = L4

REF

4F0

4F1

3F0

3F1

2F0

2F1

1F0

1F1

4Q0

4Q1

3Q0

3Q1

2Q0

2Q1

1Q0

1Q1

TEST

LOAD

REF

Figure 3. Programmable Skew Clock Driver

LENGTH L1 = L2

L3 < L2 by 6 inches

L4 > L2 by 6 inches

SYSTEM

CLOCK

REF

4F0

4F1

3F0

3F1

2F0

2F1

1F0

1F1

4Q0

4Q1

3Q0

3Q1

2Q0

2Q1

1Q0

1Q1

TEST

LOAD

REF

[+] Feedback

CY7B9911V

3.3V RoboClock+™

Document Number: 38-07408 Rev. *D Page 6 of 14

groups, and the PLL aligns the rising edges of REF and FB, you

can create wider output skews by proper selection of the xFn

inputs. For example, a +10 tU between REF and 3Qx is achieved

by connecting 1Q0 to FB and setting 1F0 = 1F1 = GND, 3F0 =

MID, and 3F1 = High. (Since FB aligns at –4 tU and 3Qx skews

to +6 tU, a total of +10 tU skew is realized). Many other configu-

rations are realized by skewing both the outputs used as the FB

input and skewing the other outputs.

Figure 4shows an example of the invert function of the LVPSCB.

In this example, the 4Q0 output used as the FB input is

programmed for invert (4F0 = 4F1 = HIGH) while the other three

pairs of outputs are programmed for zero skew. When 4F0 and

4F1 are tied HIGH, 4Q0 and 4Q1 become inverted zero phase

outputs. The PLL aligns the rising edge of the FB input with the

rising edge of the REF. This causes the 1Q, 2Q, and 3Q outputs

to become the “inverted” outputs with respect to the REF input.

By selecting the output connected to FB, you can have two

inverted and six non-inverted outputs or six inverted and two

non-inverted outputs. The correct configuration is determined by

the need for more (or fewer) inverted outputs. 1Q, 2Q, and 3Q

outputs are also skewed to compensate for varying trace delays

independent of inversion on 4Q.

Figure 5showstheLVPSCBconfiguredasa clockmultiplier.The

3Q0 output is programmed to divide by four and is sent back to

FB. This causes the PLL to increase its frequency until the 3Q0

and 3Q1 outputs are locked at 20 MHz, while the 1Qx and 2Qx

outputs run at 80 MHz. The 4Q0 and 4Q1 outputs are

programmed to divide by two, that results in a 40 MHz waveform

at these outputs. Note that the 20 and 40 MHz clocks fall simul-

taneously and are out of phase on their rising edge. This enables

the designer to use the rising edges of the 1⁄2frequency and 1⁄4

frequency outputs without concern for rising edge skew. The

2Q0, 2Q1, 1Q0, and 1Q1 outputs run at 80 MHz and are skewed

by programming their select inputs accordingly. Note that the FS

pin is wired for 80 MHz operation because that is the frequency

of the fastest output.

Figure 6 shows the LVPSCB in a clock divider application. 2Q0

is sent back to the FB input and programmed for zero skew. 3Qx

is programmed to divide by four. 4Qx is programmed to divide by

two. Note that the falling edges of the 4Qx and 3Qx outputs are

aligned. This enables use of the rising edges of the 1⁄2frequency

and 1⁄4frequency without concern for skew mismatch. The 1Qx

outputs are programmed to zero skew and are aligned with the

2Qx outputs. In this example, the FS input is grounded to

configure the device in the 15 to 30 MHz range, since the highest

frequency output is running at 20 MHz.

Figure 7 shows some of the functions that are selectable on the

3Qx and 4Qx outputs. These include inverted outputs and

outputs that offer divide-by-2 and divide-by-4 timing. An inverted

output enables the system designer to clock different

subsystems on opposite edges, without suffering from the pulse

asymmetry typical of non-ideal loading. This function enables

each of the two subsystems to clock 180 degrees out of phase,

but still is aligned within the skew specification.

The divided outputs offer a zero delay divider for portions of the

system that divide the clock by either two or four, and still remain

within a narrow skew of the “1X” clock. Without this feature, an

external divider is added, and the propagation delay of the

divider adds to the skew between the different clock signals.

These divided outputs, coupled with the Phase Locked Loop,

allow the LVPSCB to multiply the clock rate at the REF input by

either two or four. This mode enables the designer to distribute

a low frequency clock between various portions of the system,

and then locally multiply the clock rate to a more suitable

Figure 4. Inverted Output Connections

Figure 5. Frequency Multiplier with Skew Connections

REF

4F0

4F1

3F0

3F1

2F0

2F1

1F0

1F1

4Q0

4Q1

3Q0

3Q1

2Q0

2Q1

1Q0

1Q1

TEST

REF

4F0

4F1

3F0

3F1

2F0

2F1

1F0

1F1

4Q0

4Q1

3Q0

3Q1

2Q0

2Q1

1Q0

1Q1

TEST

REF

20 MHz

40 MHz

80 MHz

Figure 6. Frequency Divider Connections

REF

4F0

4F1

3F0

3F1

2F0

2F1

1F0

1F1

4Q0

4Q1

3Q0

3Q1

2Q0

2Q1

1Q0

1Q1

TEST

REF

20 MHz

5 MHz

10 MHz

20 MHz

[+] Feedback

CY7B9911V

3.3V RoboClock+™

Document Number: 38-07408 Rev. *D Page 7 of 14

frequency, while still maintaining the low skew characteristics of

the clock driver. The LVPSCB performs all of the functions

described in this section at the same time. It can multiply by two

and four or divide by two (and four) at the same time. This shifts

its outputs over a wide range or maintain zero skew between

selected outputs.

Figure 8 shows the CY7B9911V connected in series to construct a zero skew clock distribution tree between boards. Delays of the

downstream clock buffers are programmed to compensate for the wire length (that is, select negative skew equal to the wire delay)

necessary to connect them to the master clock source, approximating a zero delay clock tree. Cascaded clock buffers accumulates

low frequency jitter because of the non-ideal filtering characteristics of the PLL filter. Do not connect more than two clock buffers in a

series.

Figure 7. Multi-Function Clock Driver

Figure 8. Board-to-Board Clock Distribution

27.5 MHz

DISTRIBUTION

CLOCK

110 MHz

INVERTED

27.5 MHz

110 MHz

ZERO SKEW

110 MHz

SKEWED –2.273 ns (–4tU)

REF

4F0

4F1

3F0

3F1

2F0

2F1

1F0

1F1

4Q0

4Q1

3Q0

3Q1

2Q0

2Q1

1Q0

1Q1

TEST

REF LOAD

LOAD

SYSTEM

CLOCK

REF

4F0

4F1

3F0

3F1

2F0

2F1

1F0

1F1

4Q0

4Q1

3Q0

3Q1

2Q0

2Q1

1Q0

1Q1

TEST

REF

4F0

4F1

3F0

3F1

2F0

2F1

1F0

1F1

4Q0

4Q1

3Q0

3Q1

2Q0

2Q1

1Q0

1Q1

REF

LOAD

TEST

[+] Feedback

CY7B9911V

3.3V RoboClock+™

Document Number: 38-07408 Rev. *D Page 8 of 14

Maximum Ratings

Operating outside these boundaries may affect the performance

and life of the device. These user guidelines are not tested.

Storage Temperature ................................. –65°C to +150°C

Ambient Temperature with

Power Applied ............................................ –55°C to +125°C

Supply Voltage to Ground Potential................–0.5V to +7.0V

DC Input Voltage ............................................–0.5V to +7.0V

Output Current into Outputs (LOW).............................64 mA

Static Discharge Voltage...........................................> 2001V

(MIL-STD-883, Method 3015)

Latch up Current.....................................................> 200 mA

Operating Range

Range Ambient Temperature VCC

Commercial 0°C to +70°C 3.3V ±10%

Electrical Characteristics

Over the Operating Range[5]

Parameter Description Test Conditions CY7B9911V Unit

Min Max

VOH Output HIGH Voltage VCC = Min, IOH = –18 mA 2.4 V

VOL Output LOW Voltage VCC = Min, IOL = 35 mA 0.45 V

VIH Input HIGH Voltage (REF and FB inputs only) 2.0 VCC V

VIL Input LOW Voltage (REF and FB inputs only) –0.5 0.8 V

VIHH Three Level Input HIGH Voltage (Test, FS,

xFn)[5] Min ≤VCC ≤Max 0.87 * VCC V

CC V

VIMM Three Level Input MID Voltage (Test, FS,

xFn)[5] Min ≤VCC ≤Max 0.47 * VCC 0.53 * VCC V

VILL Three Level Input LOW Voltage (Test, FS,

xFn)[5] Min ≤VCC ≤Max 0.0 0.13 * VCC V

IIH Input HIGH Leakage Current (REF and FB

inputs only) VCC = Max, VIN = Max 20 μA

IIL Input LOW Leakage Current (REF and FB

inputs only) VCC = Max, VIN = 0.4V –20 μA

IIHH Input HIGH Current (Test, FS, xFn) VIN = VCC 200 μA

IIMM Input MID Current (Test, FS, xFn) VIN = VCC/2 –50 50 μA

IILL Input LOW Current (Test, FS, xFn) VIN = GND –200 μA

IOS Short Circuit Current[7] VCC = MAX, VOUT = GND (25° only) –200 mA

ICCQ Operating Current Used by Internal Circuitry VCCN = VCCQ = Max,All

Input Selects Open Com’l 95 mA

Mil/Ind 100

ICCN Output Buffer Current per Output Pair[8] VCCN = VCCQ = Max,

IOUT=0mAInputSelectsOpen,fMAX 19 mA

PD Power Dissipation per Output Pair[9] VCCN = VCCQ = Max,

IOUT=0mAInputSelectsOpen,fMAX 104 mW

Notes

5. For more information see Group A subgroup testing information.

6. These inputs are normally wired to VCC, GND, or left unconnected (actual threshold voltages vary as a percentage of VCC). Internal termination resistors hold

unconnected inputs at VCC/2. If these inputs are switched, the function and timing of the outputs glitch and the PLL may require an additional tLOCK time

before all data sheet limits are achieved.

7. CY7B9911V must be tested one output at a time, output shorted for less than one second, less than 10% duty cycle. Room temperature only.

8. Total output current per output pair is approximated by the following expression that includes device current plus load current:

CY7B9911V:ICCN = [(4 + 0.11F) + [[((835 –3F)/Z) + (.0022FC)]N] x 1.1

Where

F = frequency in MHz

C = capacitive load in pF

Z = line impedance in ohms

N = number of loaded outputs; 0, 1, or 2

FC = F < C

9. Total power dissipation per output pair is approximated by the following expression that includes device power dissipation plus power dissipation due to the

load circuit:

PD = [(22 + 0.61F) + [[(1550 + 2.7F)/Z) + (.0125FC)]N] x 1.1. (See note 8 for variable definition.)

[+] Feedback

CY7B9911V

3.3V RoboClock+™

Document Number: 38-07408 Rev. *D Page 9 of 14

Capacitance

Tested initially and after any design or process changes that may affect these parameters.[10]

Parameter Description Test Conditions Max Unit

CIN Input Capacitance TA=25°C, f = 1MHz,VCC = 3.3V 10 pF

Note

10.Applies to REF and FB inputs only.

AC Test Loads and Waveforms

Switching Characteristics – 5 Option

Over the Operating Range [2, 11]

Parameter Description CY7B9911V-5 Unit

Min Typ Max

fNOM Operating Clock

Frequency in MHz FS = LOW[1, 2] 15 30 MHz

FS = MID[1, 2] 25 50

FS = HIGH[1, 2 , 3] 40 110

tRPWH REF Pulse Width HIGH 5.0 ns

tRPWL REF Pulse Width LOW 5.0 ns

tUProgrammable Skew Unit See Table 1

tSKEWPR Zero Output Matched-Pair Skew (XQ0, XQ1)[13, 14] 0.1 0.25 ns

tSKEW0 Zero Output Skew (All Outputs)[13, 15] 0.25 0.5 ns

tSKEW1 Output Skew (Rise-Rise, Fall-Fall, Same Class Outputs)[13, 17] 0.6 0.7 ns

tSKEW2 Output Skew (Rise-Fall, Nominal-Inverted, Divided-Divided)[13, 17] 0.5 1.0 ns

tSKEW3 Output Skew (Rise-Rise, Fall-Fall, Different Class Outputs)[17, 17] 0.5 0.7 ns

tSKEW4 Output Skew (Rise-Fall, Nominal-Divided, Divided-Inverted)[13, 17] 0.5 1.0 ns

tDEV Device-to-Device Skew[12, 18] 1.25 ns

tPD Propagation Delay, REF Rise to FB Rise –0.5 0.0 +0.5 ns

tODCV Output Duty Cycle Variation[19] –1.0 0.0 +1.0 ns

tPWH Output HIGH Time Deviation from 50%[20] 2.5 ns

tPWL Output LOW Time Deviation from 50%[20] 3ns

tORISE Output Rise Time[20, 21] 0.15 1.0 1.5 ns

tOFALL Output Fall Time[20, 21] 0.15 1.0 1.5 ns

tLOCK PLL Lock Time[22] 0.5 ms

tJR Cycle-to-Cycle Output

Jitter RMS[12] 25 ps

Peak-to-Peak[12] 200 ps

TTL ACTest Load TTL Input Test Waveform

VCC

3.0V

2.0V

Vth =1.5V

0.8V

0.0V

≤1ns ≤1ns

2.0V

0.8V

Vth =1.5V

R1=100

R2=100

CL=30pF

(Includes fixture and probe capacitance)

Figure 9. AC Test Loads and Waveforms

[+] Feedback

CY7B9911V

3.3V RoboClock+™

Document Number: 38-07408 Rev. *D Page 10 of 14

Switching Characteristics – 7 Option

Over the Operating Range[2, 11]

Parameter Description CY7B9911V-7 Unit

Min Typ Max

fNOM Operating Clock

Frequency in MHz FS = LOW[1, 2] 15 30 MHz

FS = MID[1, 2] 25 50

FS = HIGH[1, 2 , 3] 40 110

tRPWH REF Pulse Width HIGH 5.0 ns

tRPWL REF Pulse Width LOW 5.0 ns

tUProgrammable Skew Unit See Table 1

tSKEWPR Zero Output Matched Pair Skew (XQ0, XQ1)[13, 14] 0.1 0.25 ns

tSKEW0 Zero Output Skew (All Outputs)[13, 15] 0.3 0.75 ns

tSKEW1 Output Skew (Rise-Rise, Fall-Fall, Same Class Outputs)[13, 17] 0.6 1.0 ns

tSKEW2 Output Skew (Rise-Fall, Nominal-Inverted, Divided-Divided)[13, 17] 1.0 1.5 ns

tSKEW3 Output Skew (Rise-Rise, Fall-Fall, Different Class Outputs)[13, 17] 0.7 1.2 ns

tSKEW4 Output Skew (Rise-Fall, Nominal-Divided, Divided-Inverted)[13, 17] 1.2 1.7 ns

tDEV Device-to-Device Skew[12, 18] 1.65 ns

tPD Propagation Delay, REF Rise to FB Rise –0.7 0.0 +0.7 ns

tODCV Output Duty Cycle Variation[19] –1.2 0.0 +1.2 ns

tPWH Output HIGH Time Deviation from 50%[20] 3ns

tPWL Output LOW Time Deviation from 50%[20] 3.5 ns

tORISE Output Rise Time[20, 21] 0.15 1.5 2.5 ns

tOFALL Output Fall Time[20, 21] 0.15 1.5 2.5 ns

tLOCK PLL Lock Time[22] 0.5 ms

tJR Cycle-to-Cycle Output

Jitter RMS[12] 25 ps

Peak[12] 100 200 ps

Notes

11. Test measurement levels for the CY7B9911V are TTL levels (1.5V to 1.5V). Test conditions assume signal transition times of 2 ns or less and output loading

as shown in the AC Test Loads and Waveforms unless otherwise specified.

12.Guaranteed by statistical correlation. Tested initially and after any design or process changes that may affect these parameters.

13.SKEW is defined as the time between the earliest and the latest output transition among all outputs for which the same tU delay is selected when all are loaded

with 30 pF and terminated with 50Ωto VCC/2 (CY7B9911V).

14.tSKEWPR is defined as the skew between a pair of outputs (XQ0 and XQ1) when all eight outputs are selected for 0tU.

15.tSKEW0 is defined as the skew between outputs when they are selected for 0tU. Other outputs are divided or inverted but not shifted.

16.CL=0 pF. For CL=30 pF, tSKEW0=0.35 ns.

17.There are three classes of outputs: Nominal (multiple of tU delay), Inverted (4Q0 and 4Q1 only with 4F0 = 4F1 = HIGH), and Divided (3Qx and 4Qx only in

Divide-by-2 or Divide-by-4 mode).

18.tDEV is the output-to-output skew between any two devices operating under the same conditions (VCC ambient temperature, air flow, and so on.)

19.tODCV is the deviation of the output from a 50% duty cycle. Output pulse width variations are included in tSKEW2 and tSKEW4 specifications.

20.Specified with outputs loaded with 30 pF forthe CY7B9911V-5 and -7 devices.Devices are terminated through 50Ωto VCC/2.tPWH is measured at 2.0V. tPWL

is measured at 0.8V.

21.tORISE and tOFALL measured between 0.8V and 2.0V.

22.tLOCK is the time that is required before synchronization is achieved.This specification is valid only after VCC isstable and within normal operating limits. This

parameter is measured from the application of a new signal or frequency at REF or FB until tPD is within specified limits.

[+] Feedback

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de computadora de Cypress Semiconductor

Cypress Semiconductor

Cypress Semiconductor STK15C88 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY7C1471BV33 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor MoBL CY62126EV30 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor ISR 37000 CPLD Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY62148EV30 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor NoBL CY7C1370DV25 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY7C1231H Manual de usuario

Cypress Semiconductor

Cypress Semiconductor Perform CY62147EV30 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY7C1018DV33 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY7C1353G Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY7C130 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY8C22x13 Manual

Cypress Semiconductor

Cypress Semiconductor MoBL CY62148BN Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY7C1410AV18 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY8CNP101 Manual

Cypress Semiconductor

Cypress Semiconductor CY7C1246V18 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY7C1381DV25 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor Perform CY62136EV30 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor STK22C48 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor FM4-216-ETHERNET Manual de usuario

Cypress Semiconductor

Cypress Semiconductor HOTLink II CYV15G0104TRB Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY4672 PROC Manual de usuario

Cypress Semiconductor

Cypress Semiconductor Perform CY7C1561V18 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor PSoC 1 FirstTouch CY3270 Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
