CYP CMDP-13MDPI Manual de usuario
CMDP-13MDPI
1by 3 Mini DisplayPort
Extender Splitter
Operation Manual
CMDP-13MDPI
Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
Always follow basic safety precautions to reduce the risk of
fire, electrical shock and injury to persons.
To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
Do not attach the power supply cabling to building surfaces.
Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide
ventilation.
Revision History
Version No Date Summary of Change
V1 20100317 Preliminary Release
Table of Contents
1
1
1
1
2
2
3
3
3
4
5
6
7
1. Introduction …………...……………………………………........……….
2. Applications ……...……………..…………………………................….
3. Package Contents …………………………......…………….............…
4. System Requirements ……...…………………..….………….......…….
5. Features …………………………...……………….......……........………
6. Specications ..……………..………………………...........………...….
7. Operation Controls and Functions ………………...……........………
7.1 Front Panel ...................................................................................
7.2 Rear Panel ………….....……………………………….........…….…
7.3 Top Panel ………........………………………………...........…….…
8. Timing tables for monitor ………………......................................…….
9. Connection and Installation …….…………………..........…..…..…...
10. Acronyms …….…………………........................................…..…..…...
1. Introduction
For those who want to display large content the 1x3 Mini DisplayPort Extender
Splitter is for you. Able to extend an image onto 2 or 3 displays, this device also
allows you to split an image two or three times to connected displays while
giving you a platform that is perfect for multi-tasking. This 1 by 3 Mini DisplayPort
Extender Splitter allows users to enjoy images or video in HD resolution up to
1920 x 1200 on multiple monitors from a single digital output port. The 1 by 3
Mini DisplayPort Extender Splitter is a useful device for extending displays and
splitting images.
2. Applications
Home & Ofce display
Stock market
Gaming market
3. Package Contents
1 by 3 Mini DisplayPort Splitter
3.3V DC Power Supply
Operation Manual
4. System Requirements
Input source equipment such as Apple, PC or any Mini DisplayPort output
device with a Mini DisplayPort connection cable. Output display such as
an Apple monitor or any Mini DisplayPort input display with Mini DisplayPort
connection cable.
5. Features
Supports DisplayPort v1.1a, VESA DDM Standard,
HDCP v1.3 and EDID v1.4
Supports link rates of 2.7Gbps (HBR) and 1.62Gbps (RBR)
Fully HD compatible and provides full display performance with zero lag
and no display limitations
Does not require software updates
Quality Lab (WHQL) testing/qualification
Supports output resolutions up to 1920 x 1200
Works with any desktop and notebook computer which has a DisplayPort
output port
Provides exceptional Secured Content Protection with HDCP 1.3 for digital
content including video and audio
Plug and Play
1
Output Resolution 1920 x 1200
Input port 1 x Mini DisplayPort
Output ports 3 x Mini DisplayPort
Power Supply 3.3V / 1.5A DC (US/EU standards, CE/FCC/UL certified)
ESD Protection Human body model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
Dimensions(mm) 100 (W) x 70 (D) x 20 (H)
Weight(g) 90
Chassis Material Plastic
Silkscreen Color White
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C~60°C / -4°F ~ 140°F
Power Consumption 3W
Relative Humidity 20~90% RH (non-condensing)
6. Specications
2
7. Operation Controls and Functions
7.1 Front Panel
1
MDP
OUT 3
MDP
OUT 2
MDP
OUT 1
① MDP OUT 1~3: Connect these slots with the output displays Mini
DisplayPort input port in order to send a signal.
Note: It is suggested to use the same type/model of display in order to
get optimal image quality. When the input source’s timing
is matched with the output display’s timing, the device will
first extend the image according to the specifications of the
connected output display. If the input sources timing does not
match the output display’s timing the device will then split the
signal to match the number of the connected display to show an
identical image. (Detail information please refer to section 8. Timing
table for monitors).
7.2 Rear Panel
321
OFF ON
DC 3.3V
MDP IN
POWER
① On/off switch: Push this switch to turn the device on or off. The green LED
will turn on when the device is switched on.
② DC 3.3V: This slot is where you plug the 3.3V DC power supply into the
unit and connect the adaptor to an AC outlet.
③ MDP IN: This slot is where you connect the input source equipment such
as a PC or any output device that has a Mini DisplayPort.
Output Resolution 1920 x 1200
Input port 1 x Mini DisplayPort
Output ports 3 x Mini DisplayPort
Power Supply 3.3V / 1.5A DC (US/EU standards, CE/FCC/UL certified)
ESD Protection Human body model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
Dimensions(mm) 100 (W) x 70 (D) x 20 (H)
Weight(g) 90
Chassis Material Plastic
Silkscreen Color White
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C~60°C / -4°F ~ 140°F
Power Consumption 3W
Relative Humidity 20~90% RH (non-condensing)
6. Specications
3

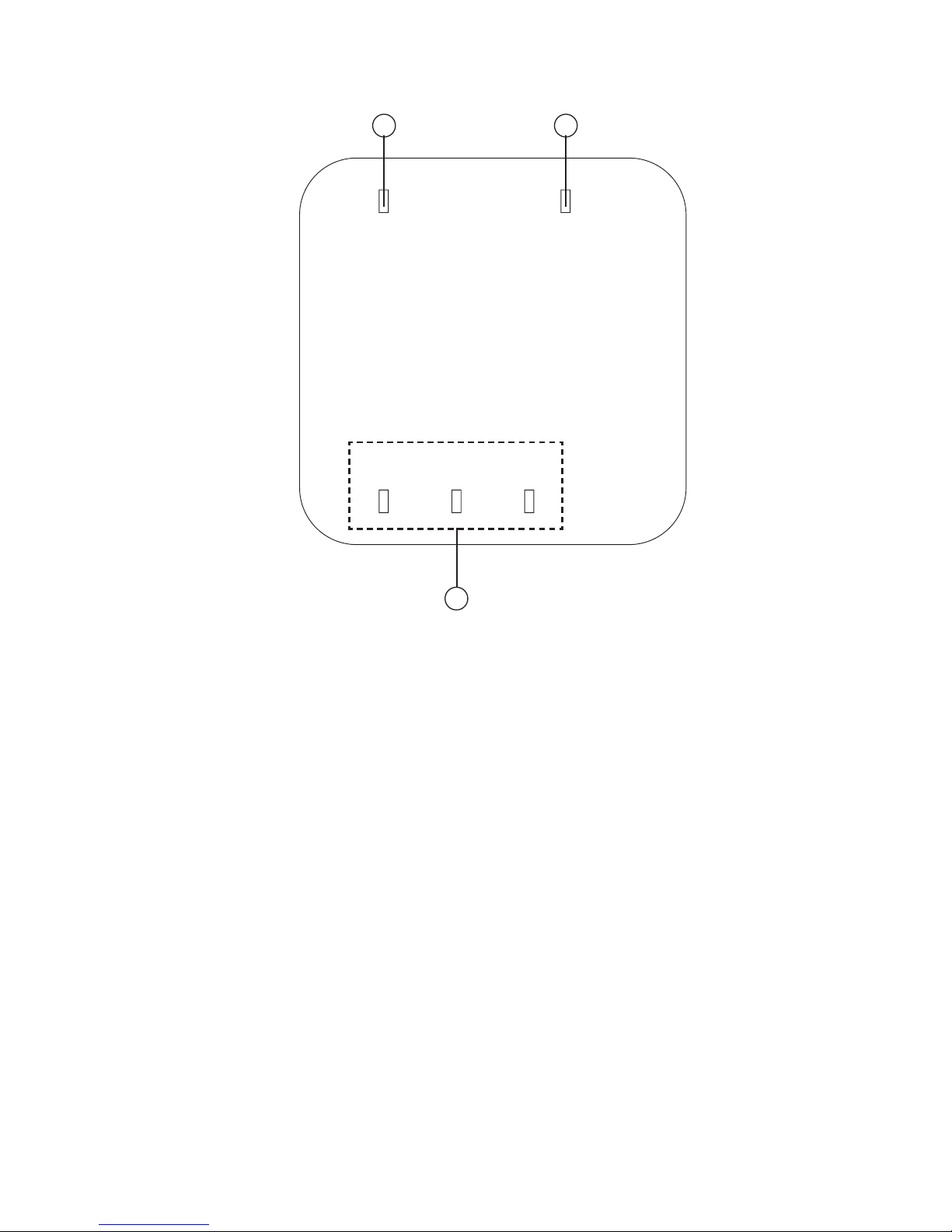

7.3 Top Panel
POWER
LINK
OUT 3
OUT 2
OUT 1
CMDP-13MDPI
Mini DisplayPort Extender Splitter
3
21
① LINK LED: The green LED will turn on when the input source device is
connected.
② POWER LED: The green LED will switch on when the device is powered on.
③ OUT 1~3 LED: The green LED will turn on when the output port is
connected with the output display.
4
8. Timing tables for monitor
The 1 by 3 Mini DisplayPort splitter is a smart device with a built in feature that
can define which and how many monitors are connected and can transmit
the proper signal for the display. Below is the expanded timing list which is
supported by the device.
Two monitors mode
From PC To monitor Vertical refresh rate (Hz)
3840 x 1200 1920 x 1200 60
2560 x 1024 1280 x 1024 60
2048 x 768 1024 x 768 60
3360 x 1050 * 1 1680 x 1050 60
3200 x 1200 * 1 1600 x 1200 60
2880 x 900 * 1 1440 x 900 60
1600 x 600 * 1 800 x 600 60
1280 x 480 * 1 640 x 480 60
2800 x 1050 * 1 1400 x 1050 60
Three monitors mode
From PC To monitor Vertical refresh rate (Hz)
3840 x 800 1280 x 800 60
3840 x 1024 1280 x 1024 60
3072 x 768 1024 x 768 60
2400 x 600 * 1 800 x 600 60
1920 x 480 * 1 640 x 480 60
4080 x 768 * 1, * 2 1360 x768 60
3840 x 720 * 1 1280 x 720 60
2160 x 480 * 1 720 x 480 60
3840 x 960 * 1 1280 x 960 60
Note:
*1. The timing is listed in the EDID extension block. Some old GPU drivers
may not be supported.
*2. The total horizontal pixel include the active area and blank area is
larger than 4096, some GPU driver may not support the timing.
*3. For Apple Cinema Display support timing please refer to
http://www.apple.com/displays/specs.html
5
9. Connection and Installation
Mac Pro / Mac Book / Mac Mini
LED Cinema Display
LED Cinema Display
LED Cinema Display
LED Cinema Display
LED Cinema Display
LED Cinema Display
or
6
