CyberData 10630 Manual de usuario

PoweredUSB Hub

Features

 Adds 6 PoweredUSB ports

 One +24 volt at 2A for POS printer

 Three +12 volt at 1A each

 Two +5 volt at 1A each

 Short circuit and overcurrent protected

 No external power supply required

 Designed to support Epson multi-function

printer power requirements

 Complies with the RoHS Directive

The CyberData PoweredUSB

External Hub provides a simple and

affordable way to add up to six

PoweredUSB ports to a standard PC.

With this Plug-N-Play upgrade, it is

easy to connect devices that require

more than the normal 500mA of +5

volts that is normally supplied by a

standard USB interface.

Power Supply

Wide-ranging AC input voltage

90VAC to 260VAC, 60/50Hz input

Compatibility

Windows 2000, XP, WePOS, Vista

MAC and Linux

USB Standard 1.1 "Powered Hub"

USB Ports 6

Power Output*

(Standard)

Port Baud Rates

1 @ 24v 2A

3 @ 12v 1A

2 @ 5v 1A

12Mbps, 1.5Mbps

No power to ports

2 years limited

Power output status

FCC Class A, UL 60950, CE

Warranty

010630Part Number

Boot Up Default

External LEDs

Regulatory Compliance

*All ports support standard "A" type +5V USB connection.

PoweredUSB External Hub Specifications

AC Voltage 90 VAC to 260 VAC 60/50 Hz

 Powered ports respond to PC suspend mode

 Plug-N-Play installation

 Hot-pluggable PoweredUSB ports

 External LED to show port power output status

 Two year warranty

CyberData Corporation 2555 Garden Road Monterey, California 93940

(831) 373-2601 (831) 373-4193 www.cyberdata.net

CyberData Corporation 070215

CyberData Corporation

PoweredUSB Hub

Display

Scanner Printer

Signature Capture Pad

PC Host

License note:

The PoweredUSB controller board contains specific technology covered by a patent held by IBM Corporation. CyberData has obtained a license from IBM that

permits CyberData Corporation, among other things, to make or sell products that incorporate this technology. The license also permits these products to be

resold by an entity after they have been initially sold by CyberData.

CyberData Corporation 2555 Garden Road Monterey, California 93940

(831) 373-2601 (831) 373-4193 www.cyberdata.net

CyberData Corporation

PoweredUSB Hub

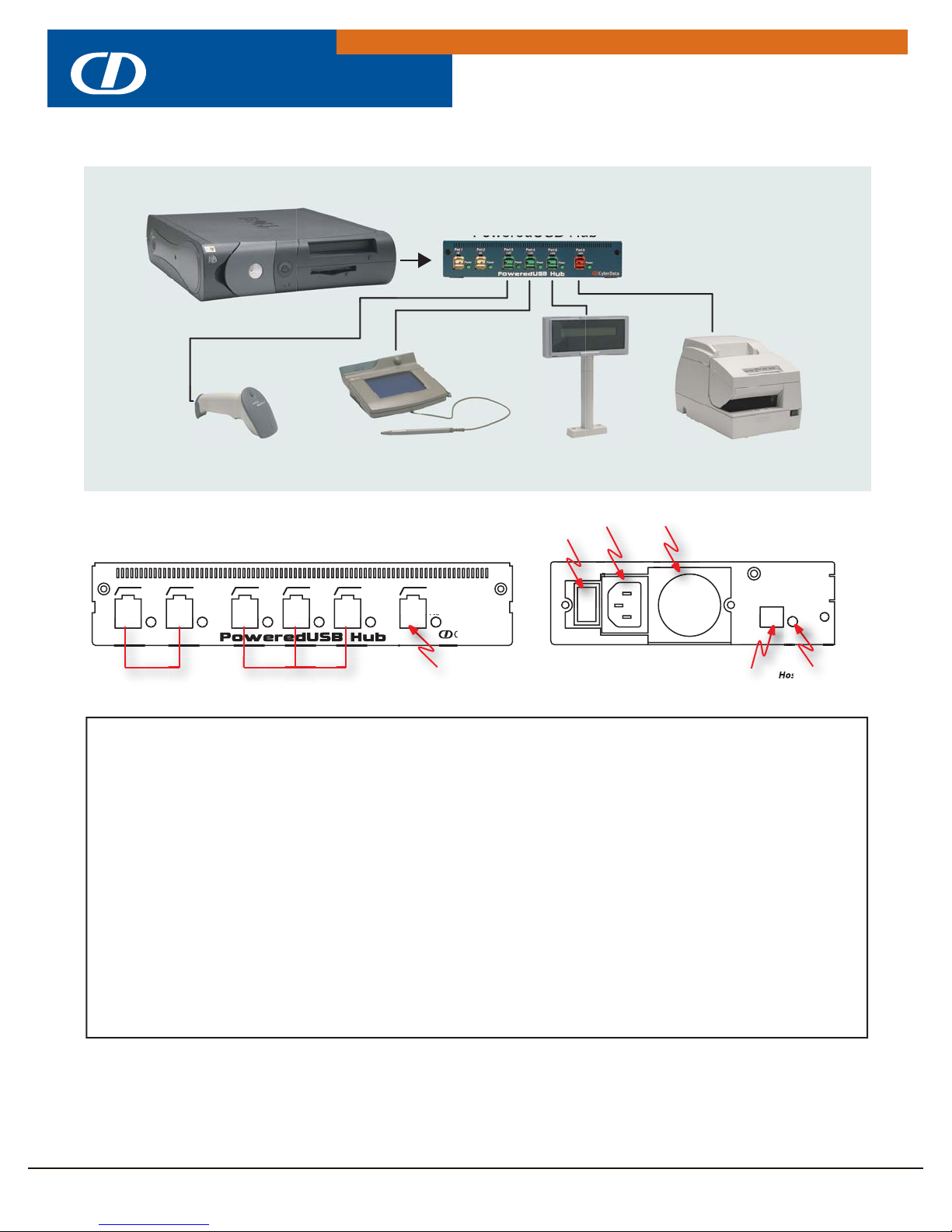

Typical Installation

Host

Active

100-120/200-240VAC

60/50Hz

6/3A

Corporation

Power

Port 3

+12V

Power

Port 2

+5V

Power

Port 1

+5V

Power

Port 4

+12V

Power

Port 5

+12V

Power

Port 6

+24V

CyberData

+24V Port

On/Off

Fan

AC In

Host connect LEDUSB Host computer

Front View Side View

AC Cable

The AC connection is a standard IEC type.

Input Requirements:

Voltage: 90 ~120 VAC or 200 ~ 260 VAC Auto Switching

Frequency: 60/50 Hz

Input Current: 6.0A (RMS) for 115VAC or 3.0A (RMS) for 230VAC

Host Connector

The Host connector is a standard USB "A" to "B" type cable. Maximum length is 5 meters (16.5 feet).

PoweredUSB Cables

Part Number PoweredUSB Cable Description Application

010855 PoweredUSB Cable, 12V to 2x4 - 2.25 Meter PIN Pad / Signature Capture

010736 PoweredUSB Cable, 12V to 10 Pin RJ45 - Semi-Coiled - 15 Feet Hand Scanner

010735 PoweredUSB Cable, 12V to Din8 F - 3 Meter Customer Display

010617 PoweredUSB Cable, 24V to 1x8 - 1.2 Meter Printer

010632 PoweredUSB Cable, 24V to 3-Pin Power Connector - 4 Meter Printer

010714 PoweredUSB Cable, 24V to "Y" Cable - USB-B and 3-Pin Power - 1 Meter Printer

+12V Ports (3)

+5V Ports (2)
