Cumberland EDGE 891-00516 Guía de inicio rápido
EDGE
Models:
891-00516

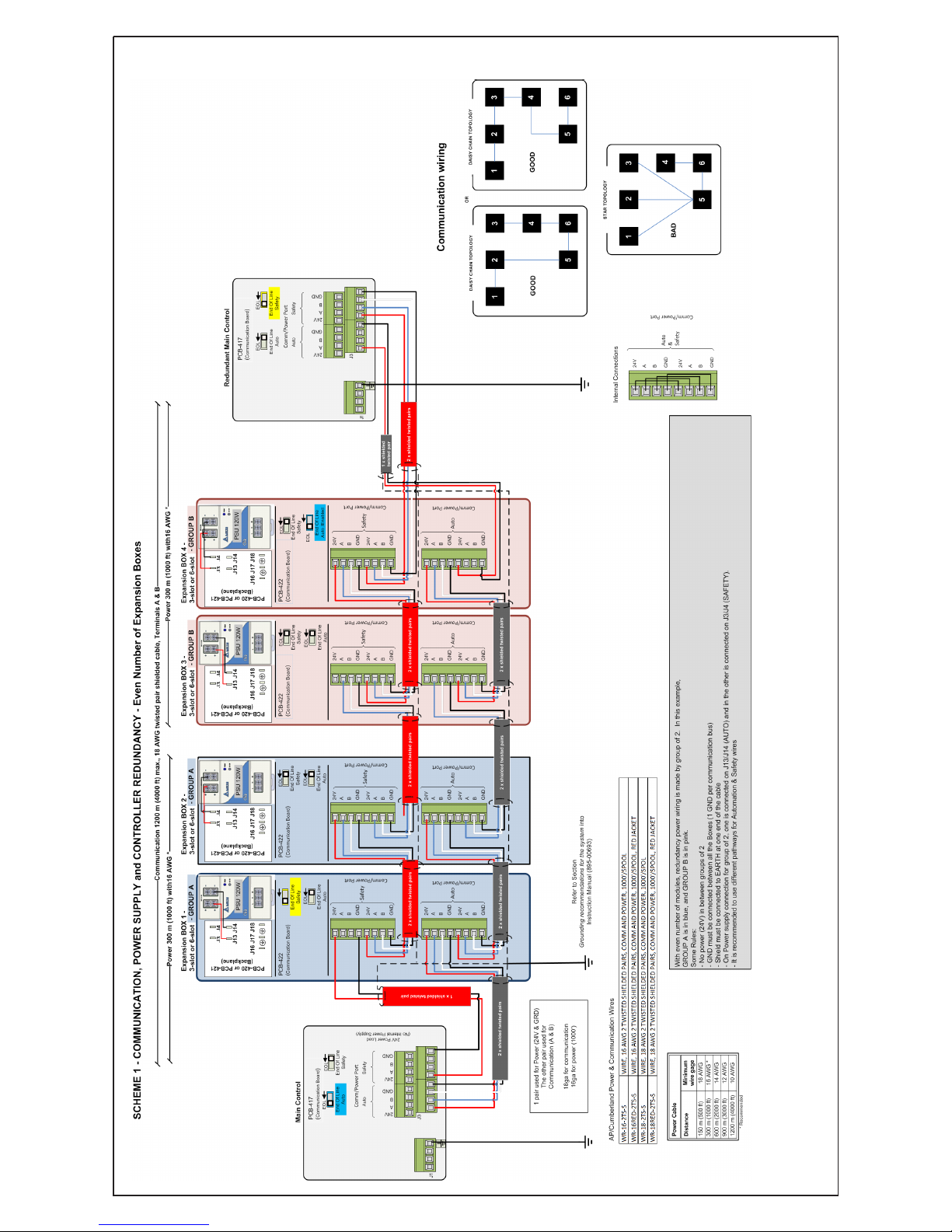

Wiring diagram
895-00692
Version 03
NOTE: For more complete information on the product, please refer to
the manual on the USB key provided with your EDGE or go to the
following websites:
http://www.automatedproduction.com/en/apmanuals.php
http://www.cumberlandpoultry.com/sales-and-service/manuals.html
895-00692
Wiring diagram choice according to the equipment
e following table helps you select the wiring diagram to refer to in order to connect the equipment you have.
Equipment
name
On/o On/o
failsafe
Variable
0-10 VDC
Variable
with SSR
Variable
with relay
Dual
capacity
Inlet Inlet
failsafe
Inputs
interlock
option
Output
interlock
option
Pit fans X X X
Sidewall fans X X X
Stir fans X X X
Tunnel fans X X
Heaters X X X X X
Brooders X X X
Ceiling inlets X X potentio-
meter
Wall inlets X X potentio-
meter
Natural
curtains
X pot &
whisker
Tunnel inlets X pot. &
whisker
Natural
chimneys
X X X
Lights X
Cool cells X Water
valves:
supply,
zone drain
Mister /
fogger
X
Soaker X
Water valves X
Probe name Analog input Analog input w/24VDC
Temperature probes X
Water meters X
Humidity probes X X
Static pressure sensor X X
NOTE: For more complete information on the product,please refer to the manual on the USB key provided with your EDGE
manual or go to the following web sites :
AP website: http://www.automatedproduction.com/en/apmanuals.php
Cumberland website: http://www.cumberlandpoultry.com/sales-and-service/manuals.html
