CTC Union MSDTU01-A/E1 Manual de usuario
Version 1.1
User's Manual
1Version 1.1
Contents
Overview..............................................................................................3
Features...............................................................................................4
Applications..........................................................................................4
Specifications.......................................................................................5
Packing.................................................................................................6
Appearance..........................................................................................7
Front Panel........................................................................................7
Rear Panel.........................................................................................8
Important Safety Instructions..............................................................9
Installation..........................................................................................11
Hardware Setup.................................................................................12
Point-to-point Operation....................................................................14
Console Operation.............................................................................15
Console Operation / Configuration...................................................16
Cables................................................................................................20
Version History
V1.0 released May 7, 2001
V1.1 released September 24, 2001
firmware 1.14, supports connection to datacom unit
2Version 1.1
MSDTU01-A/E1 SDSL G.703 E1 CSU
3Version 1.1
Overview
TheMSDTU01-A/E1 SDSL with G.703 Fractional E1 interface is a
data access Channel Service Unit modem with the latest multi-rate
HDSL (High-speed Digital Subscriber Line) technology offering both
long range and high speed data transmission with Nx64 rates from
128Kbps up to 2048Kbps. The transmitting data rate may be adapted
for the best "rate vs. range" performance for efficient and stable data
transmission.
TheMSDTU01-A/E1 uses the 2B1Q line code with echo cancellation
to transmit its high data rate over a single twisted pair of telephone
wires without being affected by bridge taps or mixed cable links. It also
provides high immunity to background noise and enables transmission
over multiple pair cables.
MSDTU01-A/E1 SDSL G.703 E1 CSU
4Version 1.1
Features
4High speed SDSL transport over single twisted Copper pair
telephone lines
42B1Q line code
4Symmetrical Multi-rate Nx64 data transmission from 128Kbps to
2048Kbps
4G.703 E1 operates from recovery (E1 at CO), or loop recovery
(E1 at RT) timing modes
4Simple operation
4Low power consumption
4Transparent data over SDSL
4Point-to-point data transmission service
4Configure and Loop Test via RS-232 Craft port
4Local and remote loopback features
4Integral BERT generator
Applications
Application : Point-to-Point Connection for Network Extension
Application : Point-to-Point Connection with V.35 Data Com Unit
(Must be at least version 1.4 firmware.)
MSDTU01-A/E1 SDSL G.703 E1 CSU
5Version 1.1
Specifications
Item MSDTU01-A/E1
Channel Port Interface ITU-T G.703 E1
Connector BNC(x2) unbalanced, RJ-45 Balanced
Impedance 75 or 120 Ohms, selectable
Tx Level 75 Ohm: Pulse 2.37V nominal
120 Ohm: Pulse 3.00V nominal
Relative Rx Level 0 to –43dB
Bit Rate 2.048Mbps
Line Code HDB3
Framing Unframed, CAS, CCS, CRC4 On/Off
Timing Source Recovery at CO, DSL Loop Recovery
Jitter Tolerance Meets ITU-T G.823
Complies with ITU-T G.703, G.704, G.706, G.732
WAN Port --
SDSL Line I/F Transmission Rate : 144 Kbps – 2320 Kbps
Data Rate : 144 Kbps – 2320 Kbps
Line Code 2B1Q
Line Impedance 135 Ω
Test Standard ANSI T1E1.413/94-006; ETSI ETR 152
Connection Loops One Pair (2-wire)
Connector RJ-11
Indicators
LED Power
(WAN)
LOS
LFA
ALARM
LOOP
(E1)
SigLoss
SyncLoss
ALARM
LOOP
Green LED, indicate power and operation
Red LED, DSL Loss of Signal
Red LED, DSL Loss of Frame Alignment
Red LED, DSL Test & Error status
Red LED, DSL in Loopback mode
Red LED, E1 Signal Loss
Red LED, E1 Sync Loss
Red LED, E1 Alarm
Red LED, E1 in Loopback mode
OAM&P Local ASCII Terminal via EIA RS-232 Port
Environment Temperature
Humidity 0°C ~ 50°C
5% ~ 95%
Dimensions
(WxDxH) CO/RT 213(w)mm X 152(d)mm X 25(h)mm
Electrical Power Input
Power Consumption 12VDC via AC Adapter
Less than 8 Watts
MSDTU01-A/E1 SDSL G.703 E1 CSU
6Version 1.1
Packing
This package shall contain the following items:
1. MSDTU01-A/E1 unit
2. AC Adapter (120VAC
for North America, and
220-240VAC for
Europe)
3. RS-232 Serial Cable,
DB-9 to DB-9(optional)
4. This User's Guide
MSDTU01-A/E1 SDSL G.703 E1 CSU
7Version 1.1
Appearance Front Panel
After connecting all cables and powering on the MSDTU01-
A/E1, LED’s on the front panel shall indicate the following
status.
The LED indicators provide an excellent indication of the
communication status and possible link trouble locations when
troubleshooting "link-down" problems.
LOOP
– Test/Loopback
ALARM – E1 Alarm
SyncLoss – E1 Sync Loss
SigLoss – E1 Signal Loss
LOOP – DSL Test/Loopback
ALARM – DSL Alarm/Error
LFA – DSL Loss of Frame Alignment
LOS – DSL Loss of Signal
POWER – Unit Power Applied
MSDTU01-A/E1 SDSL G.703 E1 CSU
8Version 1.1

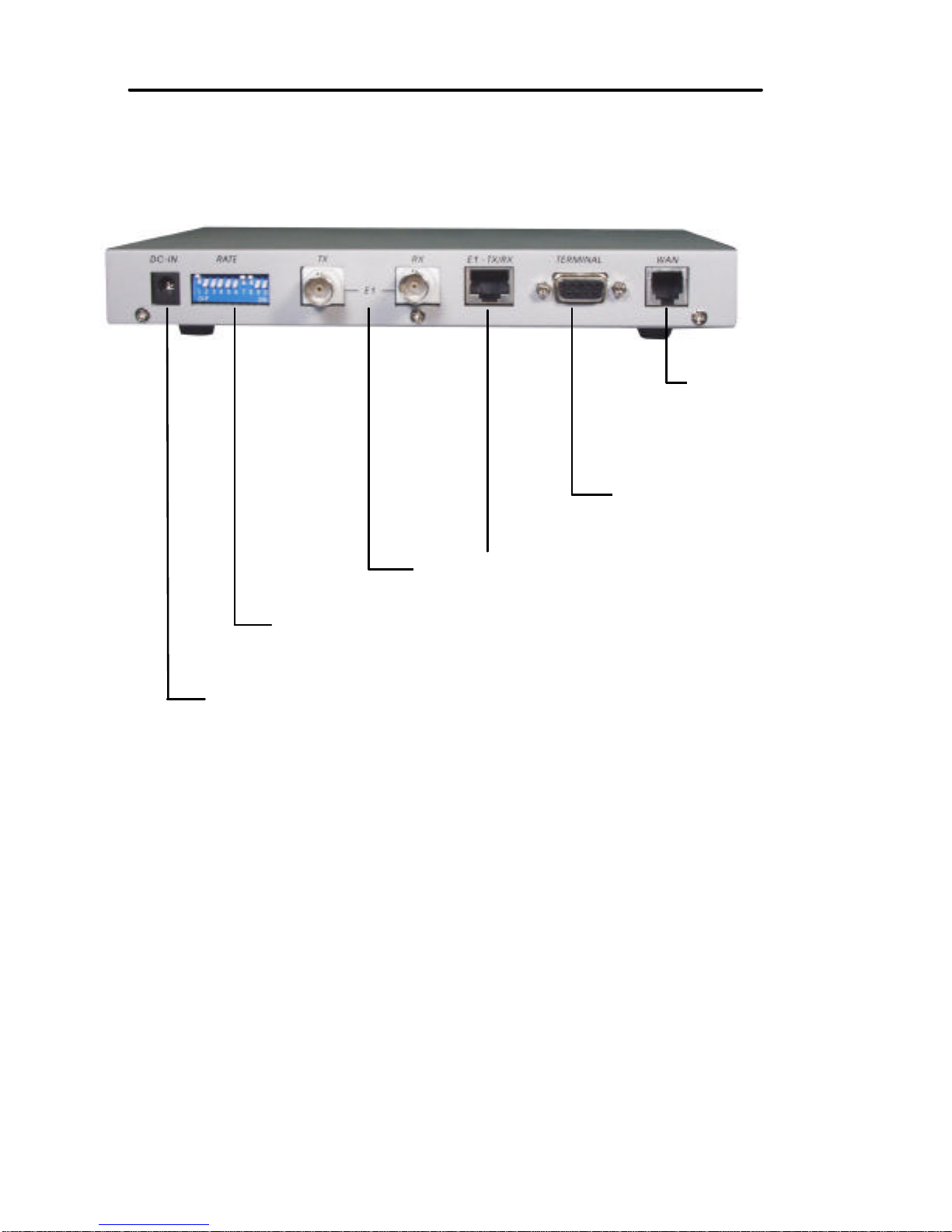

Rear Panel
RJ11, SDSL for
connection to
local loop
DB9, console port for
connection to ASCII
data terminal
RJ-45, Balanced G.703 E1 Port,
BNC, Unbalanced G.703 E1 Port
10P DIP switch, for setting speed,
CO/CPE, Timing, E1 Framing, Nx64, etc.
Power Jack, for connecting to a AC-DC
power adapter, 12VDC, 1A
