Crystal Vision Indigo DT Manual de usuario

Indigo DT and

Indigo DTSE

Desk top boxes

Crystal Vision Ltd., Lion Technology Park, Station Road East, Whittlesford, Cambridge, CB22 4WL, England.

Tel: +44(0) 1223 497049 Fax: +44(0) 1223 497059 sales@crystalvision.tv www.crystalvision.tv

Crystal Vision Indigo DT User Manual

Contents

1Introduction 3

2Installation 5

2.1 General Safety Summary 5

2.2 Rack mounting and ventilation 6

2.3 Frame connectors 7

Connecting mains cables 7

2.4 Connector pinout 8

Remote control / GPI connections 8

Power supply relay connections 8

RJ45 422 I/O (Statesman/link bus) connector 9

RJ45 Ethernet connector 9

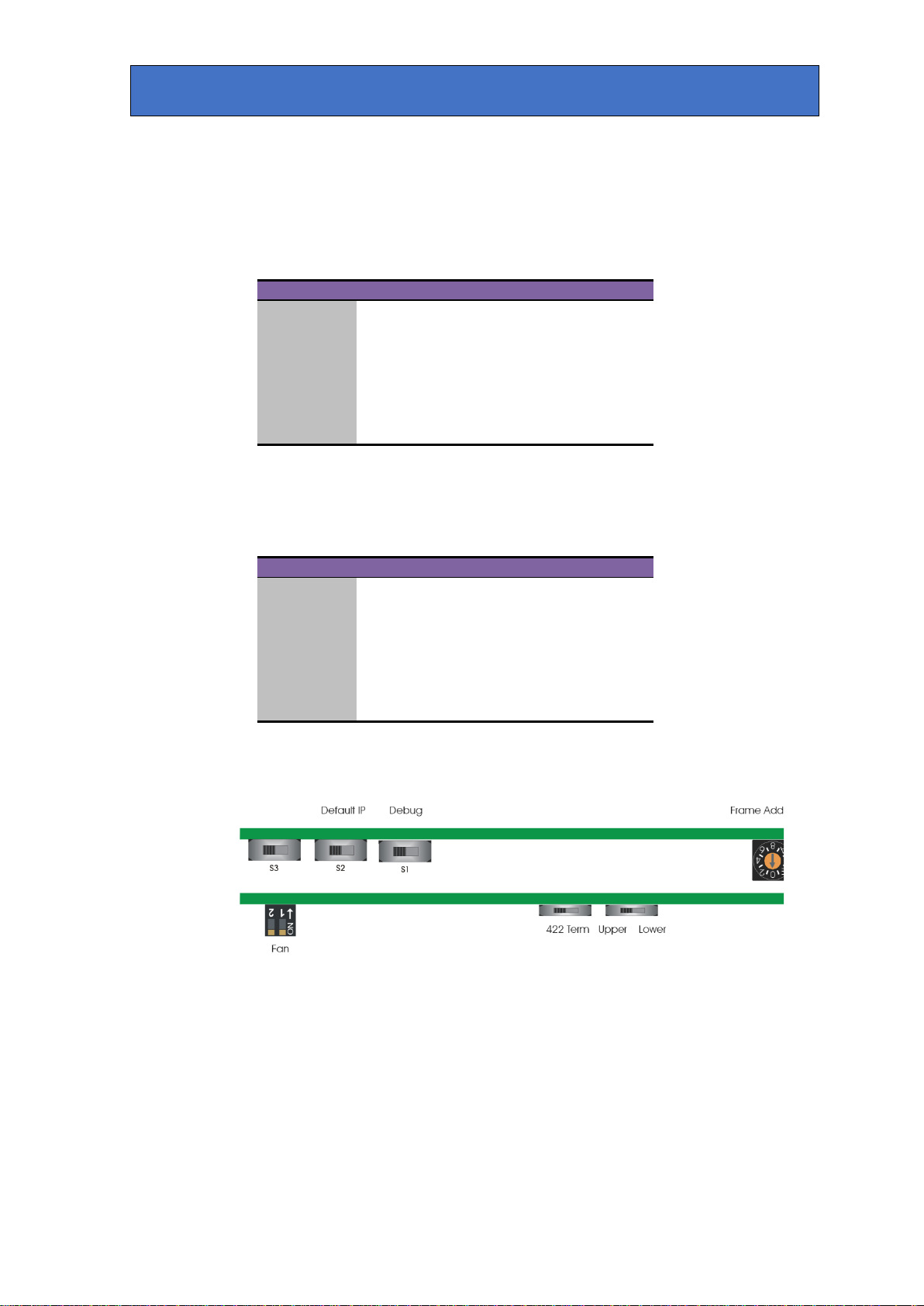

2.5 Board Settings 9

3Control 12

3.1 Setting up and connecting 13

Set the default IP address 10.0.0.201 13

Indigo Home Page 15

Indigo Setup Pages 16

Network Setup 17

Hardware Setup 18

Software Upgrade 19

Diagnostics 20

3.2 SNMP 20

Management information base (MIB) 21

Object Identifiers (OID) 21

Traps 22

Filters 23

3.3 Controlling cards via Ethernet 24

3.4 Alternative method to access Network Setup 25

4Installing Crystal Vision modules 26

Module positions 26

Inserting modules 26

Removing modules 26

Rear connectors 27

Fitting rear connectors 27

4.1 Select the cooling mode 27

Indigo DT User Manual R1.8 1 05 July 2018

Crystal Vision Indigo DT User Manual

5Trouble shooting 29

Reading LED status 29

5.1 Maintenance 29

Replacing the mains input fuses 30

Software upgrades 30

5.2 Frequently asked questions 31

6Specification 32

7Appendix 1 33

7.1 Module addresses and node numbers 33

8Appendix 2 34

Indigo Frame Software prior to v4.6 34

Setting up and connecting 34

Status 35

Changing the IP Address 35

Adding a frame serial number 36

Naming 37

Hostname 37

Reset 38

SNMP 38

8.1 SNMP agent 39

Downloading licences 41

8.2 SNMP Quick Start Guide 42

Revision 3

Ethernet information added.

16/01/07

Revision 4

Cooling mode information amended.

06/07/09

Revision 5 Appendix 3.3 SNMP quick start guide added.

Removed Indigo DTA and Indigo DTS (obsolete).

09/06/10

Revision 6

Part 15 and laser warning added to page 5.

11/02/11

Revision 7 Added Appendix 2 for frame software before v4.6.

Removed DTAE.

23/10/13

Revision 8 Added note about new security introduced with

frame software version V5.9 build 16216 to

beginning of page 12.

05/07/18

Indigo DT User Manual R1.8 2 05 July 2018

Crystal Vision Introduction

1 Introduction

The Indigo desk top box is available as two variants – the DT with a passive front

panel and the DTSE with an active panel, Ethernet capability and Statesman enabled.

This manual covers both variants.

Each desk top box can be used with any single or double slot rear module in the

Crystal Vision range.

A removable front panel allows easy access to installed modules.

The Indigo DT/DTSE Crystal Vision desk top box

Each desk top box has a built in power supply and an internal fan on the right hand

side.

There are three cooling modes: normal, quiet and maximum.

With normal cooling the fan runs continuously, increasing in speed as the

temperature inside the frame goes up.

In quiet mode the fan does not run at temperatures below 45oC (as measured by the

sensor inside the frame) and always runs at temperatures above 45oC. This mode is

ideal where noise is an issue or where the ambient temperature is low.

In maximum cooling mode the fan is always turning at maximum speed. This mode is

ideal for equipment bays where noise is not a concern.

Warning:

Although it is possible to operate the frame with the front panel open the frame

may not meet electromagnetic compatibility (EMC) requirements in this

condition.

The Indigo DT and Indigo DTSE have front panel processors. These processors

monitor the power rail voltage levels (+5.5V and -6.0V) and the fan speed. Status

information is indicated by the state of the FAN, PSU and TEMP LEDs on the front

panel and the alarm relay. The relay contacts are available on the remote 2 connector

on the rear of the frame.

There are four two-colour LEDs on the front panel, with yellow/green indicating a

normal condition and red an abnormal condition.

Indigo DT User Manual R1.8 3 05 July 2018

Crystal Vision Introduction

The Indigo DT (passive panel) LEDs

The LEDs show the status of the internal fan, PSU, frame temperature and RS422

activity.

The COMMS LED monitors external RS422 activity and will flash amber when there

are external communications with the frame.

Statesman users will be able to remotely monitor frame temperature and fan speed.

Note:

The term ‘frame’ and ‘desk top box’ are used interchangeably in this manual.

Note: Serial RS422 control from Statesman or third party applications is no

longer supported. All connections should be made via Ethernet. Crystal Vision AE

and SE frames running v4.6 software or later support Statesman, ASCII and

HTTP/JSON control protocols. An optional SNMP licence can be purchased to

enable control and monitoring via SNMP. Contact Crystal Vision Support for

protocol documentation.

Indigo DT User Manual R1.8 4 05 July 2018

Crystal Vision Installation

2 Installation

2.1 General Safety Summary

The following warnings are intended for user guidance and safety.

Ground This product must be grounded through the grounding

conductor of the power cord.

Power cable Use only a power cord that meets the required specification for

this product.

Fuses To avoid fire hazard use only fuses of the type and rating

specified.

Service These servicing instructions are for use by qualified personnel

only. To reduce risk of electric shock, do not perform any

servicing other than that contained in this manual unless you

are qualified to do so. Refer all servicing to qualified service

personnel.

Apart from procedures described in this manual there are no

user serviceable parts within the frame. If the frame requires

any other servicing it should be returned to the manufacturer or

dealer.

On no account should the unit be powered whilst any covers

are removed.

Ventilation The unit must have adequate ventilation. The left and right

ventilation grilles must not be obstructed. If installed in a

standard 19" rack, cool air circulation should be available.

EMC To comply with EMC regulations the following guidelines

should be observed:

Do not operate this unit for extended periods with the front

panel open.

Do not use the frame unless all the rear connector positions

are filled, either with Crystal Vision rear modules, or with

Crystal Vision blanking plates.

Do not operate the equipment with covers or panels removed.

General To avoid electric shock do not operate this product in wet or

damp conditions.

To avoid injury or fire hazard do not operate this product in an

explosive atmosphere.

Only use this rack in conjunction with Crystal Vision modules

designed for that purpose.

Indigo DT User Manual R1.8 5 05 July 2018

Crystal Vision Installation

The Indigo DT range of frames is capable of housing

the Crystal Vision range of optical modules. Although

these modules are not capable of causing personal

injury, care should be exercised when exposing

unshielded optical signals not to look directly into the

light beam.

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his

own expense.

2.2 Rack mounting and ventilation

The Indigo series of desk top boxes are designed for tabletop use, however they must

have adequate ventilation. On no account should the side ventilation grilles be

blocked.

If the optional rack ears are fitted, and the unit is installed in a standard 19" rack, cool

air circulation should be available and both side ventilation grilles should be

unobstructed.

Indigo DT airflow

Install the Indigo DT in a standard 19" rack as follows:

•Fit the optional rack ears

•Mount in the rack and secure via the rack ears

•Allow adequate space for the fan intake at the right hand side and the

exhaust through the left hand side (viewed from front)

Note:

It is possible to operate the frame with the front panel open, however the frame

may not meet electromagnetic compatibility (EMC) requirements in this

condition.

Indigo DT User Manual R1.8 6 05 July 2018

Crystal Vision Installation

2.3 Frame connectors

The following connectors are available at the rear of the frame:

Connector

Function

Notes

IEC

PSU AC input

85 to 264V, fuse under

flap

RMT 1

GPI and DC out

Refer to pinout tables

RMT 2

GPI, serial/Statesman, PSU alarm relay

and DC out

Refer to pinout tables

RS422 I/O

RS422 control/link bus using CAT5

cabling

Refer to pinout tables

Ethernet

Ethernet control using CAT5 cabling

Refer to pinout tables

All frame connectors are grouped together behind the PSU at the rear of the frame.

Indigo DT rear connectors

Connecting mains cables

The desk top box is powered by connecting a power cord to the IEC connector.

Ensure that the power cord has a minimum current rating of 6A fitted with an IEC 320

female connector, includes a protective ground connection and meets relevant local

safety standards.

Note:

The fuse holder is part of the mains inlet. The mains cable must be

disconnected before the fuse can be accessed. Replace the fuse only with one

of the same type and rating. Refer to the maintenance section of the trouble

shooting guide for more information.

Indigo DT User Manual R1.8 7 05 July 2018

Crystal Vision Installation

2.4 Connector pinout

Remote control / GPI connections

Each module slot has six connections that are brought out to one or more of the two

high density D-Type connectors on the rear of the frame labelled RMT 1 and RMT 2.

These connections are referred to as lines 'a' to 'f'. The functions assigned to them

are dependent on the module inserted in each slot, but a typical use is as a GPI line.

Refer to the documentation supplied with each Crystal Vision module to determine

the actual functions assigned.

RMT 1 and RMT 2 connections (26-way high density D-Type socket)

Pin number

RMT (Remote) 1 - function

RMT (Remote) 2 - function

+5.3V +/- 10% dc out

N/C

Frame GND

N/C

Relay close on fault on

PSU

N/C

Frame GND

Slot 2 GPI ‘a’

RX+ RS422 – link bus i/p

Slot 1 GPI ‘a’

TX- RS422 Statesman o/p

Slot 1 GPI ‘b’

TX+ RS422 Statesman o/p

N/C

Slot 2 GPI ‘e’

N/C

Slot 2 GPI ‘f’

N/C

Relay common on PSU

N/C

+5.3V +/- 10% dc out

Slot 2 GPI ‘b’

RX- RS422 – link bus i/p

Slot 2 GPI ‘c’

TX+ RS422 – link bus o/p

Slot 1 GPI ‘c’

RX+ RS422 Statesman i/p

N/C

Slot 1 GPI ‘e’

N/C

Slot 1 GPI ‘f’

N/C

Relay open on fault on PSU

N/C

Slot 2 GPI ‘d’

TX- RS422

Slot 1 GPI ‘d’

RX- RS422 Statesman i/p

Note:

The total current available from the 5.3V DC outputs is limited to approximately

1.5 Amps.

To maintain EMC compliance only good quality screened cable assemblies

should be used.

Power supply relay connections

Fitted inside the unit is a relay to indicate if the frame is in an alarm state caused by a

power supply problem, a fan stopping or an overheating frame.

Pinout is as follows:

Description

Pin number

relay common

Remote 2 pin 14

open on fault

Remote 2 pin 23

close on fault

Remote 2 pin 5

Indigo DT User Manual R1.8 8 05 July 2018

Crystal Vision Installation

Note:

The current through the relay contacts should be limited to a maximum of

200mA.

RJ45 422 I/O (Statesman/link bus) connector

Pin number

Function

RX+ RS422 Statesman i/p

RX-RS422 Statesman i/p

TX+ RS422 Statesman o/p

TX+ RS422 – Link bus o/p

TX-RS422 – Link bus o/p

TX-RS422 Statesman o/p

RX+ RS422 – Link bus i/p

RX-RS422 – Link bus i/p

Note:

These signals are also available on the RMT 2 connector.

RJ45 Ethernet connector

Pin number

Function

TD+

TD-

RD+

4 and 5

Not used – 75 ohm resistor to GND in

frame

RD-

7 and 8

Not used – 75 ohm resistor to GND in

frame

2.5 Board Settings

DTSE board top-edge switches and LEDs

Status LEDs

These LEDs are useful for trouble shooting the network link. The link LED will be

illuminated whenever the frame is connected to a network. Should this LED not be lit

check the cable connection between the frame and network outlet. The data LED

flashing will indicate that communications between the frame and the network exists.

Indigo DT User Manual R1.8 9 05 July 2018

Otros manuales para Indigo DT

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de computadora de Crystal Vision

Crystal Vision

Crystal Vision TANDEM HD-20 Manual de usuario

Crystal Vision

Crystal Vision TANDEM-110 Manual de usuario

Crystal Vision

Crystal Vision TANDEM HD-21 Manual de usuario

Crystal Vision

Crystal Vision Indigo 4 Manual de usuario

Crystal Vision

Crystal Vision Indigo 1 Series Manual de usuario

Crystal Vision

Crystal Vision TANDEM-200 Manual de usuario

Crystal Vision

Crystal Vision Indigo 2AE Manual de usuario

Crystal Vision

Crystal Vision Indigo ADP 310 Manual de usuario

Crystal Vision

Crystal Vision Indigo 2 CoolFlow Manual de usuario

Crystal Vision

Crystal Vision TANDEM 3G Manual de usuario

Crystal Vision

Crystal Vision Vision M-VIVID Manual de usuario

Crystal Vision

Crystal Vision Indigo 4 CoolFlow Manual de usuario

Crystal Vision

Crystal Vision Indigo 1 Series Manual de usuario

Crystal Vision

Crystal Vision TANDEM-300 Manual de usuario

Crystal Vision

Crystal Vision Indigo 2-48V Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
