Crystal Vision Indigo ADP 310 Manual de usuario

ADP 310

Audio delay and processor for

discrete AES or analogue audio

Crystal Vision Ltd., Lion Technology Park, Station Road East, Whittlesford, Cambridge, CB22 4WL, England.

Tel: +44(0) 1223 497049 Fax: +44(0) 1223 497059 sales@crystalvision.tv www.crystalvision.tv

Crystal Vision ADP 310 User Manual

Contents

1Introduction 4

2Hardware installation 6

2.1 Board configuration 6

Link Configuration 6

2.2 Input and output piggyback boards 7

3G-AIP2 Analogue Input 7

3G-AOP2 Analogue Output 8

DIOP4 AES I/O 8

Fitting the I/O piggybacks onto the main board 9

3Rear modules and signal I/O 10

Rear module connections with RM47 10

Rear module connections with RM74 12

4General Purpose Interface 13

Introduction 13

Alarms 14

2U frame GPI connections 14

1U frame GPI connections 15

Indigo DT desk top box GPI connections 15

5Control and Status monitoring 16

5.1 Card edge controls 16

Card edge buttons 16

Card edge rotary control 16

Reading card edge LEDs 17

Navigating card edge menus 17

5.2 Using the front control panel 18

Selecting an ADP 310 18

Control Panel keys overview 19

Updating the display 19

Menu Structure 20

ADP 310 User Manual R1.21 19 June 2019

Crystal Vision ADP 310 User Manual

Controlling cards via VisionWeb 21

6Control Descriptions 23

Status Menu 23

Status 23

Audio Settings Menu 24

Delay, Invert & Mono 24

Audio Gain 25

AES Output Router 26

AOP Output Router 27

Presets, Reset & GPI/Os Menu 28

Presets 28

Resets 29

GPO5 / GPO6 Alarms 29

Silence Alarm Delay 30

7Troubleshooting 31

Card edge monitoring 31

Basic fault finding guide 31

8Specification 32

9Appendix 1 34

Statesman 34

Introduction 34

Statesman operation 34

Control Descriptions 35

Status 36

Reference Status 36

Sub PCB Type 36

Audio Input 37

Aip/AES Audio Ip 38

AES Input Dly 38

Audio Delay 38

Audio Gain 39

Channel Gain 40

ADP 310 User Manual R1.22 19 June 2019

Crystal Vision ADP 310 User Manual

AOP Router 41

Audio OP Chs 41

Embed Mute 41

AES Output Router 42

Audio Op Channels 42

Diop Mutes 43

GPI outputs AES I/O 43

GPO5 / GPO6 44

GPI outputs Analogue I/O 45

GPO5 / GPO6 46

Presets and Reset 47

Preset 47

Board Reset 48

Revision 1 Moved Statesman info to Appendix. Added VisionWeb. 25/08/14

Revision 2 Added note about removal of card edge control in 2018. 19/06/19

ADP 310 User Manual R1.23 19 June 2019

Crystal Vision Introduction

1 Introduction

ADP 310 is a processor for analogue or 24-bit 48 kHz digital audio.

Audio signals are input and output as either two analogue stereo pairs or four AES

stereo pairs.

Audio signals can be gain controlled by +/- 18dB, delayed by up to 400mS, inverted,

muted, stereo to mono converted and shuffled. Asynchronous AES signals are

automatically resampled if not Dolby E encoded.

There are two slots for analogue or digital I/O piggybacks of which there are three

types: 3G-AIP2, 3G-AOP2 and DIOP4. The 3G-AIP2 piggyback has four analogue

inputs; 3G-AOP2 has four analogue outputs; DIOP4 has four stereo AES pairs.The

front slot (nearest handle) is for audio inputs and can be fitted with a 3G-AIP2 or

DIOP4 piggyback. The rear slot (nearest edge connector) is for audio outputs and can

be fitted with a 3G-AOP2 or DIOP4 piggyback. It is not possible to mix analogue and

digital signals, so an ADP 310 will be fitted with either a 3G-AIP2 + 3G-AOP2

combination or two DIOP4.

The main features are as follows:

•Optimise the audio: each channel has individual gain control and

stereo to mono conversion. The audio level can be increased or

decreased to match the rest of the system: each mono audio channel

offers individual gain control, adjustable between +18dB and -18dB in

0.1dB steps. Audio channels can be muted and stereo pairs

converted to mono. Audio channels can be delayed by up to 400mS.

Dolby E signals automatically bypass all audio processing.

•Audio resampling: Asynchronous 48 KHz AES signals automatically

resampled unless Dolby E encoded.

•Control of ADP 310 is by VisionWeb web browser software. Control

can additionally be from an active front panel on the frame, a remote

panel or via SNMP. Card edge control was also available prior to

2018.

•GPI control of configuration set-ups and status alarms.

•Supports the following rear module connectors: RM47, RM74.

•Compatible with Crystal Vision standard frames available in 2U, 1U

and desk top box.

ADP 310 User Manual R1.24 19 June 2019

Crystal Vision Introduction

ADP 310 Functional Block Diagram

Block Diagram Description

All analogue or digital audio is passed to audio processing blocks where gain and

delay adjustments are made after resampling. Dolby E encoded signals

automatically bypass the audio processing stage.

The outputs of the audio processing block are inputs to an 8x8 router which feeds

the plug-in output piggyback. In this way any of the eight digital channels or four

analogue channels can be routed to any output channel.

An analogue Black and Burst or tri-level syncs reference must be applied to provide

a stable clock to lock to the incoming AES and analogue audio.

ADP 310 User Manual R1.25 19 June 2019

Crystal Vision Hardware installation

2Hardware installation

2.1 Board configuration

ADP 310 board top-side

Note: The potentiometers P1, P2, P3 and P4 have been factory set and should NOT be

adjusted.

Holes marked ‘B’ are for the fitting of the I/O piggybacks.

Link Configuration

There are four user-settable links on the ADP 310. These are PL2-5, all other links should be left

in the position shown in the above picture. PL2-5 set whether the board’s GPI inputs are used as

GPIs or as an extra serial I/O port.

Link Towards front of board or Up Towards the rear of board or

Down

Sync input unterminated

Sync input terminated by 75 ohm

J9 Debug mode – forces board’s IP address to be

10.0.0.201

Normal mode (factory set, do not

alter)

PL2

GPI 1 Input = RS422 Rx+

GPI 1 Input = GPI 1

PL3

GPI 2 Input = RS422 Rx-

GPI 2 Input = GPI 2

PL4

GPI 3 Input = RS422 Tx+

GPI 3 Input = GPI 3

PL5

GPI 4 Input = RS422 Tx-

GPI 4 Input = GPI 4

ADP 310 User Manual R1.26 19 June 2019

Crystal Vision Hardware installation

2.2 Input and output piggyback boards

The ADP 310 board has two positions where one of three types of I/O module can

be plugged in to enable analogue or digital input and output. The front position is for

audio inputs and the rear for outputs.

The three types of piggybacks are 3G-AIP2, 3G-AOP2 and DIOP4. The only valid

combinations are shown in the table below:

AES I/O Analogue I/O

FRONT DIOP4 3G-AIP2

REAR DIOP4 3G-AOP2

3G-AIP2 Analogue Input

This analogue module has four balanced audio inputs. The links PL1-4 allow 0dBFS

to be set to +18dBu (to the right, towards SK1) or +24dBu (to the left, towards

SK2/3). The adjacent potentiometers RV1-4 are factory set and should NOT be

adjusted.

3G-AIP2 Channel number Link number

CH1 PL1

CH2 PL2

CH3 PL3

CH4 PL4

Table showing links controlling the input gain of the 3G-AIP2 channels

ADP 310 User Manual R1.27 19 June 2019

Crystal Vision Hardware installation

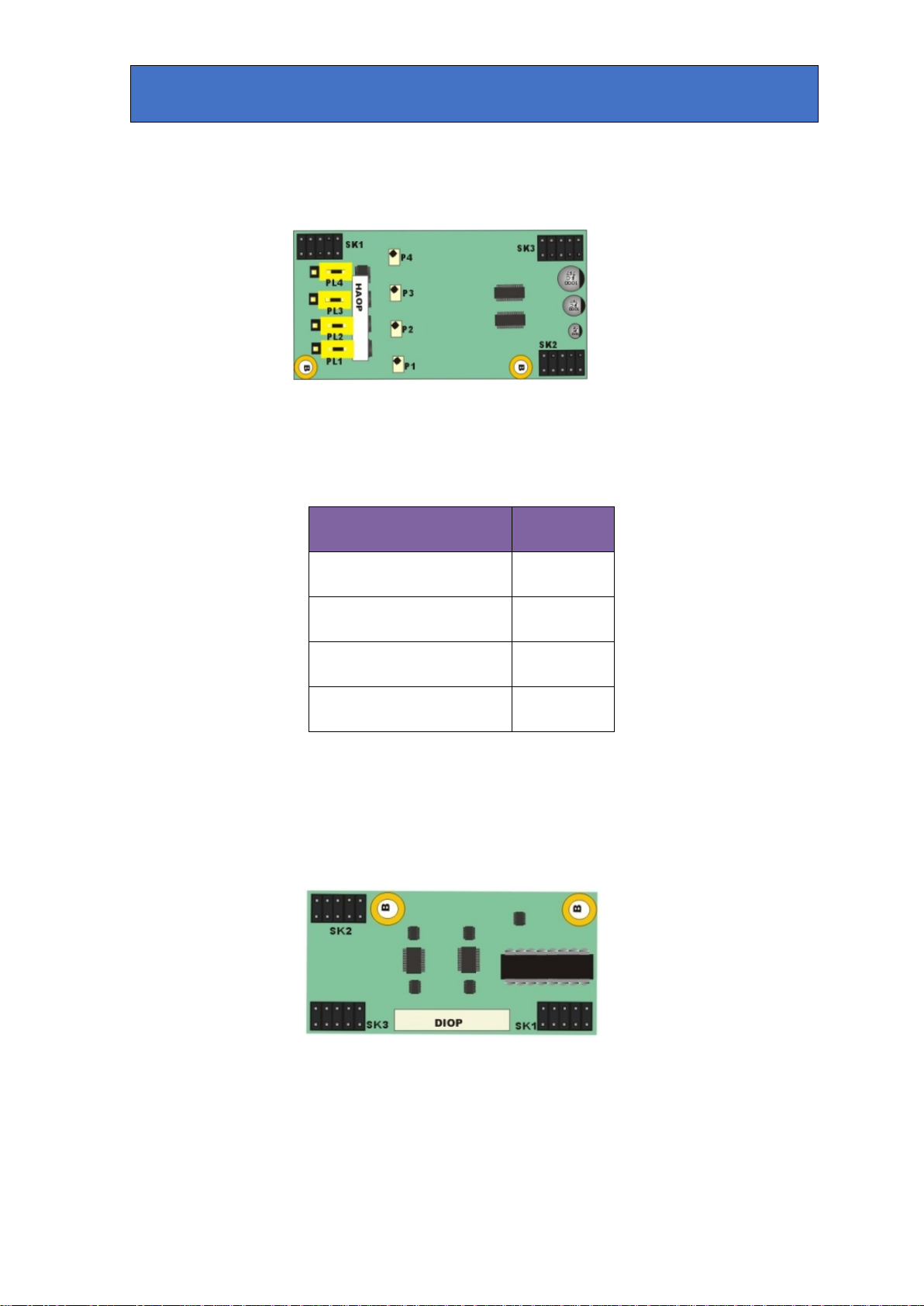

3G-AOP2 Analogue Output

This analogue piggyback has four balanced audio outputs. The links PL1-4 set

0dBFS to +18dBu (to the right, towards SK2/3) or +24dBu (to the left, towards SK1).

The four potentiometers P1-P4 are factory set and should NOT be adjusted.

Table showing links controlling the output gain of the 3G-AOP2 channels

DIOP4 AES I/O

This digital audio piggyback has four AES stereo pairs that are individually

configured as inputs or outputs by software. There are no links or user-adjustments

on this card.

3G-AOP2 Channel number Link number

CH1 PL1

CH2 PL2

CH3 PL3

CH4 PL4

ADP 310 User Manual R1.28 19 June 2019

Crystal Vision Hardware installation

Fitting the I/O piggybacks onto the main board

Example showing 3G-AIP2 and 3G-AOP2 piggybacks fitted

The I/O piggybacks plug onto the main board such that main board plugs J3, J4, J5

and J6, J7, J8 align with piggyback sockets SK2, SK3, SK1. With the component

side of the module top-most, align the piggyback sockets carefully with the plugs

and push firmly. Insert the plastic rivets supplied with the fitting kit through the main

board from the underside so they protrude through the piggyback board, then push

the rivet peg firmly to splay the end to lock the piggyback board in position.

ADP 310 User Manual R1.29 19 June 2019
