Instruction Manual

Model 2015-05

Upconverter

May 2010 Rev F

EXECUTE

MODEL 2015

CROSS TECHNOLOGIES INC.

F=1525 G=+00.0

MUTEREMOTE POWER ALARM

UPCONVERTER

Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,

but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.

for purposes of operating the equipment.

When ordering parts from Cross Technologies, Inc., be sure to include the equipment

model number, equipment serial number, and a description of the part.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

INSTRUCTION MANUAL

MODEL 2015-05 Upconverter

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

1.3 Monitor & Control Interface 5

1.4 Use Information 8

2.0 Installation 9

2.1 Mechanical 9

2.2 Rear I/O’s 10

2.3 Front Panel Controls, Indicators 11

2.4 Operation 12

2.5 Menu Settings 13

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies,

Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s

option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall

not be liable for any special, indirect, or consequential damages. This warranty does not

cover parts or equipment which have been subject to misuse, negligence, or accident by the

customer during use. All shipping costs for warranty repairs will be prepaid by the

customer. There are not other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

2015-05 Manual, Rev F Page 2 05/20/10

MODEL 2015-05 Upconverter

1.0 General

1.1 Equipment Description

The 2015-05 L-band Upconverter converts 140 ± 36 MHz to 950 to 1525 MHz in 1 MHz steps with low group

delay and flat frequency response. Synthesized local oscillators (LO) provide frequency selection. Multi-

function push button switches select the RF frequency, gain, and other parameters. Front panel LEDs provide

indication of DC power (green), PLL alarm (red), Remote operation (yellow) or the TX carrier is Muted

(yellow). Variable attenuators for the IF input and output provide a gain range of -10 to +30 dB as adjusted by

the front panel multi-function pushbutton switches. Remote operation allows selection of frequency and gain.

Parameter selection and frequency and gain settings appear on the LCD display. Connectors are BNC (female)

for IF input and the optional 10 MHz external reference input and output (option -E), and type F (female) for

the RF output. The 10 MHz option includes a 10 MHz output connector which contains either the internal or

external 10 MHz reference signal. Table 2.2 shows other connector options. The 2015-05 is powered by a 100-

240 ±10% VAC power supply and is contained in a 1 3/4” X 19 “ X 16” rack mount chassis.

EXECUTE

MODEL 2015

CROSS TECHNOLOGIES INC.

F=1525 G=+00.0

MUTEREMOTE POWER ALARM

UPCONVERTER

FRONT PANEL

RF OUT

SSPB FUSE

GND

J4 J5J3J18

10 MHZ REF 10 MHZ IF IN

EXT REF F2

OUTPUT INPUT

DS7

VDC on RF

J10

AND

MONITOR

CONTROL

15 234 6789

REAR PANEL

FIGURE 1.1 Model 2015-05 Front and Rear Panels

.95

1.53

GHz

OUT

140

MHz

.95 to 2 GHz

CONTROLLER F=1525 G=+00.0

1750 MHz

1890

MHz

2.7

3.3

GHz

var

atten

10MHz*

+24VDC*

EXT

10MHz*

*OPTIONAL

var

atten

INT

10MHz

FIGURE 1.2 Model 2015-05 Upconverter Block Diagram

2015-05 Manual, Rev F Page 3 05/20/10

1.2 Technical Characteristics

TABLE 1.0 2015-05 Upconverter Specifications*

Input Characteristics

Impedance/Return Loss 75 /18 dB (see TABLE 2.2 for connector options)

Frequency 140 ± 36 MHZ

Input Level -40 to -10 dBm

Output Characteristics

Impedance/Return Loss 75 /12 dB (see TABLE 2.2 for connector options)

Frequency 950 - 1525 MHz

Output level 0 to -20 dBm

Output level/1 dB +5 dBm

Channel Characteristics

Gain range (adjustable) -10 to +30.0 dB

Spurious Response <-50 dBC, with input level set correctly

Frequency Response ±1.5 dB, 950 -1525 MHz; ± 0.5 dB, 72 MHz BW

Group Delay, max 0.0035 ns/MHz2parabolic; 0.025 ns/MHz linear; 1 ns ripple

Frequency Sense Non-inverting

Synthesizer Characteristics

Frequency Accuracy ± 1.0 ppm max over temp (± 0.01 ppm option H) internal reference

Frequency Step 1.0 MHz minimum

10 MHz level 3 dBm, ± 3 dB (option E)

-110-95-80-70-70

1MHz100kHz10kHz1kHz100 Hz

dBC/Hz

Phase Noise

Fre

Controls, Indicators

Frequency Selection direct readout LCD; pushbutton switches or remote selection

Gain Selection direct readout LCD; pushbutton switches or remote selection

Power Green LED

Alarm Red LED

Remote Yellow LED; RS232C (RS485, option Q), 9600 baud

Mute Yellow LED

Other RF Connector Type F (female) (see TABLE 2.2 for other options)

IF Connector BNC (female) (see TABLE 2.2 for other options)

Ext 10 MHz Conn. (In/Out) BNC (female), 50/75 (option E)

Alarm/Remote Connector DB9 - NO or NC contact closure on Alarm

Size 19 inch, 1RU standard chassis 1.75”high X 16.0” deep

Power 100-240 ±10% VAC, 47-63 Hz, 45 watts max

Options

-E Allows ext. 10 MHz ref input, 10 MHz ref can be inserted on the RF in

-H High Stability (± 0.01 ppm) internal reference

-Q RS-422/RS-485 Remote capability

-T Temperature Sensor

-V SSPB +24 VDC, 2.5 Amps max, with readout of current

-X 125 kHz step size

-W8 Ethernet M&C Remote Interface

-Z Attenuator 0.1 dB step size

Connector options see TABLE 2.2

*+10 to +40 degrees C; Specifications subject to change without notice

2015-05 Manual, Rev F Page 4 05/20/10

1.3 Monitor and Control Interface

A) Remote serial interface

Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.

(RS-232C, RS-422, or RS-485 - option -Q)

Female DB-9

PC Com Port Male DB-9

2015/16/17 M&C Port

M&C Cable Diagram - Cross Technologies Frequency Converters

RX RX

TX TX

DTR

DSR

RTS

CTS

Connector: Rear panel, DB-9 female

J10 Pinouts

Pinouts (RS-232C/422/485)

Pin Function

1Rx-

2 Rx+ (RS-232C)

3 Tx+ (RS-232C)

4Tx-

5GND

6 Alarm Relay: Common

7 Alarm Relay: Normally Open

8NotUsed

9 Alarm Relay: Normally Closed

2015-05 Manual, Rev F Page 5 05/20/10

B) Status Requests

Table 1.1 lists the status requests for the 2015-05 and briefly describes them.

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485, (OPTION-Q), is selected.

TABLE 1.1 2015-05 Status Reequests

Requests

Command Syntax * Description

Command Status {aaS1} Returns {aaS1bbbbcccddAM} where:

• bbbb = Tx frequency

4 characters - standard (7 characters - Option-X)

• ccc = Tx gain

• dd = Tx input level (10 to 40 => -10 to -40 dBm)

• A = summary alarm; 1 = alarmed, 0 = normal

• M = Tx RF Status (1 = Normal, 0 = Muted)

10 MHz Reference Status {aaS2} Returns {aaS2ER} where:

(option E only) • E = Ext 10MHz Status (1 = on, 0 = off)

• R = 10MHz RF insertion status (1 = inserted, 0 = NOT inserted)

SSPB Current {aaS4} Returns {aaS4bbb} where:

(option V only) • bbb = SSPB current, range 000 to 250 (0 to 2500 mA)

2015-05 Manual, Rev F Page 6 05/20/10

C) Commands Table 1.2 lists the commands for the 2015-05 and briefly describes them. After a command is

sent the 2015-75 sends a return “>” indicating the command has been received and executed.

General Command Format - The general command format is {CND...}, where:

{ = start byte

C = 1 character, either C (command) or S (status)

N = 1 character command or status request

D = 1 character or more of data (depends on command)

} = stop byte

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485, (OPTION-Q), is selected.

Table 1.2 2015-05 Comman

Commands

Command Syntax* Description

Set Transmitter Frequency {aaC1xxxx} where:

• xxxx = 4 characters standard (7 characters -Option-X)

• Range: 0950 to 2150 MHz, in 1 MHz steps

0950.000 to 2150.000 in 1 kHz steps (option-X)

Set Input Level {aaCIxx} where:

• xx = 2 characters

• Range: 10 to 40 (-10 to -40 dBm, in 1 dB steps)

Set Transmit Gain {aaC3xxx} where:

• xxx = 2 characters (0 to 30dB), 3 characters (-10 to -1dB)

• Range: -10 to 30 (-10 dB to +30 dB, in 1 dB steps)

Enable 10MHz RF Insertion {aaC5x} where x =:

(option E only) • 0 to disable 10MHz RF insertion

• 1 to enable 10MHz RF insertion

Enable Tx {aaCAx} where x =:

• 0 to disable Tx signal

• 1 to enable Tx signal

Enable External 10MHz {aaCEx} where x =:

(option E only) • 0 to disable External 10MHz ref signal

• 1 to enable External 10MHz ref signal

Enable Remote # Just # sign

Disable Remote {aaCR0} {CR and zero}

2015-05 Manual, Rev F Page 7 05/20/10

1.4 Use Information

A.Elevated operating ambient temperature - if installed in a closed or multi-unit rack assembly,

the operating ambient temperature of the rack may be greater than room ambient temperature.

Therefore, consideration should be given to Tmra.

B. Reduced air flow - Installation of the equipment in a rack should be such that the amount of air flow

required for safe operation of the equipment is not compromised. Additional space between unit

may be required.

C. Mechanical loading - Mounting of equipment in a rack should be such that a hazardous condition

does not exist due to uneven weight distribution.

D. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply

circuit and the effect that overloading of circuits could have on over current protection and supply wiring.

Appropriate consideration of equipment name plate rating should be used, when addressing this concern.

E. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular

attention should be given to supply connections other than direct connection to the Branch

(use of power strips).

F. Top Cover - There are no servicable parts inside the product so, the Top Cover should not be removed.

If the Top Cover is removed the ground strap and associated screw MUST BE RE-INSTALLED

prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS

emission problems.

2015-05 Manual, Rev F Page 8 05/20/10

2.0 Installation

2.1 Mechanical

The 2015-05 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 16 inch deep chassis. A

switching, ± 12, +24, +5 VDC power supply provides power for the assemblies. The 2015-05 can be secured to

a rack using the 4 holes on the front panel. Figure 2.0 shows how the 2015-05 is assembled.

POWER

SUPPLY

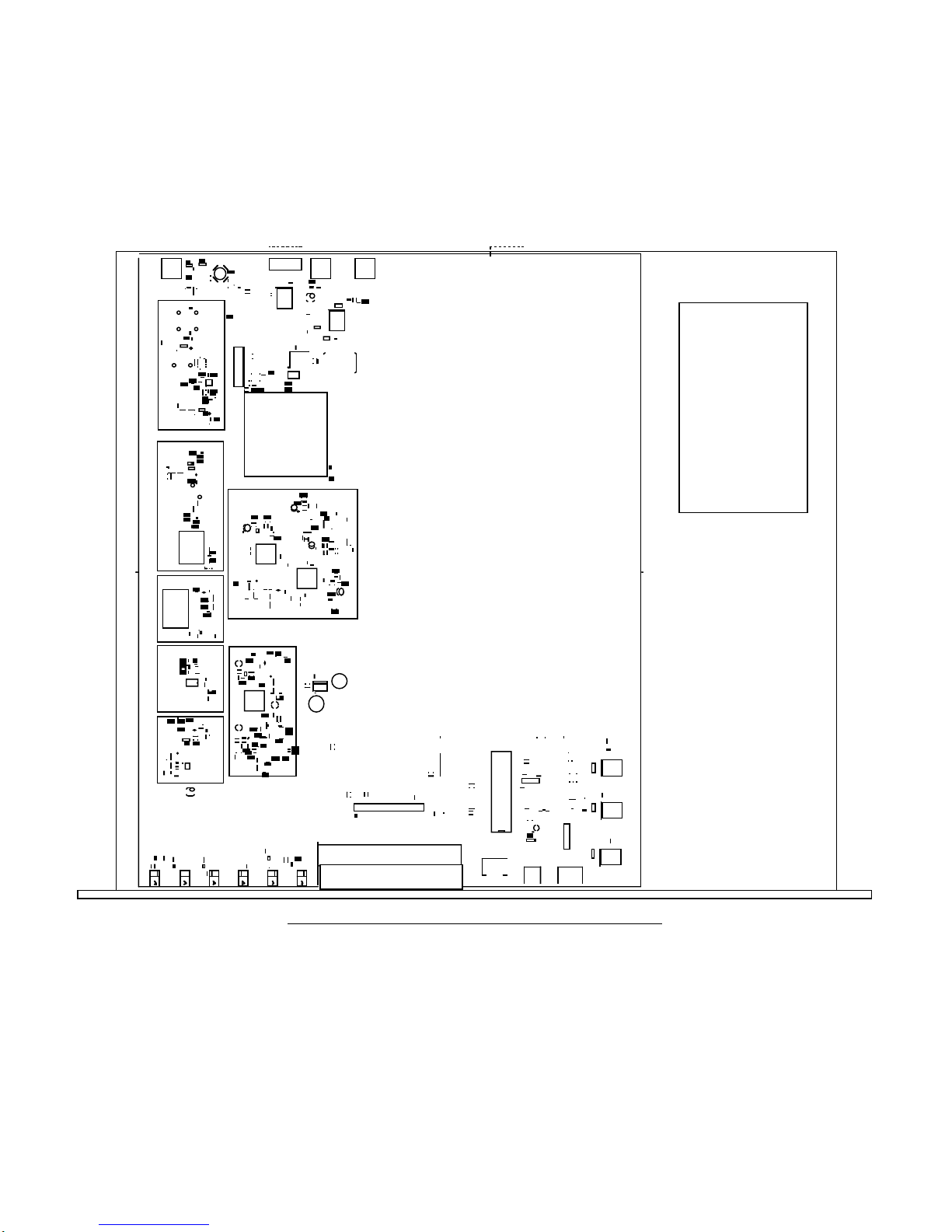

FIGURE 2.0 2015-05 Mechanical Assembly

2015-05 Manual, Rev F Page 9 05/20/10

2.2 Rear Panel Input/Output Signals - Figure 2.1 shows the input and output connectors on the rear panel.

GND

J18

10 MHZ REF

OUTPUT

AC1 - POWER IN

AC input for switching

power supply.

100-240 ±10% VAC,

47-60 Hz.

J10

AND

MONITOR

CONTROL

J10 - MONITOR AND CONTROL

DB9 female connector. see Table 2.1.

RF OUT

J4 J5J3

10 MHZ IF IN

EXT REF

J3 - 10 MHz EXT REF INPUT (Option -E)

10 MHz external reference input, 0 ± 3 dBm, 75

ohms, BNC female connector.

J5 - RF OUT

950-1525 MHz,

0 to -20 dBm output

see Table 2.2.

J4 - IF IN

140 MHz,

-10 to -40 dBm input

see Table 2.2.

SSPB FUSE

F2 - SSPB FUSE (option -V)

2.5A, Fast Blo, 1/4” Fuse; installing fuse places +24

VDC, 2.5 amp, max on the RF OUT (J5 center pin).

DS7

VDC

INPUT

DS7 - SSPB ALARM LED (option -V)

Lights yellow when +24 VDC SSPB

voltage is present on RF OUT, J5,

center pin.

J18 - 10 MHz REF OUTPUT (option -E)

10 MHz reference output. 75BNC

female connector.

15 234

678

FIGURE 2.1 2015-05 Rear Panel I/Os

TABLE 2.1 JJ10

J10 Pinouts (RS-232C/422/485*)

Pin Function

1Rx-

2 Rx+ (RS-232C)

3 Tx+ (RS-232C)

4Tx-

5GND

6 Alarm Relay: Common

7 Alarm Relay: Normally Open

8NotUsed

9 Alarm Relay: Normally Closed

*Remote Serial Interface

Interface: DB-9 Male

Protocol: RS-232C (RS-232C/422/485 option Q), 9600 baud rate, no parity, 8 data bits,

1 start bit, 1 stop bit.

TABLE 2.2

IF/RF

IF/RF Connector Optionns

Options

Option IF RF

STD BNC, 75Type F, 75

BBNC,75BNC, 75

CBNC,75BNC, 50

DBNC,50BNC, 50

F Type F, 75Type F, 75

JBNC,50Type F, 75

KBNC,50BNC, 75

MBNC,50Type N, 50

NBNC,75Type N, 50

2015-05 Manual, Rev F Page 10 05/20/10

Tabla de contenidos

Otros manuales de Convertidor de medios de Cross Technologies

Cross Technologies

Cross Technologies 2115-275-1845 Manual de usuario

Cross Technologies

Cross Technologies 2017-93 Manual de usuario

Cross Technologies

Cross Technologies 3116-22-23 Manual de usuario

Cross Technologies

Cross Technologies 2016-03A Manual de usuario

Cross Technologies

Cross Technologies 2017-0923 370 Series Manual de usuario

Cross Technologies

Cross Technologies 2015-03A Manual de usuario

Cross Technologies

Cross Technologies 2005-02P4 Manual de usuario

Cross Technologies

Cross Technologies 4115-300 Manual de usuario

Cross Technologies

Cross Technologies 2016-25-01 Manual de usuario

Cross Technologies

Cross Technologies 3116-192 Manual de usuario

Cross Technologies

Cross Technologies 2117-9395 Manual de usuario

Cross Technologies

Cross Technologies 3016-2124 Manual de usuario

Cross Technologies

Cross Technologies 2016-05A Manual de usuario

Cross Technologies

Cross Technologies 2099-2424 Manual de usuario

Cross Technologies

Cross Technologies 2017-03A Manual de usuario

Cross Technologies

Cross Technologies 2015-123 Manual de usuario

Cross Technologies

Cross Technologies 2009-2425-1750 Manual de usuario

Cross Technologies

Cross Technologies 4116-31-2831 Manual de usuario

Cross Technologies

Cross Technologies 2016-02-1200 Manual de usuario

Cross Technologies

Cross Technologies 3016-1520-1200 Manual de usuario

Cross Technologies

Cross Technologies 2016-8085 Manual de usuario

Cross Technologies

Cross Technologies 3116-7786-2150 Manual de usuario

Cross Technologies

Cross Technologies 2015-24 Manual de usuario

Cross Technologies

Cross Technologies 2015-58T Manual de usuario

Manuales populares de Convertidor de medios de otras marcas

SoundTraxx

SoundTraxx Blunami BLU-2200 Manual de usuario

SPROLINK

SPROLINK VA1 Manual de usuario

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manual de usuario

Nikon

Nikon AF-S TC-20E III Manual de usuario

Axis

Axis AXIS Q7406 Manual de usuario

Omega

Omega TAC80B-J Manual de usuario

Zoom

Zoom Thunderbolt TAC-2R Manual de usuario

OST

OST iConverter 10/100M Manual de usuario

Vertiv

Vertiv Netsure Manual de usuario

birddog

birddog MINI Manual de usuario

Roland

Roland GI-10 Manual de usuario

Wallenstein

Wallenstein WX310 Manual de usuario

Pace

Pace MSS 200-1 Manual de usuario

Solar Converters

Solar Converters EQ 12/24-50 Manual de usuario

CYP

CYP EL-7400V Manual de usuario

TIE

TIE MIDI 1i1o Manual de usuario

DCS

DCS Vivaldi Upsampler Manual de usuario

Westermo

Westermo MCW-211 SERIES Manual de usuario
