Crestron TPS-1700 Isys®Wired 5.7 Inch Tabletop Touchpanel

Operations Guide - DOC. 6223A Isys®Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 •1

• 5.7 in (14.78 cm) active color matrix display

• 320x240 screen resolution

• 63MIPs ColdFire processor running Crestron Isys®generation firmware

• 16-bit, non-palette graphics

• 64,000-color Crestron Isys engine

• 4 MB of flash (approx. 3MB for user display lists)

• 8 MB of SDRAM (Synchronous Dynamic RAM) for panel firmware

• Connection to Cresnet via 6-pin RJ-11 port in base

• CN-RJ11 4-Wire to RJ-11 converter and cable supplied

• Engraveable pushbuttons available

Isys®Wired 5.7 Inch Tabletop

Touchpanel: TPS-1700

Introduction

Functions and Features

The TPS-1700 is a compact Crestron Isys®wired 5.7-inch tabletop touchpanel that

provides user interface to a Crestron®remote control system (Cresnet®system). The

unit provides dynamic on-screen feedback for real-time confirmation of commands.

Functional Summary

NOTE: The TPS-1700 is supplied with an optional bezel, ten membrane switches,

and ten black pushbuttons (blank), five for each side of the LCD screen. You can use

these buttons to access any frequently used commands. Refer to “Appendix:

Installation of Optional Pushbuttons” for instructions to install the optional switches,

buttons, and bezel.

NOTE: Two options, 1700C-BTNB (black buttons) and 1700C-BTNS (silver

buttons) provide custom engraved buttons for your touchpanel. Contact Crestron

customer support for more information.

Isys®Wired 5.7 Inch Tabletop Touchpanel Crestron TPS-1700

2 •Isys®Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 Operations Guide - DOC. 6223A

Specifications

The table below provides a summary of specifications for the TPS-1700.

Specifications of the TPS-1700 Touchpanel

SPECIFICATION DETAILS

Power Requirements 10 Watts (0.40 Amp @ 24 VDC)

Default Net ID 03

Default Standby Timeout 10 minutes

Signal Join Maximums 4K (digital), 4K (analog), 999 (serial)

Control System Update Files 1

2-Series Control System

CEN/CN-TVAV

CNMSX-AV/Pro

CNRACKX/-DP

CNMS, CNRACK, CNLCOMP

ST-CP

Version C2-2004.CUZ or later2

Version 5.13.12V.UPZ or later3, 4

Version 5.12.63X.UPZ or later3, 4

Version 5.10.11W.UPZ or later3, 4

Version 3.18.09m, l, c or later5

Version 4.02.04S.UPZ or later3

Acceptable File Extensions6

VT Pro-e

.vtp

.vtz

Firmware

.csf

projectname.vtp (source file)

projectname.vtz (compiled file)

TPS-1700xxxxxx.csf (panel firmware)

Memory 4 MB flash memory (3.5 Mbytes available

for user programming)

8 MB SDRAM for firmware storage

Touchscreen Dimensions Height: 3.50 in (8.89 cm)

Width: 4.60 in (11.68 cm)

Diagonal: 5.70 in (14.48 cm)

Touchscreen Resolution 320 x 240 pixels, 64K colors (16-bit)

Touchscreen Viewing Angles ±65° for X dir, +65°/-40° for Y dir

Touchscreen LCD Active matrix

Touchscreen Illumination Backlit fluorescent

Touchscreen Composition Resistive Membrane

Operating Temperature 50° to 113°F (10° to 45°C)

Humidity 10% to 90% RH (non-condensing)

Overall Dimensions Width: 8.75 in (22.22 cm)

Height: 3.85 in (9.78 cm)

Depth: 5.51 in (14.00 cm)

Weight 1.85 lb (0.84 kg)

1. The latest versions can be obtained from the Downloads | Software Updates section of the Crestron

website (www.crestron.com). Refer to NOTE after last footnote.

2. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product

Catalog for a complete list of 2-Series control systems.

3. CNX update files are required for either CNMSX-AV/PRO or CNRACKX/-DP. Filenames for CNX

update files have a UPZ extension and are in one EXE or zipped UPZ file. To avoid program problems,

make certain you are using the update file with the correct suffix letter (e.g., S, V, W, X).

4. When loading touchpanel projects or firmware through the RS-232 port of the control system,

Viewport may post the “Transfer Failed” message. To ensure successful data transfer, set the baud rate

to 38400 (Cresnet speed) or lower.

5. These control systems do not support file transfers (firmware or touchpanel projects) over Cresnet. File

transfers must be directly uploaded through the RS-232 port.

6. Extension requires a prefix specific to the touchpanel type. In DETAILS, projectname represents the

assigned project name, and xxxxxx represents a version number.

Crestron TPS-1700 Isys®Wired 5.7 Inch Tabletop Touchpanel

Operations Guide - DOC. 6223A Isys®Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 •3

NOTE: Crestron software and any files on the website are for Authorized Crestron

dealers and Crestron Authorized Independent Programmers (CAIP) only. New users

may be required to register to obtain access to certain areas of the site (including the

FTP site).

Physical Description

The touch-sensitive viewing screen is located on the front of the TPS-1700. The

electronic hardware is housed in a black and silver molded plastic enclosure.

Connection to the control system is via a 6-pin RJ-11 connector mounted on the

bottom of the unit base. Refer to the illustrations below and on the next page.

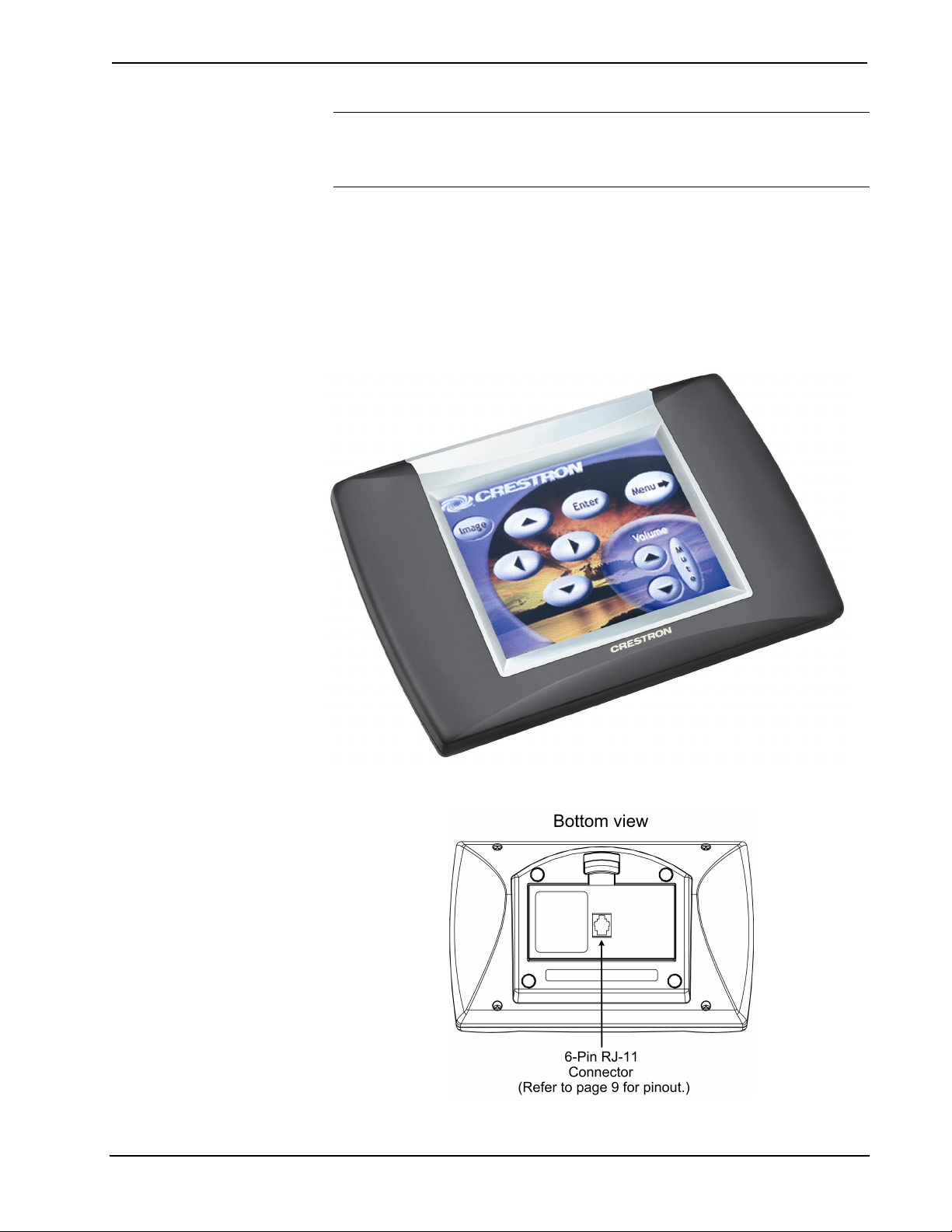

Physical Views of TPS-1700

Isys®Wired 5.7 Inch Tabletop Touchpanel Crestron TPS-1700

4 •Isys®Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 Operations Guide - DOC. 6223A

Physical Views of TPS-1700 (continued)

Four rubber feet on the underside of the unit are for stability and to prevent slippage

on flat surfaces.

Industry Compliance

As of the date of manufacture, this unit has been tested and found to comply with

specifications for CE marking and standards per EMC and Radio Communications

Compliance Labeling (N11785).

Crestron TPS-1700 Isys®Wired 5.7 Inch Tabletop Touchpanel

Operations Guide - DOC. 6223A Isys®Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 •5

NOTE: These devices comply with part 15 of the FCC rules. Operation is subject to

the following two conditions: (1) these devices may not cause harmful interference,

and (2) these devices must accept any interference received, including interference

that may cause undesired operation.

Setup

Network Wiring

NOTE: When installing network wiring, refer to the latest revision of the wiring

diagram(s) appropriate for your specific system configuration, available from the

Downloads | Product Manuals | Software and Wiring Diagrams section of the

Crestron website (www.crestron.com).

When calculating the wire gauge for a particular Cresnet run, the length of the run

and the power factor of each network unit to be connected must be taken into

consideration. If Cresnet units are to be daisy-chained on the run, the power factor of

each unit to be daisy-chained must be added together to determine the power factor

of the entire chain. The length of the run in feet and the power factor of the run

should be used in the following resistance equation to calculate the value on the right

side of the equation.

Resistance Equation

R = Resistance (refer to table below).

L = Length of run (or chain) in feet.

PF = Power factor of entire run (or chain).

R < L x PF

40,000 Where:

The required wire gauge should be chosen such that the resistance value is less than

the value calculated in the resistance equation. Refer to the following table.

Wire Gauge Values

RESISTANCE (R) WIRE GAUGE

416

618

10 20

15 22

13 Doubled CAT5

8.7 Tripled CAT5

NOTE: All Cresnet wiring must consist of two twisted pairs. One twisted pair is the

+24V conductor and the GND conductor, and the other twisted pair is the Y

conductor and the Z conductor.

NOTE: When daisy-chaining Cresnet units, strip the ends of the wires carefully to

avoid nicking the conductors. Twist together the ends of the wires that share a pin on

the network connector, and tin the twisted connection. Apply solder only to the ends

of the twisted wires. Avoid tinning too far up the wires or the end becomes brittle.

Insert the tinned connection into the Cresnet connector and tighten the retaining

screw. Repeat the procedure for the other three conductors.

NOTE: For larger networks (i.e., greater than 28 network devices), it may be

necessary to add a Cresnet Hub/Repeater (CNXHUB) to maintain signal quality

Isys®Wired 5.7 Inch Tabletop Touchpanel Crestron TPS-1700

6 •Isys®Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 Operations Guide - DOC. 6223A

throughout the network. Also, for networks with lengthy cable runs, it may be

desirable to add a hub/repeater after only 20 network devices.

Identity Code

Every equipment and user interface within the Cresnet system requires a unique

Cresnet identity code (Net ID). These codes are two-digit hexadecimal numbers from

03 to FE. Refer to “Select Interface” on page 7 for instructions on setting the unit’s

Net ID. The Net ID of the unit must match the Net ID specified in the SIMPL

Windows program. Refer to “Setting the Net ID in Device Settings” on page 12 for

details of the SIMPL Windows procedure. The Net ID is used when the touchpanel is

wired directly to the control system during uploading a Crestron VisionTools®Pro-e

(VT Pro-e) project or upgrading the touchpanel firmware.

Configuring the Touchpanel

NOTE: The only connection required to configure the touchpanel is power. Refer to

“Hardware Hookup” on page 9 for details.

MAIN MENU

This menu can also be obtained via

digital reserved join number, 17242.

To configure the unit, it may be necessary to access a series of setup screens prior to

viewing run-time screens that are loaded into the touchpanel for normal operation.

The MAIN MENU for configuring the touchpanel appears when a finger is held

(approximately five seconds) to the touchscreen when power is applied.

Upon entering SETUP MODE, the MAIN MENU, shown to the left, displays four

buttons: Touch Screen Calibration, Exit and Run Program, Setup, and

Diagnostics.

Selecting Exit and Run Program verifies that all of the setup information has been

saved to EEPROM and displays the main page that has been programmed into the

touchpanel. The remaining buttons on the MAIN MENU open other menus, which

are discussed in subsequent paragraphs.

Calibration Menu

CALIBRATION MENU

Calibration of the touchscreen is required if the active touch area of a button does

not coincide with the button's image. Select the Touch Screen Calibration

utton to

display the CALIBRATION MENU, as shown to the left. The CALIBRATION

MENU offers the choice to initiate calibration with the Perform Calibration button

or return to the previous screen with the Return button. Choose an option by

touching the appropriate button.

If you need to calibrate the touchpanel, the screen displays the message "Touch

Upper Left" centered on the panel with a cross hair in the upper left corner. Touch

the cross hair to initiate calibration. Another message, "Touch Upper Right", appears

with a cross hair in the correct corner. Touch the cross hair. A final message, “Touch

Lower Right”, appears with a cross hair in the correct corner. Touch the crosshair to

finish the calibration and return to the MAIN MENU.

NOTE: When touching each crosshair during calibration, be as accurate as possible.

Use the tip of a capped pen or the eraser end of a pencil. To cancel calibration and

return to the CALIBRATION MENU without saving calibration data, create a

calibration error by touching the screen in an area that is opposite from the instructed

area.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Panel táctil de Crestron

Crestron

Crestron Isys TPMC-4SM Cómo utilizar

Crestron

Crestron TSW-570 Manual de usuario

Crestron

Crestron TS-1542 Manual de usuario

Crestron

Crestron Isys TPS-4500 Manual de usuario

Crestron

Crestron Isys TPS-12 Manual de usuario

Crestron

Crestron TSCW-730 Dibujo dimensional

Crestron

Crestron TPMC-4SMD-FD Instrucciones de funcionamiento originales

Crestron

Crestron TSD-2220 Dibujo dimensional

Crestron

Crestron CT-3000 Manual de usuario

Crestron

Crestron SmarTouch ST-1700C Manual de usuario

Crestron

Crestron TSW-560 Manual de usuario

Crestron

Crestron ST-1550 Manual de usuario

Crestron

Crestron Isys TPS-12B Manual de usuario

Crestron

Crestron 3200 Series Manual de usuario

Crestron

Crestron TST-600 Manual de usuario

Crestron

Crestron TST-902 Dibujo dimensional

Crestron

Crestron STX-1700C Manual de usuario

Crestron

Crestron MT-500C Manual de usuario

Crestron

Crestron Isys TPS-4000L Manual de usuario

Crestron

Crestron Isys i/O TPMC-15-CH-L Manual de usuario

Crestron

Crestron Isys TPS-12 Manual de usuario

Crestron

Crestron Isys TPMC-4SM Instrucciones de funcionamiento originales

Crestron

Crestron Isys i/O TPMC-15-CH Manual de usuario

Crestron

Crestron Isys TPS-15G-QM Manual de usuario

Manuales populares de Panel táctil de otras marcas

FlowLine

FlowLine Data loop Manual de usuario

ALPEX

ALPEX AEx-8 P Series Manual de usuario

Ltech

Ltech E5S Manual de usuario

Harman

Harman AMX MODERO S MSD-701-L2 Manual de usuario

Acnodes

Acnodes PC 1150 Manual de usuario

AIS

AIS IP10IA99 series Manual de usuario

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manual de usuario

YASKAWA

YASKAWA TP 610C Manual de usuario

B&R

B&R Power Panel C Series Manual de usuario

Beijer Electronics

Beijer Electronics X2 control Manual de usuario

AXIOMTEK

AXIOMTEK GOT321W-521 Manual de usuario

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manual de usuario

Qomo

Qomo QIT1386 Manual de usuario

DFI

DFI KS104-CD Manual de usuario

AMX

AMX AXP-PPC Guía

Sartorius

Sartorius X3 PR 5410 Manual de usuario

AMX

AMX Modero X Series Manual de usuario

Advantech

Advantech TPC-30 Series Manual de usuario
