Crestron Touch The PC Driver

Software

Programmer’s Guide

Intended for Version 3.08.34 and Later

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names, and trademarks are the property of their respective owners.

Crestron Touch The PC Driver Software

Contents

Touch the PC Driver 1

Introduction ...............................................................................................................................1

Driver Requirements ...................................................................................................1

Quickstart Procedure ...................................................................................................2

Driver Software Installation ........................................................................................3

Configuring the System .............................................................................................................5

PC to Touchpanel Serial Communication ...................................................................5

PC to Touchpanel Cresnet Communication ................................................................7

PC to Touchpanel Ethernet Communication ............................................................... 8

SIMPL Windows Programming .............................................................................................. 13

VT Pro-e Programming ...........................................................................................................14

Problem Solving ......................................................................................................................17

Troubleshooting ........................................................................................................17

Further Inquiries........................................................................................................18

Future Updates ..........................................................................................................19

Appendix A – Additional Keyboard Functionality..................................................................20

Appendix B – Cable and Wiring Specifications......................................................................21

Network Wiring......................................................................................................... 21

Crestron RJ-45 Cabling ............................................................................................. 22

DB9F Adapter and RJ-11 Modular Cable.................................................................22

DB9F to RJ-11 Cable Fabrication .............................................................................23

Software License Agreement...................................................................................................24

Return and Warranty Policies..................................................................................................26

Merchandise Returns / Repair Service ......................................................................26

CRESTRON Limited Warranty ................................................................................26

Programmer's Guide - DOC. 5916B Contents •i

Crestron Touch The PC Driver Software

Touch the PC Driver

Introduction

The Crestron®Touch the PC Driver, V2 (Touch the PC V2),licensed for use only in

conjunction with the TPS-XVGA/-BV/L Computer Interface Cards, is designed to

enable a Crestron Isys® TPS touchpanel to function as a computer touchscreen

monitor, compatible with Microsoft Windows®98/XP and Windows 2000/NT.

Touch the PC V2, as described in this manual, should be used instead of any earlier

versions, because it prevents possible confusion between left clicks and double

clicks, and is more compatible with Windows XP.

When you use the touchpanel as a monitor for a computer connected to your

Crestron control system (Cresnet®system), Touch the PC V2 lets you use your

finger on the touchpanel to simulate typical computer mouse click and drag

functions. In operation, use of Touch the PC V2 is similar to using a tablet device

(such as a graphics tablet). For example, touching the cursor and dragging it across

the screen actually creates a selection box and selects displayed items in the path, as

though you had done a left-click-and-drag operation with a regular mouse. The way

to move the cursor using Touch the PC V2 is to first select one of the Touch Action

functions and then perform the action. For example, selecting Touch None only

enables you to move the cursor around the screen—no left- or right-click functions

available. Selecting Touch Left enables you to do a left click (and drag, if desired)

where you touch the screen. Selecting Touch Right enables you to do a right click

(and drag, if desired) where you touch the screen. The buttons associated with these

functions are interlocked.

The touchpanel can connect to the personal computer (PC) running Touch the PC

V2 via a direct serial line, or it can connect to the control system via Cresnet or via

Ethernet, and the control system connects to the PC serially.

The Network/CIP Transmission Symbols are initialized automatically during control

system reboot, eliminating the use of the “todest” and “toformat” commands on the

touchpanel.

Driver Requirements

To program the touchpanel for use with Touch the PC V2, a PC that contains

Crestron VisionTools®Pro-e (VT Pro-e) and SIMPL Windows is required. Refer to

the following table for the requirements of the touchpanel, PC, and Cresnet system.

Programmer’s Guide – DOC. 5916B Touch the PC Driver •1

Software Crestron Touch The PC Driver

Driver Requirements

REQUIREMENT SPECIFICATION

Touch the PC V2 (UPDD*) Version 3.08.34 or later1

VisionTools Pro-e Version 3.2.06 or later1

Crestron Isys® Touchpanel firmware Version 2.006 or later2, 3

Crestron Database Version 16.2 or later

PC Requirements:

Available Hard Disc space

Operating System

5 MB4

Microsoft Windows® 98/XP/2000/NT

* Universal Pointer Device Driver

1 The latest versions can be obtained from the Downloads | Software Updates section of the Crestron

website (www.crestron.com). Refer to NOTE below.

2 The TPS-RFGWX and touchpanels with later versions of firmware may include features not

mentioned in this guide. Newer versions of this guide can be obtained from the Downloads | Product

Manuals section of the Crestron website (www.crestron.com).

3 The firmware upgrade files can be obtained from the Downloads | Software Updates section of

Crestron’s website. Crestron recommends that the latest firmware be loaded into the touchpanel.

4 The PC requirements pertain only to the Touch the PC V2. Additional requirements for SIMPL

Windows and/or VT Pro-e are not included. Refer to the documentation supplied with the software

for further information.

NOTE: Crestron software and any files on the website are for Authorized Crestron

dealers and Crestron Authorized Independent Programmers (CAIP) only. New users

may be required to register to obtain access to certain areas of the site (including the

FTP site).

Quickstart Procedure

This section contains brief descriptions of the steps required for utilizing the Touch

the PC V2 program via serial, Cresnet, or Ethernet communication.

NOTE: In the following procedures, if the Touch The PC V2 selection does not

appear, update the Crestron Database to version 16.2 or later.

Touch the PC V2 Operation via Serial Communications

• Install Touch the PC V2 software (page 3)

• Change the touchpanel RS-232 settings to RS-232 port for Touch Output

(page 5)

• Connect the PC COM port to the RS-232 port of the touchpanel using RJ-

11 modular cable and adapter, Crestron part number 15556 (page 5)

• Install touchpanel firmware, version 2.006 or higher

• In VT Pro-e (page 14):

- Set the RGB object to PAD 1 or PAD 2

- Set the project properties according to the RGB selected PAD area

Select: Touch the PC, V2

Communication via: Serial

- Save, compile, and load the project to the touchpanel

2 •Touch the PC Driver Programmer’s Guide – DOC. 5916B

Crestron Touch The PC Driver Software

Touch the PC V2 Operation via Cresnet Communications

• Install Touch the PC V2 software (page 3)

• Connect COM port of PC to a COM port of control system with null

modem cable (page 7)

• In SIMPL Windows (page 13):

- Assign touchpanel serial output signals

- Assign control system two-way serial driver signals

- Save, compile, and load the project to the touchpanel

• In VT Pro-e (page 14):

- Set the RGB object to PAD 1 or PAD 2

- Set the project properties according to the RGB selected PAD area

Select: Touch the PC, V2

Communication via: Cresnet

Serial Join: 1(example)

Touch the PC V2 Operation via Ethernet Communications

• Install Touch the PC V2 software (page 3)

• Connect COM port of PC to COM port of control system with null modem

cable (page 9)

• Establish Ethernet communications between touchpanel and control system

and add a device ID to touchpanel IP table and control system (page 11)

• In SIMPL Windows (page 13):

- Assign touchpanel serial output signals

- Assign control system two-way serial driver signals

- Save, compile, and load the project to the touchpanel

• In VT Pro-e (page 14):

- Set the RGB object to PAD 1 or PAD 2

- Set the project properties according to the RGB selected PAD area

Select: Touch the PC, V2

Communication via: TCP/IP

Serial Join: 1(example)

Device ID: 3(example)

- Save, compile, and load the project to the touchpanel

Driver Software Installation

To install the Touch the PC V2 software, download the files from the Downloads |

Software Updates | Touchpanels page of the Crestron website (www.crestron.com).

Search for Touch The PC Driver, V2. This file will create a UPDD folder plus the

PDF version of this programmer’s guide and a Release Notes document.

NOTE: Crestron recommends that the baud rate for both the touchpanel and PC

port be set at the default rate of 9600, N81.

Open the UPDD Driver folder and run setup.exe. The name of the pointer device

can be changed from the default "Device 1" to "Crestron Touchpanel.” In the “Port”

Programmer’s Guide – DOC. 5916B Touch the PC Driver •3

Software Crestron Touch The PC Driver

window, a COM port other than the default COM1 can be selected, to specify the

COM port from which the PC will receive the Touch the PC V2 commands.

Setup.exe will finish with a prompt to restart the computer. The computer MUST be

restarted.

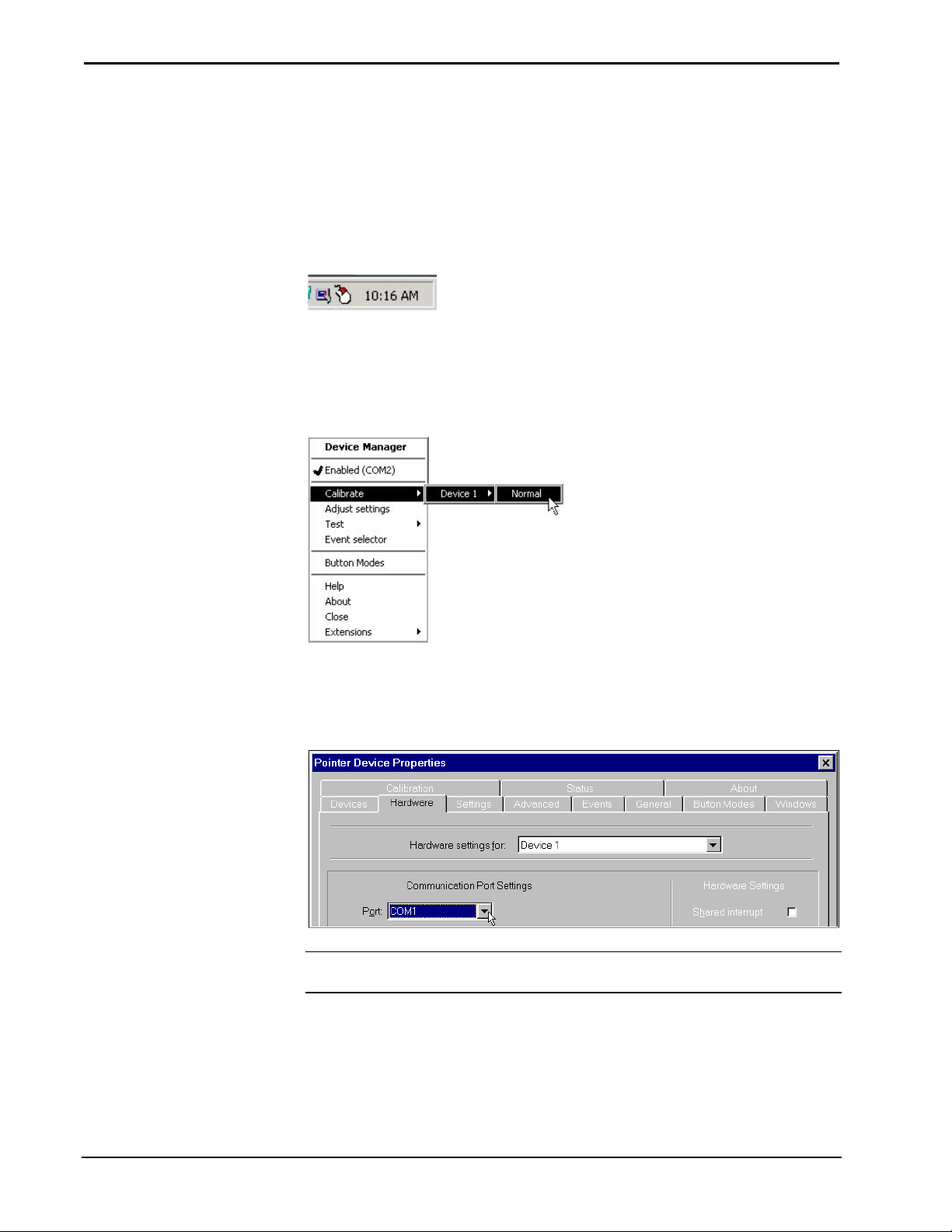

The Windows Start menu will now list UPDD as a program, and the system tray of

the Windows status bar will include icons shown below.

Pointer Device Settings & Event Scheduler Icons

After the system has been configured and programmed as outlined in the rest of this

guide, it can be calibrated (or tested). Right-click the Pointer Device Settings icon

and as shown below, select Calibrate from the Device Manager menu. Select

Device 1 | Normal and calibrate the screen by following the onscreen directions.

Select Calibrate

The COM port can be changed by selecting Adjust settings from the Device

Manager menu. As shown in the following illustration, open the Hardware tab and

choose a COM port from the drop-down list.

Hardware Tab

NOTE: For additional keyboard functionality programmed into the touchpanel,

refer to “Appendix A – Additional Keyboard Functionality” on page 20.

4 •Touch the PC Driver Programmer’s Guide – DOC. 5916B

Crestron Touch The PC Driver Software

Configuring the System

The touchpanel may be configured for serial, Cresnet, or Ethernet communication

with the PC that contains the Touch the PC V2 software. TPS tilt touchpanels may

contain a TPS-XVGA or TPS-XVGA-BV card. TPS lectern touchpanels (and TPS-

TPI user interface) utilize a TPS-XVGAL card. To configure the PC, touchpanel,

and specific TPS-XVGA card, refer to an appropriate section below and or on the

next seven pages. In each configuration, for more information about cabling and

wiring specifications, refer to “Appendix B – Cable and Wiring Specifications” on

page 21.

PC to Touchpanel Serial Communication

For Touch the PC V2 operation using serial communication from the PC to the

touchpanel, refer to the steps below.

1. At the touchpanel, enter the setup mode. From the Main menu screen,

press Setup, then RS-232. Press RS-232 Port for Touch Output.

2. Refer to the appropriate (for TPS-XVGA, TPS-XVGA-BV, or TPS-

XVGAL card) diagrams and tables which follow and make the cable

connections.

Serial Communication #1 - Tilt Touchpanel with TPS-XVGA

RGB

PORT

VGA

PORT

COM

PORT

TILT TOUCHPANEL

WITH TPS-XVGA

BTO

RS-232

PORT

CONTROL SYSTEM

RGB CABLE

COMMUNICATIONS CABLE

NET (OR

CRESNET)

PORT

CRESNET

WIRING

BKLT

PROFESSIONALCONTROLPROCESSOR

PRO2

CRESTRON

NET/

VIDEO

PORT

NET/

VIDEO

PORT

NET

PORT

24 ZY

NET

COMP

G C +C

-S

NTSC/PAL VIDEO

NET/

CRESTRON

TO PANEL

VIDEO AUDIO-

MIC

OUT

INPUT

AUDIO

+S +S

-S

COMP

TPS-IMC

TPS-IMPC

(OR TPS-IMW)

PORT CONNECTOR to CONNECTOR DEVICE PORT

A 1VGA DB-15, male DB-15, male Touchpanel RGB

B 2COM DB-9, female RJ-11, 6-pin Touchpanel RS-232

C 3NET 4-wire Cresnet 4-wire Cresnet TPS-IMPC NET

D 4NET/VIDEO RJ-45, 10-pin RJ-45, 10-pin Touchpanel NET/VIDEO

Control System

A 15-foot NET/VIDEO cable is supplied with the TPS-IMPC.

This connection can be made via a modular RJ-11 cable (supplied with touchpanel) and DB9F to RJ-11 adapter.

Standard stranded VGA monitor cable.

TPS-IMPC

During serial communications, the control system and Cresnet wiring are required for touchpanel basic

functionality and operating power.

CABLING REQUIRED

DEVICE

SERIAL COMMUNICATION #1 - TILT TOUCHPANEL WITH TPS-XVGA CARD

REF FROM TO

Programmer’s Guide – DOC. 5916B Touch the PC Driver •5

Software Crestron Touch The PC Driver

Serial Communication #2 - Tilt Touchpanel with TPS-XVGA-BV

RGB CABLE

TILT TOUCHPANEL

WITH TPS-XVGA-BV

RGB

PORT

RGB

PORT

TPS-IMC-BV

AUDIOVIDEO

NET/

TO PANEL

RGB

BAL

INPUT

AUDIO

INPUT

AUDIO

S +- -

COAX

MIC

OUT

-+ S

NTSC/PAL VIDEO

NET

Z G

24VDC

Y242.0A

VIDEO

BALANCED

RGB Y

COMP

CRESTRON

TPS-IMC-BV

RS-232

PORT

COM

PORT

COMM. CABLE

VGA

PORT

NET (OR

CRESNET)

PORT

CRESNET

WIRING

NET PORT

NET/VIDEO

PORT

TO NET/

VIDEO

PORT

CONTROL SYSTEM

RGB

PORT

BKLT

PROFESSIONALCONTROLPROCESSOR

PRO2

CRESTRON

PORT CONNECTOR to CONNECTOR DEVICE PORT

A 1VGA DB-15, male DB-15, male TPS-IMC-BV RGB

B 2 RGB RJ-45, 10-pin RJ-45, 10-pin Touchpanel RGB

C 3COM DB-9, female RJ-11, 6-pin Touchpanel RS-232

D 4NET 4-wire Cresnet 4-wire Cresnet TPS-IMC-BV NET

E 2NET/VIDEO RJ-45, 10-pin RJ-45, 10-pin Touchpanel NET/VIDEO

Control System

During serial communications, the control system and Cresnet wiring are required for touchpanel basic

functionality and operating power.

Standard stranded VGA monitor cable.

TPS-IMC-BV

REF

SERIAL COMMUNICATION #2 - TILT TOUCHPANEL WITH TPS-XVGA-BV CARD

FROM CABLING REQUIRED TO

DEVICE

TPS-IMC-BV

These connections (ref B & E) can be made with the 15-foot Triamese cable supplied with the TPS-IMC-BV.

This connection can be made via a modular RJ-11 cable (supplied with touchpanel) and DB9F to RJ-11 adapter.

Serial Communication #3 - Lectern Touchpanel with TPS-XVGAL

LECTERN TOUCHPANEL

(OR TPS-TPI) WITH

TPS-XVGAL

COM

PORT

VGA

PORT

RGB INPUT

PORT

RS-232

PORT

COMMUNICATIONS CABLE

RGB CABLE

CONTROL SYSTEM

NET (OR

CRESNET)

PORT

CRESNET WIRING

NET

PORT

BKLT

PROFESSIONALCONTROLPROCESSOR

PRO

CRESTRON

PORT CONNECTOR to CONNECTOR DEVICE PORT

A 1VGA DB-15, male BNC-5, male Touchpanel RGB

B 2COM DB-9, female RJ-11, 6-pin Touchpanel RS-232

C 3NET 4-wire Cresnet 4-wire Cresnet Touchpanel NET

3 During serial communications, the control system and Cresnet wiring are required for touchpanel basic

functionality and operating power.

REF

SERIAL COMMUNICATION #3 - LECTERN TOUCHPANEL WITH TPS-XVGAL CARD

DEVICE

FROM CABLING REQUIRED TO

This connection can be made via a modular RJ-11 cable (supplied with touchpanel) and DB9F to RJ-11 adapter.

A standard stranded VGA monitor cable with DB15F to BNC-5 adapter is required. Both are commercially

available.

Control System

3. Proceed to “VT Pro-e Programming” that begins on page 14.

6 •Touch the PC Driver Programmer’s Guide – DOC. 5916B

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Software de Crestron

Crestron

Crestron SIMPL+ Instrucciones de funcionamiento

Crestron

Crestron VisionTools Pro-e Guía de inicio rápido

Crestron

Crestron Touch the PC v1 Manual

Crestron

Crestron SW-DBM Manual de usuario

Crestron

Crestron SW-WMC Manual de usuario

Crestron

Crestron SIMPL+ Manual de usuario

Crestron

Crestron Active CNX Instrucciones de operación

Crestron

Crestron e-Control Manual de usuario

Crestron

Crestron D3 PRO Manual de usuario

Crestron

Crestron e-Schedule Manual

Crestron

Crestron CRESTRON-APP-SSTV Cómo utilizar

Crestron

Crestron SIMPL Windows Manual de usuario

Crestron

Crestron RoomView Manual de usuario

Crestron

Crestron C2N-DAP8 Manual de usuario

Crestron

Crestron SW-VOTE Manual de usuario

Crestron

Crestron SIMPL Windows Guía de referencia

Crestron

Crestron SW-MAIL Manual de usuario

Crestron

Crestron SW-WMC Manual de usuario

Crestron

Crestron e-Control Manual de usuario

Crestron

Crestron SW-SIMPL Guía de solución de problemas

Manuales populares de Software de otras marcas

COMPRO

COMPRO COMPROFM Manual de usuario

Muratec

Muratec OFFICEBRIDGE ONLINE Manual de usuario

Oracle

Oracle Contact Center Anywhere 8.1 Manual de usuario

Adobe

Adobe 65007312 - Photoshop Lightroom Manual

Avaya

Avaya NULL One-X for RIM Blackberry Manual de usuario

HP ProLiant BL420c Manual de usuario

PS Audio

PS Audio PowerPlay Manual del propietario

Brady

Brady LOCKOUT PRO 3.0 Manual de servicio

Avaya

Avaya Interaction Center Manual de usuario

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manual

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manual de usuario

Oracle

Oracle Application 9i Manual de usuario

Acer

Acer RDM Manual de usuario

Canon

Canon Vixia HF21 Manual de usuario

Canon

Canon ZR950 Manual de usuario

Samsung

Samsung Auto Backup Manual de usuario

Polycom

Polycom Vortex EF2201 Instrucciones de instalación y funcionamiento

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manual de usuario
