Crestron TSW-550-BBI Manual de usuario

Crestron TSW-550-BBI

Wall Mount Back Box for TSW-550

International Version

Installation Guide

The specific patents that cover Crestron products are listed at patents.crestron.com.

Crestron and the Crestron logo are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United

States and/or other countries. Other trademarks, registered trademarks and trade names may be used in this document to

refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in

the marks and names of others. Crestron is not responsible for errors in typography or photography.

This document was written by the Technical Publications department at Crestron.

Crestron TSW-550-BBI Wall Mount Back Box for TSW-550

Installation Guide – DOC. 7519A Contents •i

Contents

Wall Mount Back Box for TSW-550: TSW-550-BBI 1

Description................................................................................................................................. 1

Installation ................................................................................................................................. 3

Resources...................................................................................................................................6

Further Inquiries .......................................................................................................... 6

Future Updates ............................................................................................................ 6

Return and Warranty Policies .................................................................................................... 7

Merchandise Returns / Repair Service ........................................................................ 7

Crestron Limited Warranty.......................................................................................... 7

Crestron TSW-550-BBI Wall Mount Back Box for TSW-550

Installation Guide – DOC. 7519A Wall Mount Back Box for TSW-550: TSW-550-BBI •1

Wall Mount Back Box

for TSW-550: TSW-550-BBI

Description

The TSW-550-BBI provides a recess wall-mounted metal back box for

the Crestron®TSW-550 5” Touch Screen. It is designed for installation in

concrete and masonry applications. Conduit knockouts are provided on

the top and bottom.

NOTE: Depending on the installation, forced ventilation may be

required.

Wall Mount Back Box for TSW-550 Crestron TSW-550-BBI

2•Wall Mount Back Box for TSW-550: TSW-550-BBI Installation Guide – DOC. 7519A

The dimensions of the TSW-550-BBI are shown in the following

illustrations.

TSW-550-BBI Overall Dimensions (Top, Front and Side Views)

77 mm

(3.00 in)

105 mm

(4.13 in)

68 mm

(2.65 in)

NOTE: Knockout holes are intended for Class 2 wiring only and are

20 mm (13/16”) diameter.

Crestron TSW-550-BBI Wall Mount Back Box for TSW-550

Installation Guide – DOC. 7519A Wall Mount Back Box for TSW-550: TSW-550-BBI •3

Installation

The hardware supplied with the TSW-550-BBI is listed in the following

table.

Supplied Hardware for the TSW-550-BBI

DESCRIPTION PART

NUMBER

QUANTITY

Assembly, Back Box, International 4518364 1

Screw, #06-32 x 1/2”, Flat, Phil

2007241

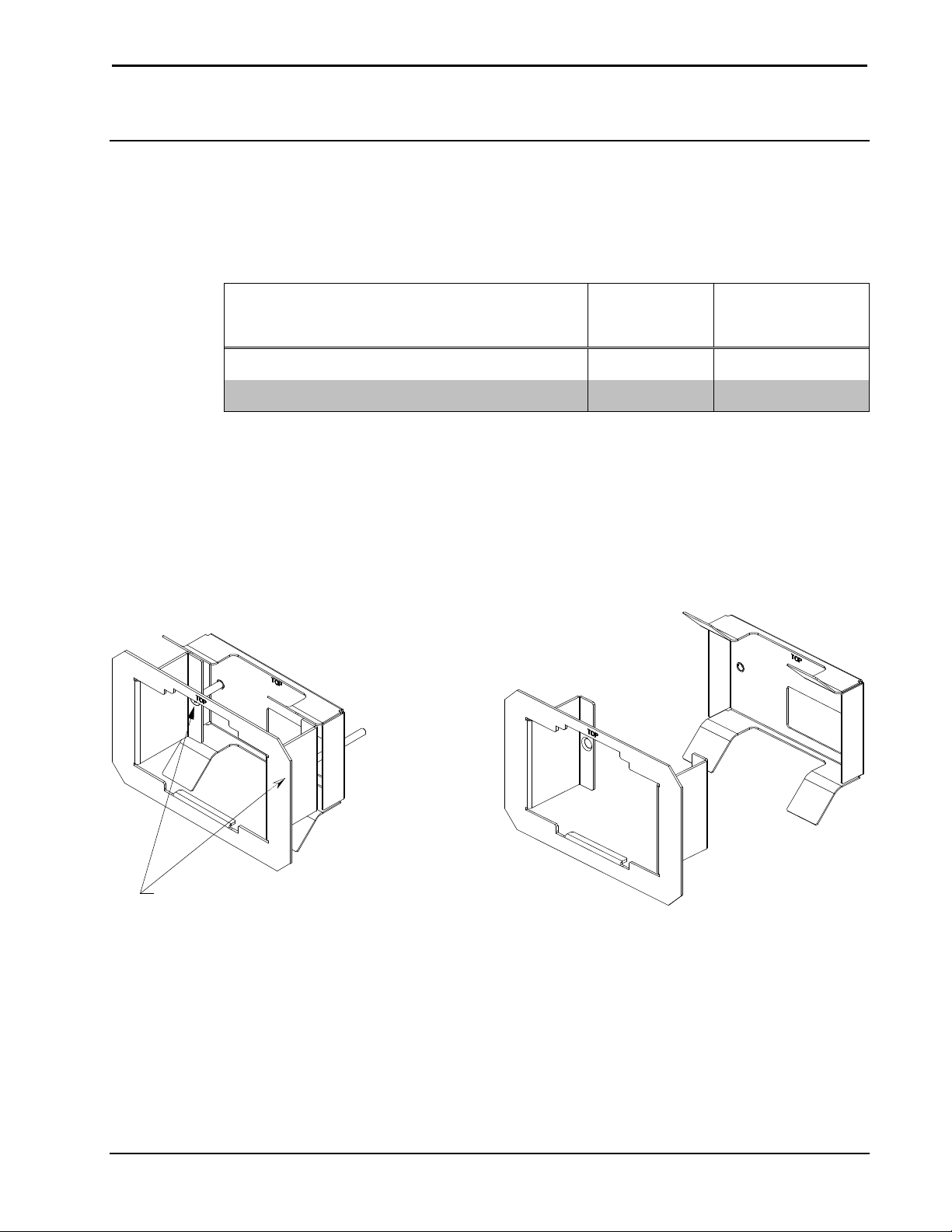

To install the TSW-550-BBI, use the following procedure:

1. If it has not already been done, separate the two halves of the

mounting bracket that comes with the TSW-550 by removing the

two 1 1/2” screws that hold them together. Refer to the following

illustrations.

Separate Halves of Mounting Bracket Mounting Bracket (After Separation)

Remove (2) 1 1/2” Screws

2. The rear part of the mounting bracket can be saved for possible use

in the future. Only the front part is required for installation of the

TSW-550-BBI.

Wall Mount Back Box for TSW-550 Crestron TSW-550-BBI

4•Wall Mount Back Box for TSW-550: TSW-550-BBI Installation Guide – DOC. 7519A

3. Use the two #06-32 x 1/2” screws (2007241) that come with the

TSW-550-BBI to install the front part of the mounting bracket

assembly onto the back box. Refer to the following illustration.

Install Mounting Bracket into TSW-550-BBI

Screws (2)

#06-32 x 1/2”

(2007241)

TSW-550-BBI

Metal Bracket

Included with

TSW-550

NOTE: Remove the appropriate knockouts before installation.

Crestron TSW-550-BBI Wall Mount Back Box for TSW-550

Installation Guide – DOC. 7519A Wall Mount Back Box for TSW-550: TSW-550-BBI •5

4. Make sure the “TOP” text on the inside of the back box is facing

upward. Mount the TSW-550-BBI as shown in the following

illustration. Depending on the installation, forced ventilation may

be required.

Mounting the TSW-550-BBI (Exploded View)

Solid Mounting

Surface Such As

Concrete or Masonry

Plaster

TSW-550-BBI

Metal Bracket

Included with

TSW-550

Screws (2)

#06-32 x 1/2”

(2007241)

Wiring

Cutout in

Mounting

Surface

Wall Mount Back Box for TSW-550 Crestron TSW-550-BBI

6•Wall Mount Back Box for TSW-550: TSW-550-BBI Installation Guide – DOC. 7519A

Resources

Further Inquiries

To locate specific information or resolve questions after reviewing this

guide, contact Crestron's True Blue Support at 1-888-CRESTRON

[1-888-273-7876] or refer to the listing of Crestron worldwide offices on

the Crestron Web site (www.crestron.com/offices) for assistance within a

particular geographic region.

To post a question about Crestron products, log onto the Online Help

section of the Crestron Web site (www.crestron.com/onlinehelp).

First-time users must establish a user account to fully benefit from all

available features.

Future Updates

As Crestron improves functions, adds new features and extends the

capabilities of the TSW-550-BBI, additional information may be made

available as manual updates. These updates are solely electronic and

serve as intermediary supplements prior to the release of a complete

technical documentation revision.

Check the Crestron Web site periodically for manual update availability

and its relevance. Updates are identified as an “Addendum” in the

Download column.
