DM-NAX-8ZSA

DM NAX™ 8-Zone Streaming Amplifier

Product Manual

Crestron Electronics, Inc.

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Regulatory Model: M1845004

Crestron product development software is licensed to Crestron dealers and Crestron Service Providers (CSPs) under a

limited nonexclusive, nontransferable Software Development Tools License Agreement. Crestron product operating

system software is licensed to Crestron dealers, CSPs, and end-users under a separate End-User License Agreement.

Both of these Agreements can be found on the Crestron website at www.crestron.com/legal/software_license_

agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit www.crestron.com/opensource.

Crestron, the Crestron logo, Crestron Toolbox, DM NAX and DM NVX are either trademarks or registered trademarks of

Crestron Electronics, Inc. in the United States and/or other countries. Dante is either a trademark or a registered

trademark of Audinate Pty Ltd. in the United States and/or other countries. Active Directory is either a trademark or a

registered trademark of Microsoft Corporation in the United States and/or other countries. Pandora is either a

trademark or a registered trademark of Pandora Media, Inc. in the United States and/or other countries. SiriusXM is

either a trademark or a registered trademark of Sirius XM Radio Inc. in the United States and/or other countries.

TOSLINK is either a trademark or a registered trademark of Toshiba Electronics Devices & Storage Corporation in the

United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this

document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any

proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or

photography.



Contents

Introduction 1

Physical Description 2

Front Panel 2

Rear Panel 3

Application 5

Web Interface Configuration 11

Access the Web Interface 11

Action 14

Rebooting the DM-NAX-8ZSA 15

Restoring to Factory Default Settings 15

Updating Firmware 16

Download Logs 16

Managing Certificates 17

To Add Certificates 18

To Delete Certificates 18

Save Changes 18

Revert 18

Status 19

Device 19

Network 20

Control System 21

Settings 22

System Setup 22

Date/Time 23

Time Synchronization 23

Time Configuration 23

Auto Update 24

Network 25

Configure DHCP 25

Control System 26

Chimes 27

Zones 28

Zone Settings 29

Bussing 41

Configure Bussing 41

Inputs 42

Configure Inputs 42

DM NAX Streams 43

Product Manual — Doc. 9045A Contents • i

Configure Transmitters 44

Configure Receivers 45

Routing 46

Streaming Services 48

Port Selection 49

Security 51

Current User 52

Users 53

Create a New Local User 54

Add an Active Directory User 55

Delete User 55

View User Details 56

Update User Details 56

Groups 57

Create Local Group 58

Add Active Directory Group 58

Delete a Group 59

View Group Details 59

802.1x Configuration 60

To Configure DM-NAX-8ZSA for 802.1X Authentication 61

Access the Web Interface With the Crestron Toolbox™ Application 62

ii • Contents Product Manual — Doc. 9045A

Product Manual — Doc. 9045A DM-NAX-8ZSA • 1

Introduction

The Crestron DM-NAX-8ZSA is a next generation DM NAX™ Audio-over-IP (AoIP) amplifier that

puts Crestron multiroom audio distribution on the network. It provides eight amplified stereo

zone (16-channel) outputs. Four stereo line-level outputs mirror speaker zone outputs 1-4. A

dedicated streaming service player for each of the eight zones enables complete freedom to

stream different content in every zone. Full DSP capabilities are available on the line and speaker

outputs.

DM NAX is built on AES67 standards with the additional ease of configuration via a web

interface, SIMPL Windows, C#, and/or a RESTful API. It is compatible with DM NVX® endpoints

through an AES67 secondary audio stream and also with third-party AES67 solutions and

Dante® audio networking via the compatibility mode enabled in Dante Controller.

Voltage triggers corresponding to the 4 stereo line-level analog outputs can be used to power

connected external amplifiers on and off. The DM-NAX-8ZSA supports Synchronized Control to

manage a large network of DM NAX devices from a single interface.

For installation information, refer to the Quick Start Guide.

2 • DM-NAX-8ZSA Product Manual — Doc. 9045A

Physical Description

The following sections provide information about the connectors, controls, and indicators that

are available on the DM-NAX-8ZSA device.

Front Panel

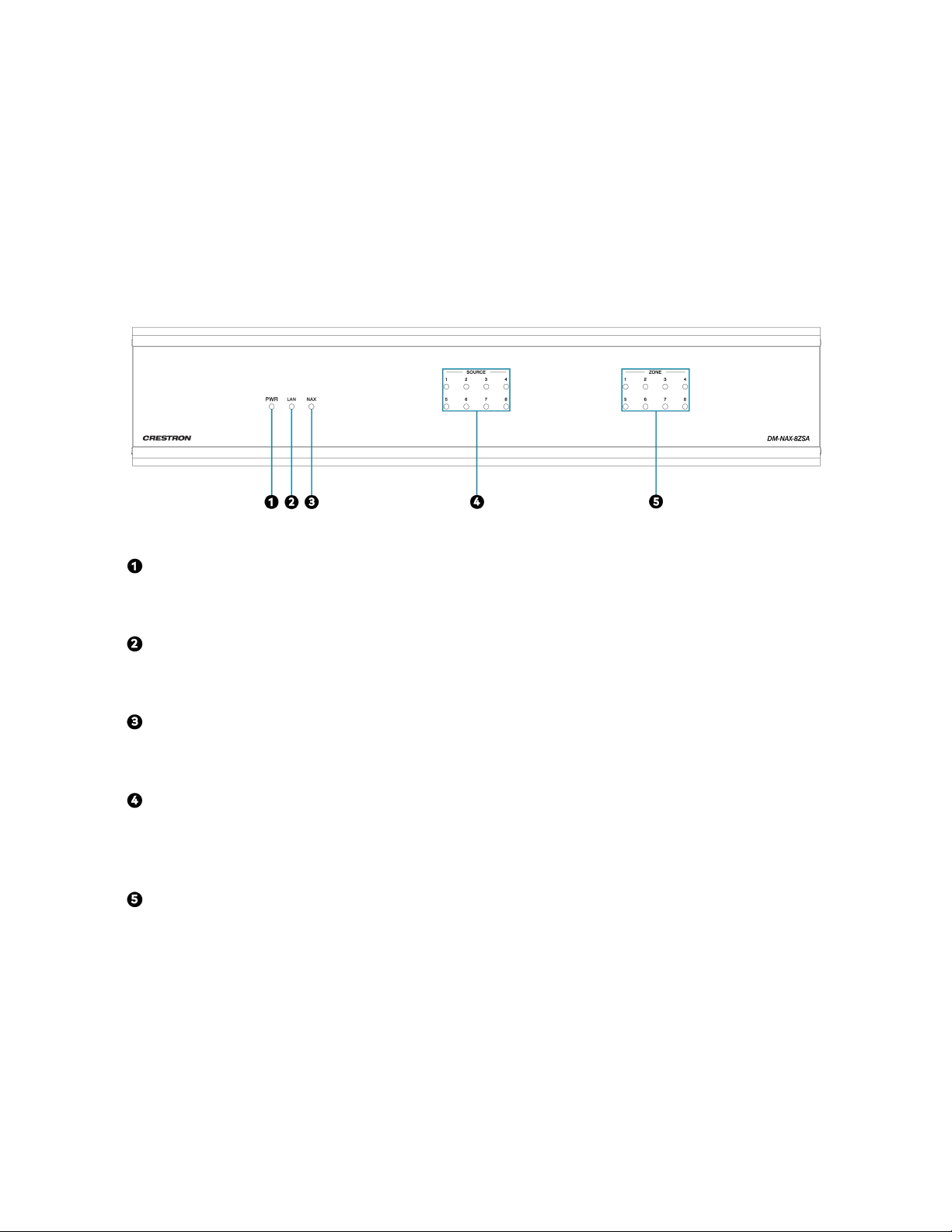

The following illustration shows the front panel of the DM-NAX-8ZSA.

PWR: (1) LED, indicates operating power is supplied; illuminates amber

while booting, white when powered on, red when in standby (no audio or

LAN connection), and off when no power is supplied.

LAN: (1) LED, illuminates white when the amplifier is connected to a

network with a valid IP address, and off when the device is not

connected to a network or the IP address is invalid.

NAX: (1) LED, Illuminates white when the AoIP is ready to pass and the

unit's PTP clock is synced, and off when there is no AoIP is passing to or

from an amplifier and/or PTP is not synced.

SOURCE: (8) LEDs, illuminate white when a signal is detected on the

specified input/source, red when there is clipping on an analog input or

bitstream audio detected on a digital input, and off when there is no

signal detected on the specified input/source.

ZONE:(8) LEDs, illuminate white when there is audio output on the

indicated zone, red when clipping or a fault is detected on the zone

output due to overcurrent, over temperature, or low voltage.

Product Manual — Doc. 9045A DM-NAX-8ZSA • 3

Rear Panel

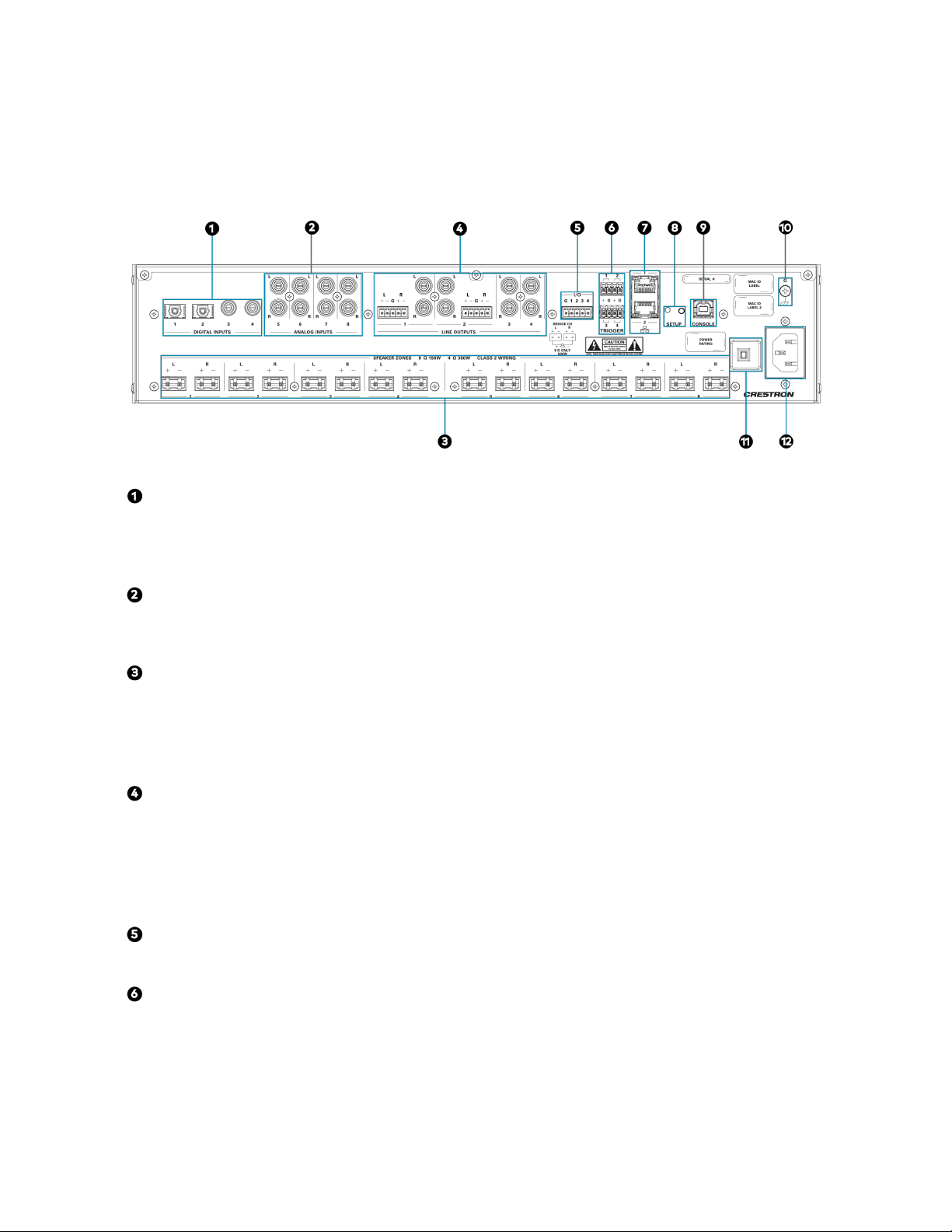

The following illustration shows the rear panel of the DM-NAX-8ZSA.

DM-NAX-8ZSA Rear Panel

DIGITAL INPUTS: (2) JIS F05 female (TOSLINK®) optical fiber connectors,

S/PDIF optical digital audio inputs;

(2) RCA female; S/PDIF coaxial digital audio inputs; Input Impedance: 75

Ohms

ANALOG INPUTS: (8) RCA female comprising (4) unbalanced stereo line-

level audio inputs; Input Impedance: 10000 Ohms;

Maximum Input Level: 2 Vrms

SPEAKER OUTPUTS: (16) 2-pin 7.62 mm detachable terminal block;

Balanced/unbalanced stereo line-level audio outputs,

Output Impedance: 4 Ohms/8 Ohms;

Maximum Output Level: 150 Watts single-ended at 8 Ohms, 300 Watts

single-ended at 4 Ohms, with zones bridgeable up to 500 Watts at 8 Ohms.

LINE OUTPUTS: (8) RCA connectors, female; Comprise (4) unbalanced line-

level stereo audio outputs (mirror corresponding speaker outputs pair 1 – 4);

Output Impedance: 100 Ohms; Maximum Output Level: 2 Vrms;

(2) 5-pin 3.5mm detachable terminal blocks; Balanced stereo line-level audio

outputs (mirror corresponding unbalanced RCA output pairs 1 – 2);

Output Impedance: 150 Ohms; Maximum Output Level: 4 Vrms

I/O Port: (1) single 5-pin Phoenix block that comprises four I/O ports, and a

shared ground

TRIGGER: (2) 4-pin Phoenix connectors for all outputs;

The triggers correspond to the respective LINE OUTPUTS 1-4 and will drive

the individual eight zone amplifiers whenever a signal is routed to the

respective line output.

4 • DM-NAX-8ZSA Product Manual — Doc. 9045A

Ethernet 1: (1) 8-pin RJ-45 connector, female;

100BASE-TX/1000BASE-T Ethernet port;

Green LED indicates Ethernet link status;

Flashing amber LED indicates Ethernet activity

Ethernet 2: (1) 8-pin RJ-45 connector, female;

100BASE-TX/1000BASE-T Ethernet port;

Green LED indicates Ethernet link status;

Flashing amber LED indicates Ethernet activity

SETUP: (1) Push button: Pressing and holding the SETUP button for 15

seconds with power supplied clears Network Settings and restores the

default DHCP Mode;

Press and hold the SETUP button with power disconnected then connect

the power supply and continue to hold SETUP button for 15 seconds will

perform a factory restore;

(1) LED, illuminates red when the button is pressed, flashes red when reset

has been initiated

CONSOLE: (1) Standard USB 2.0 Type B connector, female

GROUND: 6-32 screw, chassis ground lug 11

10A Fuse: 10 Ampere Fuse

POWER OUTLET: (1) 100-240V~50/60Hz Universal AC; IEC 60320 C14 Main

power inlet, mates with removable power cord (included)

Product Manual — Doc. 9045A DM-NAX-8ZSA • 5

Application

This section shows DM-NAX-8ZSA device in multizone applications.

This application diagram shows the following setup:

lUp to 8 zones of amplification and audio distribution

lLocal line level input

lLocal line level output to an Audio Video Receiver (AVR) mirroring a zone of amplification

lAvailable NVX audio streams to route audio from video sources to non-video zones

lAvailable music streaming services on up to 8 NAX zones

6 • DM-NAX-8ZSA Product Manual — Doc. 9045A

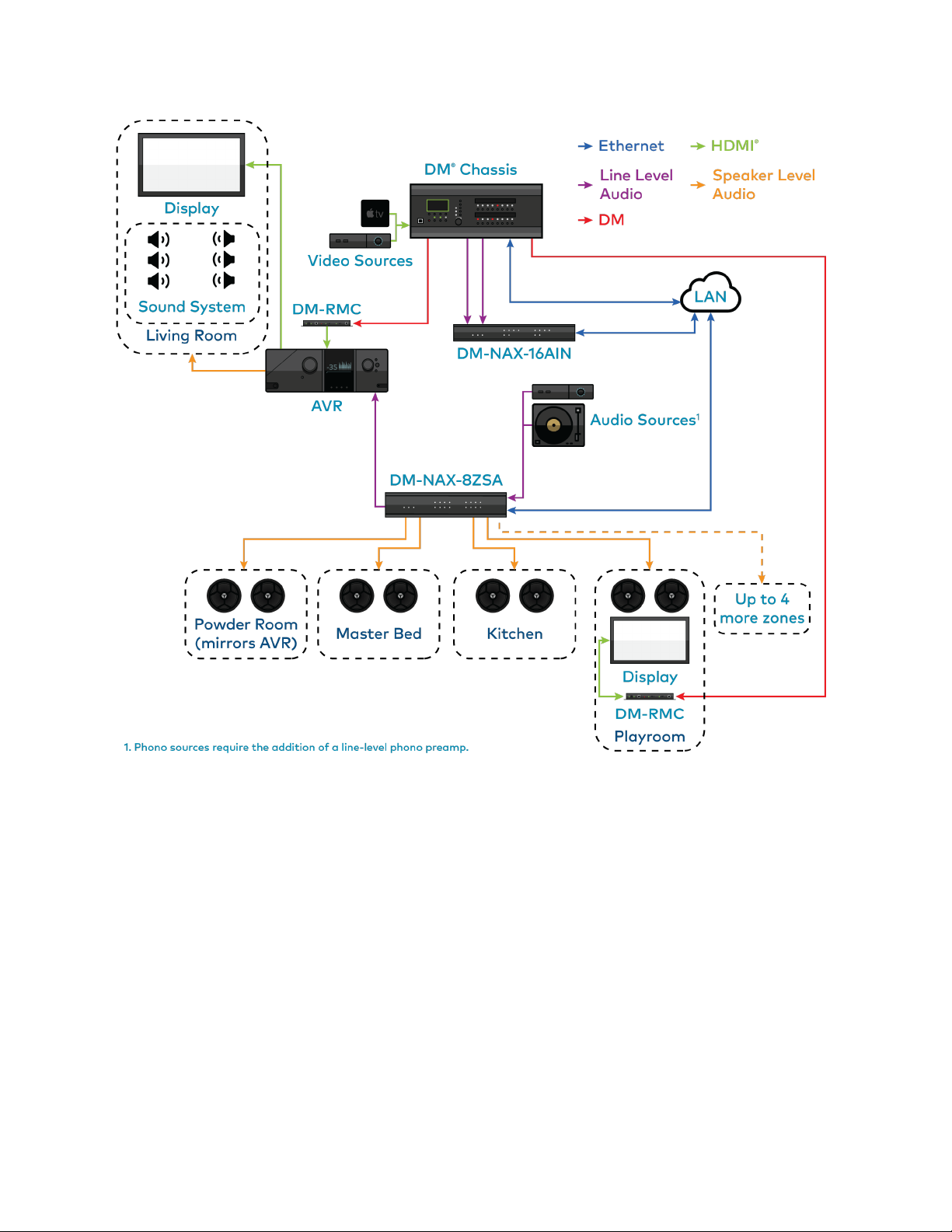

This application diagram shows the following setup:

lUp to 8 zones of amplification and audio distribution

lLocal line level input

lLocal line level output to an AVR mirroring a zone of amplification

lAvailable music streaming services on up to 8 NAX zones

lThe DM-NAX-16AIN is used to carry audio from the DM chassis’ video sources to the NAX

network for routing to non-video zones
