CTR Cellular Travel Router

User’s Manual

Contents

Getting Acquainted

2Compliance Notes

3Introduction

4CTR at a Glance

5Using the Controls

6Getting on the Internet

Configuring Your Wi reless Netwo rk

7Welcome to the Help and Setup Pages

8Navigating the Help and Setup Pages

12 The Wizards

16 Factory Default Reset

Tips and Troubleshooting

17 The Error Pages

“Data Service Not Available”

“Phone Not Available”

“Unable to Connect to WAN”

18 “Handset Error”

“DNS Poisoning”

“Maximum Number of Users Connected”

19 Security Notes

20 Care and Mainten ance

21 Indicators (LEDs)

22 Glossary and Setup Details

Compliance Notes

FCC Notice:

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device

may

not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

Caution:

The user is cautioned that changes or modifications not expressly approved by the party responsible for

compliance could void the warranty and users’ authority to operate the equipment.

Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference

by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

IMP ORTA NT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This

equipment should be installed and operated with minimum distance 20cm between the radiator & your

body.

Caution:

To comply with the FCC RF exposure compliance requirements, this device must not be co-located or

operating in conjunction with any other antenna or transmitter.

Industry Canada Notice:

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2)

this device must accept any interference, including interference that may cause undesired operation of the

device. The term “IC:” before the radio certification number only signifies that Industry Canada technical

specifications were met. This product meets the applicable Industry Canada technical specifications of the

RSS210.

This class B device complies with Canadian ICES-003.

Cet appareil numérique de la classe B est confome à la norme NMB-003 du Canada.

FCC COMPLIANCE STATEMENT

Property of CradlePoint, Inc For Internal Use Only.

Unauthorized reproduction and/or distribution is strictly prohibited.

This product is protected under copyright law and trade secret law

as an unpublished work.

Introduction

WELCOME

The CradlePoint CTR (Cellular Travel Router) is a high-performance Broadband Cellular Ga te way

designed to provide fast and convenient Inte rnet access while connected to a Cellular mode m or

handset. The CTR provides a straightforwa rd and portable Internet connection leveraging adva nces

from CradlePoint Technologies, Inc. The CTR includes the following features:

Establishes shared network connection via standard WAN PPP when connecting DSL, Cable Modem, or other

uplink to Ethernet port

Establishes shared network connection via Cellular when connecting Cellular Phone or Cellular Modem to USB

port

Designed to work with all 3G cellular service provider networks

Supports up to 128-bit WEP and WPA encryption for data-security

Supports Virtual Private Network (VPN) pass-through

Supports 1 Wired LAN connection

Rugged but compact design is perfect for fixed or mobile applications

Software algorithms boost efficiency, performance, and improve perceived network speed

Auto-Upgrade Notification helps keep user updated with latest system CTR software revision

GUI-based device management from any standard web Browser

PACKAGE CO NT ENTS

CradlePoint CTR Cellular Travel Router

Power Adapter (5V/2.5A)

CD-ROM with Manual

Quick Installation Guide

Carrying Case

Note: Using a power supply with a differ ent vol tage than the one incl uded w ith your product will cause d amage and

void the warr anty for this produc t.

If any of the above items are missing, please contact your reseller.

OVERVIEW OF F EA TURES

Instantly creates a personal WiFi Hotspot anywhere within the Cellular Service Providers' network.

No software to install: Follows simplicity of 802. 11 wireless standards

Supports multiple simultaneous wireless LAN clients

Includes advanced wireless router features:

oNAT/NAPT Firewall

oDHCP Server

oSecurity - MAC Address Filtering or WPA or WEP Encryption

oWeb-based Configuration and User Interface

Automatic firmware upgrades

Bridges from Cellular phone/modem connection to wired Ethernet for a no-software secure Internet connection

Recharges the handset battery and CTR internal battery when connected to an external power source.

Windows, Macintosh and Linux support.

A. LED 0 - USB Status

B. LED 1 - LAN Status

C. LED 2 - WLAN Status

D. LED 3 - Power Status

E. Ventilation Slots

F. CAT 5 (Ethernet) Port

G. Power Connector

H. Factory Reset Button

I. USB Port

CTR at a Glance

Input / Output

Bottom

Rear

Front

Top

Using the Controls

LED 0 –

USB Status

Green

Connection to USB port is established.

OFF

USB port not in use.

LED 1 –

WAN Status

Green

Wide Area Network is ready via the Ethernet port.

OFF

Ethernet port not in use or the connection is not secure. Port not in use.

LED 2 –

WLAN Status

OFF

No handset connected, unit is negotiating the connection, or no WLAN available.

LED 3 –

Power Status

Green

CTR is connected to external power / on.

OFF

CTR is OFF.

Ventilation Slots

These allow excess heat to be removed from the CTR while operating. It is recommended that the unit not be

covered with any material that will block the dispersion of heat away from the unit. The unit should not reach

extreme temperatures.

Ethernet Port

The Ethernet port allows you to connect to the unit via CAT5 cable on a LAN.

ON / OFF Status

External Power

Connection

OFF

The unit is completely OFF when the unit is not connected to external power and the ON / OFF switch is in the

OFF position.

The unit will charge its own battery and the phone battery if switched OFF and connected to external power.

Note: The option to charge the phone’s battery must be selected in the CTR setup pages.

The unit will ONLY charge the phone battery when switched OFF and NOT connected to external power. Note:

The option to charge the phone’s battery must be selected in the CTR setup pages.

* No access to the router or the wireless network can be established while the unit is OFF.

If the unit is ON and not connected to a phone or handset, it’s Setup / Help Pages are still accessible by

associating with its SSID (Network Name) and entering 192.168.0.1 into the URL bar of a web browser. Note:

If the unit is ON and connected to a fully operable data-enabled cell phone or USB modem a wireless network will

be automatically established. The laptop will automatically associated with the network. In some cases the user

will need to selected the wireless network from their laptop’s wireless network list. (Details vary by Operating

System.)

The unit will operate off external power exclusively while connected to an external power source. If there is

sufficient excess power available the unit will also charge the phone.

The power connector is a standard jack size and when connected to the proper cable and an external power

source will power the CTR according to the specifications listed in the ON / OFF switch section of the Controls

list.

Factory Default Reset

Button

To return all the User Defined configurations (such as those specified in the Setup / Help Pages) to their original

factory default settings simply turn the unit OFF, press and hold the Factory Default Reset button, and turn the

unit ON. After the LEDs have flashed ON then OFF then ON again, release the button. All setting should be

reset.

USB-to-Modem Port

This is a standard USB port that is used to connect either to a USB modem or to a data-enabled cellular phone.

Cables for USB to Data connection vary by phone manufacturer and are not provided with the CTR. Contact your

service provider for further information.

CA UTION: Using a power supply with a different voltage than the one included with

your product will cause damage to the unit and void the warranty.

Getting Connected

The CTR supports two methods of connecting to the Internet: 1) a standard wired-WAN connection such as a DSL,

Cable, or Hotel Ethernet, or hosted LAN connection; or 2) a Cellular modem connection using either a data-enabled

handset or USB Modem. In the Wired-WAN case, connect the LAN cable into the Ethernet port of the CTR and it will

establishes a connection to the Internet. In the Cellular case, plug your USB modem or handset into the USB host port

and the CTR will establish a connection to the Internet.

The CTR unit will begin broadcasting signals to create a local Wireless LAN network. If using a cellular phone, be sure

you have configured the phone’s settings to act as a modem and have established a 'data plan' with your

carrier/operator. Note that even though you may have a "Data Plan" for Internet access on the phone, there may be a

separate option to enable 'tethered data'. If you do not have this option activated, you must contact your cellular

carrier to activate this service. From your PC, use the wireless network finder to associate with your new wireless

network. The first time you use the CTR your network will be named:

CTR-xxx

Where ‘xxx’ is the last three digits of the CTR’s 12 character MAC address (the MAC address is individualized and unique

to each unit). This MAC Address is printed on the bottom label of the CTR.

Once your computer has associated with your wireless network, open a standard Internet Browser application on your PC

and you will be prompted to enter a password. The default password is the last six (6) characters of the MAC address

(again, printed on the bottom of the unit). Once logged in, you will be presented with a 'successful logon' screen,

indicating you can begin access the Internet with any of your PC applications. If you want the CTR to automatically

recognize your PC, click the 'Remember Me' option, and your PC will be automatically logged in upon WLAN association.

It is recommended that you change your password after your first login, which is easily accomplished using the CTR

Setup Wizard.

So how does it all work?

The CradlePoint CTR is a 802.11b/g WiFi router that is also able to use a cellular phone–as-

modem. Regardless of the type of Internet Access you have – Wired-WAN, Wired LAN, or

Cellular, the CradlePoint CTR bridges from that Internet access to a local WiFi network. The

result is your own personal, portable wireless network or “hotspot”. Set it up anywhere

within your service provider’s coverage area whenever you want access to the Internet.

Configuring Your

Wireless Network

Welcome to the Help and Setup Pages!

To access the Help Pages / CTR Setup Pages:

Be sure that the CTR and Phone/Modem are ON. Select the CTR-xxx wireless network from

your computer’s list of Wireless Networks.

Once your computer has associated with the CTR, open your

Web Browser and enter http://192.168.0.1 into the URL

Address bar. This allows you to access the CTR’s

embedded server pages.

You will be asked to enter your Password. The default

password is set to the last 6 digits of the CTR MAC Address

found on the bottom label of your CTR.

This is the home screen of the CTR Help and Setup Pages.

From here you can configure your network. It is recommended that you

run the Setup Wizard when you first use the CTR. This will allow you to

personalize your network name (SSID) and passwords, and you can change

the security settings to meet your needs.

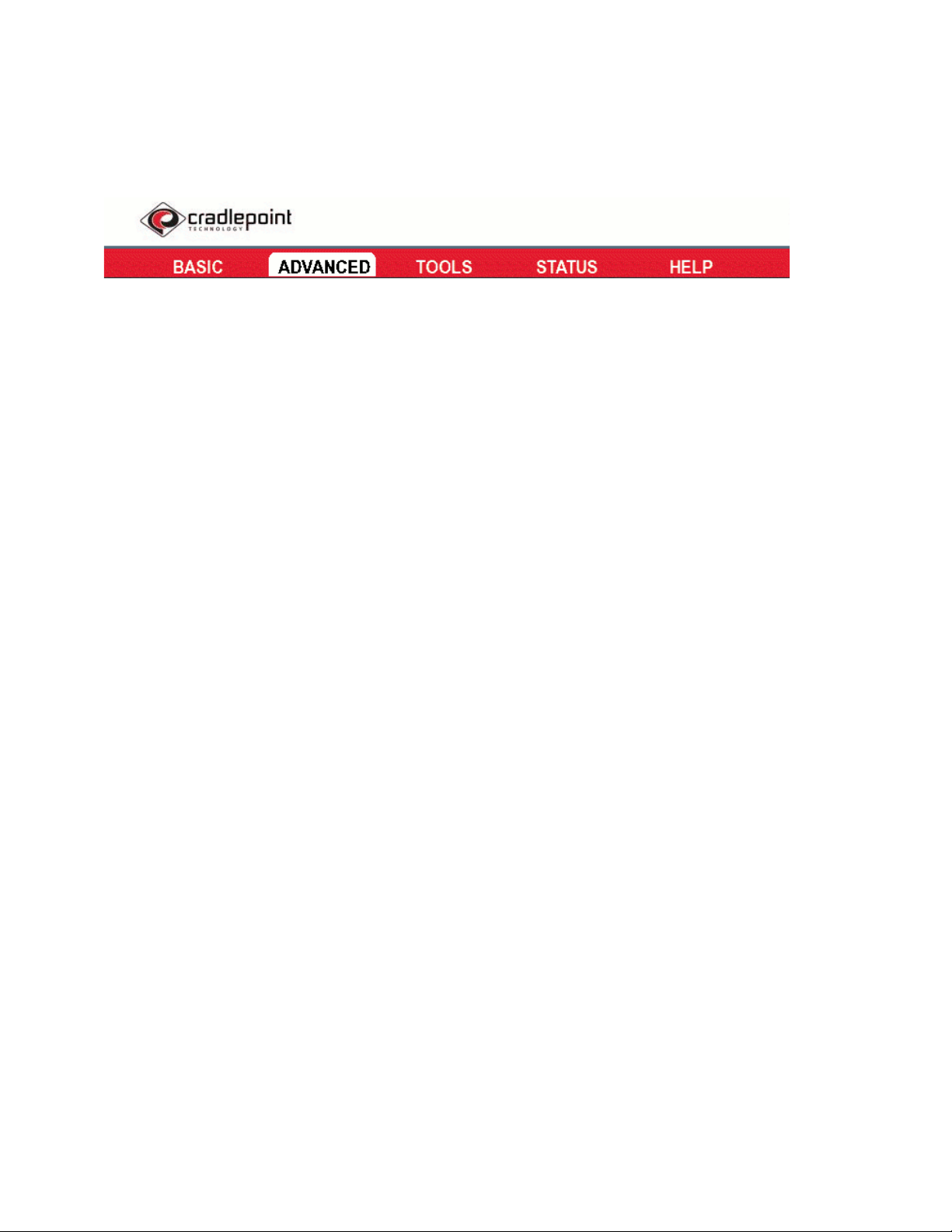

Navigating the Help and Setup Pages

Select the Main Topic tab

you wish to use.

Use the side navigation menu to

access subtopics.

Be sure to save your settings

before leaving each page.

You can abandon all your changes at

anytime by selecting “Don’t Save Settings.”

What you’ll find in these pages

BASIC Topics

Wizard

These wizards are designed to assist you in

configuring your wireless network once you have

completed the steps found in the Getting On The

Internet section of this manual. Use the wizards

to name your network, set your new password,

and set the security levels for your new CTR.

Internet Connection Setup Wizard

Internet Security Setup Wizard

WAN

This page is used to set your Internet connection

type. For most users, the default settings are

appropriate for everyday usage.

Specify DNS Servers

Advanced DNS settings

MTU Settings

Link Drop Delay

WAN Port Speed

Ping Response Settings

MAC Cloning Settings

LAN

Use this page to configure the internal network

settings of your CTR router. The IP Address that is

configured here is the IP Address that you use to

access the Web-based management interface. If

you change the IP Address here, you may need to

adjust your PC’s network settings to access the

network again. The default settings are

appropriate for most everyday users.

Set IP Address

Set Subnet Mask

RIP Settings

Set Router Metric

Default Router set

Enable/Disable IGMP

Enable/Disable DNS Relay

DHCP

This page is used to configure the built in DHCP

Server to assign IP Addresses to the computers

on your network.

Enable/Disable DHCP Server

Specify DHCP IP Address Range

Specify Lease Time

Enable DHCP Broadcast

View DHCP Clients

Add DHCP Reservation

View Reservations List

Wireless

This page is used to configure your basic wireless

settings for your CTR. From here you can set the

visibility of your network to others, your wireless

Enable/Disable Wireless Radio

Set SSID

Set Network Visibility

Auto/Manual Channel Select

network name, and security type. Some of these

features may have already been set by you if you

used the Setup wizards on the main screen of the

Help and Setup Pages.

Set Transmission Rate

Set 802.11 Mode

Set “Super G “Mode

ADVANCED Topics

Virtual Server

The Virtual Server option allows you to define a

single public port on your router for redirection to

an internal LAN IP Address and Private LAN port if

required. This feature is useful for hosting online

services such as FTP or Web Servers.

Add Virtual Server

View Virtual Servers List

Special Applications

The Special Applications option is used to open

single or multiple ports on your router when the

router senses data sent to the Internet on a

“trigger” port or port range. Special Applications

rules apply to all computers on your internal

network.

Application Level Gateway (ALG) Configuration

Add Special Applications Rule

View Spec Applications Rules List

Routing

The Routing option allows you to apply fixed

routes to defined destinations.

Add Route

View Added Routes List

View Existing Routes List

Access Control

The Access Control option allows you to control

access in and out if your network. Use this feature

as Access Controls to only grant access to

approved sites, limit web access based on time or

dates, and/or block network access for certain

applications.

This page includes a wizard to assist you in adding

new policies.

Enable/Disable Access Control

Policy Wizard

View Existing Policies

Web Filter

The Web Filter option allows you to set up a list of

allowed Websites that can be used by multiple

users. When the Web Filter is enabled, all other

Websites not listed on this page will be blocked.

To use this feature, you must also select the

“Apply Web Filter” checkbox in the Access Control

Section.

Add Website(s)

View allowed Websites

MAC Address Filter

The MAC Address (Media Access Controller) filter

option is used to control network access based on

the MAC Address of the network adapter. This

feature can be used to ALLOW or DENY specific

machines on your network.

Enable MAC Address Filter

Filter Setting (Allow/Deny clients)

Add MAC Address

View Filters

Firewall

The DMZ (Demilitarized Zone) option provides you

with an option to set a single computer on your

network outside of the CTR router. If you have a

computer that cannot run Internet applications

successfully from behind the router, then you can

place the computer into the DMZ for unrestricted

internet access. This option is recommended to be

a last resort, as it tends to leave the DMZ

computer at a security risk.

Enable DMZ

Set the DMZ IP Address

Inbound Filter

The Inbound Filter option is an advanced method

of controlling data received from the Internet.

With this feature you can configure inbound data

filtering rules that control data based on an IP

address range. You can use this to limit access to

a server on your network to a system(s).

Add Inbound Filter Rule

View Added Inbound Filter Rules

Advanced Wireless

These are more advanced settings for your

wireless network. If you are unfamiliar with the

settings it is recommended that you read the help

section on this subtopic before changing any of

the presets.

Fragmentation Threshold

RTS Threshold

Beacon Period

DTIM Interval

Enable 802.11d

Transmit Power

WDS Enable

(Add WDS AP MAC Address)

Schedules

The Schedules Rules feature is used to manage

parental controls and firewall rules according to a

schedule you define.

Add Schedule Rule

View Added Schedule Rules

Otros manuales para wipipe CTR350

Tabla de contenidos

Otros manuales de Enrutador de red de Cradlepoint

Cradlepoint

Cradlepoint wipipe CTR350 Manual de usuario

Cradlepoint

Cradlepoint MBR1400 Series Manual de usuario

Cradlepoint

Cradlepoint 5G Internet Kit Manual de usuario

Cradlepoint

Cradlepoint S700 Series Manual de usuario

Cradlepoint

Cradlepoint wipipe CTR350 Manual de usuario

Cradlepoint

Cradlepoint AER 2100 Manual de usuario

Cradlepoint

Cradlepoint COR IBR600 Manual de usuario

Cradlepoint

Cradlepoint IBR200-10M-VZ Manual de usuario

Cradlepoint

Cradlepoint IBR600E Manual de usuario

Cradlepoint

Cradlepoint ARC SERIES Manual de usuario

Cradlepoint

Cradlepoint AER3100 Series Manual de usuario

Cradlepoint

Cradlepoint COR IBR1100 series Manual de usuario

Cradlepoint

Cradlepoint COR IBR1100 series Manual de usuario

Cradlepoint

Cradlepoint CRADLEPOINT IBR60 Manual de usuario

Cradlepoint

Cradlepoint E102-C7C Manual de usuario

Cradlepoint

Cradlepoint CRADLEPOINT IBR650 Manual de usuario

Cradlepoint

Cradlepoint COR IBR600 Manual de usuario

Cradlepoint

Cradlepoint MBR1400 Series Manual de usuario

Cradlepoint

Cradlepoint COR IBR350 Manual de usuario

Cradlepoint

Cradlepoint COR Series Manual de usuario

Cradlepoint

Cradlepoint E100 Manual de usuario

Cradlepoint

Cradlepoint MBR800 Manual de usuario

Cradlepoint

Cradlepoint AER Series Manual de usuario

Cradlepoint

Cradlepoint COR IBR1700 Series Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
