Cozy Cab 355-D Manual de usuario

'- ccz CR, ",

'..." '

'." ,

;,...,...'.,!e./i

, .,.' ,.' ',' , 5

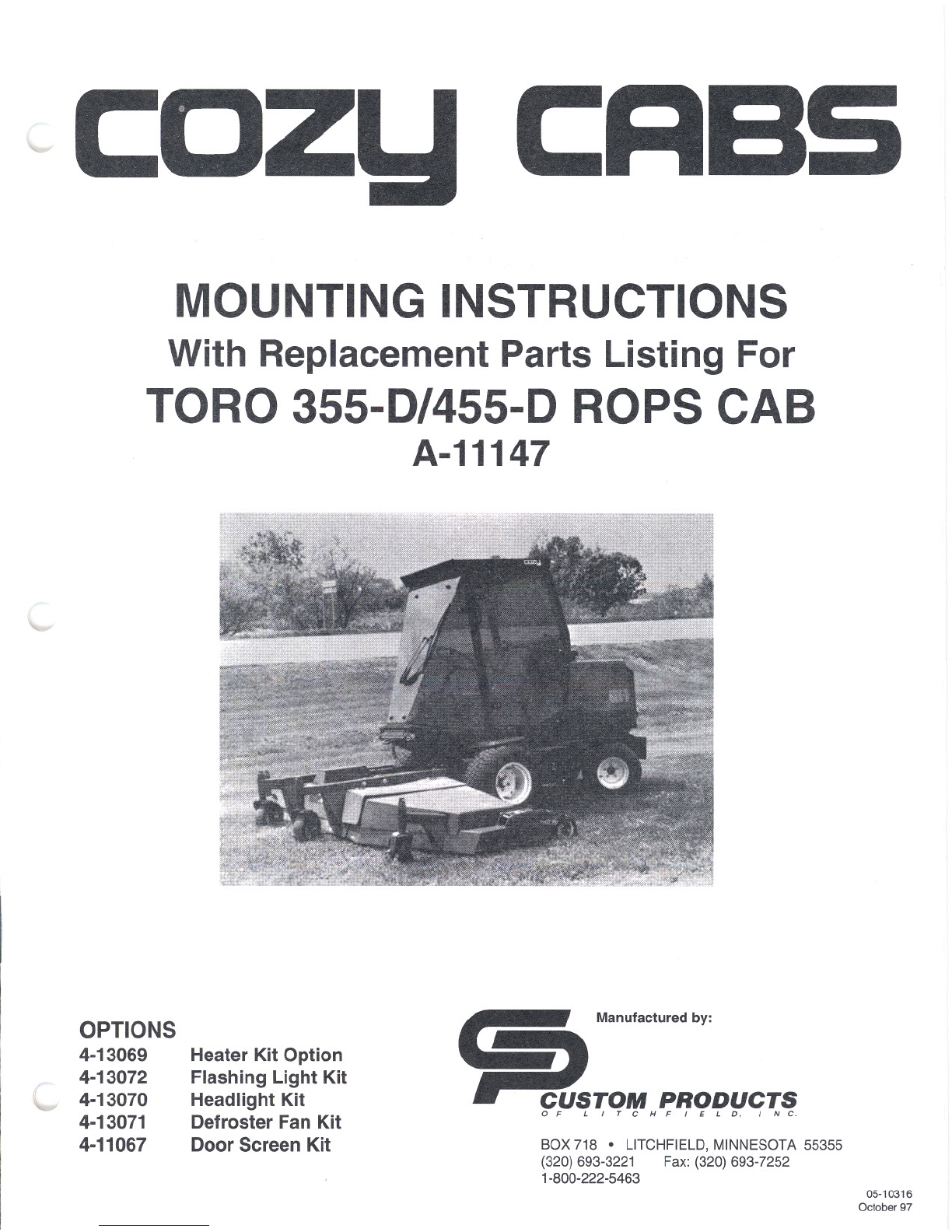

MOUNTING INSTRUCTIONS

With Replacement Parts Listing For

TORO 355-D/455-D ROPS CAB

A-11147

I-

OPTIONS

4-13069 Heater Kit Option

4-13072 Flashing Light Kit

(l, 4-13070 Headlight Kit

4-13071 Defroster Fan Kit

4-11067 Door Screen Kit

~Manufactured by'

~TOAf PRODUCTS

OF LITCHFIELD, INC,

BOX 718 .LITCHFIELD,MINNESOTA55355

(320) 693-3221 Fax: (320) 693-7252

1-800-222-5463 05-10316

October 97

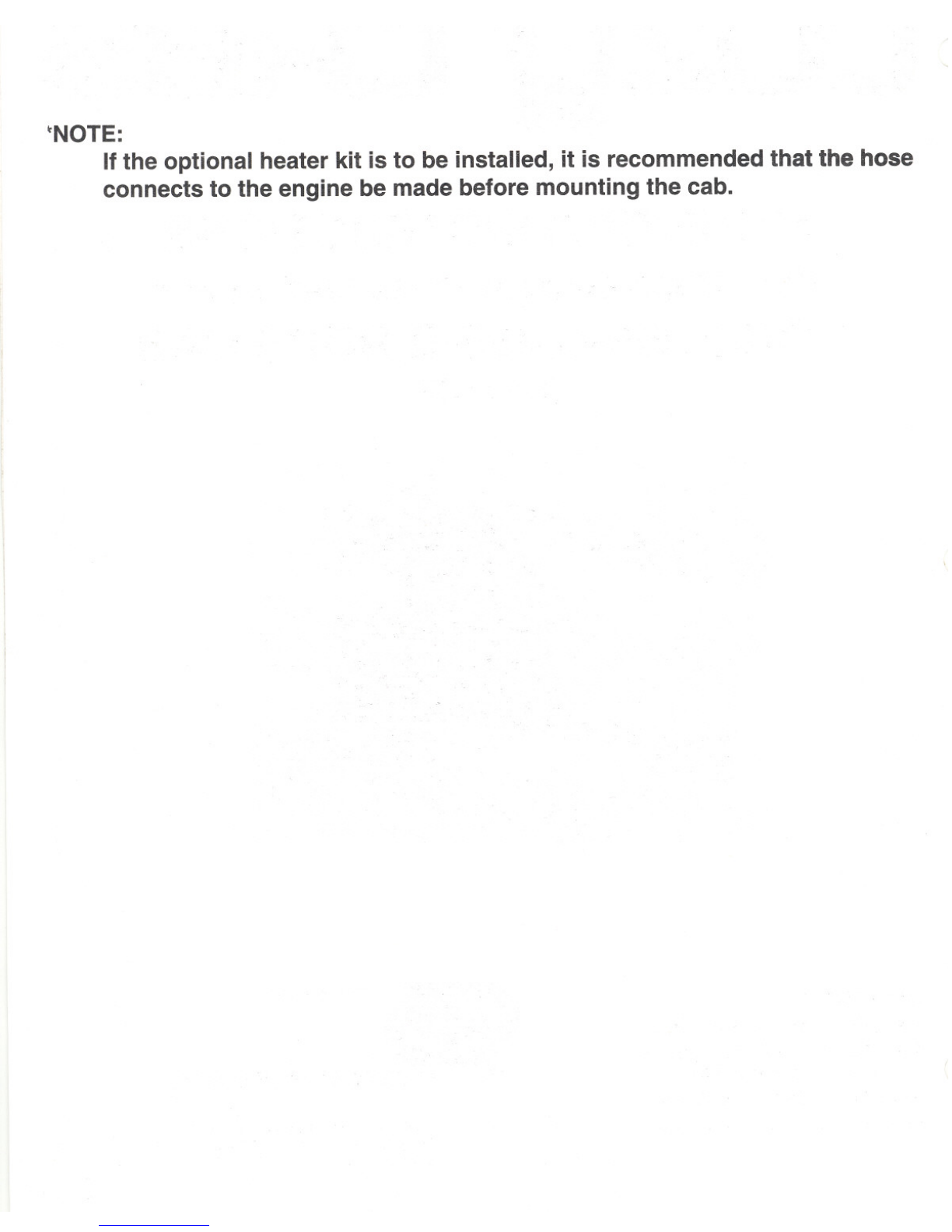

'NOTE:

Ifthe optional heater kit is to be installed, it is recommended that the hose

connects to the engine be made before mounting the cab.

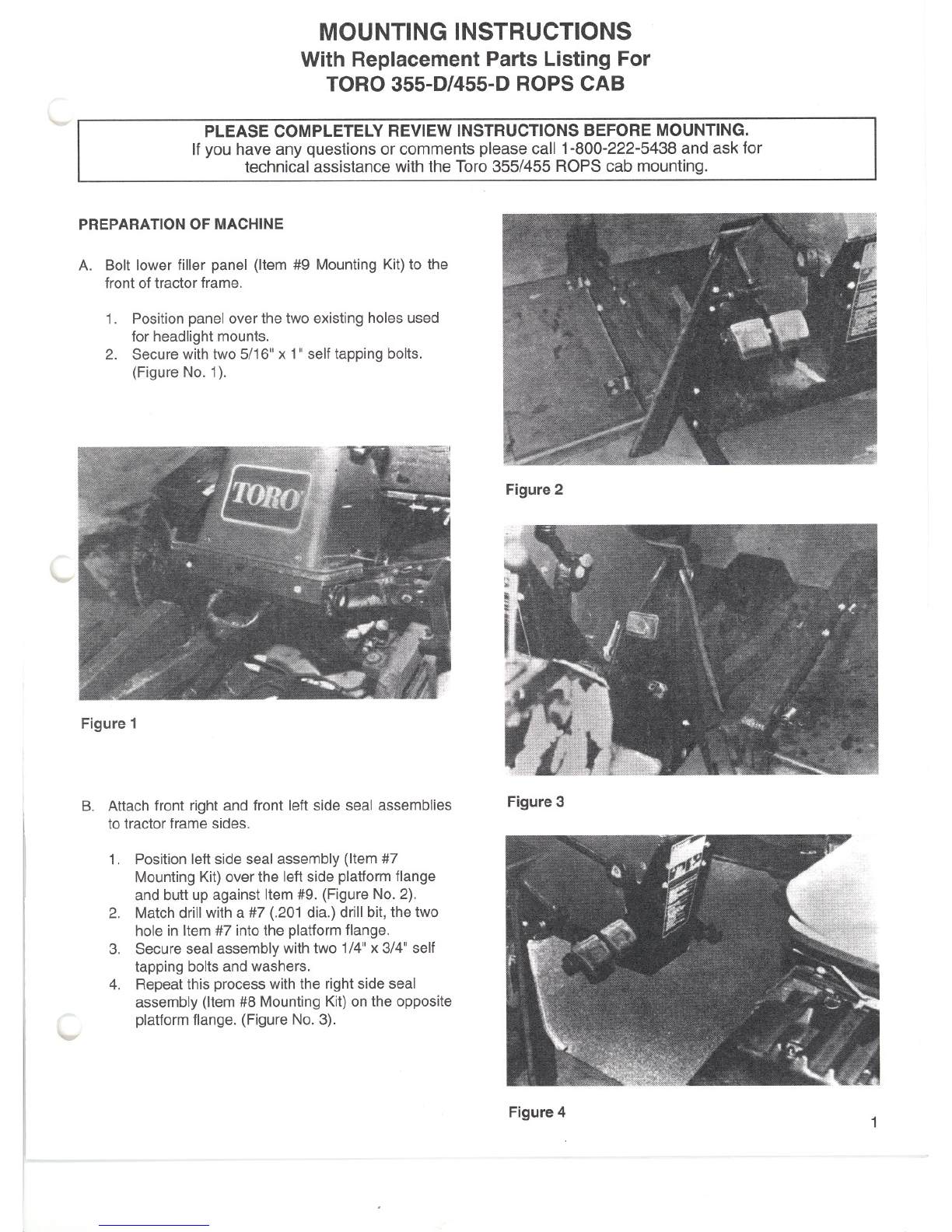

MOUNTING INSTRUCTIONS

With Replacement Parts Listing For

TORO 355-D/455-D ROPS CAB

""PLEASE COMPLETELYREVIEW INSTRUCTIONS BEFORE MOUNTING.

Ifyou have any questions or comments please call 1-800-222-5438 and ask for

technical assistance with the Toro 355/455 RapS cab mounting.

PREPARATION OF MACHINE

A. Bolt lower filler panel (Item #9 Mounting Kit)to the

front of tractor frame.

1. Position panel over the two existing holes used

for headlight mounts.

2. Secure with two 5/16" x 1" self tapping bolts.

(Figure No.1).

Figure 1

B. Attach front right and front left side seal assemblies

to tractor frame sides.

1. Positionleft side seal assembly (Item#7

Mounting Kit) over the left side platformflange

and butt up against Item #9. (Figure No.2).

2. Match drill with a #7 (.201 dia.) drill bit, the two

hole in Item #7 into the platform flange.

3. Secureseal assemblywith two 1/4"x 3/4" self

tapping boltsand washers.

4. Repeatthis process with the right side seal

assembly (Item#8 Mounting Kit) on the opposite

platform flange. (Figure No.3).

Figure 2

Figure 3

Figure 4 1

Figure 5

FigUre6

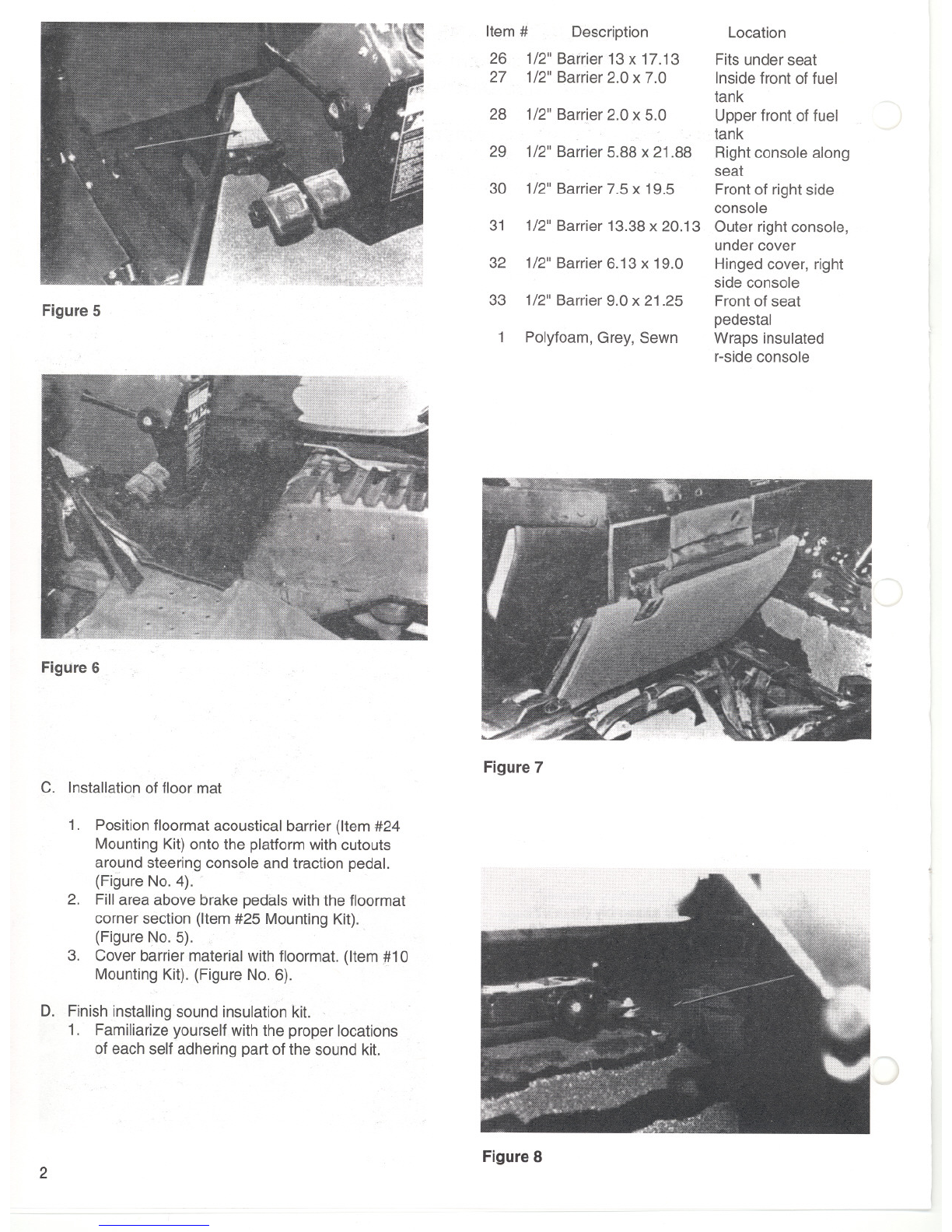

C. Installationof floor mat

1. Positionfloormat acoustical barrier (Item #24

Mounting Kit) onto the platformwith cutouts

around steering console and traction pedal.

(Figure No.4).

2. Fillarea above brake pedals with the floormat

corner section (Item #25 Mounting Kit).

(Figure No.5).

3. Cover barrier material with floormat. (Item #10

MountingKit). (Figure No.6).

D. Finish installingsound insulation kit.

1. Familiarizeyourself with the proper locations

of each self adhering part of the sound kit.

Item # Description

26 1/2" Barrier 13 x 17.13

27 1/2" Barrier 2.0 x 7.0

Location

Fits under seat

Inside front of fuel

tank

Upperfront of fuel

tank

Rightconsole along

seat

Front of right side

console

Outer right console,

undercover

Hinged cover, right

side console

Frontof seat

pedestal

Wraps insulated

r-side console

Figure 7

Figure 8

- )

28 1/2" Barrier 2.0 x 5.0

29 1/2" Barrier 5.88 x 21.88

30 1/2" Barrier 7.5 x 19.5

31 1/2" Barrier 13.38x 20.13

32 1/2" Barrier 6.13 x 19.0

33 1/2" Barrier 9.0 x 21.25

Polyfoam,Grey, Sewn

Figure 9

Figure 10

Figure 11

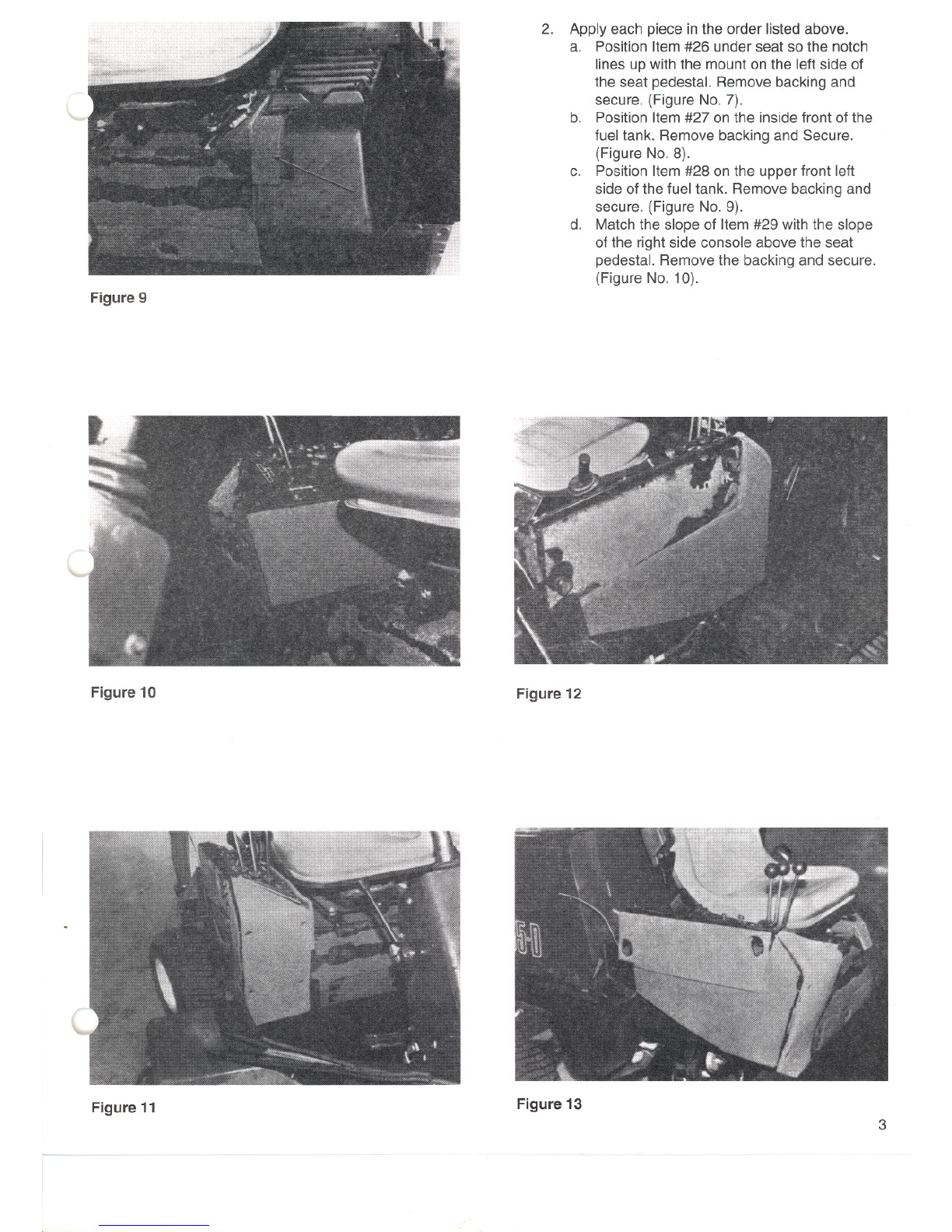

2. Apply each piece in the order listed above.

a. Position Item #26 under seat so the notch

lines up with the mount on the left side of

the seat pedestal. Remove backing and

secure. (Figure No.7).

b. Position Item #27 on the inside front of the

fuel tank. Remove backing and Secure.

(Figure No.8).

c. Position Item #28 on the upper front left

side of the fuel tank. Remove backing and

secure. (Figure No.9).

d. Match the slope of Item #29 with the slope

of the rightside console abovethe seat

pedestal. Removethe backing and secure.

(Figure No.1 0).

Figure 12

Figure 13 3

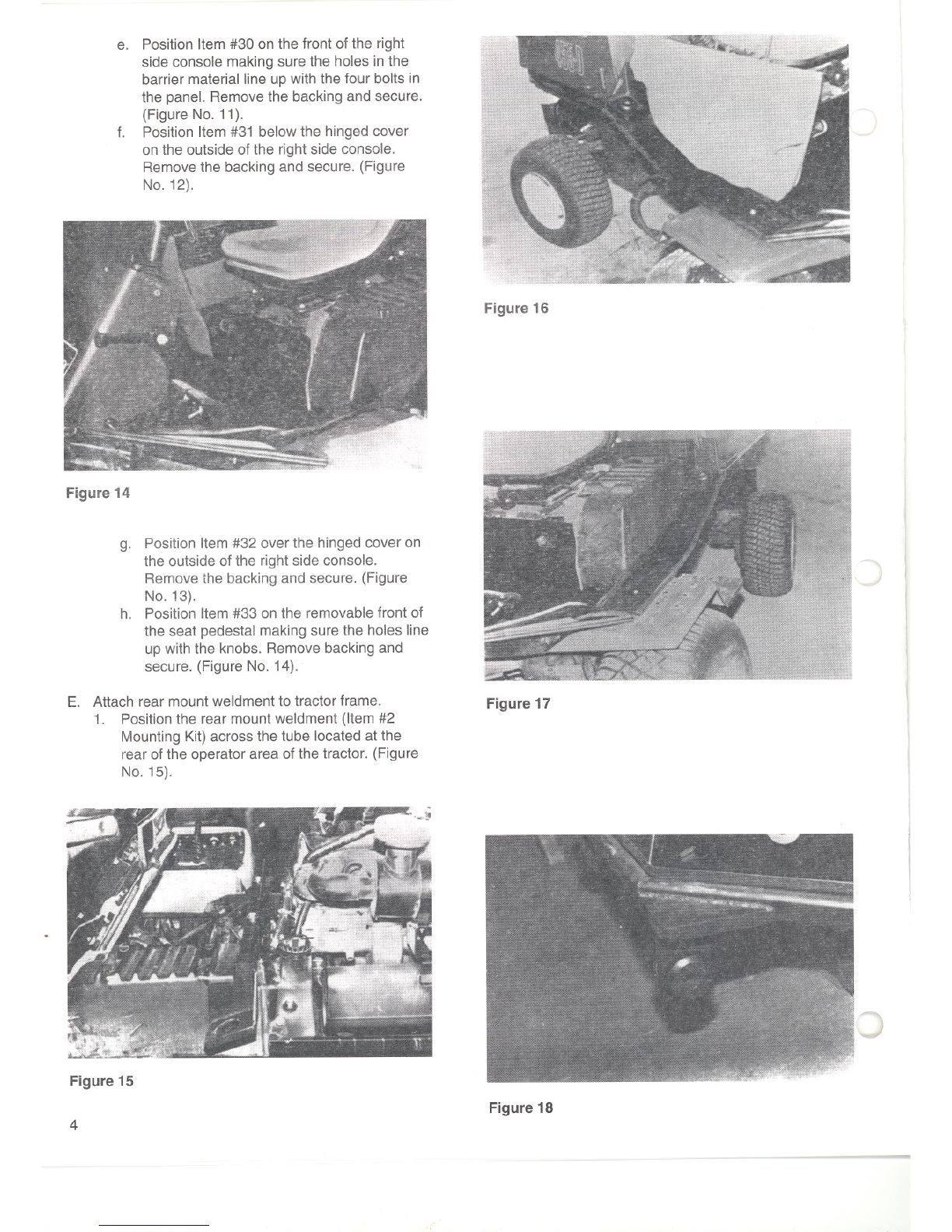

e. Position Item #30 on the front of the right

side console making sure the holes inthe

barrier material line up with the four bolts in

the panel. Removethe backing and secure.

(Figure No. 11).

f. Position Item #31 below the hinged cover

on the outside of the right side console.

Removethe backing and secure. (Figure

No. 12).

Figure 14

g. Position Item#32 over the hinged cover on

the outside of the right side console.

Removethe backing and secure. (Figure

No. 13).

h. Position Item #33 on the removable front of

the seat pedestal making sure the holes line

up with the knobs. Remove backing and

secure. (Figure No. 14).

E. Attach rear mountweldment to tractor frame.

1. Positionthe rear mount weldment (Item #2

Mounting Kit) across the tube located at the

rear of the operator area of the tractor. (Figure

No. 15).

Figure 15

Figure 16

)

Figure 17

Figure 18

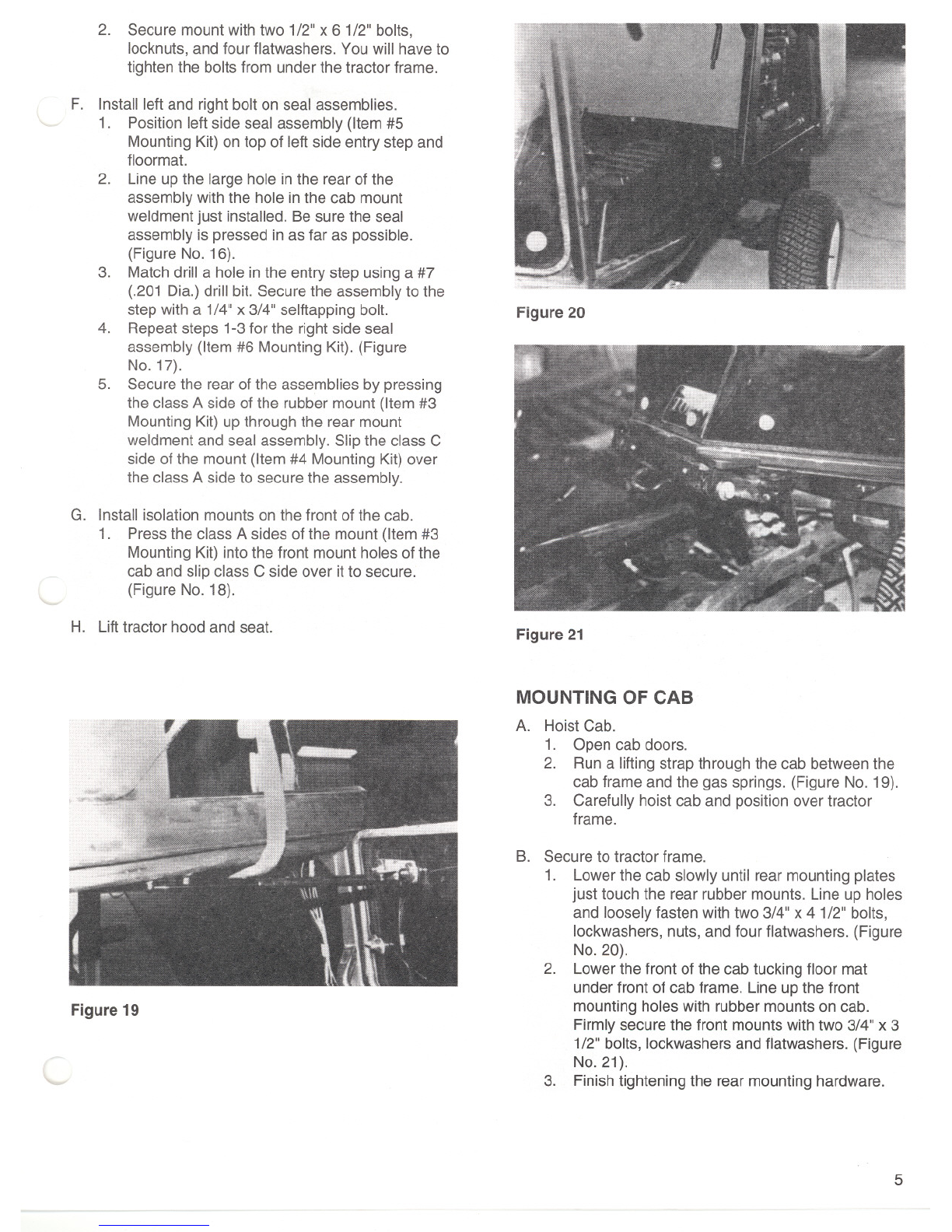

2. Secure mountwith two 1/2"x 61/2" bolts,

locknuts, and four flatwashers. You will haveto

tighten the bolts from under the tractor frame.

'- F. Install left and right bolt on seal assemblies.

1. Position left side seal assembly (Item #5

Mounting Kit) on top of left side entry step and

floormat.

2. Line up the large hole in the rearof the

assembly with the hole in the cab mount

weldment just installed. Be sure the seal

assembly is pressed in as far as possible.

(Figure No. 16).

3. Match drill a hole in the entry step usinga #7

(.201 Dia.) drill bit. Securethe assembly to the

step with a 1/4"x 3/4" selftapping bolt.

4. Repeatsteps 1-3 for the right side seal

assembly (Item #6 Mounting Kit). (Figure

No. 17).

5. Securethe rear of the assemblies by pressing

the class A side ofthe rubber mount (Item #3

Mounting Kit) upthrough the rear mount

weldment and seal assembly. Slip the class C

side of the mount (Item #4 Mounting Kit) over

the class A sideto secure the assembly.

G. Install isolation mounts on the front of the cab.

1. Pressthe class A sides of the mount (Item #3

Mounting Kit) into the front mount holes of the

cab and slip class C side over it to secure.

(Figure No. 18).

-- H. Lifttractor hood and seat.

Figure 19

Figure20

Figure21

MOUNTING OF CAB

A. Hoist Cab.

1. Open cab doors.

2. Run a lifting strap through the cab between the

cab frame and the gas springs. (Figure No. 19).

3. Carefully hoist cab and position over tractor

frame.

B. Secure to tractor frame.

1. Lowerthe cab slowly until rear mounting plates

just touch the rear rubber mounts. Line up holes

and looselyfasten with two 3/4" x 41/2" bolts,

lockwashers, nuts, and four flatwashers. (Figure

No. 20).

2. Lowerthe front of the cab tucking floor mat

under front of cab frame. Line up the front

mounting holes with rubber mounts on cab.

Firmly securethe front mounts with two 3/4" x 3

1/2" bolts, lockwashers and flatwashers. (Figure

No. 21).

3. Finishtightening the rear mounting hardware.

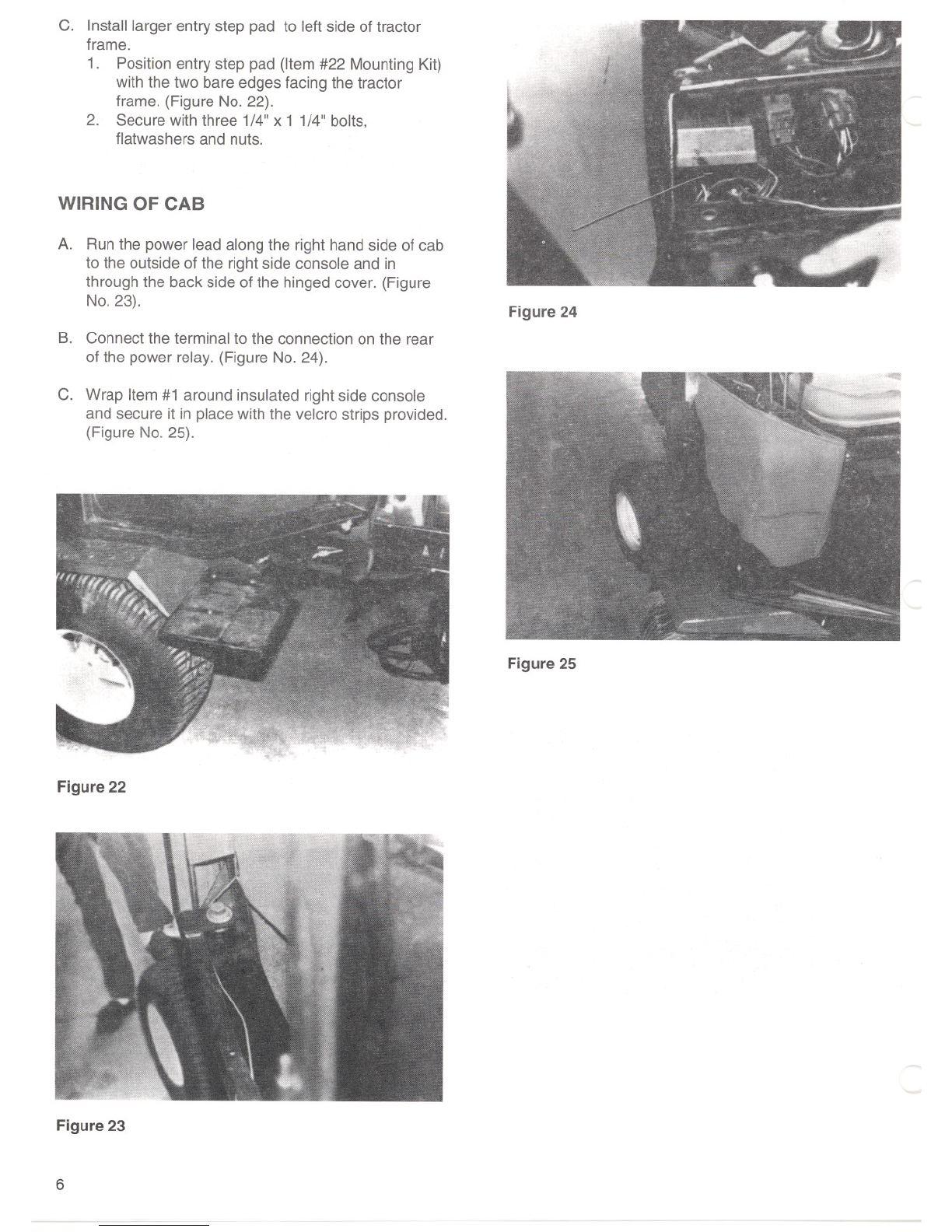

C. Install larger entry step pad to left side of tractor

frame.

1. Position entry step pad (Item #22 Mounting Kit)

with the two bare edges facing the tractor

frame. (Figure No. 22).

2. Secure with three 1/4"x 1 1/4" bolts,

flatwashers and nuts.

WIRING OF CAB

A. Runthe power lead along the right hand side of cab

to the outside of the right side console and in

through the back side of the hinged cover. (Figure

No. 23).

B. Connect the terminal to the connection on the rear

of the power relay. (Figure No. 24).

C. Wrap Item #1 around insulated right side console

and secure it in place with the velcro strips provided.

(Figure No. 25).

Figure 22

Figure 23

Figure 24

Figure 25

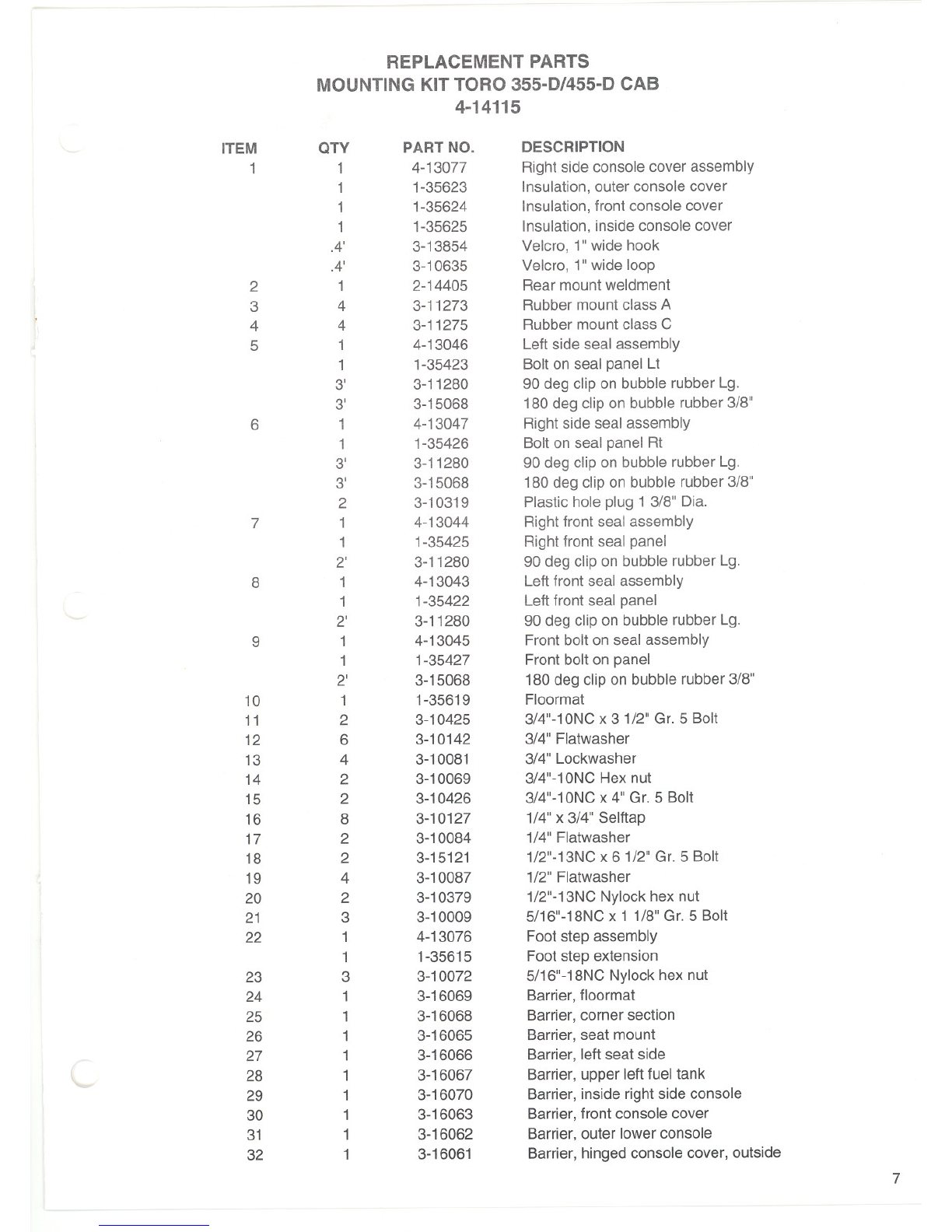

REPLACEMENT PARTS

MOUNTING KIT TORO 355-D/455-D CAB

4-14115

ITEM QTY PART NO. DESCRIPTION

11 4-13077 Rightside console cover assembly

11-35623 Insulation, outer console cover

1 1-35624 Insulation,front console cover

1 1-35625 Insulation, inside console cover

.4' 3-13854 Velcro, 1"wide hook

.4' 3-10635 Velcro, 1"wide loop

2 1 2-14405 Rear mount weldment

3 4 3-11273 Rubber mountclass A

4 4 3-11275 Rubber mount class C

51 4-13046 Left side seal assembly

1 1-35423 Bolt on seal panel Lt

3' 3-11280 90 deg clip on bubble rubber Lg.

3' 3-15068 180 deg clip on bubble rubber 3/8"

614-13047 Rightside seal assembly

1 1-35426 Bolt on seal panel Rt

3' 3-11280 90 deg clip on bubble rubber Lg.

3' 3-15068 180 deg clip on bubble rubber 3/8"

23-10319 Plastic hole plug 1 3/8" Dia.

7 1 4-13044 Rightfront seal assembly

1 1-35425 Rightfront seal panel

2' 3-11280 90 deg clip on bubble rubber Lg.

81 4-13043 Leftfront seal assembly

1 1-35422 Left front seal panel

2' 3-11280 90 deg clip on bubble rubber Lg.

91 4-13045 Front bolt on seal assembly

1 1-35427 Front bolt on panel

2' 3-15068 180deg clip on bubble rubber 3/8"

10 1 1-35619 Floormat

11 2 3-10425 3/4"-10NC x 31/2" Gr. 5 Bolt

12 6 3-10142 3/4" Flatwasher

13 43-10081 3/4" Lockwasher

14 2 3-10069 3/4"-10NC Hex nut

15 2 3-10426 3/4"-10NC x 4" Gr. 5 Bolt

16 8 3-10127 1/4" x 3/4" Selftap

17 2 3-10084 1/4" Flatwasher

18 2 3-15121 1/2"-13NCx 61/2" Gr. 5 Bolt

19 4 3-10087 1/2" Flatwasher

20 23-10379 1/2"-13NC Nylock hex nut

21 3 3-10009 5/16"-18NC x 1 1/8" Gr. 5 Bolt

22 1 4-13076 Foot step assembly

1 1-35615 Footstep extension

23 3 3-10072 5/16"-18NC Nylock hex nut

24 1 3-16069 Barrier, floormat

25 13-16068 Barrier, corner section

26 13-16065 Barrier, seat mount

27 1 3-16066 Barrier, left seat side

\. 28 1 3-16067 Barrier, upper left fuel tank

29 1 3-16070 Barrier, inside right side console

30 1 3-16063 Barrier, front console cover

31 1 3-16062 Barrier, outer lower console

32 1 3-16061 Barrier, hinged console cover, outside 7

3-16064

3-10380

3-10085

Barrier,front seat pedestal

5/16" x 1 Selftap

5/16" Flatwasher

)

[AB ASSEIflLY

)
