Cornelius Xtreme 322 Series Guía de configuración

IMI CORNELIUS INC.

www.cornelius.com

ILLUSTRATED PARTS LIST

XTREME ICE MAKER (322 AND 330 SERIES)

631803001

631803002

631803003

631803004

631803020

631803021

MODEL NO.

Manual Part No. 630460172IPL

07–21–2005

IMI Cornelius Co., 2005

XTREME ICE (322 and 330)

1 of 13

Rev A

IMI CORNELIUS INC.

www.cornelius.com

ILLUSTRATED PARTS LIST

XTREME ICE MAKER (322 AND 330 SERIES)

FIGURE 1. GENERAL ASSEMBLY (AIR CONDENSER SHOWN)

Item

No. Part No. Name

1 161168006 Screw TC 8-32 HX 12

2 164510000 Nut Grommet

3 166194001 Grille Plstc Blk

4 631500117 Kit Svc Front Panel Asy 30-In.

(See Figure 12)

631500118 Kit Svc Front Panel Asy 22-In.

(See Figure 12)

Item

No. Part No. Name

5 630201041 Cover Elec Box

6 318308000 Screw TR 10-32 PAPH 32

7 630201049 Cover Top (330 Models)

630201053 Cover Top (322 Models)

8 630900867 Panel Splash

Manual Part No. 630460172IPL

07–21–2005

IMI Cornelius Co., 2005 XTREME ICE (322 and 330)

2 of 13

Rev A

IMI CORNELIUS INC.

www.cornelius.com

ILLUSTRATED PARTS LIST

XTREME ICE MAKER (322 AND 330 SERIES)

SEE DETAIL A

SEE DETAIL B

DETAIL B DETAIL A

FIGURE 2. TRIM ASSEMBLY (AIR CONDENSER SHOWN)

Item

No. Part No. Name

1 07578 Screw TC 8-32 TRPH 12

2 630201037 Brace Elec Box (322 Model)

630201033 Brace Elec Box (330 Model)

3Electrical Box Ass’y (See Figure 9)

4 165384000 Screw SM 8 TA HX 16

5 630201034 Panel Side RH (120V 60HZ)

630201193 Panel Side RH (230V 50HZ)

6 630900893 Washer Sl .340 I.D.

Item

No. Part No. Name

7 630900808 Swt Rocker On/Off (120V 60HZ)

630900924 Swt Rocker On/Off (230V 50HZ)

8 630900798 Switch Proximity

9 630900829 Cover Evap Small

10 630900870 Fitg Placeholder

11 630900908 Orifice Flow Reducer

12 631500120 Kit Svc Water Distributor Asy

(See Figure 10)

Manual Part No. 630460172IPL

07–21–2005

IMI Cornelius Co., 2005

XTREME ICE (322 and 330)

3 of 13

Rev A

IMI CORNELIUS INC.

www.cornelius.com

ILLUSTRATED PARTS LIST

XTREME ICE MAKER (322 AND 330 SERIES)

AIR CONDENSER WATER COOLED

FIGURE 3. REFRIGERATION ASSEMBLY

Item

No. Part No. Name

1 161862005 Sensor Tmp (Air Condenser)

2 161426001 Clamp Gear No. 12

3 630000789 Valve and Brkt Svc (322 Series)

630000786 Valve and Brkt Svc (330 Series)

Item

No. Part No. Name

4 166184001 Dryer Filter

5 161921006 Valve Expan

6 165629005 Valve Hot Gas (120V 60HZ)

165629011 Valve Hot Gas (230V 50HZ)

7 165677008 Switch Prs Asy

Manual Part No. 630460172IPL

07–21–2005

IMI Cornelius Co., 2005 XTREME ICE (322 and 330)

4 of 13

Rev A

IMI CORNELIUS INC.

www.cornelius.com

ILLUSTRATED PARTS LIST

XTREME ICE MAKER (322 AND 330 SERIES)

SEE DETAIL A

DETAIL A

FIGURE 4. BUILD ASSEMBLY (AIR CONDENSER)

Item

No. Part No. Name

1 630201054 Wrap Cab (322 Series)

630201042 Wrap Cab (330 Series)

2 165384000 Screw SM 8 TA HX 16

3 650057 Tube Poly .265 I.D. (Sold by the

Foot)

4 630200935 Flange Bulkhead Fitg

5 630900783 Fitg Blkhd 3/8 Comp x 3/8 MF

6 630201570 Flange Bulkhead Fitg. Flat

7Condenser Ass’y (See Figure 8)

8 630900868 Sensor Pressure Pickup

9Water Pump Ass’y (See Figure 11)

10 630900895 Nut Hex 8-32

11 630900869 Pan Water Wrap

12 631500054 Kit Comp 1/2HP 120V 60HZ

630900736 Comp 1/2HP 230V 50HZ

13 164083005 Nut Hex 5/16-18

Item

No. Part No. Name

14 164154001 Washer Ft .375 I.D.

15 630900745 Sleeve Grommet Comp

16 630900744 Grommet Mount Comp

17 630900786 Valve Solenoid Water (120V 60HZ)

630900791 Valve Solenoid Water (230V 50HZ)

18 630201036 Brace Bulkhead

19 638006070 Tube Vinyl .375 I.D.

20 Bulkhead Ass’y (See Figure 6)

21 164126000 Screw SM 8 TRPH 16

22 165637008 Valve Dump (120V 60HZ)

165637009 Valve Dump (230V 50HZ)

23 630201086 Brkt Wtr Pan

24 630000759 Chassis (330 Series)

630000788 Chassis (322 Series)

25 630201126 Brkt Wtr Pan Cap

Manual Part No. 630460172IPL

07–21–2005

IMI Cornelius Co., 2005

XTREME ICE (322 and 330)

5 of 13

Rev A

IMI CORNELIUS INC.

www.cornelius.com

ILLUSTRATED PARTS LIST

XTREME ICE MAKER (322 AND 330 SERIES)

14 15

SEE DETAIL A

DETAIL A

FIGURE 5. BUILD ASSEMBLY (WATER COOLED)

Item

No. Part No. Name

1 630201054 Wrap Cab (322 Series)

630201042 Wrap Cab (330 Series)

2 165384000 Screw SM 8 TA HX 16

3 650057 Tube Poly .265 I.D. (Sold by the

Foot)

4 630200935 Flange Bulkhead Fitg

5 630900783 Fitg Blkhd

6 630201570 Flange Bulkhead Fitg. Flat

7 630201051 Panel Back

8 630900868 Sensor Pressure Pickup

9Water Pump Ass’y (See Figure 11)

10 630900895 Nut Nut 8-32

11 630900869 Pan Water Wrap

12 631500054 Kit Comp 1/2HP 120V, 60HZ

630900736 Comp 1/2HP 230V 50HZ

13 164083005 Nut Hex 5/16-18

14 164154001 Washer Ft .375 I.D.

Item

No. Part No. Name

15 630900745 Sleeve Grommet Comp

16 630900744 Grommet Mount Comp

17 630900786 Valve Solenoid Water

18 630201036 Brace Bulkhead

19 Water Coil Ass’y (See Figure 13)

20 Bulkhead Ass’y (See Figure 6)

21 164126000 Screw SM 8 TRPH 16

22 165637008 Valve Dump

23 630201086 Brkt Wtr Pan

24 630000788 Chassis (322 Series)

630000759 Chassis (330 Series)

25 161763009 Tube Asy Wtr Val to Cdr

(322 Series)

26 164832008 Tube Water In Asy

27 164832009 Tube Water Out Asy

28 630201126 Brkt Wtr Pan Cap

Manual Part No. 630460172IPL

07–21–2005

IMI Cornelius Co., 2005 XTREME ICE (322 and 330)

6 of 13

Rev A

IMI CORNELIUS INC.

www.cornelius.com

ILLUSTRATED PARTS LIST

XTREME ICE MAKER (322 AND 330 SERIES)

FIGURE 6. BULKHEAD ASSEMBLY

Item

No. Part No. Name

1 630900903 Clip

2 630900848 Bulkhd LT

3 630900846 Bulkhd Rear

4 630901121 Screw SM 8 HXWS 16 SS

Item

No. Part No. Name

5 630900934 Cap

6 630900834 Pan Water Small

7 630900892 Plug

8Evaporator Ass’y (See Figure 7)

Manual Part No. 630460172IPL

07–21–2005

IMI Cornelius Co., 2005

XTREME ICE (322 and 330)

7 of 13

Rev A

IMI CORNELIUS INC.

www.cornelius.com

ILLUSTRATED PARTS LIST

XTREME ICE MAKER (322 AND 330 SERIES)

FIGURE 7. EVAPORATOR ASSEMBLY

Item

No. Part No. Name

1 630900861 Frame Evap LH

2 630900781 Deflector Water

3 630201024 Gasket Frame Evap Top and Bottom

4 630250120 Tube Extension

5 630000814 Evap and Plate RH

6 630201026 Gasket Frame Evap R

7 630901495 Frame Evap RH

Item

No. Part No. Name

8 630901495 Nut Lock Nylon 8–32

9 630900857 Frame Evap Bottom

10 630201025 Gasket Frame Evap L

11 630900896 Screw SM No. 14 HX 20

12 630900850 Bulkhd RT

13 631500121 Kit Svc Evap Frame Asy

Manual Part No. 630460172IPL

07–21–2005

IMI Cornelius Co., 2005 XTREME ICE (322 and 330)

8 of 13

Rev A

IMI CORNELIUS INC.

www.cornelius.com

ILLUSTRATED PARTS LIST

XTREME ICE MAKER (322 AND 330 SERIES)

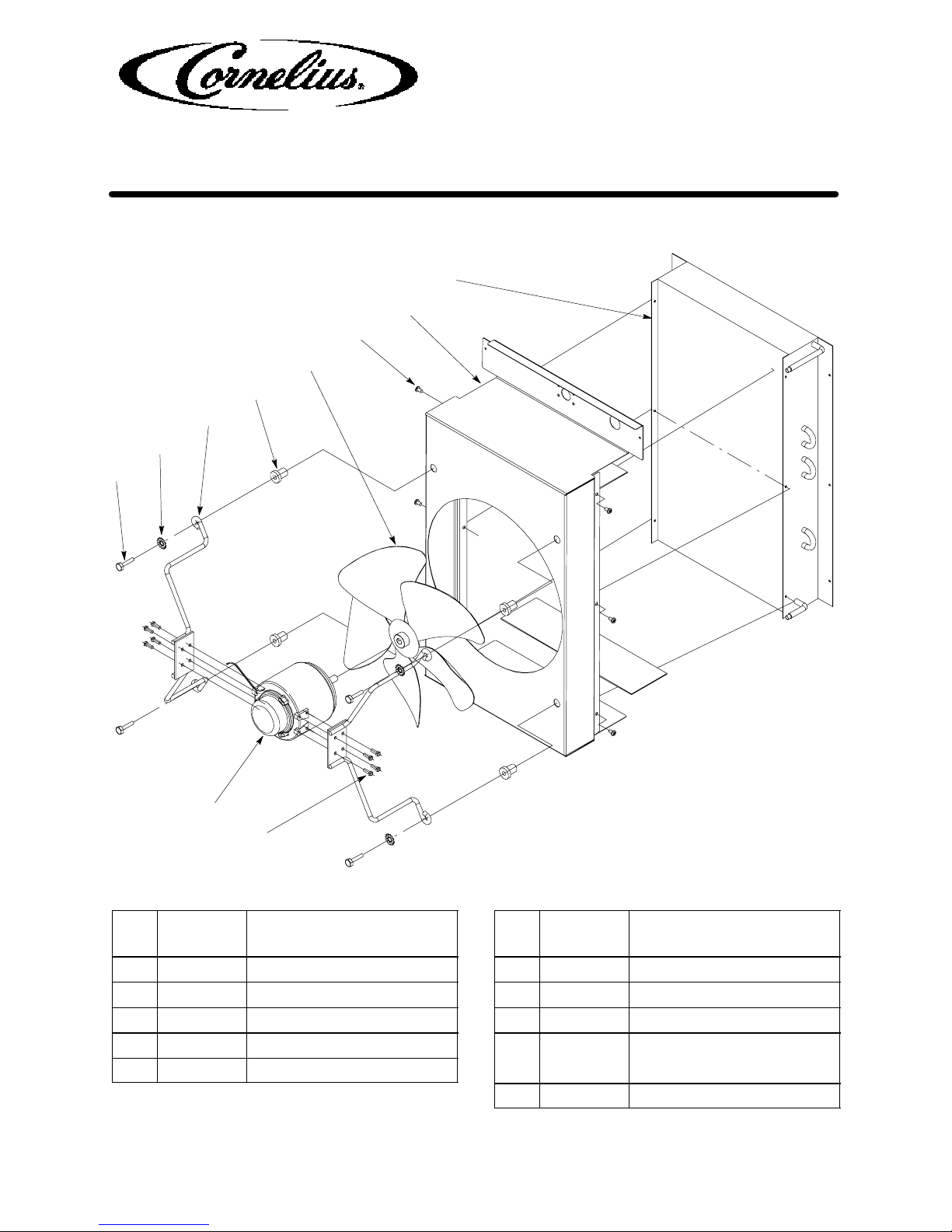

FIGURE 8. CONDENSER ASSEMBLY

Item

No. Part No. Name

1 161870002 Cond Coil

2 630201108 Shroud Cdr

3 630900190 Screw SM 8 PAPH 12

4 630900889 Nut Well 1/4-20

5 630900309 Fan Blade

Item

No. Part No. Name

6 630900919 Brkt Wire Frmd Fan Mtr

7 23978 Washer Sr .690 I.D.

8 165294000 Bolt MA 1/4-20 HX 32

9 630000456 Motor Asy Fan/Term 120V 60HZ

166181011 Motor Asy Fan/Term 230V 50HZ

10 03612 Screw MA 8-36 HX 16

Manual Part No. 630460172IPL

07–21–2005

IMI Cornelius Co., 2005

XTREME ICE (322 and 330)

9 of 13

Rev A

IMI CORNELIUS INC.

www.cornelius.com

ILLUSTRATED PARTS LIST

XTREME ICE MAKER (322 AND 330 SERIES)

FIGURE 9. ELECTRICAL BOX ASSEMBLY

Item

No. Part No. Name

1 630900789 Board Control Pressure

2 07578 Screw TC 8-32 TRPH 12

3 164884002 Relay Power 120V 60HZ

40713 Relay Power 230V 50HZ

4 630460105 Spacer Circ Board

5 630900720 Relay Start 120V 60HZ

630900722 Relay Start 230V 50HZ

6 161838002 Block Term

7 630900905 Switch Push Btn

Item

No. Part No. Name

8 630200166 Cap Strap

9 630900728 Capac Srt 120V 60HZ

630900729 Capac Srt 230V 50HZ

10 03611 Bushing

11 630201032 Wrap Elec Box (322 Series)

630201035 Wrap Elec Box (330 Series)

12 630900902 Harn Asy LED

13 630900102 Block Term (230V 50HZ)

14 630900733 Capac Run (230V 50HZ)

Manual Part No. 630460172IPL

07–21–2005

IMI Cornelius Co., 2005 XTREME ICE (322 and 330)

10 of 13

Rev A
