Cornelius Nordic CCM0830 1 Guía
Nordic
Model CCM0830 1, 1030 1
Service Parts Manual
(Includes 50Hz. Units)
IMI CORNELIUS INC.
www.cornelius.com
Publication Number: 631806064
Revision Date: October 1, 2008
Revision: A
Visit the IMI Cornelius web site at www.cornelius.com for all your Literature needs.
CCM0830 1-CCM1030 1 Service Parts Manual Manual Number 631806064
SERVICE PARTS MANUAL
22 INCH WIDE ICE SERIES CUBERS
MODEL-ICE0320, ICE0520
Includes 50Hz. Units
ICE-O-Matic
11100 East 45th Ave
Denver, Colorado 80239
Part Number 9081297-01 PD04/02 Rev1/05
CCM Series Service Parts Table Of Contents
This parts list contains the service parts available for the CCM Series icemakers listed below:
CCM0830*21 Air, Water and Remote
CCM0830*51 Air, Water and Remote
CCM1030*21 Air, Water and Remote
CCM1030*51 Air, Water and Remote
Check the model number on the data plate and refer to the correct listing for the specific component.
Check carefully that the correct part is identified and ordered.
Table of Contents Page 1
Cabinet Assembly Page 2 - 3
Evaporator/Water System Page 4 - 5
Air Cooled Page 6 - 7
Water Cooled Page 8 - 9
Remote Page 10 - 11
Control Box Page 12 - 13
Specific Compressor Components Page 13
Harvest Assist Assembly Page 14 - 15
Remote Condenser Page 16 - 17
Telephone Number
800-238-3600 All Departments
E-Mail: [email protected]
Website: www.cornelius.com
The CCM Series Service Manual is available separately, Part Number 631806061
Note: Model Number Suffix Indicates Machine Voltage As Follows
1=115/60/1
2=208-230/60/1
3=208-230/60/3
5=230/50/1
Engineering Revision Level =1
Page 1
CCM Series Service Parts Cabinet Assembly
Page 2
CCM Service Parts Exterior Panels
Item
No. CCM0830 5 1 CCM0830 2 1 CCM1030 5 1 CCM1030 2 1 Description
1 620204811 620204811 620204811 620204811 Front Panel
2 620204774 620204774 620204774 620204774 Front Panel Screws
3 620204457 620204457 620204457 620204457 Plastic Nut
4 620204930 620204930 620204930 620204930 Right Hand Side Panel-
A
ir Cooled Only
5 620204884 620204884 620204884 620204884 Right Hand Side Panel-Water and Remote Only
6 620204776 620204776 620204776 620204776 Side Panel Screws
7 620204809 620204809 620204809 620204809 Top Panel, Air Cooled
620204810 620204810 620204810 620204810 Top Panel, Water Cooled and Remote
8 620204444 620204444 620204444 620204444 Top Panel Screws
9 620204337 620204337 620204337 620204337 Rear Brace
10 620204885 620204885 620204885 620204885 Left Hand Side Panel
11 620204382 620204382 620204382 620204382 Rear Panel
12 620204441 620204441 620204441 620204441 Rear Panel Screws
13 620204349 620204349 620204349 620204349 Control Box Top Cover
14 620204347 620204347 620204347 620204347 Control Box Side Cover
15 620204929 N/
A
620204929 N/
A
Machine Compartment Cover
Model Number
Page 3

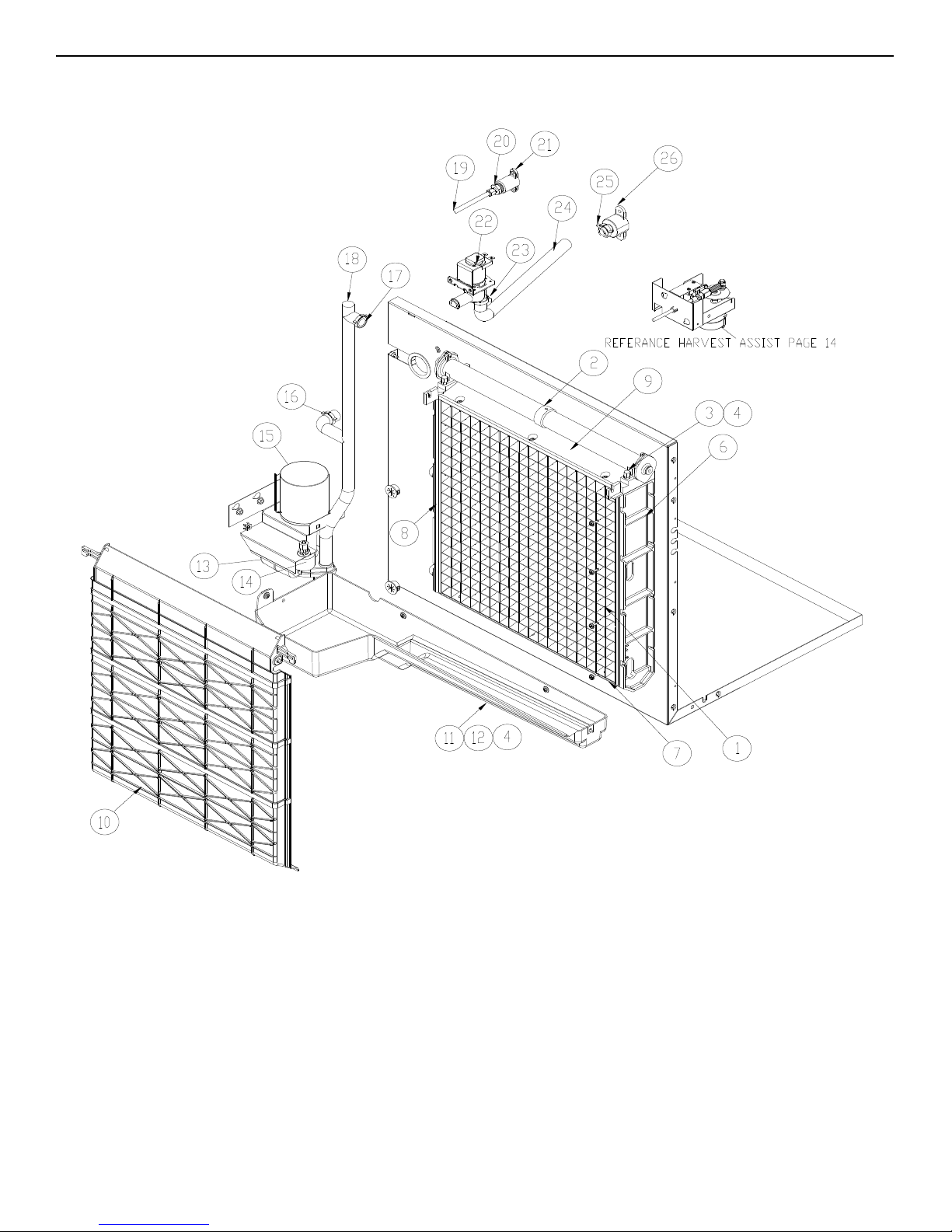

CCM Series Service Parts Evaporator/Water System
Page 4
CCM Series Service Parts Evaporator/Water System
Item Model Number
No. CCM0830 5 1 CCM0830 2 1 CCM1030 5 1 CCM1030 2 1 Description
1620204873 620204873 620204873 620204873 Evaporator Full Cube
1620204874 620204874 620204874 620204874 Evaporator Half Cube
2620204294 620204294 620204294 620204294 Water Distribution Tube
3620204453 620204453 620204453 620204453 Thumb Screw
4620204429 620204429 620204429 620204429 Rubber Washer
5N/A N/A N/A N/A Curtain Stopper
6620204494 620204494 620204494 620204494 Evaporator Mounting Panel Right Side
7620204486 620204486 620204486 620204486 Evaporator Water Return
8620204495 620204495 620204495 620204495 Evaporator Mounting Panel Left Side
9620204869 620204869 620204869 620204869 Evaporator Spillway
10 620204493 620204493 620204493 620204493 Evaporator Splash Curtain
11 620204521 620204521 620204521 620204521 Water Return Trough
12 620204443 620204443 620204443 620204443 Water Return Trough Screw
13 620204564 620204564 620204564 620204564 Float
14 620204563 620204563 620204563 620204563 Caplug (Float Deflector)
15 620204638 620204638 620204638 620204638 Water Pump
16 620204420 620204420 620204420 620204420 Clamp
17 620204420 620204420 620204420 620204420 Clamp
18 620204508 620204508 620204508 620204508 Water Pump Tube
19 620204404 620204404 620204404 620204404 Water Float Tubing (26 Inches required)
20 620204533 620204533 620204533 620204533 Water Inlet Fitting
21 620204530 620204530 620204530 620204530 Drop Adapter
22 620204466 620204466 620204466 620204466 Purge Valve
23 620204420 620204420 620204420 620204420 Clamp
24 620204928 620204928 620204928 620204928 Purge Drain Hose
25 620204419 620204419 620204419 620204419 Clamp
26 620204813 620204813 620204813 620204813 Purge Drain Fitting
Page 5
CCM Series Service Parts Air Cooled
Page 6
CCM Series Service Parts Air Cooled
Item Model Number
No. CCM0830 5 1 CCM0830 2 1 CCM1030 5 1 CCM1030 2 1 Description
1620204688 620204686 620204685 620204687 Compressor Kit
2620204612 620204612 620204612 620204612 Hot Gas Valve Body
3620204614 620204614 620204614 620204614 Hot Gas Valve Coil
4620204476 620204476 620204476 620204476 Low Pressure Control
5620204603 620204603 620204603 620204603 Filter Drier
6620204534 620204534 620204534 620204534 Service Valve Core
7620204535 620204535 620204535 620204535 Service Valve Cap
8620204596 620204596 620204596 620204596 Condenser
9620204478 620204478 620204478 620204478 Fan Control
10 620204882 620204882 620204882 620204882 Expansion Valve
11 620204924 620204924 620204924 620204924 Insulation-Danfoss Expansion Valve
12 620204814 620204814 620204814 620204814 Fan Shroud
13 620204577 620204574 620204577 620204812 Fan Blade
14 620204636 620204641 620204636 620204641 Fan Motor
15 620204286 620204335 620204286 620204335 Fan Motor Bracket
16 620204480 620204480 620204480 620204480 High Temperature Safety Control
17 620204926 620204926 620204926 620204926 Insulation Panel Bottom
18 620204927 620204927 620204927 620204927 Insulation Panel Top Divider
19 620204458 620204458 620204458 620204458 Insulation Clip
Note: The CCM0830 series has 1 fan motor, the CCM1030 series has 2 fan motors.
Page 7
CCM Series Service Parts Water Cooled
Page 8
