Cornelius Jetspray JT20 Guía de configuración

IMI CORNELIUS INC.

One Cornelius Place

Anoka, MN. 55303--6234

Telephone 1-800-238-3600

Facsimile 1-800-258-0255

www.cornelius.com

ILLUSTRATED PARTS LIST

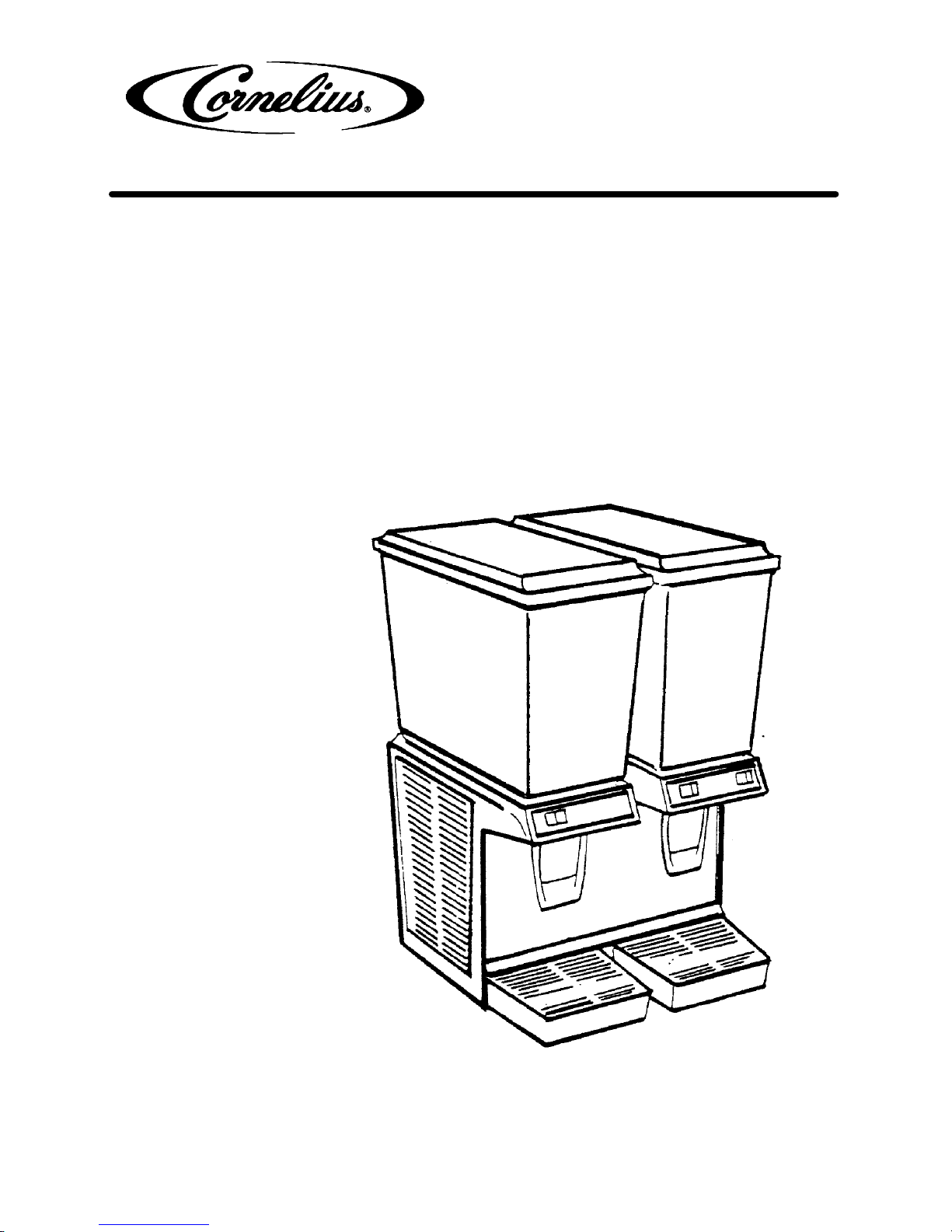

JT-20 COLD BEVERAGE DISPENSER

WITH JWT-200 SERIES ALTERNATE PARTS

MODEL NO.

A8420

A8430

A8450

A8421

A8431

A8422

A8432

Manual Part No. 18487

10-6-2001 Rev; 11-7-01

ãIMI Cornelius Co., 2001

JT-20 1of4

IMI CORNELIUS INC.

One Cornelius Place

Anoka, MN. 55303--6234

Telephone 1-800-238-3600

Facsimile 1-800-258-0255

www.cornelius.com

ILLUSTRATED PARTS LIST

JT-20 COLD BEVERAGE DISPENSER

WITH JWT-200 SERIES ALTERNATE PARTS

FIGURE 1. GENERAL ASSEMBLY

Manual Part No. 18487

10-6-2001 Rev; 11-7-01

ãIMI Cornelius Co., 2001 JT-20

2of4

IMI CORNELIUS INC.

One Cornelius Place

Anoka, MN. 55303--6234

Telephone 1-800-238-3600

Facsimile 1-800-258-0255

www.cornelius.com

ILLUSTRATED PARTS LIST

JT-20 COLD BEVERAGE DISPENSER

WITH JWT-200 SERIES ALTERNATE PARTS

Item

No. Part No. Name

1S6670 Tube Spray

2S6677 Housing Pump Asy 120V 60HZ

S7046 Pump Asy 220/240V 50HZ

3A3058 Impeller and Support

Pin 120V 60HZ

A3192 Impeller and Support Pin

220/240V 50HZ

4A2549 Pin Support Impeller

5S6676 Cover Bowl 5 Gallon

A2162 Cover Bowl 3 Gallon

6S6562 Bowl 5 Gallon

A0791 Bowl 3 Gallon

7S6737 Impeller Circulator Asy (Replace

of Pump Housing Ass’y No.

S6677 for Certain Drinks)

8A1620 Impeller Circulator Asy

A3035 Lock Device

A2962 Kit Leg Extension

9S4206 Tube Pinch

10 S6901 Gasket Bowl Spout

11 S6600 Gasket Bowl

12 S4381 Handle Push Asy

720721601 Label Push Handle

13 S4363 Tube Pinch Spring

14 S4576 Rivet Spr Ret (Pack of 6)

15 Item Not used

16 Item Not used

17 Item Not used

18 Item Not used

19 S6657 Thermostat 120V 60HZ

S6657 Thermostat 220/240V 50HZ

20 18334 Switch On-Off

21 A1753 Motor Asy Spray Drive 120V

60HZ

A2072 Spray Drive Asy 220/240V 50HZ

22 18874 Magnet Asy

23 Item Not used

24 A1869 Motor Asy Fan 120V 60HZ

A2073 Motor Fan 230V 50HZ

25 S1630 Motor Fan 120V 60HZ

S2397 Motor Fan 220/240V 50HZ

A2553 Blade Fan

18081 Cond Coil

Item

No. Part No. Name

26 S1249 Cord Serv 120V 60HZ

Power Cord (Specify Country)

27 7218368 Relay Start 120V 60HZ

S2472 Relay 220/240V 50HZ

18837 Relay 208/230V 60HZ (No Longer

Available)

28 S2828 Overld 120V 60HZ

18389 Overld 220/240V 50HZ

18547 Overld 208/230V 60HZ

29 18334 Switch On-Off

30 Item Not used

31 A7319 Panel Back Asy Vt Cvr Wht

A1762 Panel Back Asy Vt Cvr

32 A7316 Panel Back Asy

A1763 Panel Back Asy

33 S3159 Leg Set Replacement

34 Item Not used

35 S7683 Switch and Cover

36 S9267 Panel Fnt (Used on Units Below

Serial No. 315270)

18715 Panel Fnt (Used on Units Serial

No. 315270 and above)

37 S9266 Panel Side Asy

A2011 Filter Side Panel

38 A7310 Drip Tray Asy (Used on Units

Below Serial No. 315270)

18747 Drip Tray Asy (Used on Units

Serial No. 315270 and above)

39 A7296 DripTray(UsedonUnitsBelow

Serial No. 315270)

18747001 Drip Tray (Used on Units Serial

No. 315270 and above)

40 18747002 Cup Rest

41 S4554 Screw Panel (Pack of 12)

42 A3060 Screw (Pack of 4)

43 S7289 Drain Asy Condensate

44 A2081 Spacer Cover Mntg Hdwr

45 A7305 Frame Side

Manual Part No. 18487

10-6-2001 Rev; 11-7-01

ãIMI Cornelius Co., 2001

JT-20 3of4

IMI CORNELIUS INC.

One Cornelius Place

Anoka, MN. 55303--6234

Telephone 1-800-238-3600

Facsimile 1-800-258-0255

www.cornelius.com

ILLUSTRATED PARTS LIST

JT-20 COLD BEVERAGE DISPENSER

WITH JWT-200 SERIES ALTERNATE PARTS

FIGURE 2. JWT ALTERNATE PARTS

Item

No. Part No. Name

1A2746 Housing Whipper

2A2566 Magnet Whipper Impeller

3A0116 Pin Whipper Impeller

4A0938 Union Whipper Outlet

5S7395 Outlet Tube

6A2569 Chamber Whipper

7A0423 Clip Impeller Support

8S7394 Tube Vent Asy 5-Gallon

A2791 Tube Vent Asy 3-Gallon

9A2256 Motor Whipper 120V 60HZ

S7512 Motor Whipper 220/240V 50HZ

10 A2567 Motor Asy Whipper 120V 60HZ

A2645 Motor Asy Whipper 220/240V

50HZ

Item

No. Part No. Name

11 A2410 Magnet Ass’y

12 S8465 Switch Motor, White

A2754 Switch Motor, Black

13 S8469 Screw (Pack of 4)

14 S9412 Switch Cover Plate White (No

Longer Used)

A3927 Switch Cover Plate Black

15 A2269 Cover Switch Asy White

A4509 Cover Switch Asy Black

16 S8467 Switch Support Asy White

A4434 Switch Support Asy Black

17 S9570 Cover Plate Switch Non Whipper

Manual Part No. 18487

10-6-2001 Rev; 11-7-01

ãIMI Cornelius Co., 2001 JT-20

4of4
