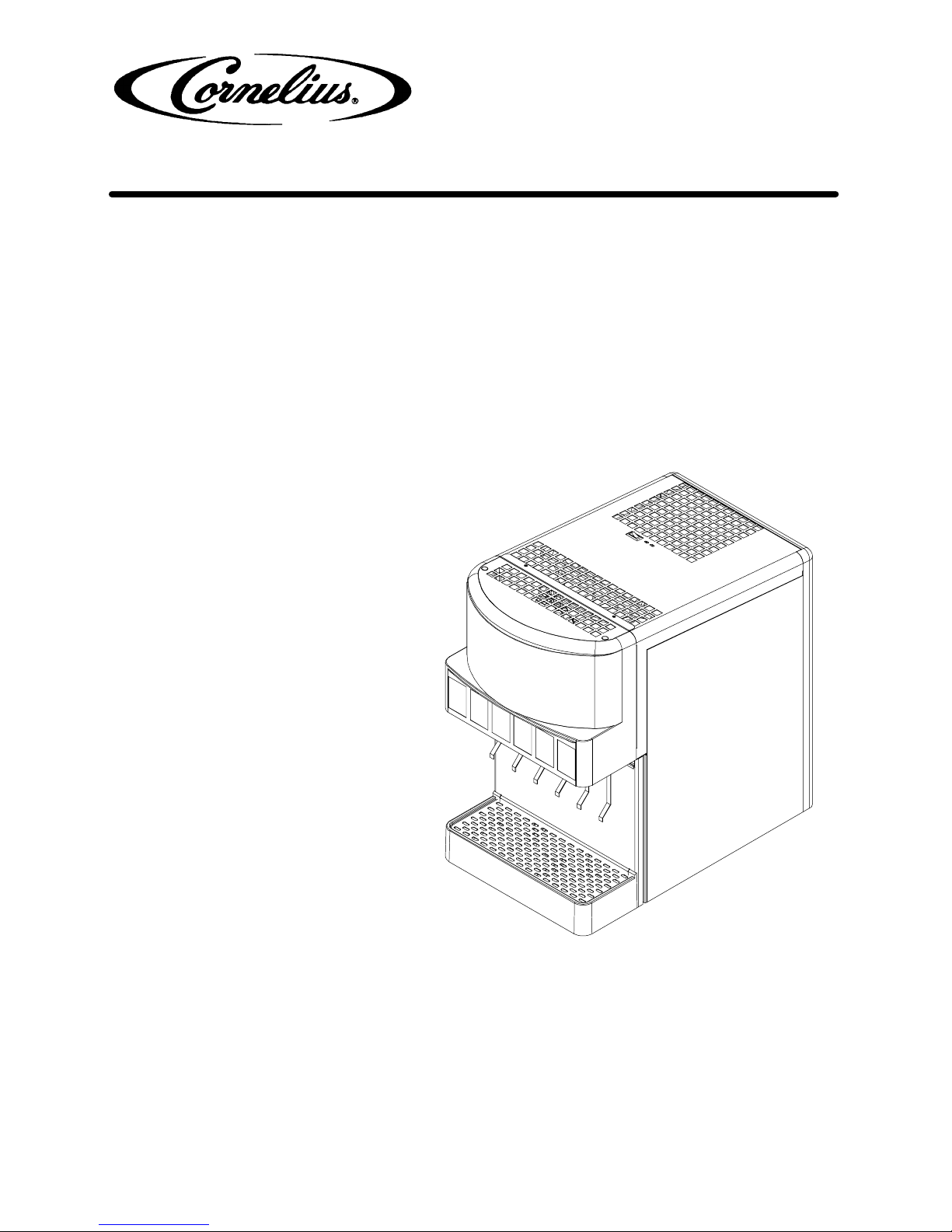

Cornelius Impulse Juice Dispenser 851000109 Guía de configuración

IMI CORNELIUS INC.

One Cornelius Place

Anoka, MN. 55303–6234

Telephone 1-800-238-3600

Facsimile 1-800-258-0255

www.cornelius.com

ILLUSTRATED PARTS LIST

Manual Part No. 859000158IPL

12–15–03

EIMI Cornelius, Inc. 2003 IMPULSE JUICE POST–MIX

Rev A

IMPULSE JUICE DISPENSER

MODEL NO.

851000109

851000110

851000319

851000320

851000321

IMI CORNELIUS INC.

One Cornelius Place

Anoka, MN. 55303–6234

Telephone 1-800-238-3600

Facsimile 1-800-258-0255

www.cornelius.com

ILLUSTRATED PARTS LIST

Manual Part No. 859000158IPL

12–15–03

EIMI Cornelius, Inc. 2003

IMPULSE JUICE POST–MIX

Rev A

IMPULSE DISPENSER

HOOD AND PANEL

COMPONENTS

(SEE FIGURE 2)

COIL AND CARBONATOR

COMPONENTS

(SEE FIGURE 3)

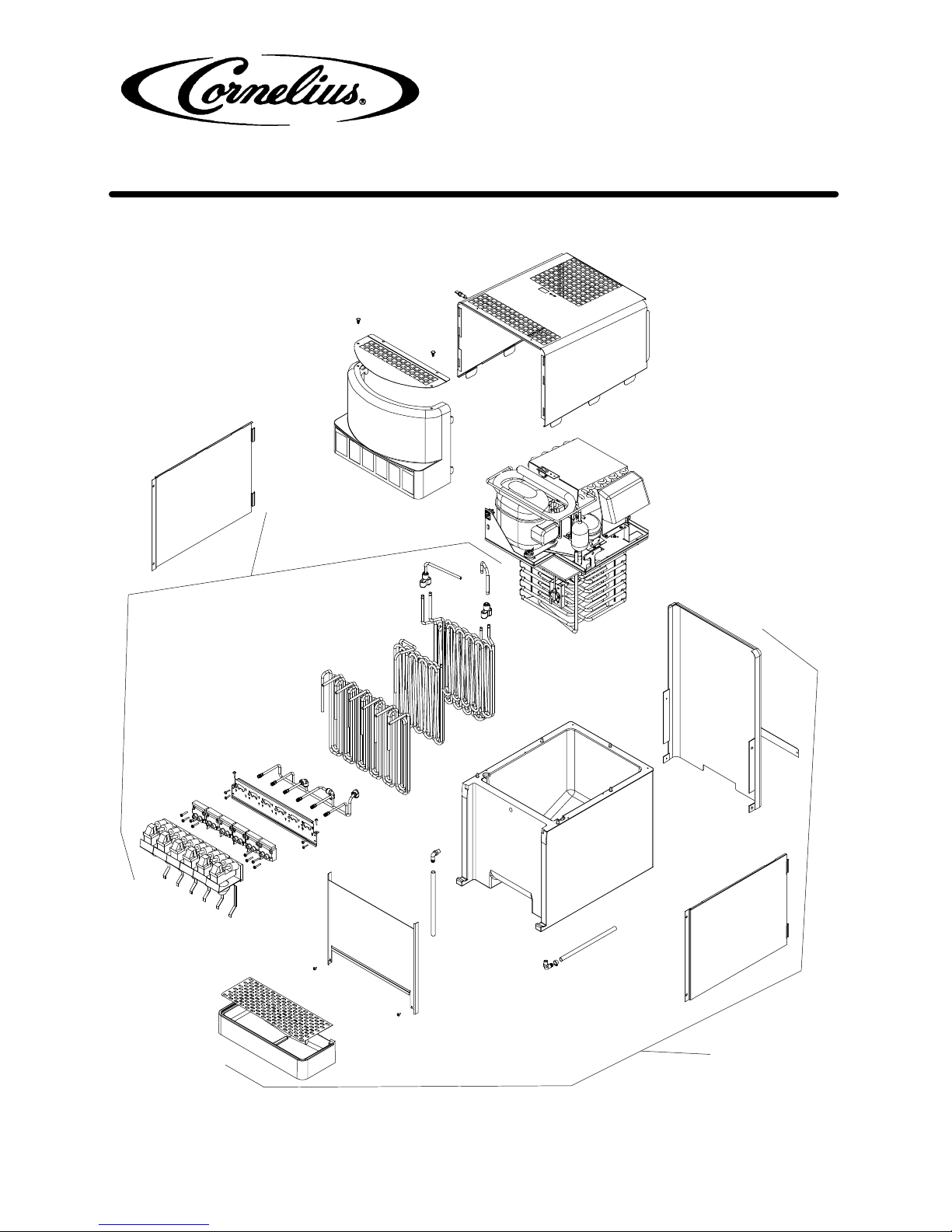

FIGURE 1. IMPULSE GENERAL ASSEMBLY

IMI CORNELIUS INC.

One Cornelius Place

Anoka, MN. 55303–6234

Telephone 1-800-238-3600

Facsimile 1-800-258-0255

www.cornelius.com

ILLUSTRATED PARTS LIST

Manual Part No. 859000158IPL

12–15–03

EIMI Cornelius, Inc. 2003 IMPULSE JUICE POST–MIX

Rev A

IMPULSE DISPENSER

1416

19 20

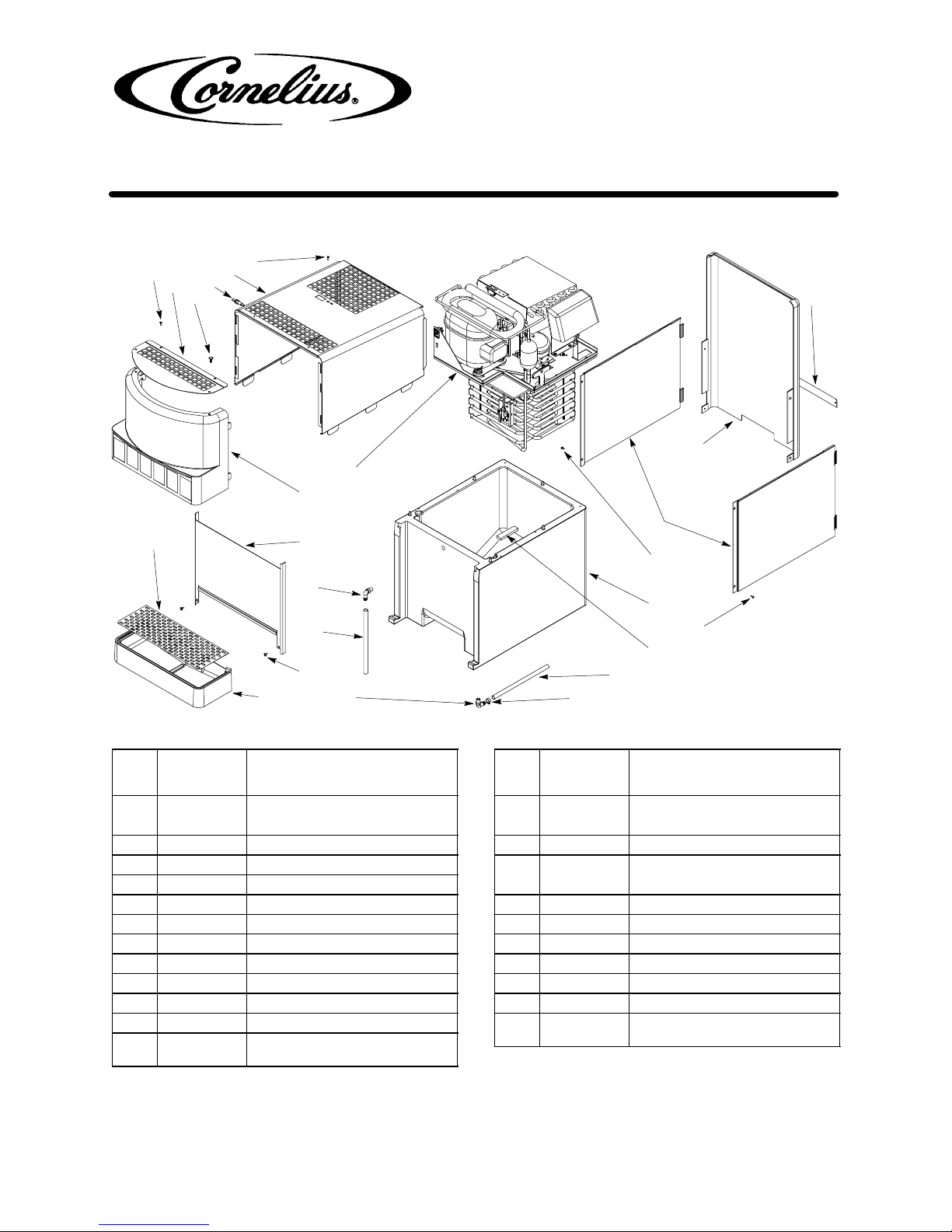

FIGURE 2. HOOD AND PANEL COMPONENTS

Item

No. Part No. Name

1 3320 Switch Key Lock

3321 Key Lock

2 850000261 Panel Side, Right

3 850000262 Panel Side, Left

4 850000323 Wrap Center

5 850000317 Panel Top Fnt

6 850000284 Screw SM 8 FLPH 16

7 850000259 Strip Blockoff

8 850000157 Housing

9 850000165 Cover Access

10 319941000 Screw TR 8-32 HXWS 12

11 188117000 Screw SM 8 TRPH 12

12 113500000 Tube Vinyl .500 I.D. (Sold by the

Foot)

Item

No. Part No. Name

13 850000212 Merchndsr Housing 6-Flavor

850000339 Baffle Air Merch (Not Shown)

14 140135000 Clamp Hose

15 850000233 Panel Back

850000186 Decal Panel Back (Not Shown)

16 1971 Fitg L 1/2-Barb x 1/4-MPT

17 850000285 Clip

18 850000239 Drip Tray

19 850000444 Cup Rest

20 850000226 Panel Splash

21 650094 Tubg Vinyl .500 I.D. By 13-In. Long

22 859000133 Chassis Rfg Asy 120V 60HZ

(See Figure 5)

IMI CORNELIUS INC.

One Cornelius Place

Anoka, MN. 55303–6234

Telephone 1-800-238-3600

Facsimile 1-800-258-0255

www.cornelius.com

ILLUSTRATED PARTS LIST

Manual Part No. 859000158IPL

12–15–03

EIMI Cornelius, Inc. 2003

IMPULSE JUICE POST–MIX

Rev A

IMPULSE DISPENSER

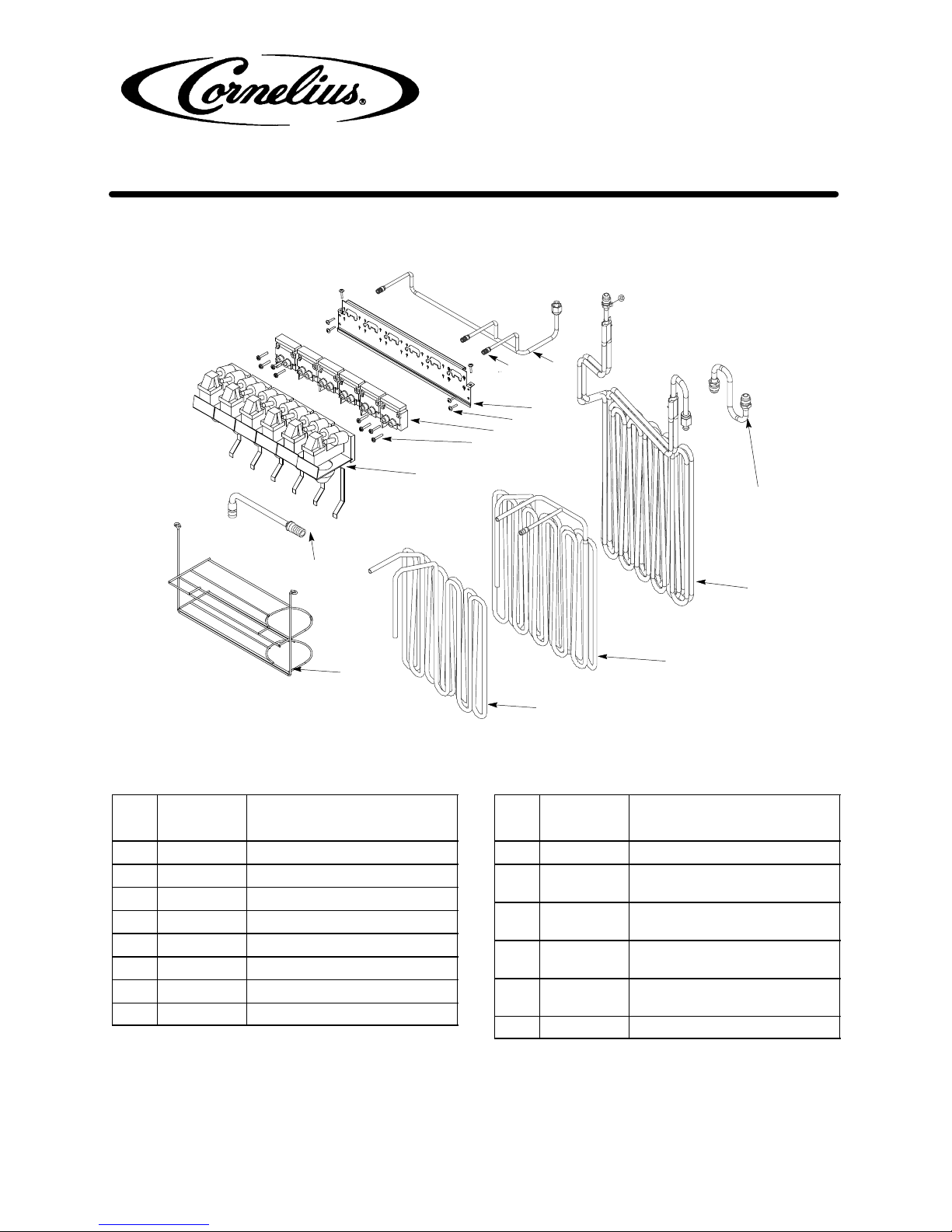

FIGURE 3. COIL AND CARBONATOR COMPONENTS

Item

No. Part No. Name

1 317015000 O-Ring .239 I.D.

2 850000368 Syrup Inlet Fitting

3 620407750 Manifold Wtr 6-Flavor

4 850000514 Water Coil 1 Val

5 850000155 Rack Coil

6 620717787 S Tube

7 620408246 Coil Main Water

8 850000535 Coil Plain Water 2 Val

Item

No. Part No. Name

9 850000134 Panel Val 6-Flavor

10 200468012 Sheet Metal Screw, Phil Truss Hd,

No. 8 by 3/4”long

11 560003072 Sheet Metal Screw, Phil Pan Hd,

No. 10 by 1”long

12 1919 Display Valve Mounting Block Assy

(See Manual No. 315222003)

13 561000124 Dispensing Valve Assy (See Manual

No. 315222003)

14 850000289 Wire Harness Valve

IMI CORNELIUS INC.

One Cornelius Place

Anoka, MN. 55303–6234

Telephone 1-800-238-3600

Facsimile 1-800-258-0255

www.cornelius.com

ILLUSTRATED PARTS LIST

Manual Part No. 859000158IPL

12–15–03

EIMI Cornelius, Inc. 2003 IMPULSE JUICE POST–MIX

Rev A

IMPULSE DISPENSER

Item

No. Part No. Name

1 850000128 Platform Pump and Motor Ass’y

2 850000176 Insulation Platform

3 449999999 Transfrmr 120V 60HZ-24V

560002114 Transfrmr 220V 50HZ-24V

4 850000252 Insulation Platform

5 200468012 Screw SM 8 TRPH 24 1

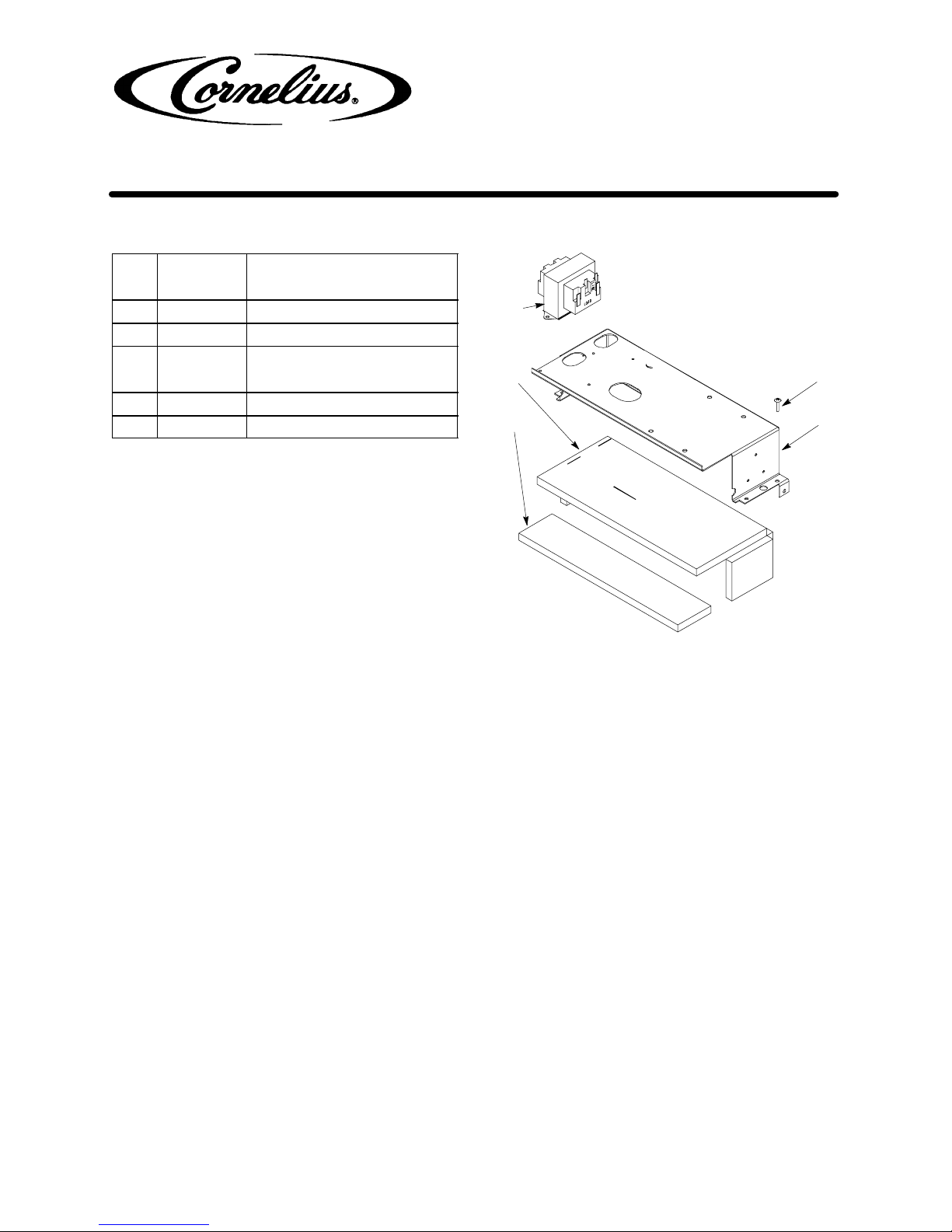

FIGURE 4. PUMP AND MOTOR ASSEMBLY

IMI CORNELIUS INC.

One Cornelius Place

Anoka, MN. 55303–6234

Telephone 1-800-238-3600

Facsimile 1-800-258-0255

www.cornelius.com

ILLUSTRATED PARTS LIST

Manual Part No. 859000158IPL

12–15–03

EIMI Cornelius, Inc. 2003

IMPULSE JUICE POST–MIX

Rev A

IMPULSE DISPENSER

PLATFORM, COMPRESSOR

AND EVAPORATOR

COMPONENTS

(SEE FIGURE 6)

CONDENSER

COMPONENTS

(SEE FIGURE 7)

AGITATOR MOTOR

COMPONENTS

(SEE FIGURE 8)

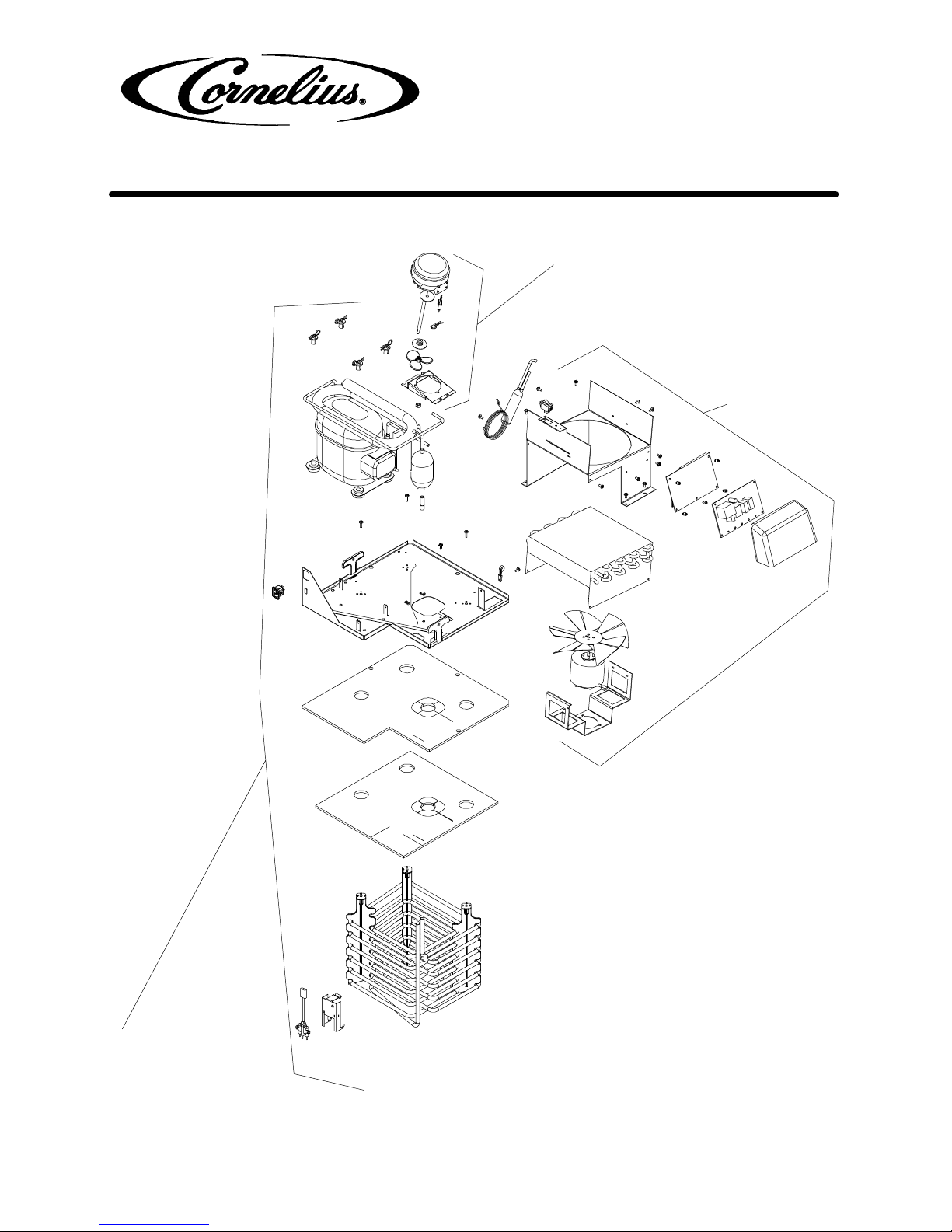

FIGURE 5. CARBONATOR ASSEMBLY

IMI CORNELIUS INC.

One Cornelius Place

Anoka, MN. 55303–6234

Telephone 1-800-238-3600

Facsimile 1-800-258-0255

www.cornelius.com

ILLUSTRATED PARTS LIST

Manual Part No. 859000158IPL

12–15–03

EIMI Cornelius, Inc. 2003 IMPULSE JUICE POST–MIX

Rev A

IMPULSE DISPENSER

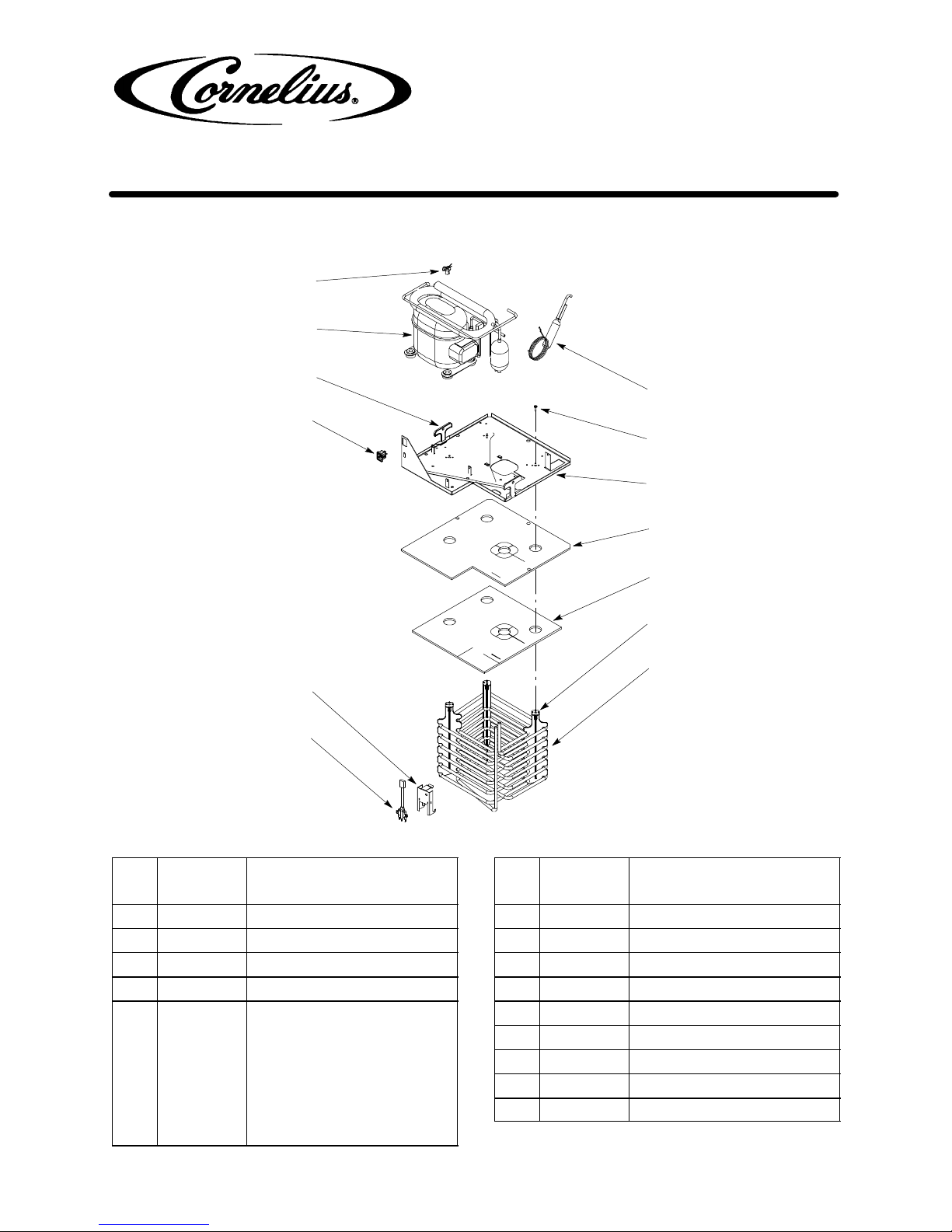

FIGURE 6. PLATFORM, COMPRESSOR AND EVAPORATOR COMPONENTS

Item

No. Part No. Name

1 850000498 Platform Rfg

2 850000347 Insulation Platform

3 850000101 Evap Coil

4 850000473 Spacer Coil Evap

5 569030017 Kit Comp 1/3 H.P. 120V 60HZ

569030018 Kit Comp 1/3 H.P. 220V 50HZ

560004354 Overld Comp 120V 60HZ

560004356 Overld Comp 230V 50HZ

560004355 Relay Start Comp 120V 60HZ

560004357 Relay Start Comp 230V 50HZ

Item

No. Part No. Name

6 317781000 Bushing Split Compressor Mounting

7 398034400 Pin Hitch

8 850000361 Dryer

9 850000163 Holder Probe

10 4345 Receptacle

11 560003860 Probe Ice Bank Control

12 4556 Handle

13 850000347 Insulation Platform

14 0010 Screw TT 10-14 PAPH 20

IMI CORNELIUS INC.

One Cornelius Place

Anoka, MN. 55303–6234

Telephone 1-800-238-3600

Facsimile 1-800-258-0255

www.cornelius.com

ILLUSTRATED PARTS LIST

Manual Part No. 859000158IPL

12–15–03

EIMI Cornelius, Inc. 2003

IMPULSE JUICE POST–MIX

Rev A

IMPULSE DISPENSER

Item

No. Part No. Name

1 319941000 Screw TR 8-32 HXWS 12

2 309645000 Swt Rocker On-Off

3 449999972 Control Ice Bank 120V, 60HZ

449999973 Control Ice Bank 230V 50HZ

4 2782 Motor Fan 9W 120V 60HZ (Morril)

560003439 Motor Fan 9W 120V 60HZ (EBM)

2783 Motor Fan 9W 230V 50HZ (Morril)

560003440 Motor Fan 9W 230V 50HZ (EBM)

5 850000103 Cond Coil

6 850000138 Shroud Cond

7 850000229 Fan 5-Blade

8 850000241 Brkt Mtr Fan (Morril)

850000274 Brkt Mtr Cond (EBM)

9 850000281 Brkt Elec Board Mnt

10 850000280 Cover Elec Box

11 560001586 Support P.C. Board

12 850000283 Screw MA PAPH 8 (EBM)

FIGURE 7. CONDENSER COMPONENTS

Item

No. Part No. Name

1 186116000 Nut Hex 1/4-20

2 186154000 Screw SE 8-36 PAPH 12

3 186216000 Blade Agit

4 186294000 Washer Lk .262 I.D.

5 186599000 Slinger Water

6 850000238 Brkt Mtr Agit

7 3454 Motor Agit 120V 60HZ

560002354 Motor Agit 230V 50HZ

FIGURE 8. AGITATOR MOTOR COMPONENTS

Item

No. Part No. Name

1 850000305 Brkt Light

2 300836000 Ballast Circlin 120V 60HZ

850000419 Ballast Circlin 230V 60HZ

850000357 Ballast Circlin 230V 50HZ

3 319941000 Screw TR 8-32 HXWS 12

4 3738 Swt Rotary On/Off

5 850000356 Tie Cable

6 2107 Bulb

FIGURE 9. OPTIONAL LIGHT KIT

IMI CORNELIUS INC.

One Cornelius Place

Anoka, MN. 55303–6234

Telephone 1-800-238-3600

Facsimile 1-800-258-0255

www.cornelius.com

ILLUSTRATED PARTS LIST

Manual Part No. 859000158IPL

12–15–03

EIMI Cornelius, Inc. 2003 IMPULSE JUICE POST–MIX

Rev A
