CopyPro CD-R 3500 Manual de usuario
CopyPro CD-R 3500
TM
CD-R Duplicating System
User’s Manual
CopyPro CD-R 3500
TM
User’s Manual
CopyPro, Inc
4020 Pike Lane Concord, CA 94520
tel (925) 689-1200
fax (925) 689-1263
COPYRIGHT 1998 by CopyPro Inc.
All Rights Reserved.
This manual is copyrighted and all rights reserved. This document may not, in whole or in part,
be copied, photocopied, reproduced, translated, or reduced to any electronic medium or
machine readable form without the prior written consent of CopyPro, Inc.
CopyPro, Inc.
4020 Pike Lane
Concord, CA 94520
tel: (925) 689-1200 fax: (925) 689-1263
cd35man.doc
Printed in the United States of America
CopyPro CD-R 3500 Table of Contents
CopyPro CD-R 3500 1
Table Of Contents
Unpacking 2
Parts List: 2
The CD Duplicator 5
The LCD Display 6
Setting up the Machine 7
Loading 8
CD Follower 11
Starting the System 12
Duplicating CD’s 12
Operating MODES 14
Duplicating MODE 14
Firmware Download Mode 15
Verify Enable Mode 17
Simulate Write Mode 17
Speed Setting 17
Recording method 17
Error Messages 18
Trouble Shooting 19
CopyPro CD-R 3500 Unpacking
CopyPro CD-R 3500 2
Unpacking
Parts List:
The CD-R 3500 includes:
1. CD-R 3500 CD Duplicator
2. Reject Spindle
3. Output Spindle
4. Input Spindle
5. Drawer
6. Power Cord
7. Shipping screw (must be removed before use!)
-- see next page for details
8. CD Follower
CopyPro CD-R 3500 Unpacking
CopyPro CD-R 3500 3

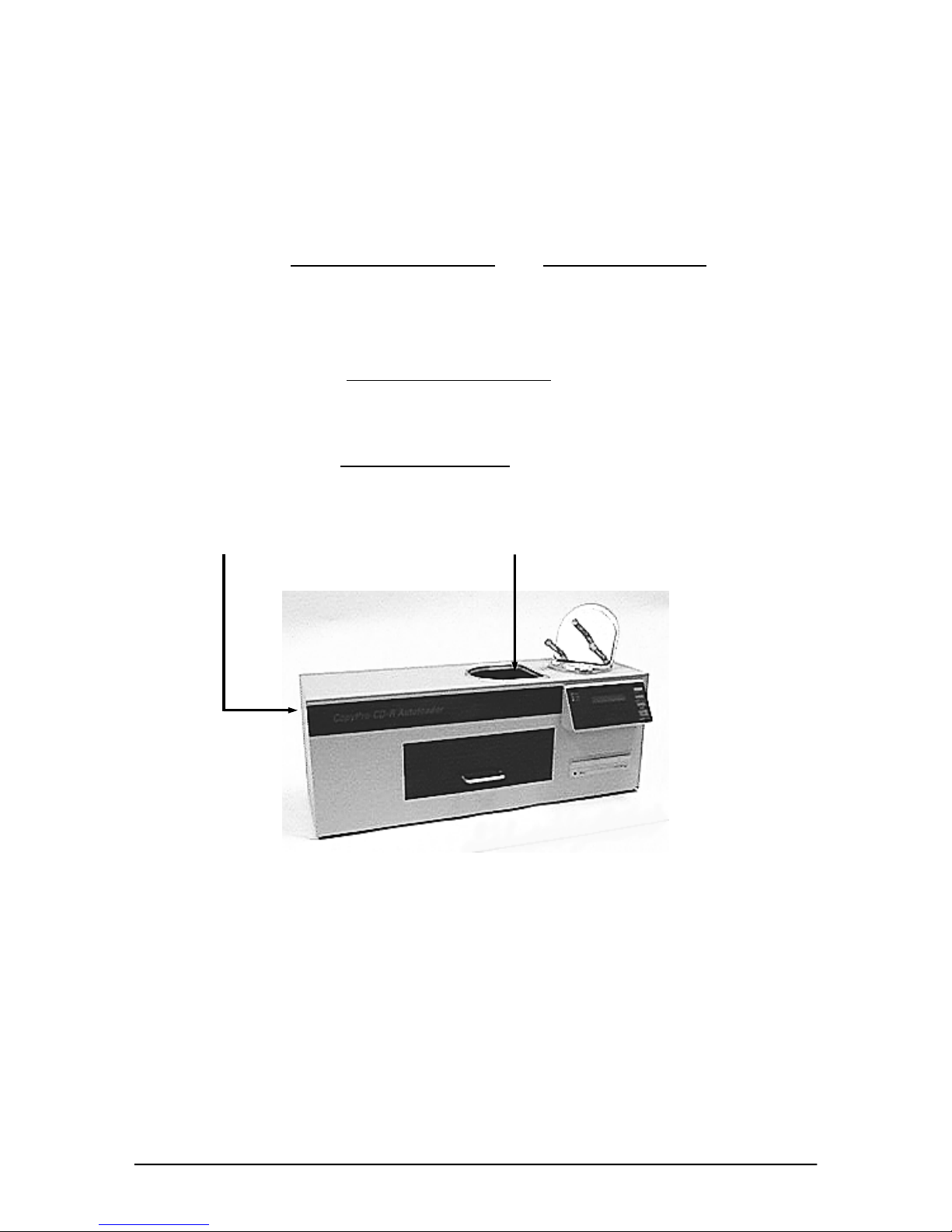

ATTENTION! ATTENTION!
Please remove SHIPPING SCREW and FOAM BLOCK before
use.
1. Please remove
SHIPPING SCREW
(Located at end of unit -- marked with RED TAG)
2. Please remove FOAM BLOCK
(Inside the input spindle port)
Shipping Screw Foam Block
CopyPro CD-R 3500 Unpacking
CopyPro CD-R 3500 4
Output and Reject
spindles are placed
on the side of the
packing foam, these
need to be removed
first.
1. Remove the Reject and Output Spindles located on the side of the packing foam.
Card to pick up the Input Spindle
Black handle
2. Using the card, lift the Input Spindle on top of the machine. Unscrew the bolt to
remove the black handle. Set the handle aside for later use.
Disc drawer handle and screws Reject SpindleOutput Spindle
Disc drawer with handle attached
3. Attach the Disc drawer handle using the two screws provided.
4. Insert the Reject Spindle (short spindle) on the right side of the disc drawer and the
Output Spindle on the left side as shown in the diagram.
CopyPro CD-R 3500 The CD Duplicator
CopyPro CD-R 3500 5
The CD Duplicator
Input Spindle Stand
Input Spindle Port
Key Pad & LCD
External drive option
Disc drawer
Output Spindle
(good discs) Reject Spindle
(rejected discs)
Disc drawer
CopyPro CD-R 3500 LCD Display
CopyPro CD-R 3500 6
The LCD Display
CopyPro CD-R 3500 is a standalone CD-R duplication system. The product
consists of a keypad with 16 keys, a two-line LCD display, one CD-writer drive
and autoloading mechanism. The system is controlled by using the keypad in the
front panel, which displays important status information. The unit’s front panel is
illustrated below:
STOP
YES
NO
*
START
LCD DISPLAY
1 2 3 4 5
6 7 8 9 0
Menu
Enter
CopyPro
Legend
START Start Duplication
STOP Abort Operation
Menu Change Operating
Mode
Enter Selection
YES / NO Confirmation
↑/ ↓Navigation
CopyPro CD-R 3500 Setting Up
CopyPro CD-R 3500 7
Setting up the Machine
Place the CD-R 3500 on a clean and stable surface.
Vibration of the machine during operation may result in disc errors.
CD-R 3500 with empty Input Spindle placed in Spindle Stand.
