Cooper Lighting CHG Manual de usuario

Catalog #

Project

Comments

Prepared by

Type

Date

SPECIFICATION FEATURES

04/04/2007 12:28:12 PM

Consult your representative for additional options and finishes.

Specifications and Dimensions subject to change without notice.

ADC040910

DOOR FRAME

MOUNTING DIMENSIONS

DESCRIPTION

The CHG Series is designed to deliver highly efficient H.I.D. lighting to clean

areas. These units are ideal for ceiling heights up to 18'. Lower wattages are

also available for standard 8' to 9' ceilings. Units are enclosed and gasketed

to protect against the chance of foreign matter entering high tech environ-

ments through the light fixture. The housing and door are designed to work

with standard 1" and 1 1/2" T-grid ceilings. Door frames feature a gasket

design which eliminates ledge or crevice exposure preventing the harboring

or contaminants. These luminaires are U.L. listed and C.S.A. certified for wet

locations.

Application

The CHG Series is suitable for use

in I.E.S. Class 100, 1,000, 10,000

and 100,000 clean room environ-

ments. Fixtures are manufactured

in accordance with U.S.D.A.,

F.D.A., N.S.F. and Federal Standard

209E. 200 PSI Hose Down Rating is

standard. Applications include

clean rooms, technical and bio-

medical labs, food processing/

testing centers and pharmaceutical

labs. The CHG with the QL lamp

option becomes a sealed luminaire

for the most restrictive

environments.

A ... Lens

One-piece, clear prismatic,

tempered Corning lens with

internal prism pattern. Choice of

clear polycarbonate or clear

tempered glass on environmental

side.

B ... Fasteners

Flush mounted, stainless steel

machine screws secure through

captive cage nuts in housing and

are evenly spaced to compress

gasketing on all sides.

C ... Housing

Die-formed, 18 ga. CRS with tightly

butted and spot welded, sealed

end caps. Contains no holes that

would allow air passage. Standard

white high reflectance polyester

powder coat finish. Gloss: 85%;

Reflectance: 93%; Hardness: 2H;

Salt Spray: 500 Hours.

D ... Lamps

(Lamps By Others)

E ... Lens Retention

Unique, Particulock(TM) lens

retention system utilizes

continuous, 18 ga. media

clampdowns to sandwich

gasketing and integrate lens and

door frame for even environmental

seal.

F ... Hinge

Two braided, stainless steel cables

on one side of door provide

hinging.

G ... Door

One piece, 18 ga. door with baked

white polyester powder coat, fully

gasketed, outside door with

die-formed and beveled edges

eliminates seams which could

entrap microscopic contaminants.

Optional doors available.

H ... Ballast

Copper wound, HPF ballast is

standard.

I ... Gasket

White, closed cell, Flexiseal(TM)

gasketing surrounds perimeter of

lens to seal lens to door frame and

around perimeter of door to seal

door to housing. Another layer

seals fixture to ceiling system after

installation.

J ... Access

A gasketed access plate on top of

the housing with two flattened,

7/8" diameter knockouts allows

connection of vapor tight conduit

fitting. Optional, above ceiling, top

access door for luminaire

maintenance is available and ideal

for food processing and cleanroom

applications.

Labels

U.L. listed, C.S.A. certified,

standard wet label. Rated for 200

PSI, high-pressure hose-down.

CHG

250W - 400W

Metal Halide

250W - 400W

High Pressure Sodium

165W

QL Induction

H.I.D. GRID

One-Piece Door

23 11/16"

[602mm]

24"

[610mm]

1" [25mm]

Thru

1 1/2" [38mm]

1 1/2"

[38mm]

9 5/16"

[237mm]

23 3/4"

[603mm]

23 11/16"

[602mm]

1 1/2"

[38mm] 7/8" [22mm] KO (2)

Gasketed Access Plate

E N E R G Y D A T A

250W Metal Halide

Input Watts: 295

400W Metal Halide

Input Watts: 458

250W HPS

Input Watts: 295

400W HPS

Input Watts: 457

FAIL-SAFE®

Fail-Safe • Customer First Center • 1121 Highway 74 South • Peachtree City, GA 30269 • TEL 770.486.4800 • FAX 770.486.4801 04/04/2007 12:28:12 PM

Specifications and Dimensions subject to change without notice.

ADC040910

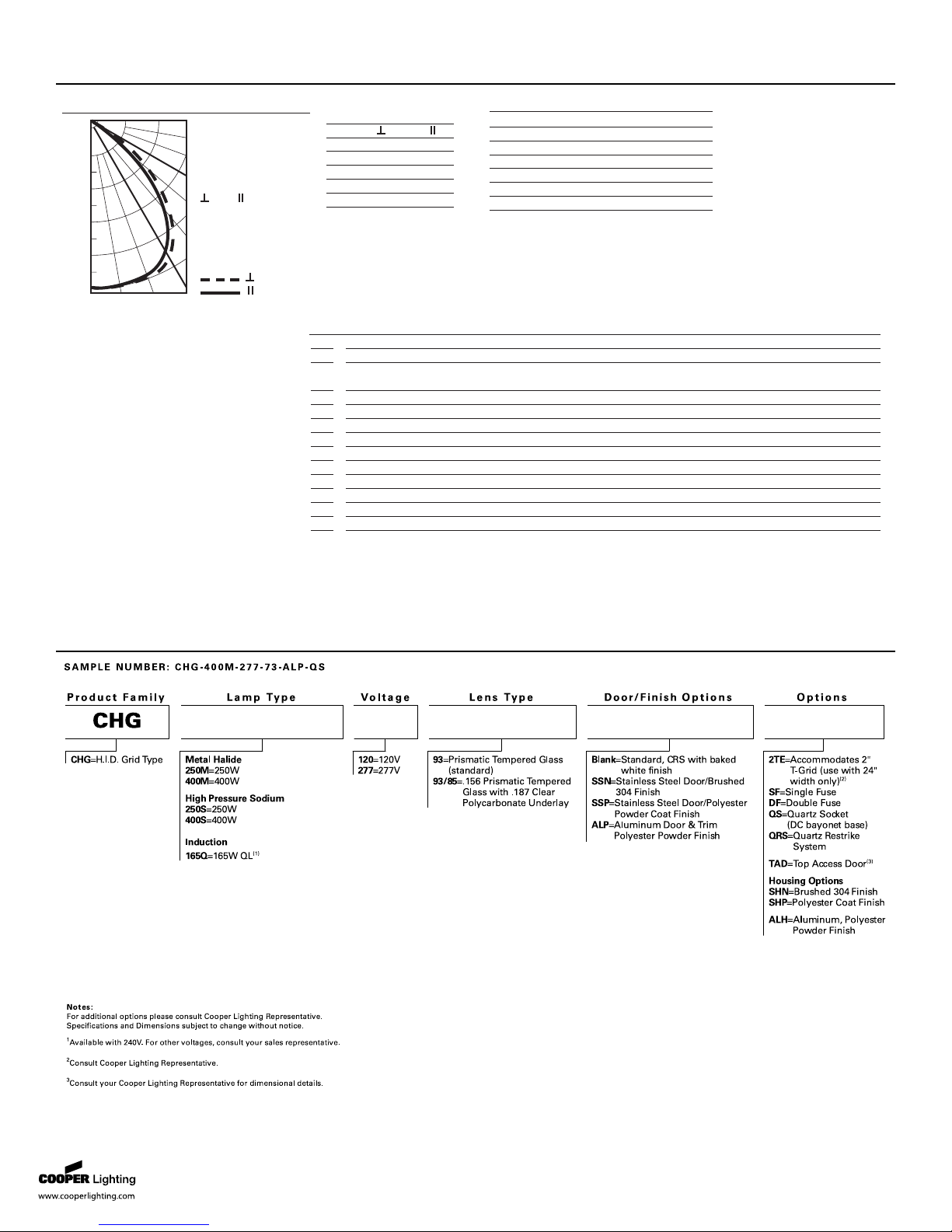

PHOTOMETRICS

ORDERING INFORMATION

CHG

3000

6000

9000

12000

15000

Candlepower Distribution Zonal Lumen Summary

Zone Lumens %Lamp %Luminaire

0-30 8404 23.3 38.0

0-40 13487 37.5 61.0

0-60 20037 55.7 90.6

0-90 22115 61.4 100.0

90-180 0 0.0 0.0

0-180 22115 61.4 100.0

80% 70% 50% 30% 10% 0%

70 50 30 10 50 30 10 50 10 50 10 50 10 0

73 73 73 73 71 71 71 68 68 65 65 63 63 61

68 66 64 62 65 63 61 62 59 60 58 58 56 55

64 60 57 54 59 56 53 57 52 55 51 53 50 49

59 54 50 47 53 50 47 52 46 50 45 49 44 43

55 49 45 41 48 44 41 47 40 46 40 44 39 38

51 44 40 36 44 39 36 42 36 41 35 40 35 34

47 40 36 32 40 35 32 39 32 38 32 37 31 30

44 37 32 29 36 32 28 35 28 34 28 34 28 27

41 33 28 25 33 28 25 32 25 31 25 30 25 24

38 30 25 22 29 25 22 29 22 28 22 28 22 21

35 27 23 20 27 23 20 26 19 26 19 25 19 18

rc=Ceiling reflectance, rw=W all reflectance, RCR=Room cavity ratio

CU Data Based on 20% Effective Floor Cavity Reflectance.

Test No. 5911.2

CHG-400MH

Lamp=400W

Lumens=22115

Spacing Criteria

=1.3 =1.3

Efficiency=61.4%

RCR

Coefficient of Utilization

Average

Luminance

Deg.

45 8230 8120

55 4758 4822

65 3241 3011

75 2539 2628

85 2021 2154
