Cooper Lighting METALUX G SERIES Manual de usuario

RECESSED STATIC

400 COOPER LIGHTING

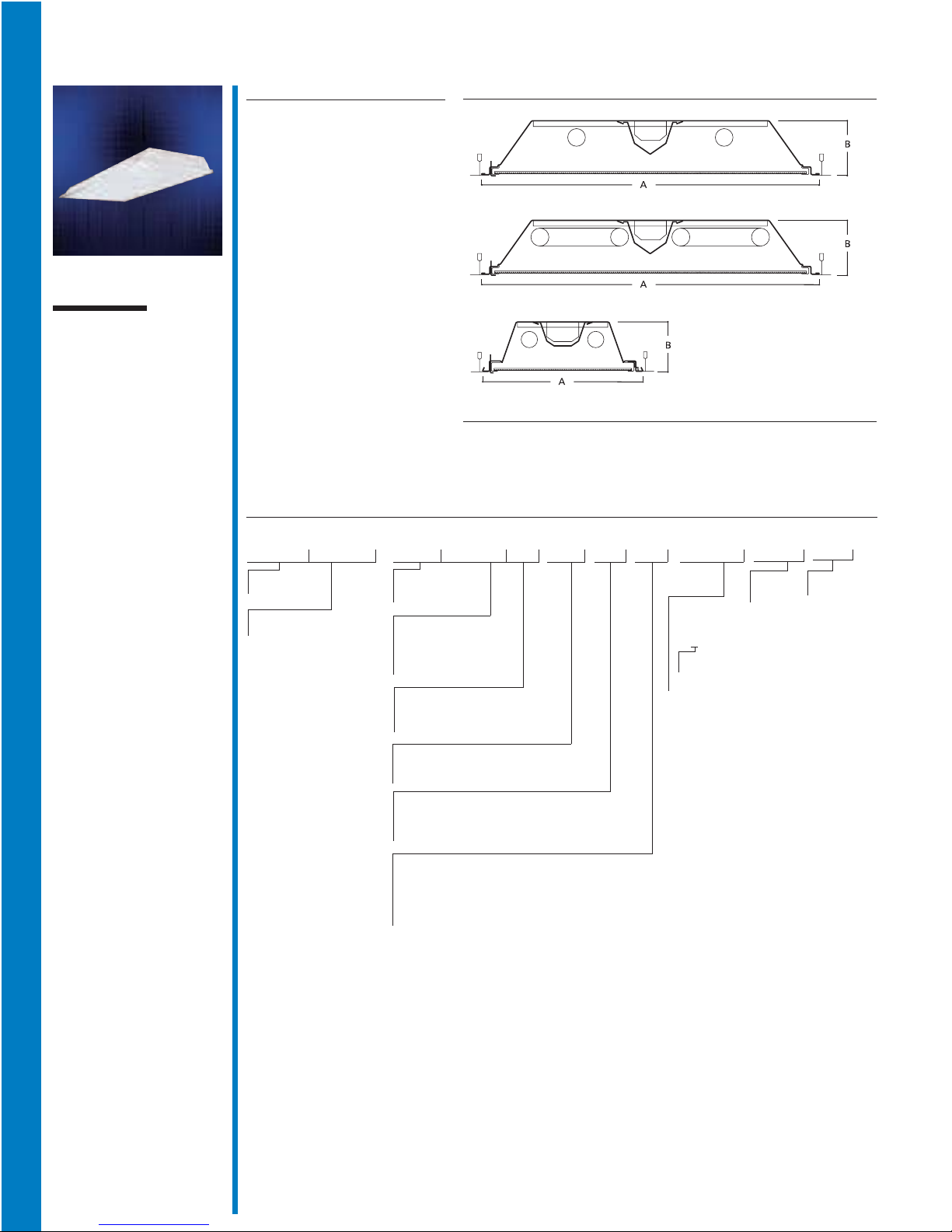

DIMENSIONS

• Equipped with energy

saving ballasts/complies

with federal energy

efﬁciency standards

• Reinforced ﬂat white steel

door, mitered corners

• Spring loaded latch

• Full length mechanical light

trap and positive end light

seal

• T-hinges

• One piece die embossed

housing

• Unibody housing/end

plates with mechanically

weld secured

• Four auxiliary ﬁxture end

suspension points

provided

• End plate grid-lock feature

• For drywall applications,

ﬁeld install ﬂange kit

available. See Technical

Section for detail.

• UL/CUL Listed. Suitable for

damp locations.

DESCRIPTION

The G Series features a nominal

3-3/4" deep low proﬁle ﬁxture

housing with a premium ﬁnish for

optimum performance. The series

also features recessed aesthetics

and the latest in energy efﬁcient

technology. Luminaires are

compatible with today’s popular

ceiling systems and are available

with a number of options and

accessories for application

versatility. The G Series features

efﬁciency, quality, performance

and economy in a low proﬁle

luminaire. The G Series is an

excellent choice for commercial

ofﬁce spaces, schools, hospitals or

retail merchandising areas.

GSERIES

1' x 4', 2' x 2', 2' x 4'

Troffer

2, 3 or 4 Lamp

LOW PROFILE

COMMERCIAL GRADE

RECESSED T12 STATIC

TROFFER

NOMINAL SIZE A B

1' x 4' 11-3/4" (298mm) 3-3/4" (95mm)

2' x 2' 23-3/4" (603mm) 3-3/4" (95mm)

2' x 4' 23-3/4" (603mm) 3-3/4" (95mm)

ORDERING INFORMATION

SAMPLE NUMBER: 2G-240A-120V-LE3-U

Number of Lamps(2)

2, 3, or 4Lamps

(Not included)

Wattage (Length)

40=40W T12 (48")

20=20W T12 (24")

U3=40W T12 (24")

U6=40W T12 (24")

Voltage (3)

120V=120 Volt

277V=277 Volt

347V=347 Volt

Shielding

A=#12 PatternAcrylic

(See Lens and Louver Tables for

additional shielding options)

2=2' Width

Blank=1' Width

Series

G=Grid/Lay-in – Standard(1)

Starting Type

LTS=Low Trigger Start (20 Watt only) (2)

HTS=High Trigger Start (20 Watt only) (2)

Options

GL=Single Element Fuse

GM=Double Element Fuse

Lamps - for lamps installed, see lamp options table

Flex - for ﬂex installed, see ﬂex ordering table

Emergency - for EM installed, see EM options table

Ballast Type (3)

Blank=Standard Magnetic Ballast (Biax & 20W)

LE3=T12 Magnetic Energy Saving

EB2 =T12 Electronic Rapid Start.

(For complete details on generic or to specify

manufacturer’s ballast see pg. 469)

No. of Ballast

1 or 2

Options

(See Options

Section)

Packaging

U=Unit Pack

NOTES: (1)An EQ Grid Clip is recommended for all 9/16" ceiling systems. (2)Standard off-center ballast compartment on 3-lamp ﬁxtures. (3)Products also available in non-

US voltages and frequencies for international markets.

For complete product data, reference the Fluorescent Speciﬁcation binder. Speciﬁcations & dimensions subject to change without notice. Consult your Cooper Lighting

Representative for availability and ordering information.

COOPER LIGHTING - METALUX®

2' x 4'

2' x 2'

1' x 4'
