Connects2 CAN-Connect CANHBBM1 Manual de usuario
1
WWW.C2CANCONNECT.COM
CANHBBM1
Hi-Beam CAN-Bus Interface
The information provided in this document is subject to change without notice due to manufacturer changes and/or improvements to the product/s. This
instruction manual is based on documented data and research. The manufacturer of this product cannot be held responsible for any changes made to the
vehicle by the manufacturer or damages that may occur through the installation of this product in accordance with the steps outlined herein.
DISCLAIMER
CANHBBM1_v1
Connects2.com
Technical Support?
for technical support please use our
dedicated system support.connects2.com
CAN-Connect is the leading CAN-Bus integration solutions for the automotive industry.
CAN-Connect ist die führende CAN-Bus-Integrationslösung für die Automobilindustrie.
CAN-Connect son las soluciones de integración CAN-Bus líderes en la industria del automóvil.
CAN-Connect est le leader des solutions d’intégration Can-bus de l’industrie automobile.
CAN-Connect è la principale soluzione di integrazione CAN-BUS nel settore automobilistico.
2WWW.C2CANCONNECT.COM
1. Begin by removing the vehicles speedometer by using a panel removal tool,
once removed disconnect the main power connector.
2. Connect the 12-pin molex connector to the Hi-Beam interface.
3. Attach either (or both) the Hi-Beam 1 and Hi-Beam 2 output to the additional
accessory dependent on the desired function (see ‘Functionality’).
4. Connect the female connector to the back of the speedometer and
connect the male connector to the main power connection.
5. Turn the ignition on and test the functionality of the Hi-Beam interface with
the additional accessory.
6. When successfully tested, reassemble the dashboard, this will complete the
installation process.
PRIOR TO INSTALLATION
Read the manual prior to installation. Technical knowledge is necessary for installation.
Please ensure you use the correct tools to avoid damage to the vehicle or product.
Connects2 can not be held responsible for the installation of this product.
INSTALLATION
The Hi-Beam Interface is a multi-output CAN-Bus interface that provides a
controlled power source for external components when used in conjunction
with the vehicle’s lighting system. The Hi-Beam interface can be used to add
additional light sources, and any other accessory, that you wish to control via
the vehicles high beam controls. The data is decoded from the vehicles CAN-
Bus and used to switch power to the connected accessory.
The Hi-Beam provides 3 output options; a constant output, a variable ouput,
and a ‘follow me home’ mode triggered by successive high beam ashes. The
Plug and Play nature of this product provides easy installation, making it an
ideal solution for commercial vehicles requiring additional lighting for working at
night.
PRODUCT INFORMATION
BMW 3-Series 2011 - 2019 BMW 4-Series 2011 - 2019
BMW X5 2012 - 2017 Mini Clubman 2017 - UP
PRODUCT APPLICATION
3
WWW.C2CANCONNECT.COM

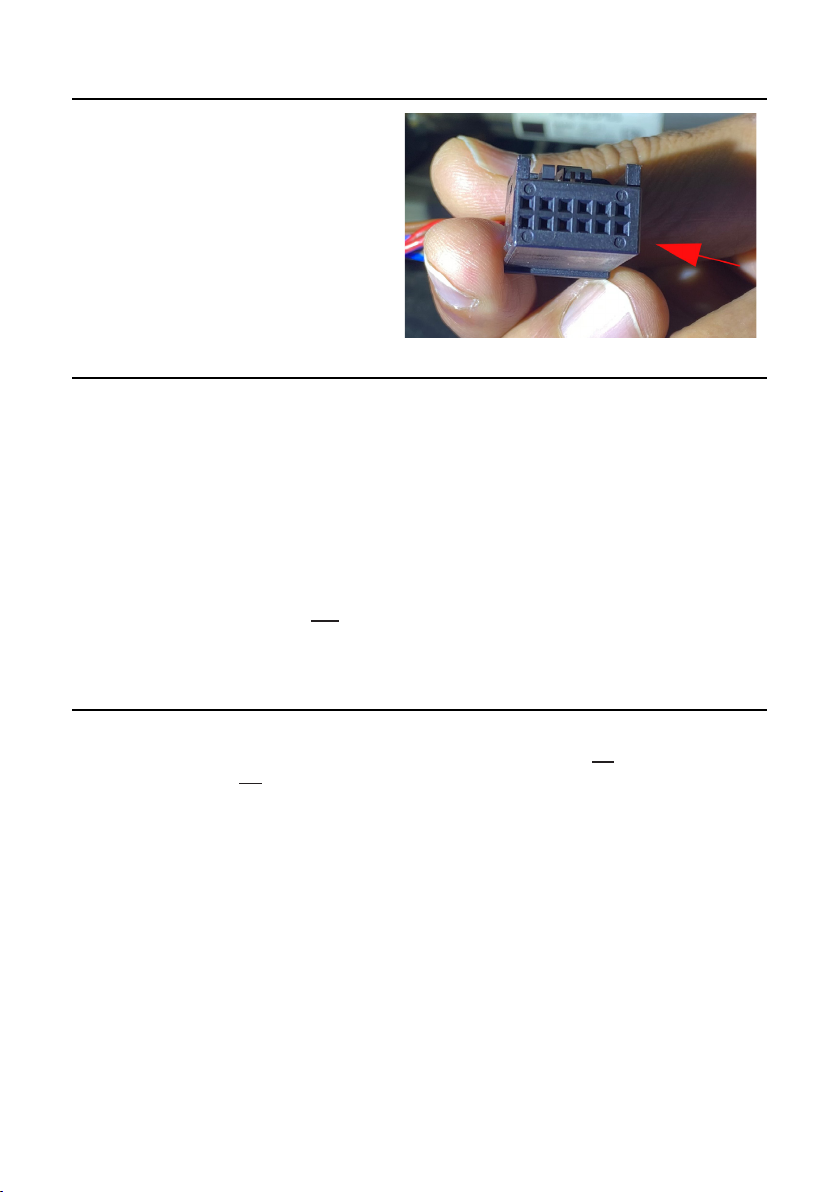

Connection of Hi-Beam interface
is to be made on the harness that
plugs into the rear of the vehicles
speedometer.
CONNECTOR PROFILE
The duration of the ‘follow me home’ function is determined by the number of
‘high beam’ ashes within 30 seconds of turning the engine off but still having
the ignition remain on. After 30 seconds, the interface no longer samples the
high beam status to adjust the ‘follow me home’ timer.
Flashes must be no more than 1.5 seconds apart; again, any longer and the
count is disabled.
1 ash = 30 seconds
2 ashes = 60 seconds
3 ashes = 120 seconds
4 ashes(max) = 300 seconds
With the required amount of ashes initiated, turn the ignition off and remove
key. The additional accessory will now remain active for the above timeframe.
If the additional accessory fails to function after vehicle is turned off, turn the
engine back on and repeat the process ensuring you stay within the required
time limits.
PROGRAMMING FOR ‘FOLLOW ME HOME’
Hi-Beam 1 Output:
• With ignition on & engine running: this output follows the state of the high
beam CAN signal. So if the high beam is on, this output will be on.
Hi-Beam 2 Output:
• With ignition on & engine running, this output toggles each time the high
beam is ashed. So after the rst ash, this output will turn on and stay on, after
the second ash, the output will turn off.
Hi-Beam 1&2 Output:
• With ignition on & engine not running, the output becomes 'follow me home'
with various durations. The time countdown is initiated once ignition is turned off
(see “Programming for ‘Follow Me Home”).
FUNCTIONALITY
4WWW.C2CANCONNECT.COM
HiBeam Interface Connector [12 Pin]
Connect to Interface Box
Vehicle Specic Connector
Connect to connector from vehicle
Vehicle Specic Connector
Connect to rear of speedometer
HiBeam 1 Output
Blue/Grey
HiBeam 2 Output
Green/Grey
WIRING DIAGRAM
Connects2 Ltd. want to provide a fast and suitable resolution to any problems
encountered during installation of this product.
To get in touch with our dedicated technical support team, please ll in a ticket at
support.connects2.com and provide as much information as possible.
TECHNICAL SUPPORT
