INFODAPTER INSTRUCTION MANUAL

CAKI01

_v1

www

.aerpro.com.au

for select Kia vehicles

ABOUT

The Aerpro Infodapter for Kia vehicles allows climate control information to be

displayed on any aftermarket head unit with rear camera input. The Infodapter also

allowsthe use of the steering wheel controlswith almost every steering wheel control

compatible head unit on the market.

DIPSWITCH SETTINGS

See Fig 1.

Up = Off, Down = On

1: On = Pioneer Head Units. Off = All Other Head Units

2: Setting for reverse camera. On = PAL, O = NTSC. The default setting is O (NTSC).

3: Resetsthe display settingsback to default. If the display settingshave been

manipulated in a way that it isno longer possible to make adjustments, change the

DIP switch #3 from Off to On and back. Thiswill reset the screen settingsto the factory

defaults. During thisprocedure the screen background will change to red. While the

background isred, no settingscan be made.

4: Not applicable

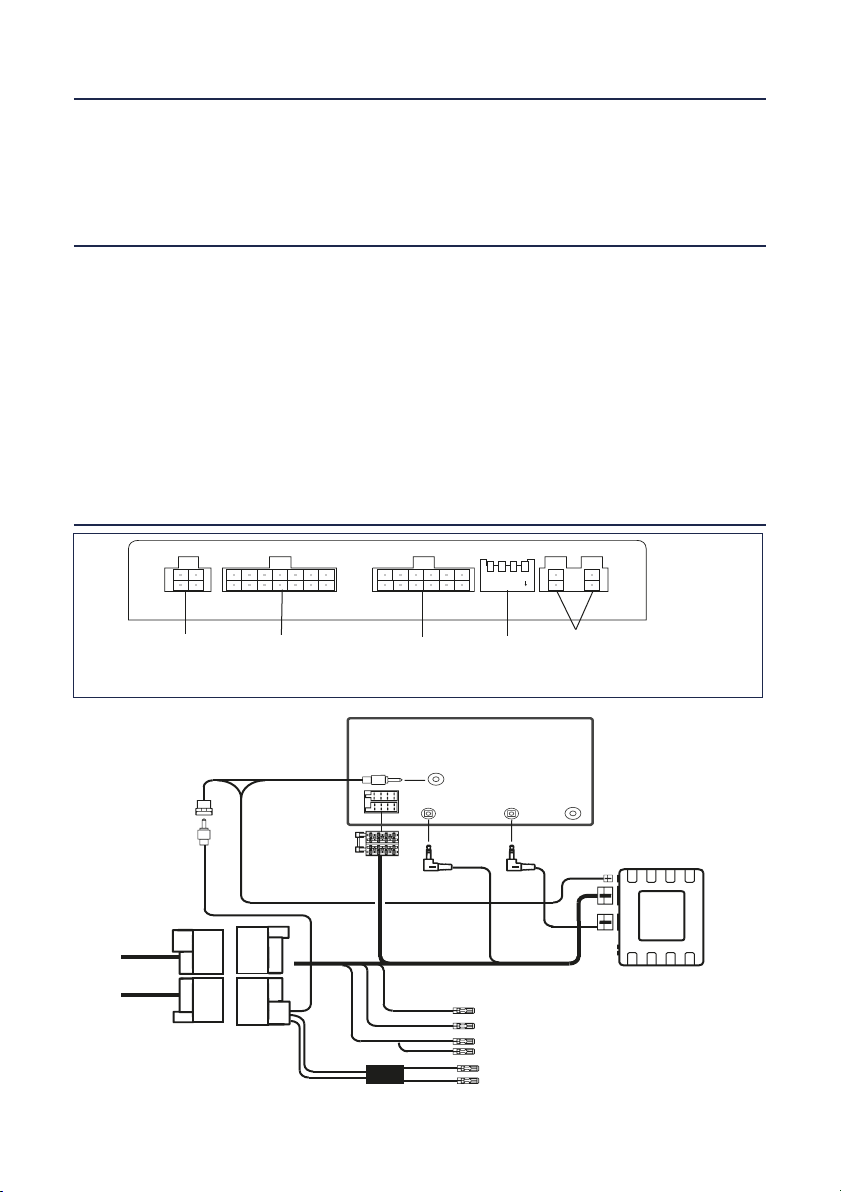

INTERFACE CONNECTIONS

Fig 1.

1 2 3 4

DIP ON

Reverse Camera output

to head unit and reverse

camera input from

optional camera

Power Harness Steering Wheel

Remote control

connector to

head unit

Dip Switches Not Used

Fig 2.

Flying Wires:

Pink - Speed Pulse

Lt. Green - Park Brake

Purple/White - Reverse Gear

Aftermarket head unit

Infodapter

Aux Input

ISO

Connector

Reverse Camera Input

Reverse camera

(optional)

To carconnector

Steering Wheel

Control Input

www

.aerpro.com.au

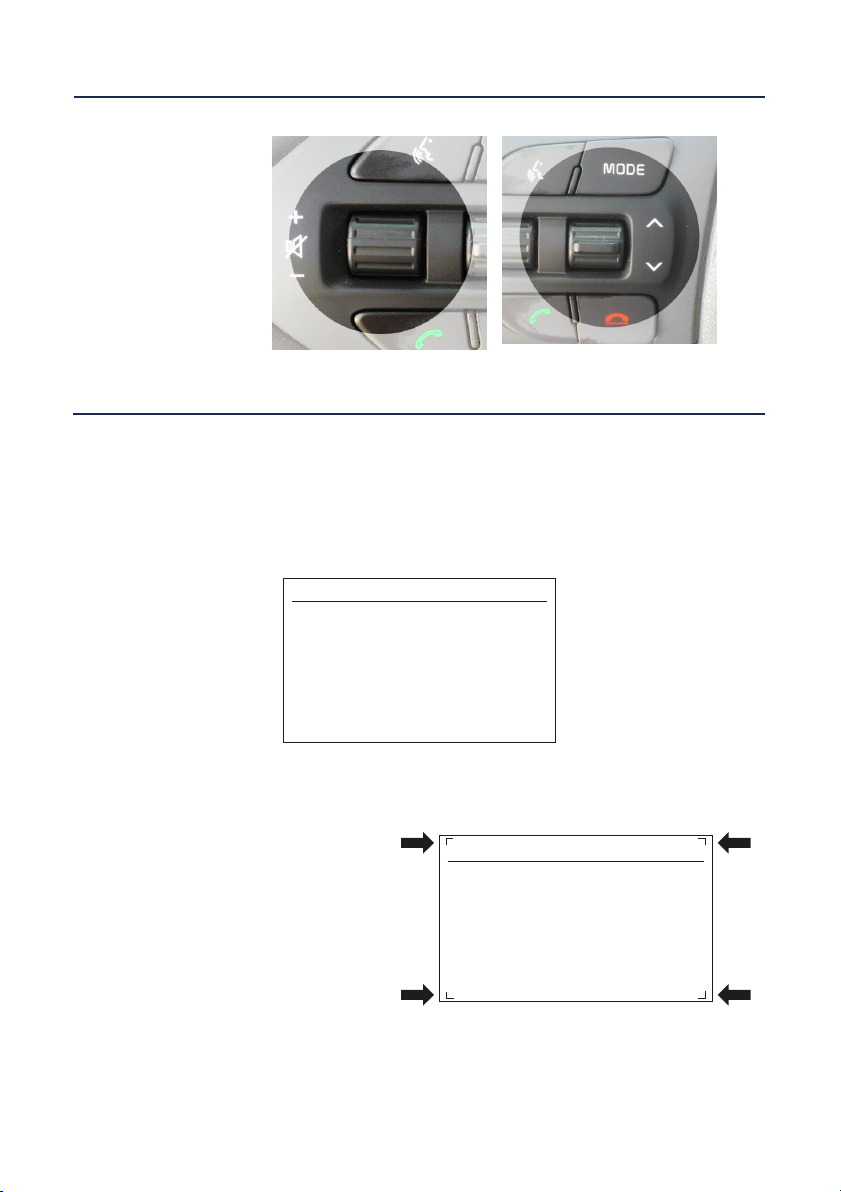

A Mute Button

(Push)

B Track Up/Down

Fig 3.

MENU CONTROL

CONFIGURATION MENU

To access the menu, push and hold the Speech button for approximately 8 seconds

Note: For vehicleswith no Speech button, the Mute button can be used instead

Thiswill enable the configuration menu. To navigate through the menu optionsuse the

Track Up/ Track Down buttons.

To select a menu option, push the Speech button once.

Conguration Menu

Infodapter Settings

Language

Version

< Back

Screen Size/Position

Horizontal Size

Horizontal Position

Vertical Size

Vertical Position

< Back

•Infodapter Settings

o Screen Size/Position -

Make sure all 4 corner markers

are touching the cornersof the

aftermarket head unit display.

www

.aerpro.com.au

CONFIGURATION MENU

Legal Information

Please consult the relevant road trac lawsgoverning the country in which thisproduct isbeing operated.

No liability isaccepted for material damage, lossor personal injury, directly or indirectly, from installation and

operation of thisproduct. Thisproduct should only be operated when safe to do so.

Preferences

Driver Position Right

Park Brake Source Speed

Restore factory settings

< Back

o Preferences -

Driver Position - Select Left or Right depending

upon vehicle configuration.

Park Assist Version - Select according to the

colour configuration of the park assist fitted to

the vehicle.

Park Brake Source - Set to Speed, Brake or

AlwaysOn.

Restore factory settings - Reverts all

Infodapter settingsto factory defaults.

(This does not restore vehicle settings)

Infodapter Settings

Screen Size/Position

Picture Settings

Preferences

<Back

o Picture Settings -

Adjust Brightness, contrast and

colour saturation.

If you need assistance setting up or using your Aerpro product now or in the future, call Aerpro Support Australia

TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am – 5pm AEST. If you would like to download a digital copy of this

manual, or other Aerpro manuals/software, please visit the http://aerpro.com website.

Technical Support
