Part Lists
4
plate, two holeS
6
M8 screw
2
3
· Bracket edges parallel to each other.
(fully collapsed position)
Pre-assembly of Downtilt Brackets by Kit Vendor
7
ITEM NO.
DESCRIPTION
BSAMNT-4
QUANTITY
BSAMNT-M4
QUANTITY
1
PIPECLAMP BRACKET, NO FLANGE
4 2
2
BRACKET,NOTCHED
1 1
3
BRACKET
1 1
4
PLATE, TWO HOLES
2 2
5
BRACKET, PIPE CLAMP INTERFACE
2 1
6
SCR,HH,HEX,M8X25,SST,PASS
2 2
7
WSHR,LK,SPLT,M8,STL,GALV
2 2
8
SCR,HH,HEX,M10X25,SST,PASS
2 2
9
NUT,HEX,M10,STL,GALV
12 8
10
WSHR,LK,SPLT,M10,STL,GALV
8 6
11
SCR,HCS,HEX,M10X40,STL,GALV
6 4
12
NUT,HEX,M12-1.75,STL,GALV
12 6
13
WSHR,FLT,M12,13X24X2.5,STL,GALV
4 2
14
WSHR,LK,SPLT,M12,STL,GALV
4 2
15
BOLT,CARRIAGE,M12X200,STL,GALV
4 2

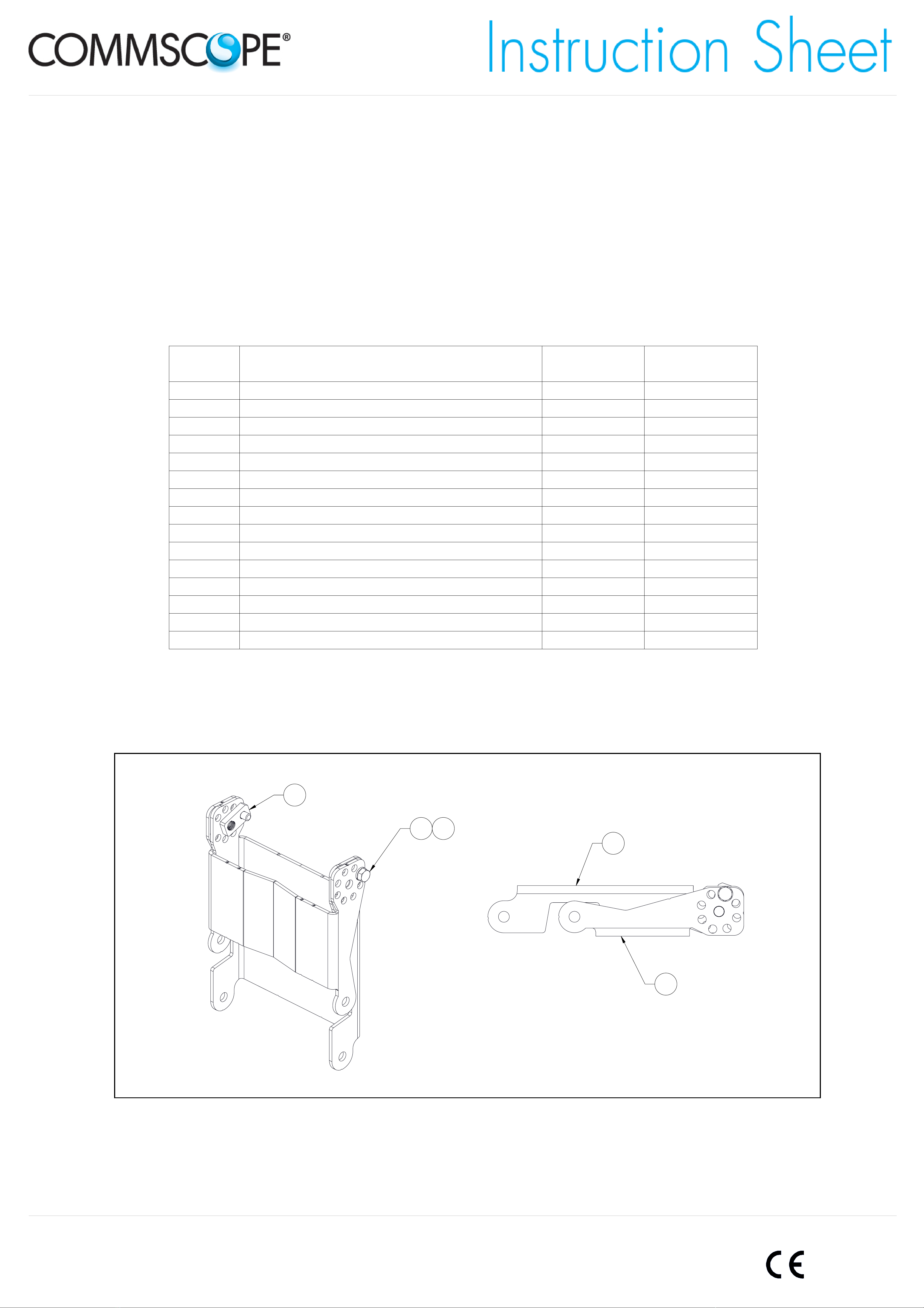

Mounting Kits For Wide Panel Antennas
BSAMNT-4, BSAMNT-M4: Mounting systems for
cylindrical pipe installations
(60-115 mm pipe diameter) for
heavy duty applications
This document explains how to install an antenna using a BSAMNT mount kit. Antennas with two mount points
will use BSAMNT-4. Antennas with three mount points will also use BSAMNT-M4.
639849 Revision D, August 2019
Page 1 of 5
www.commscope.com
© 2019 CommScope, Inc. All rights reserved.
Visit our website at www.commscope.com or contact your local CommScope representative or BusinessPartner for more information.
All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope, Inc. 639849 D (08/19)
125
15
1
Pre-assembly of Pipe Bracket by Field Installer
(BSAMNT-4 QTY 2 EA)
(BSAMNT-M4 QTY 1 EA)
Pre-assembly of Downtilt Brackets by Field Installer
8
M10 screw
· Bracket edges parallel to each other.
(fully collapsed position)
10
MAXIMUM TORQUE
M12
58N.m (43ft.lbs)
639849
Page 2 of 5
www.commscope.com
© 2019 CommScope, Inc. All rights reserved.
Visit our website at www.commscope.com or contact your local CommScope representative or BusinessPartner for more information.
All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope, Inc. 639849 D (08/19)
Bottom Mount Installation
Top / Middle Mount Installations
12
14
13
11
1
M10 screw
1
13
14
12
11
M10 SCREW
11
M10 SCREW
CRITICAL: For initial installation
to pipe, downtilt brackets must
be configured in pre-assembly
position (fully collapsed).
10 910
9
10 9
WARNING
: LOOSENING OR REMOVING BOLTS
THAT ATTACH MOUNTING PLATE TO ANTENNA
WILL VOID WARRANTY AND MAY RESULT IN
PRODUCT DAMAGE OR PERSONAL INJURY.
WARNING
: LOOSENING OR REMOVING BOLTS
THAT ATTACH MOUNTING PLATE TO ANTENNA
WILL VOID WARRANTY AND MAY RESULT IN
PRODUCT DAMAGE OR PERSONAL INJURY.
MAXIMUM TORQUE
M10
37N.m (27ft.lbs)
M12
58N.m (43ft.lbs)
MAXIMUM TORQUE
M8
15N.m (11ft.lbs)
M10
37N.m (27ft.lbs)
M12
58N.m (43ft.lbs)
639849
Page 3 of 5
www.commscope.com
© 2019 CommScope, Inc. All rights reserved.
Visit our website at www.commscope.com or contact your local CommScope representative or BusinessPartner for more information.
All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope, Inc. 639849 D (08/19)
•
Loosen pivot screws . (do
not remove)
• Remove adjuster screws.
• Adjust antenna angle.
(use inclinometer)
• Reinstall adjuster screws.
Middle Bracket First
• Retighten all screws.
Adjusting Antenna Tilt - 3 POINT MOUNT
M10 pivot screw
(loosen only)
M10 pivot screw
(loosen only)
A
M10 pivot screw
(loosen only)
M8 adjuster screw
perimeter location
(remove to adjust tilt)
M10 pivot screw
center location
(loosen only)
M10 pivot screw
(loosen only)
DETAIL A
M10 pivot screw
(loosen only)
M10 pivot screw
(loosen only)
A
Adjusting Antenna Tilt - 2 POINT MOUNT
•
Loosen pivot screws . (do
not remove)
• Remove adjuster screws.
• Adjust antenna angle.
(use inclinometer)
• Reinstall adjuster screws.
• Retighten all screws.
DETAIL A
M10 pivot screw
(loosen only)
M8 adjuster screw
perimeter location
(remove to adjust tilt)
M10 pivot screw
center location
(loosen only)
A
use inclinometer to
adjust antenna angle
use inclinometer to
adjust antenna angle
M10 pivot screw
(loosen only)
MAXIMUM TORQUE
M8
15N.m (11ft.lbs)
M10
37N.m (27ft.lbs)
M12
58N.m (43ft.lbs)
MAXIMUM TORQUE
M8
15N.m (11ft.lbs)
M10
37N.m (27ft.lbs)
M12
58N.m (43ft.lbs)
639849
Page 4 of 5
www.commscope.com
© 2019 CommScope, Inc. All rights reserved.
Visit our website at www.commscope.com or contact your local CommScope representative or BusinessPartner for more information.
All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope, Inc. 639849 D (08/19)
SAFETY NOTICE
The installation, maintenance, or removal of an antenna
requires qualified, experienced personnel. CommScope
installation instructions are written for such installation
personnel. Antenna systems should be inspected once a
year by qualified personnel to verify proper installation,
maintenance, and condition of equipment.
CommScope disclaims any liability or responsibility for the
results of improper or unsafe installation practices.
It is recommended that transmit power be turned off
when the field installation is performed. Follow all
applicable safety precautions as shown on this page.
Do not install on a wet or windy
day or when lightning or thunder
is in the area. Do not use metal
ladder.
Do not install near power lines.
Power lines, telephone lines,
and guy wires look the same.
Assume any wire or line can
electrocute you.
Wear shoes with rubber soles and
heels. Wear protective clothing
including a long-sleeved shirt and
rubber gloves.
A
Remote Electrical
Tilt Connection
The AISG connector fitted to the antenna is designed to accept
any AISG compliant cable assembly, commscope recommends
hand tightening AISG mating connector only. Applied torque to
the connector shall not exceed 1.5N*m.
RF Cable Connection
The female RF connectors fitted to the antenna are designed
to fit jumper cables with standard related male RF connector.
Tighten the RF connector coupling according to torque
specification in antenna label, if the RF connectors are
tightened beyond the recommend torque, the RF connection
to the antenna may be damaged.
639849
Page 5 of 5
www.commscope.com
© 2019 CommScope, Inc. All rights reserved.
Visit our website at www.commscope.com or contact your local CommScope representative or BusinessPartner for more information.
All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope, Inc. 639849 D (08/19)
