Installation Instruction for CMAX Antennas

Page 1 M0149A8B_Installation_CMAX-DMHx0-Antennas

Installation Guide for CMAX-DMH60-xxx Antennas

Note: Please read the complete description before starting the installation. Make sure that

connectors are properly sealed against water if no cables are connected to them

after installation.

Tools required: Wrenches, width 10 mm

(We recommend using socket wrenches.)

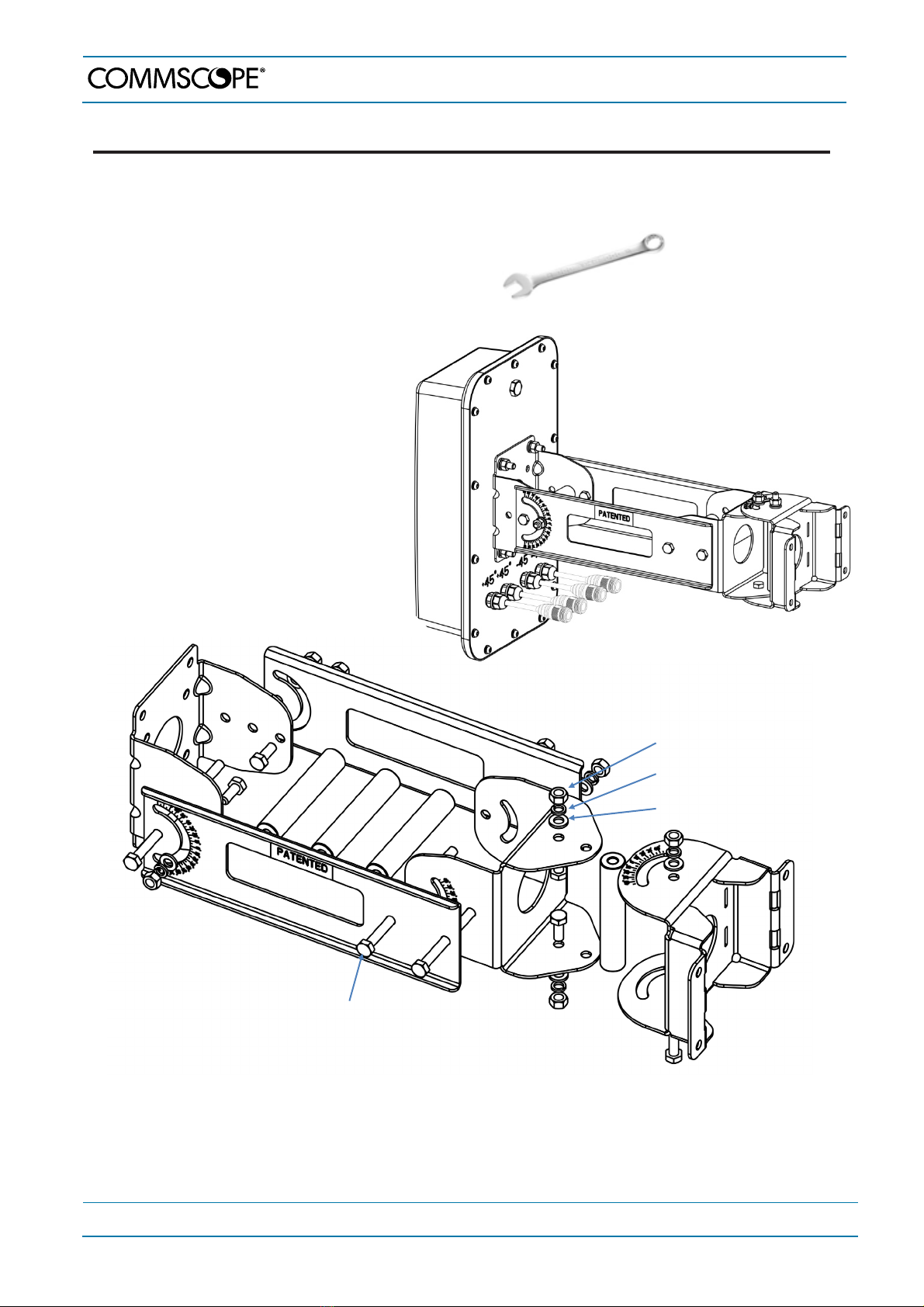

1.Assembly

Fit the nine parts together and fasten with screws M6, nuts M6, spring washers, and

washers (M6 torque: 12 Nm).

Washer

Spring washer

Nut

Screws

Installation Instruction for CMAX Antennas

Page 2

Technical Support:

http://www.commscope.com/wisupport

M0149A8B_Installation_CMAX-

DMHx0-Antennas

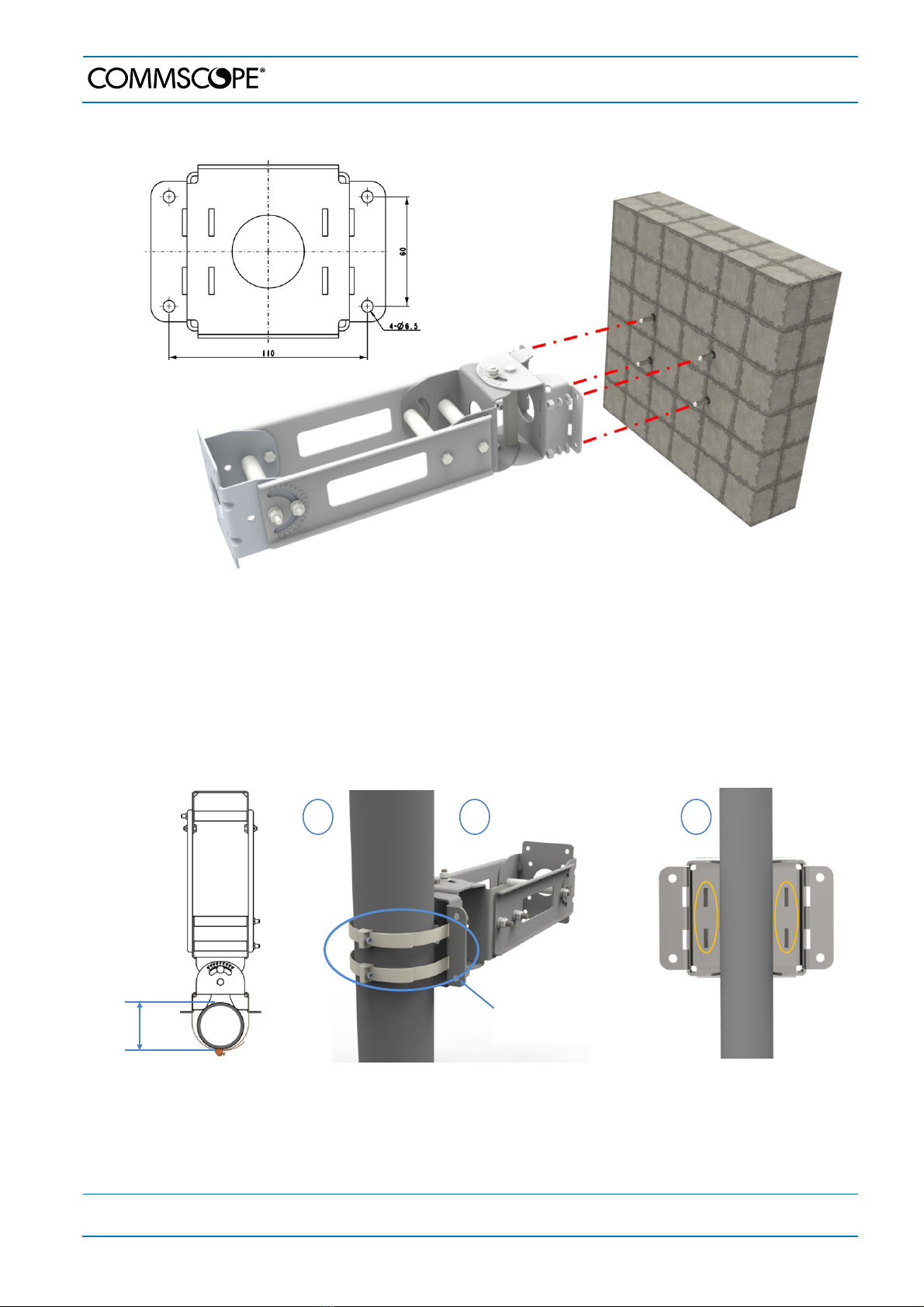

2.Wall Mounting

1. Use the pedestal piece to mark 4 holes onto the wall as shown in the drawing above or

use a drill jig.

2. Drill 4 holes into the wall and insert appropriate anchor bolt into holes.

3. Attach the complete bracket with appropriate washers and nuts M6 (not part of the

delivery).

3.Pole Mounting (40~80 mm. pole diameter)

1. Lay proper lashing straps around pole and lead them through mounting bracket (1).

2. Adjust bracket in antenna direction and fasten the bracket (2).

3. For poles with a smaller diameter use the closer holes (3).

40~80mm

Lashing

Straps

Installation Instruction for CMAX Antennas

Page 3 M0149A8B_Installation_CMAX-DMHx0-Antennas

4. Antenna Mounting

4.1. Antenna Mounting

Depending on the space required for the

antenna, the distance from the wall can be

decreased with the lengthening piece.

Take out the lengthening piece, if the

antenna is small enough.

Screw joint antenna-bracket

Attach antenna and fasten it with washers and M6 nuts (M6 torque: 12 N-m).

Spring Washer

M6 nut

Washer

Installation Instruction for CMAX Antennas

Page 4

Technical Support:

http://www.commscope.com/wisupport

M0149A8B_Installation_CMAX-

DMHx0-Antennas

4.2. Azimuth Angle

1. Loosen the three fixing screws

(Top and bottom). (Do NOT unscrew

them completely.)

2. Adjust your desired angle. The

complete antenna pedestal can be

swiveled to the lef t- / rig ht -hand side

by up to 45°.

3. Tighten the f ixing screws.

4.3. Elevation Angle

Note: Cable min. bending radius: 40mm

With lengthening

piece:

1. Loosen the three f ixing

screws at the left- and right-

hand side. (Do NOT unscrew

them completely.)

2. Adjust your desired angle.

The complete antenna

pedestal can be swiveled to

the top / botton by up to 90°.

3. Fasten the fixing screws.

Without lengthening

piece:

1. Loosen the three f ixing

screws at the left- and right-

hand side. (Do NOT unscrew

them completely.)

2. Adjust your desired angle.

The complete antenna

pedestal can be swiveled to

the top / botton by up to 90°.

3. Fasten the fixing screws.

Installation Instruction for CMAX Antennas

Page 5 M0149A8B_Installation_CMAX-DMHx0-Antennas

4.4. Optional Pole Mounting Kit

Optionally, a pole-mounting kit can be ordered separately from the supplier (ID 7837870).

The recommended pole diameter for this mounting kit is 40 - 80mm. To mount an antenna

to a pole using this kit, proceed as follows:

1. Insert the four bolts M6 (2) with four of the plain washers (5) into the antenna mounting

bracket (see detailed illustration of bolt head).

2. Insert the pole mounting bracket into these four bolts and place the plain & spring

washers (4&5) and the M6 nuts (3) over each bolt (detailed illustration).

3. Tighten the four M6 nuts observing the specified torque of 12 Nm.

4. Hang in the safety wire (6) and attach it to a suitable structure for fall protection.

Installation Instruction for CMAX Antennas

Page 6

Technical Support:

http://www.commscope.com/wisupport

M0149A8B_Installation_CMAX-

DMHx0-Antennas

4.5. Outdoor Installation

Note: For outdoor use we recommend removing the plugs from the drain holes if the

antenna is exposed to high humidity or rainfall.

: Do not remove the plugs if the antenna is mounted other than bottom

down, that means the drain holes showing to the ground. For the top and bottom of the

antenna observe the arrow labeling at the rear side. Otherwise water might penetrate into

and therefore damage the antenna.

Remove the plugs from the drain holes at the bottom of the antenna with a knife or a flat

screwdriver. The below indicates the location of the drain holes, design and/or size of the

antenna may be different.

All information contained in this manual has been revised thoroughly. Yet CommScope accepts no liability for any omissions or faults.

CommScope reserves the right to change all hardware and software characteristics without notice.

Names of products mentioned herein are used for identification purposes only and may be trademarks and / or registered trademarks of

their respective companies.

No parts of this publication may be reproduced, stored in a retrieval system, transmitted in any form or by any means, electronical,

mechanicalphotocopying, recordingor otherwise, without priorwritten permission of the publisher.

CommScope, 04-May-2020

Bottom
