LE-37C
3.5 inch Motherboard
User’s Manual
Edition 1.8
2015/06/16
LE-37C User’s Manual
Copyright
Copyright 2014, all rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to
make improvements to the products.
This document contains proprietary information and protected by copyright. No part of
this document may be reproduced, copied, or translated in any form or any means
without prior written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of
their respective owners. Disclaimer
The company shall not be liable for any incidental or consequential damages resulting
from the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including
without limitation implied warranties of merchantability or fitness for a particular
purpose.
The company has the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to
notify any person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT
LE-37C User’s Manual
Packing List:
Please check the package content before you starting using the board.
Hardware:
LE-37C 3.5 inch Miniboard x 1 (include Cooler Fan)
Cable Kit:
SATA Cable x 1
(OALSATA3-L)/ (1040529)
Printed Matters:
Driver CD (Including User’s Manual) x 1
DC Power Cable x 1
(OALDC-A)/ (1040433)
USB2.0 Cable x 1
(
OALUSB
A
-3
)
/
(
1040173
)
PS/2 Keyboard & Mouse Cable x 1
(OALPS2/KM)/ (1040131)
COM Port Cable x 1
(
OALES-BKU1NB
)
/
(
1040086
)
Audio Cable x 1
(OALPJ-HDUNB)/ (1040123)
1 to 3 power output cable x 1
(OAL4P-2)/ (1040051)
SATA Power Cable x 1
(OAL4P-S2)/ (1040054)
CRT cable without bracket x 1
(OALVGA-SNB-7)/ (1040557)
USB3.0 Cable
(
OALISB3NB
)
/
(
1040532
)
Optional :
LE-37C User’s Manual
Index
Chapter 1 <Introduction>..............................................................................1
1.1 <Product Overview>.....................................................................................1
1.2 <Product Specification>................................................................................2
1.3 <Mechanical Drawing>.................................................................................3
1.4 <Block Diagram>..........................................................................................4
Chapter 2 <Hardware Setup>........................................................................5
2.1 <Connector Location>..................................................................................5
2.2 <Jumper Location & Reference>..................................................................6
2.3 <Connector Reference>...............................................................................7
2.3.1 <Internal Connectors> .....................................................................7
2.3.2 <External Connectors>....................................................................7
2.4 <Memory and CFAST Setup> ......................................................................8
2.4.1 < Memory Setup > ...........................................................................8
2.4.2 < CFAST Setup >.............................................................................9
2.5 <CMOS & ATX Setup>...............................................................................10
2.6 <Serial ATA Interface>................................................................................ 11
2.7 <Ethernet Interface>...................................................................................12
2.8 <Onboard Display Interface>......................................................................13
2.8.1 <External Display>.........................................................................13
2.8.2 <Internal Display>..........................................................................14
2.9 <Integrated Audio Interface>......................................................................19
2.10 <USB Interface>.......................................................................................20
2.11 <Serial Port>.............................................................................................22
2.12 <PCIe Mini Card and SIM Interface>........................................................24
2.12.1 <SIM Setup>................................................................................26
2.13 <GPIO and SMBUS Interface>.................................................................28
2.14 <Power Supply and Fan Interface >.........................................................29
2.14.1 <Power Input>..............................................................................29
2.14.2 <Power Output>...........................................................................29
LE-37C User’s Manual
2.14.3 <Fan connector>..........................................................................30
2.15 <Switch and Indicator>.............................................................................31
Chapter 3 <System Setup> .........................................................................32
3.1 <Audio Configuration>................................................................................32
3.2 <Display Properties Setting>......................................................................33
3.3 <SATA configuration>.................................................................................35
3.4 <SATA RAID Configuration>.......................................................................36
Chapter 4 <BIOS Setup> .............................................................................37
Appendix A <I/O Port Pin Assignment>.....................................................38
A.1 <Serial ATA Port>.......................................................................................38
A.2 <IrDA Port>................................................................................................38
A.3 <LAN Port>................................................................................................38
A.4 <LPC Port>................................................................................................38
Appendix B <Flash BIOS> ..........................................................................39
B.1 <Flash Tool> ..............................................................................................39
B.2 <Flash BIOS Procedure>...........................................................................39
Appendix C <Programming GPIO’s> .........................................................40
Appendix D <Programming Watchdog Timer >........................................41
Contact Information.....................................................................................42
LE-37C User’s Manual
-1-
Chapter 1 <Introduction>
1.1 <Product Overview>
LE-37C the 4th Generation Intel of the 3.5 inch miniboard, supports 4th Generation Intel®
Core™ i7, Core™ i5, Core™ i3, Celeron Mobile Processor and features Intel
DH82QM87 chipset, integrated HD Graphics, DDR3Lmemory, REALTEK High
Definition Audio, Serial ATA with AHCI and RAID function for a system and Intel Gigabit
LAN.
Intel Haswell Bridge Processor
The 4th Generation Intel® Core™ processor family mobile is the next generation of
64-bit, multi-core mobile processor built on 22- nanometer process technology. Based
on a new micro-architecture.
New features for Intel DH82QM87 chipset
The DH82QM87 chipset provides better CPU, graphics, media performance, flexibility
and more enhanced security that is suitable for a variety of intelligent systems the ideal
choice.
All in One multimedia solution
Based on Intel DH82QM87 chipset, the board provides high performance onboard
graphics, CRT, 24-bit dual channel LVDS interface, DisplayPort, DVI and 2 channels
High Definition Audio, to meet the very requirement of the multimedia application.
Flexible Extension Interface
The board provides two PCIe mini slot and one SIM slot.
LE-37C User’s Manual
-2-
1.2 <Product Specification>
General Specification
Form Factor 3.5 inch Miniboard
CPU 4th Generation Intel® Core™ i7, Core™ i5, Core™ i3, Celeron Mobile
Processor. Package type: FCBGA1364
Memory 1 x DDR3L SO-DIMM 1333/1600 MHz up to 8GB
Support Non-ECC, unbuffered memory only
Chipset Intel® DH82QM87 PCH
Real Time Clock Chipset integrated RTC with onboard lithium battery
Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s
Power Management Support ACPI 4.0 compliant
Serial ATA Interface 2 x serial ATA3 interface with 600MB/s transfer rate (Only for SATA3)
Display Interface Intel® 4th Generation Core mobile processor integrated HD Graphics 4600
1 x CRT (Onboard 2x8 pin-header)
1 x DVI (Rear I/O connector)
1 x DisplayPort (Rear I/O Port)
1 x LVDS (Onboard 24-bit dual channel connector with +3.3/+5/+12V supply)
Audio Interface Realtek ALC888 HD Audio
LAN Interface 1 x Intel® I217-LM Gigabit LAN (Support iAMT9.0)
GPIO Interface Onboard programmable 12 pin-header, 8-bit Digital I/O interface
Extended Interface 2 x Mini PCIe slot, 1 x SIM slot, 1 x CFAST
(Optional support mSATA (Only for SATA3) for Mini_Card1)
Internal I/O Port 1 x RS232/422/485, 1 x SMBUS, 1 x GPIO, 2 x USB3.0, 2 x USB2.0,
1 x IrDA, 1 x CRT, 1 x LPC, 1 x LVDS, 1 x LCD inverter, 2 x Serial ATA3 ,
1 x DC-Out, 1 x PS/2 and 1 x Front panel Audio
External I/O Port 1 x LAN, 1 x DVI, 1x DisplayPort, 2 x USB3.0 and 1 x RS232
Power Requirement 9~24V 4-pin full range DC Input
Dimension 146mm x 101mm
Temperature Operating within 0~60 centigrade
Storage within -20~85 centigrade
Ordering Code
LE-37C17L i7-4700EQ Mobile Processor, CRT, LVDS, DVI, DisplayPort, LAN, LPC,
SATA3, USB2.0, USB3.0, HD Audio , SMBUS, SIM, GPIO, IrDA, DC-Out,
PS/2, PCIe mini card, mSATA, CFAST.
LE-37C17P Celeron 2002E Mobile Processor, CRT, LVDS, DVI, DisplayPort, LAN, LPC,
SATA3, USB2.0, USB3.0, HD Audio, SMBUS, SIM, GPIO, IrDA, DC-Out,
PS/2, PCIe mini card, mSATA, CFAST.
The specifications may be different as the actual production.
For further product information please visit the website at TUhttp://www.commell.com.twUT
LE-37C User’s Manual
-3-

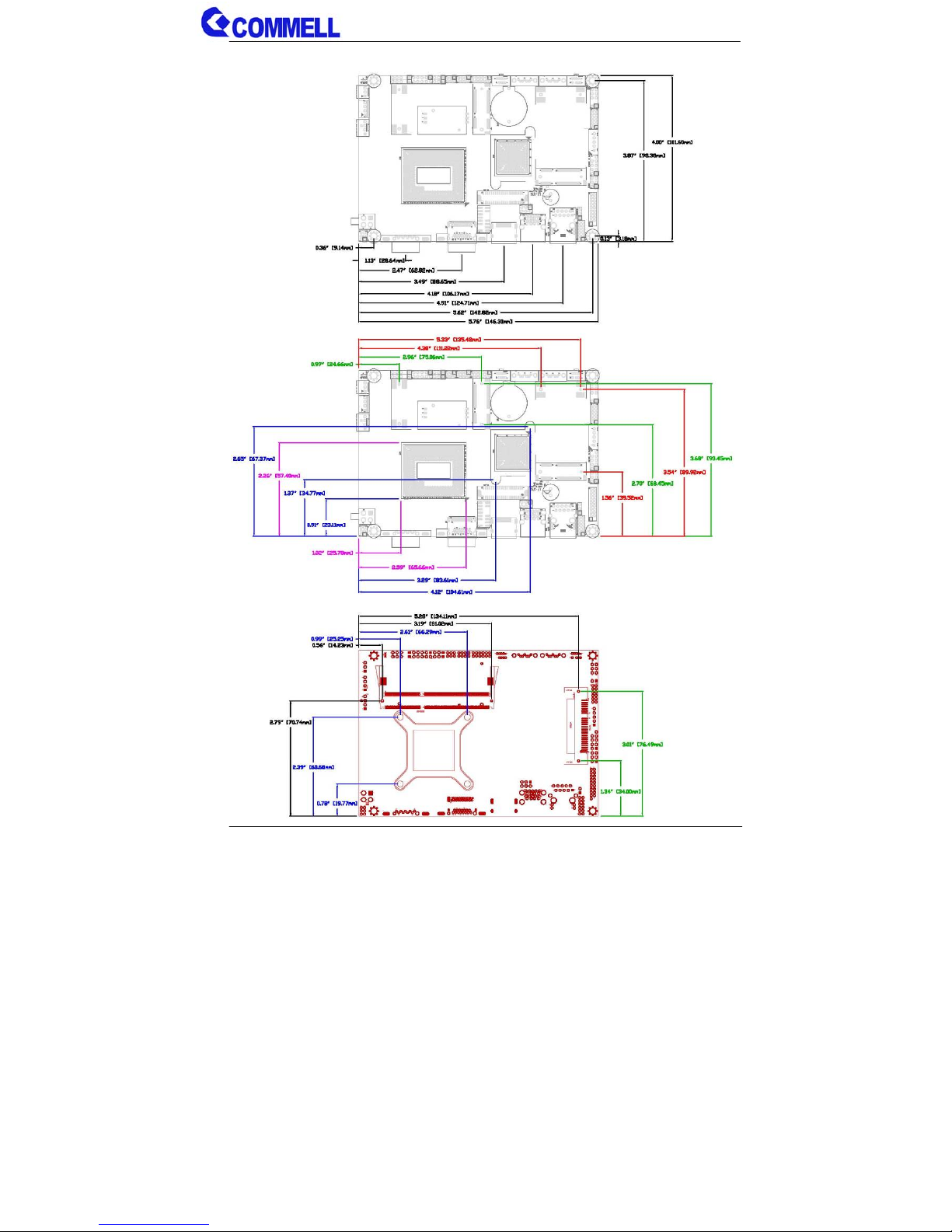

1.3 <Mechanical Drawing>
LE-37C User’s Manual
-4-
1.4 <Block Diagram>
4th Generation Intel® Core™ i7, Core™
i5, Core™ i3, Celeron Mobile Processor
1 x 204-pin DDR3L
SO-DIMM 1333/1600 MHz
up to 8GB
1 x LVDS
1 x CRT
1 x DisplayPort
1 x DVI
2 x SATA
ALC888 HD Audio
1 x Intel® I217-LM
2 x External USB
2 x Internal USB
2 x PCI-E mini card
1 x LPC(TPM)
1 x RS232/422/485
1 x RS232 W83627DHG-P
1 x PS/2
1 x GPIO
1 x IrDA
1 x SMBUS
1 x CFAST
DH82QM87
FDI DMI
eDP Channel A
SPI Flash
DDI
CRT PCI-E x1
USB3.0
2 x Internal USB
USB2.0
SATA3
PCI-E x1
SATA3
LPC
SPI
LE-37C User’s Manual
-5-
Chapter 2 <Hardware Setup>

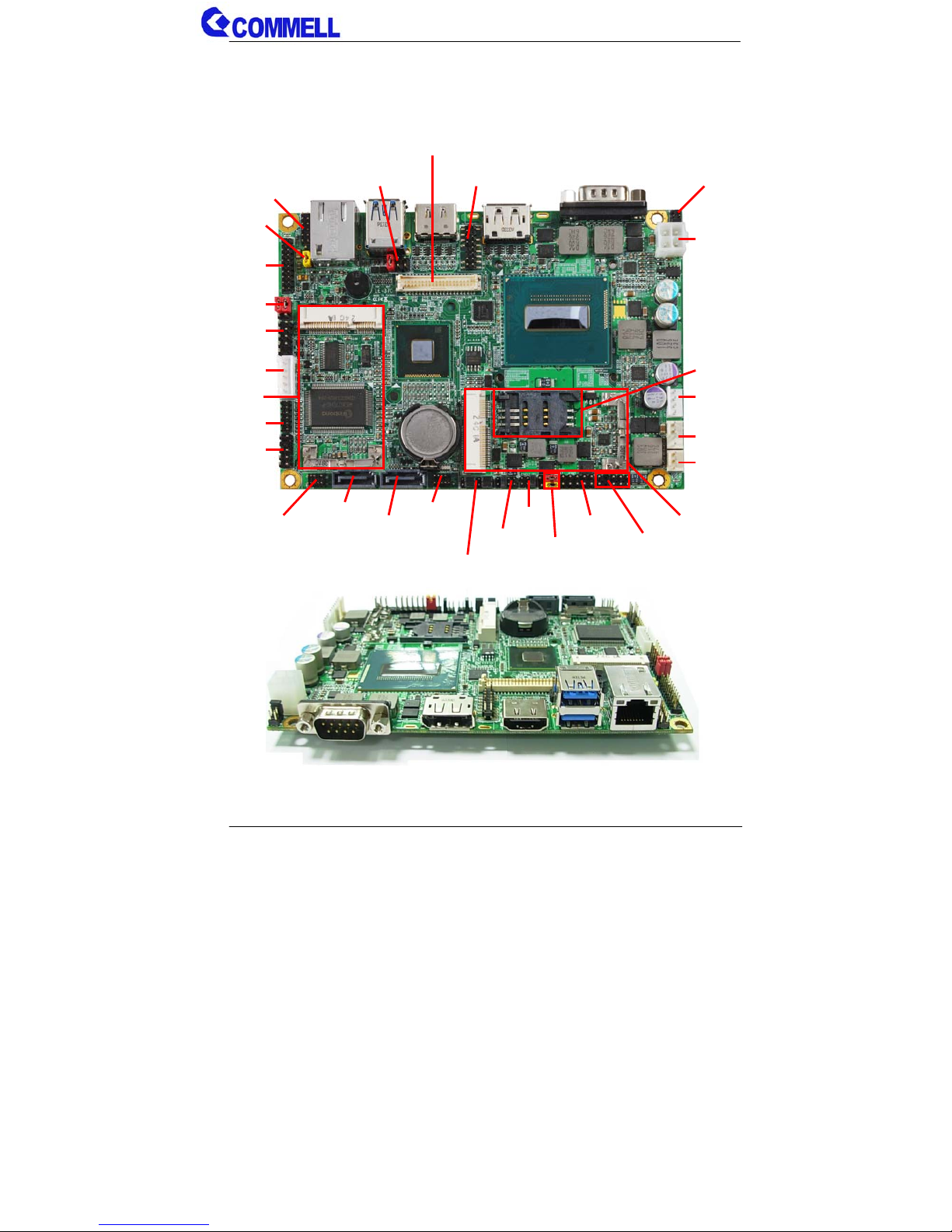

2.1 <Connector Location>
CN_DIO
CN_USB3
JVUSB
CN_USB2
JMSATA
CN_INV
CN_LPC
CN_PS/2
MINI_CARD1
CN_AUDIO
JVLCD CN_CRT
CN_LVDS
SATA3-1
SATA3-2
CN_COM2
JCSEL1
JCSEL2
JP2
JRTC
JAT
JFRNT
CN_IR
CN_SMBUS
JP1
DC_IN
MINI_CARD2
DC_OUT
CPUFAN
SYSFAN
SIMM
COM1 DisplayPort DVI USB RJ45
