Commell Mini-ITX Motherboard LV-671 Manual de usuario

LV-671

Mini-ITX Motherboard

User’s Manual

Edition: 1.41

2005/03/24

LV-671 User’s Manual

reserved. The information in this document is subject to change without prior notice to

make improvements to the products.

This document contains proprietary information and protected by copyright. No part of this

document may be reproduced, copied, or translated in any form or any means without prior

written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of their

respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting from

the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including without

limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications of

the product described within it at any time without notice and without obligation to notify any

person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at http://www.commell.com.tw.

LV-671 User’s Manual

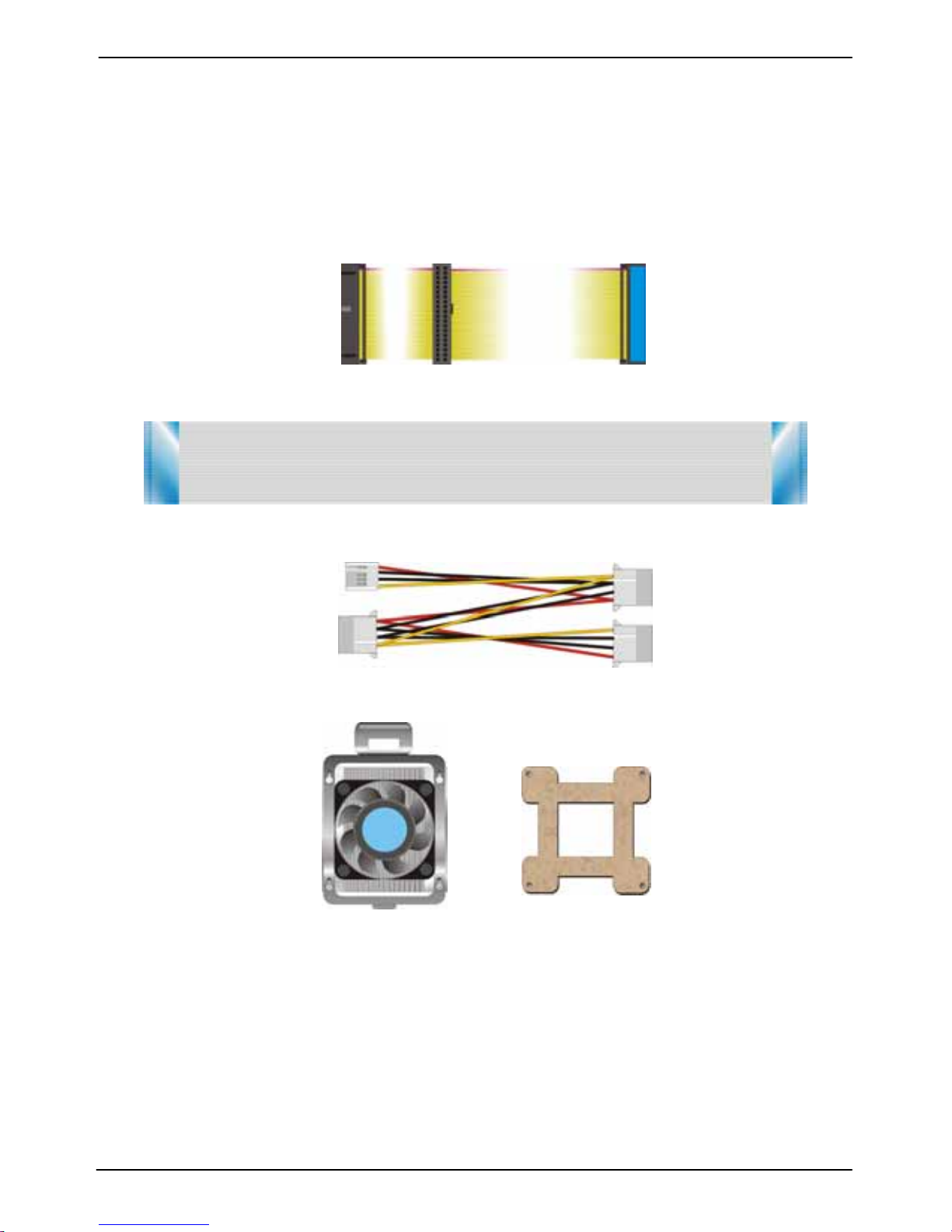

Packing List

Please check the package before you use this product

Hardware:

LV-671 Mini-ITX motherboard x 1

Cable Kit:

40-pin ATA100 IDE Cable x 1

26-pin Slim Type Floppy Cable x 1

4-pin to 4-pin Power Cable x 1

CPU Cooler x 1

Other Accessories

Driver CD x 1

User’s Manual x 1

LV-671 User’s Manual Index

Index

Chapter 1 <Introduction>.....................................................................................9

1.1 <Product Overview>..........................................................................9

1.2 <Product Specification> .........................................................................10

1.3 <Component Placement> ......................................................................13

1.4 <Block Diagram>....................................................................................14

Chapter 2 <Hardware Setup>.............................................................................15

2.1 <Connector Location>............................................................................15

2.2 <Jumper Reference> .............................................................................16

2.3 <Connector Reference>.........................................................................17

2.3.1 <Internal Connector>..................................................................17

2.3.2 <External I/O connector> ...........................................................17

2.4 <System Setup>.....................................................................................18

2.4.1 <CPU Installation>......................................................................18

2.4.2 <Memory Installation>................................................................19

2.4.3 <CPU Cooler Installation>..........................................................20

2.5 <CMOS Setup>......................................................................................21

2.6 <IDE Interface>......................................................................................22

2.7 Compact Flash Interface........................................................................23

2.8 <Display Interface> ................................................................................24

2.8.1 <Analog display interface>.........................................................24

2.8.2 <Digital display interface> ..........................................................24

2.9 <Audio Interface>...................................................................................28

2.10 <Ethernet Interface> ............................................................................30

2.11 <Power and Fan connector>................................................................31

2.12 <GPIO Interface>.................................................................................33

2.13 <Expansive Interface> .........................................................................34

2.14 <Switch and Indicator>.........................................................................35

LV-671 User’s Manual Index

Chapter 3 <System Setup> ................................................................................37

3.1 <Watchdog Timer Setting>.....................................................................37

3.2 <Audio Setting>......................................................................................38

3.3 <Display Device Setup>.........................................................................39

Chapter 4 <BIOS Setup> ....................................................................................43

Appendix A <I/O Port Pin Assignment>............................................................45

A.1 <IDE Port>.............................................................................................45

A.2 <Floppy Port> ........................................................................................47

A.3 < USB Interface > ..................................................................................47

A.4 <IrDA Port>............................................................................................48

A.5 < VGA Port >..........................................................................................48

A.6 < LAN Port >..........................................................................................48

A.7 < Serial Port >........................................................................................49

Appendix B <Flash BIOS>..................................................................................51

B.1 <Flash Tool> ..........................................................................................51

B.2 <Flash BIOS Procedure>.......................................................................51

Appendix C <System Resource> ......................................................................53

C.1 <I/O Address Map>................................................................................53

C.2 <Memory Address Map> .......................................................................55

C.3 <System IRQ and DMA Resource>.......................................................56

Contact Information............................................................................................58

LV-671 User’s Manual

(This Page is Left for Blank)

LV-671 User’s Manual Introduction

Product Overview 9

Chapter 1 <Introduction>

1.1 <Product Overview>

LV-671 is an all-in-one industrial compact Pentium-M level motherboard based on Mini-ITX

form factor at 170 x 170 mm of dimension. Based on Intel 855GME and ICH4 chipset,

LV-671 offers the compact, embedded, value and high performance solution with Intel

Pentium-M CPU, 400MHz of FSB, 1GBytes DDR200/266/333 SDRAM with ECC, Intel

855GME GMCH built-in Intel Extreme Graphics 2, Intel PRO/1000+ LAN, Hi-Speed USB

2.0, 5.1 channel and S/P DIF 3D audio, 18/24-bit dual channel LVDS, GPIO and

embedded flash disk interfaces.

Low Power Consumption Solution

Based on Intel 855GME chipset and Intel Pentium M/Celeron M processor, the board

requires lower power consumption than Pentium 4 –M processors. The Intel Pentium M

integrates 512KB/1MB/2MB of L2 cache, so it provides better performance than before.

Dual Display Architecture

Intel 855GME supports two DAC for display interface; users can apply two display

devices for dual display clone or extended desktop display. With this feature, system

integrator can use this board for Kiosk, ATM, or industrial control machines.

5.1 Channel AC97 Audio

LV-671 integrates a REALTEK 5.1 channel AC97 codec; users can enjoy the live

surround sound through 5.1 channel speakers. LV-671 also has an S/PDIF jack for digital

sound outputting.

Hi-Speed USB 2.0 Interface

Intel ICH4 built-in Hi-Speed USB 2.0 controller let LV-671 offer up to 480Mbps of

transferring rate.

Card Bus and Embedded Flash Disk

TheLV-671 support PCMCIA Type I/II enable you can simply use the wireless LAN

module or other extended devices, the Compact Flash interface and IDE1 with DOM

support can let you port any embedded system onboard.

Mini-PCI and Mini-AGP interface

With Mini-PCI interface, users can add a wireless LAN module or video capture

module for powerful communication solutions. With Mini-AGP interface, users can apply

the AGP graphic card or additional video output module such as HDTV or DVI.

LV-671 User’s Manual

1.2 <Product Specification>

General Specification

Form Factor Mini-ITX motherboard at 170 x 170 mm (L x W)

CPU Package: 478 pin PGA/ 479 pin BGA

L2 Cache: 512KB/1MB/2MB

FSB: 400MHz

( The Intel® Celeron® M Processor 4xx series have been

designed to work with the Mobile Intel® 945 Express Chipset

Family only .)

Memory 1GBytes DDR200/266/333 SDRAM on one 184-pin DIMM socket

ECC memory is supported

Chipset Intel 82855GME GMCH and 82801DB ICH4

BIOS Phoenix-Award v6.00PG 4Mb PnP flash BIOS

Green Function Power saving mode includes doze, standby and suspend modes.

ACPI version 1.0 and APM version 1.2 compliant

Watchdog Timer System reset programmable watchdog timer with 1 ~ 255

sec./min. of timeout value

Real Time Clock Intel ICH4 built-in RTC with lithium battery

Enhanced IDE PCI enhanced IDE interface supports dual channels and up to 4

ATAPI devices at UltraATA/100

One 40-pin and one 44-pin IDE port

DiskOnModule (DOM) embedded flash disk up to 1GBytes

Multi-I/O Port

Chipset Intel 82801DB ICH4 (USB) and Winbond W83627HF-AW LPC

Super I/O controller

Serial Port Two external RS-232 serial port with 16C550 compatible UART

and 16 bytes FIFO

USB Port Six Hi-Speed USB 2.0 ports with 480 Mbps of transfer rate

Two external and four internal USB ports

Parallel Port One external bi-direction parallel port with SPP/ECP/EPP mode

Floppy Port One slim-type FDD port supports up to two FDD

IrDA Port One IrDA compliant Infrared interface supports SIR

K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel

GPIO One 20-pin Digital I/O connector with 15-bit programmable I/O

interface

Card Bus

PCMCIA One PCMCIA Type I/II slot

VGA Display Interface

Chipset Intel 855GME GMCH built-in Intel Extreme Graphics 2

With 266 MHz VGA core and 256-bit 3D engine
