Commell LE-37P Manual de usuario

LE-37P

3.5 inch Motherboard

User’s Manual

Edition 1.1

2021/11/18

LE-37P User’s Manual

-1-

The information in this document is subject to change without prior notice to make

improvements to the products.

This document contains proprietary information and protected by copyright. No part of this

document may be reproduced, copied, or translated in any form or any means without prior

written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of their

respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting from

the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including without

limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications of

the product described within it at any time without notice and without obligation to notify any

person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TU http://www.commell.com.twUT

LE-37P User’s Manual

-2-

Packing List:

Please check the package content before you starting using the board.

Appendix G

1 x LE-37P 3.5 inch Miniboard

(Include cooler fan)

1 x USB2.0 cable

(OALUSBA-3 / 1040173) (Optional)

1 x Audio cable

(OALPJ-HDUNB / 1040123)

1 x Dual COM cable

(OALES-BKU2NB / 1040090)

1 x SATA Power Cable

(OALSATA15-2PJ / 1040613)

1 x Driver CD

(Including User’s Manual)

2 x SATA Cable

(OALSATA3-L) / (1040529)

1 x USB3.2 Gen2 cable

(OALUSBE-USBC-L30NB / 1040682) (Optional)

(Type E to Type C)

LE-37P User’s Manual
-3-
Index
Chapter 1 <Introduction>..................................................................4
1.1 <Product Overview>............................................................4
1.2 <Product Specification> ......................................................5
1.3 <Block Diagram>.................................................................6
Chapter 2 <Hardware setup>...........................................................7
2.1 <Connector Location and Reference> ................................7
2.1.1 <Internal connectors list>..........................................8
2.1.2 <External connectors list>.........................................8
2.2 <Memory Setup>.................................................................9
2.3 <Jumper Location and Reference>...................................10
2.3.1 <Jumper list> ..........................................................10
2.3.2 <Clear CMOS and Power on type selection>..........11
2.4 <I/O interface> ..................................................................12
2.4.1 <Serial ATA interface>.............................................12
2.4.2 <Ethernet interface>................................................13
2.4.3 <Display interface> .................................................13
2.4.4 <Serial Port interface> ............................................15
2.4.5 <USB interface>......................................................18
2.4.6 <Audio interface>....................................................19
2.4.7 <Expansion slot>.....................................................20
2.4.8 <Front panel switch and indicator> .........................21
2.4.9 <GPIO and Other interface>...................................22
2.5 <Power supply> ................................................................24
2.5.1 <Power input>.........................................................24
2.5.2 <Power Output>......................................................24
Appendix A <Flash BIOS>..............................................................25
Appendix B <LCD Panel Type select> ...........................................26
Appendix C <Programmable Watch Dog Timer>............................27
Appendix D <Hardware Monitor>...................................................29
Appendix E <Programmable GPIO> ..............................................30
Appendix F <RAID Setting>...........................................................31
Appendix G <Cooler fan>...............................................................32
Contact information........................................................................33

LE-37P User’s Manual

-4-

Chapter 1 <Introduction>

1.1 <Product Overview>

LE-37P is a 3.5” Motherboard which supports Tiger Lake/11th Gen H Processors,

integrated UHD Graphics, DDR4 memory, Realtek High Definition Audio, Intel Gigabit LAN,

USB3.2 Gen2, SATA3 with AHCI function for a system.

New feature for Tiger Lake H

Tiger Lake/11th Gen H Processors are based on the 10nm SuperFin process, and offer

long-life availability. They have Intel UHD Graphics up to 32 EUs.

All in One multimedia solution

The board provides one MiniPCIe slot ( support mSATA), one M.2 2230 slot, two M.2 2280

slot (PCIe Gen4).

Tiger Lake support Windows10 version 20H2 64bit and Linux kernel 5.8

Intel recommends using Windows 10 version 20H2 64bit. It may lose some drivers if you

use other Windows version.

LE-37P User’s Manual

-5-

1.2 <Product Specification>

System

Processor

Tiger Lake/11th Gen H Processor

FCBGA1787 package

Chipset

Intel® QM580E / RM590E (TGL-H Xeon CPUs have to use RM590E)

Memory

1 x DDR4 SO-DIMM 3200 MHz up to 32GB,

Support Non-ECC, unbuffered memory

(TGL-H Xeon CPUs can support ECC memory)

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Expansion

1 x MiniPCIe with SIM Slot (support mSATA)

1 x M.2 2280 Key M support PCIe Gen4 and SATA(M.2_NVME1)

1 x M.2 2280 Key M support PCIe Gen4 (M.2_NVME2)

1 x M.2 2230 Key E for Wi-Fi and Bluetooth

Graphics

Chipset

Intel® 11th Gen integrated UHD Graphics

Display Interface

1 x LVDS (Note1), 1 x HDMI, 1 x DisplayPort(Note2)

LAN

Chip

1 x Intel® I219-LM Gigabit PHY LAN (Support iAMT 15.0)

1 x Intel® I225-LM Gigabit LAN (up to 2.5GbE)

I/O

Serial ATA

2 x SATA3

Audio

RealtekALC888S HDAudio

Internal I/O

2 x SATA3, 2 x RS232, 2 x RS232/RS422/RS485

2 x USB2.0, 1 xAudio, 1 x SMBus, 1 x GPIO

1 x USB3.2 Gen2 (Type E), 1 x LVDS, 1 x LCD inverter connector, ,

Rear I/O

1 x HDMI, 1 x DisplayPort, 2 x LAN, 6 x USB3.2 Gen2, 1 x DC Jack

Mechanical & Environmental

Power Requirement

DC Jack 9~35V

Size

146mm x 101mm (Lx W)

Temperature

Operating within 0°C~60°C (32°F~140°F) (Note3)

Storage within -20°C~80°C (-4°F~176°F)

Relative Humidity

10%~90%, non-condensing

Note1: Onboard 18/24-bit single/dual channel +3.3V/ +5V/ +12V LVDS

Note2: AddADP-3355 supports VGAorAddADP-3460 supports 2nd LVDS.

Note3: W-11865MRE, W-11555MRE, W-11155MRE can operate within -40°C~85°C

Note4: Please don’t remove cooler fan, it will destroy thermal paste on CPU.

LE-37P User’s Manual

-6-

1.3 <Block Diagram>

PTN3460

LVDS

I219-LM

I225-LM

6 x USB3.2 Gen2

1 x USB3.2 Gen2 (TypeE)

2 x USB2.0

DDR4 SODIMM 3200

2 x SATA

1 x PCIe / mSATA

1 x M.2 2230

1 x M.2 KEY M 2280

1 xALC888S

1 x SYSFAN

1 x CPUFAN

1 x GPIO

2 x RS232/422/485

2 x RS232

ESPI

Tiger Lake H

Processor

Super I/O

NCT6126D

HDMI

1 x M.2 KEY M 2280

1 x PCIe X16 Slot

DMI x8

QM580E

RM590E

2 x USB2.0

LE-37P User’s Manual

-7-

Chapter 2 <Hardware setup>

2.1 <Connector Location and Reference>

M.2 KEY E

MINI_CARD

M.2_NVME1

M.2_NVME2

CN_USB

CN_AUDIO

JFRNT

CN_DIO

CN_COM3/4

CN_COM1/2

SYSFAN

CN_INV CN_LVDS SATA3-1 SATA3-2

TYPE_E DC_OUT

DDR4_A

SIM

CPUFAN

CN_SMBUS

DC_2PJ

CN_BAT

LE-37P User’s Manual

-8-

2.1.1 <Internal connectors list>

Connector

Function

DDR4_A

260-pin DDR4 SO-DIMM slot

SATA3-1/2

7-pin SATA3 connector

CN_AUDIO

5 x 2-pin audio pin header

CN_LVDS

20 x 2-pin LVDS connector

CN_INV

5-pin LCD inverter connector

CN_SMBUS

5-pin SMBus connector

CN_COM 1/2

20-pin RS232/RS422/RS485 connector

CN_COM 3/4

20-pin RS232 connector

CN_USB

5 x 2-pin USB2.0 pin header

CN_DIO

6 x 2-pin digital I/O connector

CPUFAN

4-pin CPU fan connector

SYSFAN

4-pin system fan connector

JFRNT

10-pin front panel switch/indicator connector

TYPE_E

20-pin Type E USB3.2 Gen2 connector

MINI_CARD

52-pin MiniPCIe card slot

M2_E

75-pin M.2 Key E slot

M2_NVME1

75-pin M.2 Key M slot support PCIe Gen4 and SATA

M2_NVME2

75-pin xM.2 2280 Key M support PCIe Gen4

DC_2PJ

DC Jack

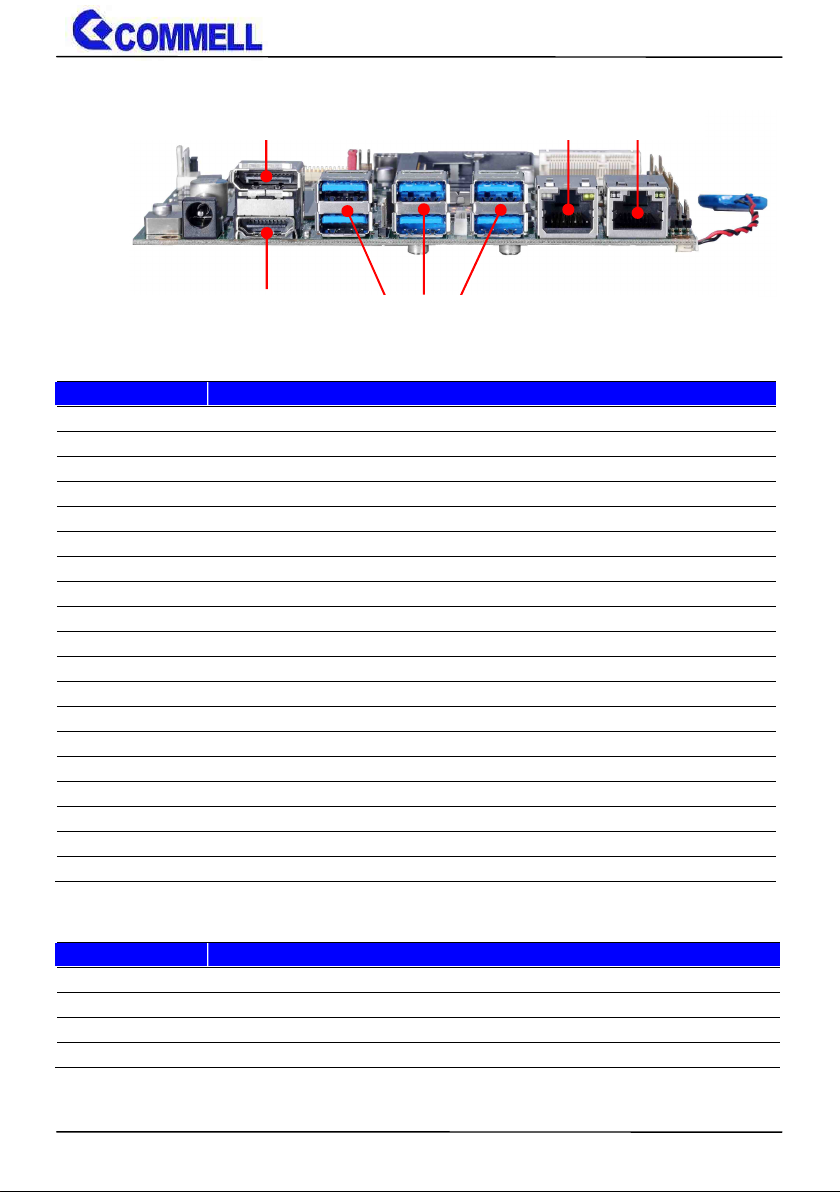

2.1.2 <External connectors list>

Connector

Function

HDMI-DP

DisplayPort and HDMI dual layer connector

USB3-1/3-2/3-3

2 x USB3.2 Gen2 connector

RJ45-1

RJ45 connector (I219-LM)

RJ45-2

RJ45 connector (I225-LM)

HDMI USB3.2 Gen2

DP i225-LM i219-LM

LE-37P User’s Manual

-9-

2.2 <Memory Setup>

LE-37P has 260-pin DDR4 SODIMM support up to 32GB of memory capacity and 1.2

Voltage. The memory frequency supports 3200 MHz. Only Non-ECC memory is supported.

In the process, the board must be powered off.

1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key.

2. Then press down till lock into the mounting notch.

3. To remove the memory, push outward on both sides of the latch.

Key

Mounting notch

Press down

Latch
