Commell LE-37C-G Manual de usuario

LE-37C

3.5 inch Motherboard

User’s Manual

Edition 1.6

2014/07/25

LE-37C User’s Manual

reserved. The information in this document is subject to change without prior notice to

make improvements to the products.

This document contains proprietary information and protected by copyright. No part of

this document may be reproduced, copied, or translated in any form or any means

without prior written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of

their respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting

from the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including

without limitation implied warranties of merchantability or fitness for a particular

purpose.

The company has the right to revise the manual or include changes in the specifications

of the product described within it at any time without notice and without obligation to

notify any person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TUhttp://www.commell.com.twUT

LE-37C User’s Manual

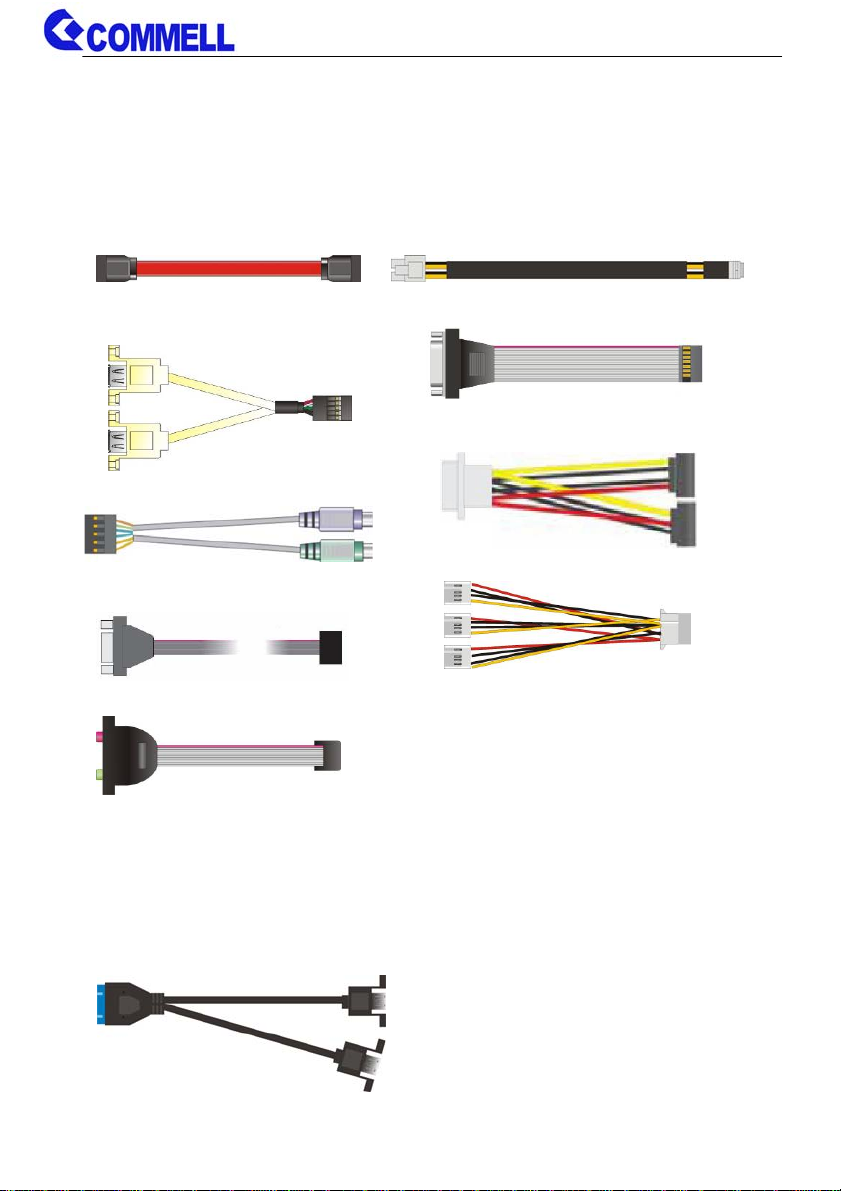

Packing List:

Please check the package content before you starting using the board.

Hardware:

LE-37C 3.5 inch Miniboard x 1 (include Cooler Fan)

Cable Kit:

SATA Cable x 1

(OALSATA3-L)/ (1040529)

Printed Matters:

Driver CD (Including User’s Manual) x 1

DC Power Cable x 1

(OALDC-A)/ (1040433)

USB2.0 Cable x 1

(

OALUSB

-3

)

(

1040173

)

PS/2 Keyboard & Mouse Cable x 1

(OALPS2/KM)/ (1040131)

COM Port Cable x 1

(

OALES-BKU1NB

)

(

1040086

)

Audio Cable x 1

(OALPJ-HDUNB)/ (1040123)

1 to 3 power output cable x 1

(OAL4P-2)/ (1040051)

SATA Power Cable x 1

(OAL4P-S2)/ (1040054)

CRT cable without bracket x 1

(OALVGA-SNB-7)/ (1040557)

USB3.0 Cable

(

OALISB3NB

)

(

1040532

)

Optional :

LE-37C User’s Manual

Index

Chapter 1 <Introduction>..............................................................................1

1.1 <Product Overview>.....................................................................................1

1.2 <Product Specification>................................................................................2

1.3 <Mechanical Drawing>.................................................................................3

1.4 <Block Diagram>..........................................................................................4

Chapter 2 <Hardware Setup>........................................................................5

2.1 <Connector Location>..................................................................................5

2.2 <Jumper Location & Reference>..................................................................6

2.3 <Connector Reference>...............................................................................7

2.3.1 <Internal Connectors> .....................................................................7

2.3.2 <External Connectors>....................................................................7

2.4 <Memory and CFAST Setup> ......................................................................8

2.4.1 < Memory Setup > ...........................................................................8

2.4.2 < CFAST Setup >.............................................................................9

2.5 <CMOS & ATX Setup>...............................................................................10

2.6 <Serial ATA Interface>................................................................................ 11

2.7 <Ethernet Interface>...................................................................................12

2.8 <Onboard Display Interface>......................................................................13

2.8.1 <External Display>.........................................................................13

2.8.2 <Internal Display>..........................................................................14

2.9 <Integrated Audio Interface>......................................................................19

2.10 <USB Interface>.......................................................................................20

2.11 <Serial Port>.............................................................................................22

2.12 <PCIe Mini Card and SIM Interface>........................................................24

2.12.1 <SIM Setup>................................................................................26

2.13 <GPIO and SMBUS Interface>.................................................................28

2.14 <Power Supply and Fan Interface >.........................................................29

2.14.1 <Power Input>..............................................................................29

2.14.2 <Power Output>...........................................................................29

LE-37C User’s Manual

2.14.3 <Fan connector>..........................................................................30

2.15 <Switch and Indicator>.............................................................................31

Chapter 3 <System Setup> .........................................................................32

3.1 <Audio Configuration>................................................................................32

3.2 <Display Properties Setting>......................................................................33

3.3 <SATA configuration>.................................................................................35

3.4 <SATA RAID Configuration>.......................................................................36

Chapter 4 <BIOS Setup> .............................................................................37

Appendix A <I/O Port Pin Assignment>.....................................................38

A.1 <Serial ATA Port>.......................................................................................38

A.2 <IrDA Port>................................................................................................38

A.3 <LAN Port>................................................................................................38

A.4 <LPC Port>................................................................................................38

Appendix B <Flash BIOS> ..........................................................................39

B.1 <Flash Tool> ..............................................................................................39

B.2 <Flash BIOS Procedure>...........................................................................39

Appendix C <Programming GPIO’s> .........................................................40

Appendix D <Programming Watchdog Timer >........................................41

Contact Information.....................................................................................42

LE-37C User’s Manual

-1-

Chapter 1 <Introduction>

1.1 <Product Overview>

LE-37C the 4th Generation Intel of the 3.5 inch miniboard, supports 4th Generation Intel®

Core™ i7, Core™ i5, Core™ i3, Celeron Mobile Processor and features Intel

DH82QM87 chipset, integrated HD Graphics, DDR3L memory, REALTEK High

Definition Audio, Serial ATA with AHCI and RAID function for a system and Intel Gigabit

LAN.

Intel Haswell Bridge Processor

The 4th Generation Intel® Core™ processor family mobile is the next generation of

64-bit, multi-core mobile processor built on 22- nanometer process technology. Based

on a new micro-architecture.

New features for Intel DH82QM87 chipset

The DH82QM87 chipset provides better CPU, graphics, media performance, flexibility

and more enhanced security that is suitable for a variety of intelligent systems the ideal

choice.

All in One multimedia solution

Based on Intel DH82QM87 chipset, the board provides high performance onboard

graphics, CRT, 24-bit dual channel LVDS interface, DisplayPort, DVI and 2 channels

High Definition Audio, to meet the very requirement of the multimedia application.

Flexible Extension Interface

The board provides two PCIe mini slot and one SIM slot.

LE-37C User’s Manual

-2-

1.2 <Product Specification>

General Specification

Form Factor 3.5 inch Miniboard

CPU 4th Generation Intel® Core™ i7, Core™ i5, Core™ i3, Celeron Mobile

Processor. Package type: FCBGA1364

Memory 1 x DDR3L SO-DIMM 1333/1600 MHz up to 8GB

Support Non-ECC, unbuffered memory only

Chipset Intel® DH82QM87 PCH

Real Time Clock Chipset integrated RTC with onboard lithium battery

Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s

Power Management Support ACPI 4.0 compliant

Serial ATA Interface 2 x serial ATA3 interface with 600MB/s transfer rate (Only for SATA3)

Display Interface Intel® 4th Generation Core mobile processor integrated HD Graphics 4600

1 x CRT (Onboard 2x8 pin-header)

1 x DVI (Rear I/O HDMI connector)

1 x DisplayPort (Rear I/O Port)

1 x LVDS (Onboard 24-bit dual channel connector with +3.3/+5/+12V supply)

Audio Interface Realtek ALC888 HD Audio

LAN Interface 1 x Intel® I217-LM Gigabit LAN (Support iAMT9.0)

GPIO Interface Onboard programmable 12 pin-header, 8-bit Digital I/O interface

Extended Interface 2 x Mini PCIe slot, 1 x SIM slot, 1 x CFAST

(Optional support mSATA (Only for SATA3) for Mini_Card1)

Internal I/O Port 1 x RS232/422/485, 1 x SMBUS, 1 x GPIO, 2 x USB3.0, 2 x USB2.0,

1 x IrDA, 1 x CRT, 1 x LPC, 1 x LVDS, 1 x LCD inverter, 2 x Serial ATA3 ,

1 x DC-Out, 1 x PS/2 and 1 x Front panel Audio

External I/O Port 1 x LAN, 1 x DVI, 1x DisplayPort, 2 x USB3.0 and 1 x RS232

Power Requirement 9~24V 4-pin full range DC Input

Dimension 146mm x 101mm

Temperature Operating within 0~60 centigrade

Storage within -20~85 centigrade

Ordering Code

LE-37C17L i7-4700EQ Mobile Processor, CRT, LVDS, DVI, DisplayPort, LAN, LPC,

SATA3, USB2.0, USB3.0, HD Audio , SMBUS, SIM, GPIO, IrDA, DC-Out,

PS/2, PCIe mini card, mSATA, CFAST.

LE-37C17P Celeron 2002E Mobile Processor, CRT, LVDS, DVI, DisplayPort, LAN, LPC,

SATA3, USB2.0, USB3.0, HD Audio, SMBUS, SIM, GPIO, IrDA, DC-Out,

PS/2, PCIe mini card, mSATA, CFAST.

The specifications may be different as the actual production.

For further product information please visit the website at TUhttp://www.commell.com.twUT

LE-37C User’s Manual

-3-

1.3 <Mechanical Drawing>

LE-37C User’s Manual

-4-

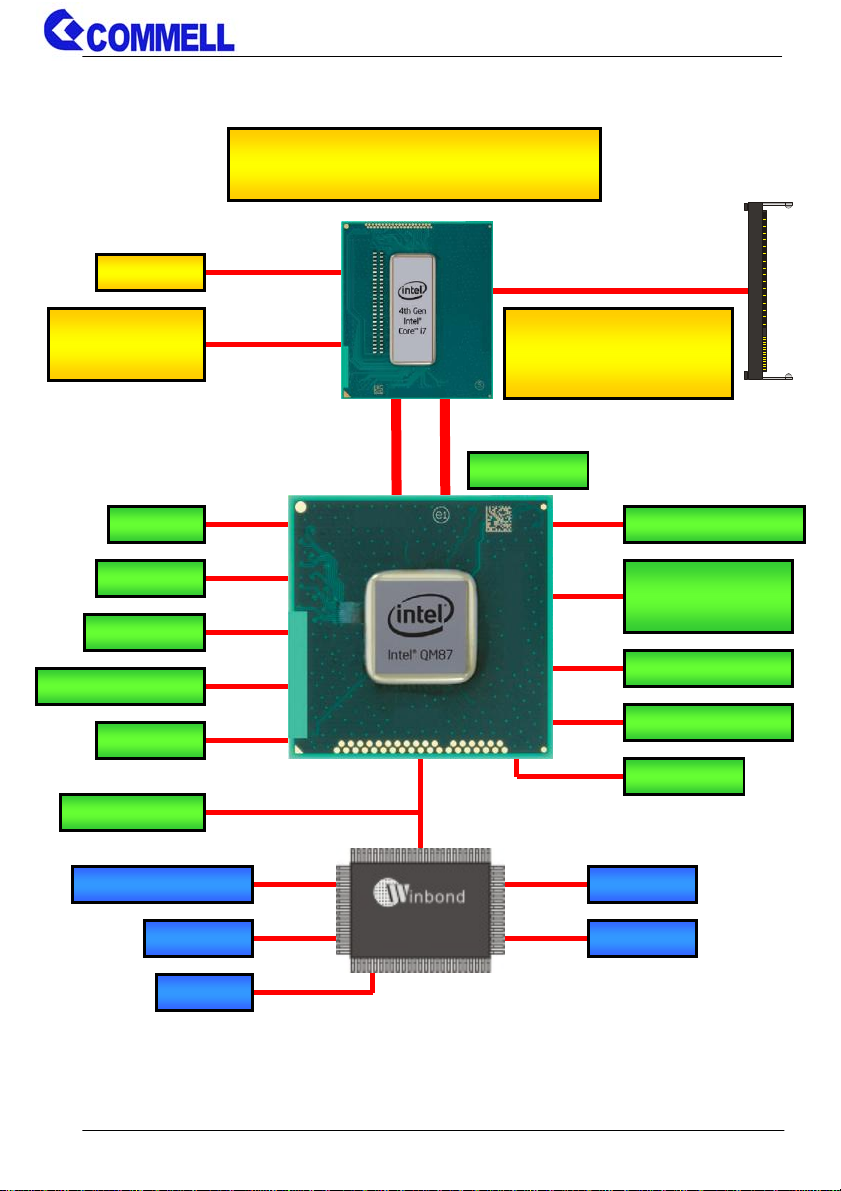

1.4 <Block Diagram>

4th Generation Intel® Core™ i7, Core™

i5, Core™ i3, Celeron Mobile Processor

1 x 204-pin DDR3L

SO-DIMM 1333/1600 MHz

up to 8GB

1 x LVDS

1 x CRT

1 x DisplayPort

1 x DVI

2 x SATA

ALC888 HD Audio

1 x Intel® I217-LM

2 x External USB

2 x Internal USB

2 x PCI-E mini card

1 x LPC(TPM)

1 x RS232/422/485

1 x RS232 W83627DHG-P

1 x PS/2

1 x GPIO

1 x IrDA

1 x SMBUS

1 x CFAST

DH82QM87

FDI DMI

eDP Channel A

SPI Flash

DDI

CRT PCI-E x1

USB3.0

2 x Internal USB

USB2.0

SATA3

PCI-E x1

SATA3

LPC

SPI

LE-37C User’s Manual

-5-

Chapter 2 <Hardware Setup>

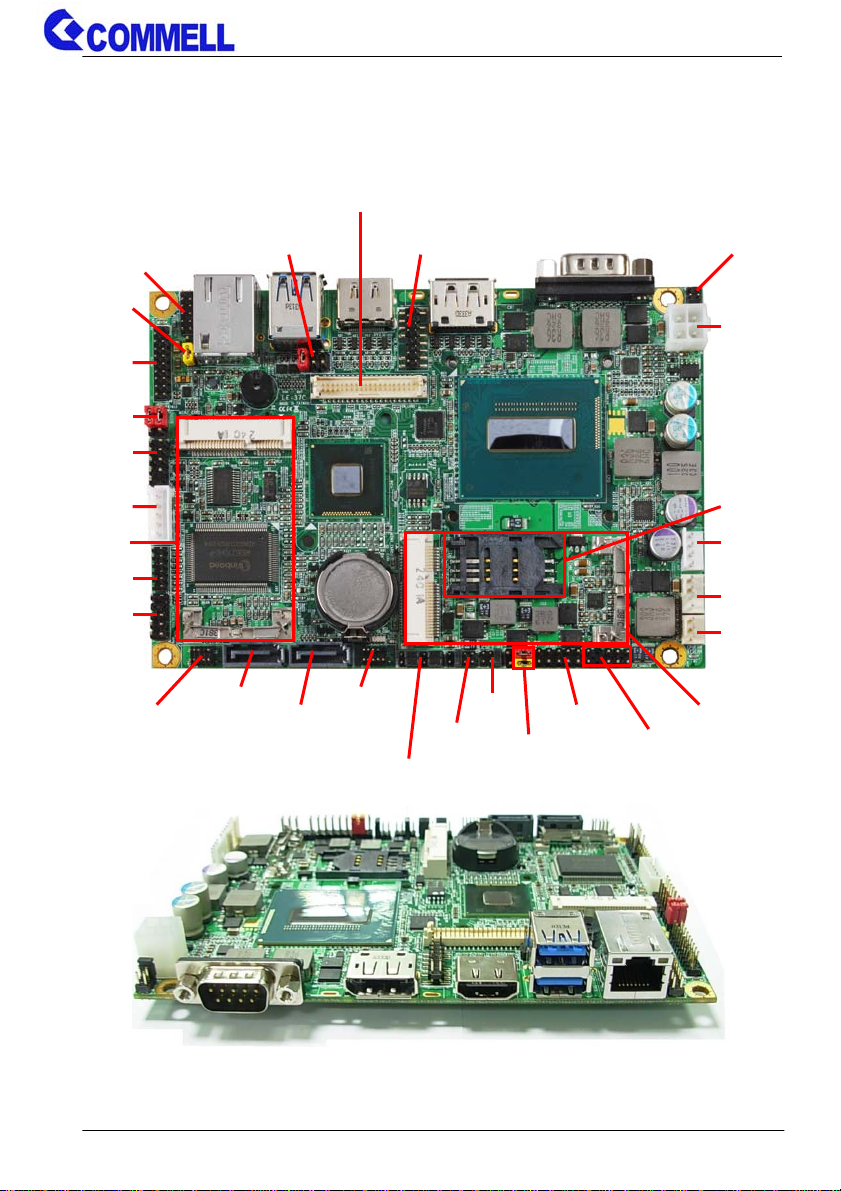

2.1 <Connector Location>

CN_DIO

CN_USB3

JVUSB

CN_USB2

JMSATA

CN_INV

CN_LPC

CN_PS/2

MINI_CARD1

CN_AUDIO

JVLCD CN_CRT

CN_LVDS

SATA3-1

SATA3-2

CN_COM2

JCSEL1

JCSEL2

JP2

JRTC

JAT

JFRNT

CN_IR

CN_SMBUS

JP1

DC_IN

MINI_CARD2

DC_OUT

CPUFAN

SYSFAN

SIMM

COM1 DisplayPort DVI USB RJ45
