DOOR STATION DR-2GN / 2GNR

User Manual

•Thank you for purchasing COMMAX products.

•Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow

instructions to use a product exactly.

•The company is not responsible for any safety accidents caused by abnormal operation of the product.

www.safemag.ru

1. Introdution..................................................... 3

2. Important Safeguard..................................... 4

3. Overview........................................................ 5

4. Wiring & Installation....................................... 7

5. Specifications............................................... 10

Contents

www.safemag.ru

Your unit is designed so it can be flush mounted on the or used. When flush mounted on the wall, the stand permils you to the

unit for an gular of unit view. The model number is located on the bottom and record the serial number in the space provided

below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product.

Model No. Serial No.

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

This symbol is intended to alert the use to the presence of uninsulated

“

“dangerous Voltage”

”

within the product’s enclose that

may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the use to the presence of important operating and maintemance(servicing) instructions in the

literature accompanying the appliance

CAUTION: To reduce the risk of electrix shick, do not remove cover(or back) no user-serviceable

part sinside refer servicing to quaured service personnel

caution

Rosk of electric shock

do not open

1. Introduction

www.safemag.ru

▲

DamageRequiringService:This equipment from the power source and source and refer servicing to qualified service personnel under the following

conditions:

ⓐwhenthepowerisdamaged.

ⓑifliquidhasbeenspiledorobjects have hallenintotheunit

ⓒiftheequipmenthasbeenexposed to rainorwater.

ⓓiftheequipmenthasbeemdropped or otherwisedamaged.

ⓔwhentheequipmentexhibitsadistinctchange in performance-thisindicatesaneedforservice.

▲

WaterandMoisture:Donotusethisproduct near water, for example, neara bath tub, wash bowl, kitchensink,or laundru tub, in a wetbasement, or near

aswimmingpool,andthelike.

▲

Accessories:The product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Any mounting of the manufacture’s

insturctions,andshoulduseamountingaccessory recommended bythemanufacturer.

▲

ObjectandLiquidEntry:Never push objects ofanykindintothisproductthroughopenings as they maytouchdangerousvoltagepointsorshort-outparts

thatcouldresultinafireor electric shock.Neverspillliquidofanykindonthe product.

▲

Lightning:For added protection for this product before a lihgtning storm, or when it is left un attached and un used for long periods of time, unplug it from

the wall outlt and disconnect the other system. This will prevent damage to the product due to lightming and power-line surges. If you live in an

ared heavily prone to lightning stoms, it is recommended that you invest in power-line, telephone-line, RFcable and actuator/ polarization surge

protectorstoprotectyourappliancesystemfrom possiple damage

2. Important Safeguards

www.safemag.ru

3. Overview

[

]

www.safemag.ru

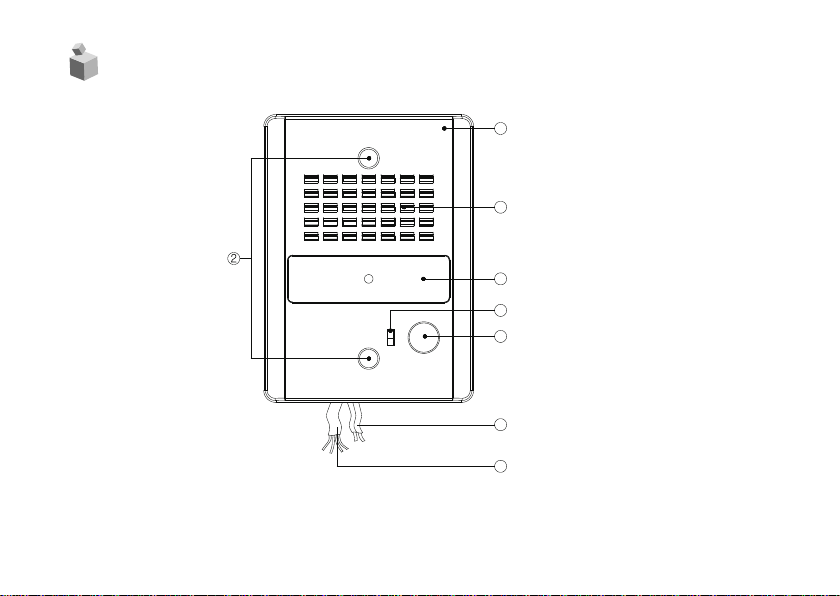

No. Contents

Name

1 Front case

2 Stationary hole

3 Speaker trasmits visitor’s voice (outdoor->indoor)

Operation Status LED

5 Microphone transmits householder’s voice(indoor-outdoor)

6 Call button

7 Door Release CABLE (+) WHITE, (-) BLACK

8 CABLE (RED, BLUE Room station)

www.safemag.ru

1. Connect Room station cables as appeared in the figure.(polarity with care)

2. Connect Door Release cable as appeared in the figure.

(applied only for DR-2GNR)

3. Check to see whether the system functions.

4. Wiring & Installation

door@@@@

option@of@contact@version

CR@Z@blue

CQ@Z@red

to@r

door@lockHdcYvQRvI

dlMSHkI

CR@Z@blue

CQ@Z@red

to@r

www.safemag.ru

4. If there is no hole on the wall, you can allocate the wire on the groove around the case as

appeared in the figure.

www.safemag.ru

5. Place the system on the wall and mount with screws supplied.

cGpGGGGGGGe

ZU\OP

wGGGTGGZU\OP

www.safemag.ru

5. Specification

specification Model DR-2GN/2GNR

Wiring System (household) DOOR PHONE 2-wire system

Communication method Synchronous Call System

Rated voltage 9V (Supplied from the DOOR PHONE)

Operating Temperature -10℃~+40℃

Dimensions 93.5(W) ×126(H) ×18(D)

Weight (g) 170

Communication distance 50m /ø0.8

www.safemag.ru
