Comeup CWG-30750 Manual de referencia

Electric Winch

Model: CWG-30750

PN: w/3.8kw x 6P motor

156577 380V50Hz

PN: w/5.5kw x 4P motor

150009 380V50Hz 158322 380V50Hz

151415 380V50Hz 158762 415V50Hz

152860 440V50Hz 931505 400V50Hz

Introduction

XFeature

Lifting capacity: 2,200 kg at 50Hz wire rope top layer

Lifting height: 97 m

Lifting speed: 4P: 6.9-12.6 m/min at 50Hz ; 6P: 4.5-8.3 m/min at 50Hz

Brake: Electromagnetic spring-applied failsafe brake

Control: Pendant switch powers the winch

XUnpacking

．Winch assembly 1pc

．Wire rope 16 mm x 100 m w/safety hook except for PN:150009 1pc

．Wire rope 14 mm x 150 m w/safety hook for PN:151415 1pc

．Low voltage control ass’y LV-320 1pc

．Pendant switch CPB-161 w/cord 1.25 mm2

x 3C x 3 m 1pc

．Pendant switch CPB-161 w/cord 1.25 mm2

x 3C x 6 m for PN 931505 1pc

XRead this manual carefully

You should carefully read and understand this manual before operating it.

Careless winch operation may result in personal injury hazards or property

damage.

XInformation requesting or parts ordering

Please specify the followings information:

．Winch PN

．Serial number

．Part description

．Replacement part number

．Quantity for each part

Installation

Before using the winch, make sure all electrical components have no

corrosion or damaged; the environment should be clear and dry.

XPerformance

XWiring Diagram

Warning

．The winch is not intended to be used in any manner for the movement or

lifting of personnel.

．The lifting capacity shown is based on the top layer of rope on the drum.

．The rope winding on the drum shall remain 5 wraps from the drum.

Winch Model CWG-30750

Motor kwxp 5.5 x 4 3.8 x 6

Size(mm) 16

Recommended

Wire Rope Breaking (kg) 11,900

50Hz 4,014 50Hz 3,446 50Hz 3,019Rated Load

(kg) 60Hz 3,211 Rated Load

(kg) 60Hz 2,756 Rated Load

(Kg) 60Hz 2,415

6.9 8.1 9.2

50Hz 4.5 50Hz 5.3 50Hz 6

8.2 9.7 11

Speed

(m/min) 60Hz 5.4

Speed

(m/min) 60Hz 6.3

Speed

(M/min) 60Hz 7.2

1st

Layer

Rope-Winding Cumulating

Sum

(

)

2nd

Layer

Rope-Winding

Cumulatin

3rd

Layer

Rope-Winding

Cumulatin

Sum

(

)

50Hz 2,686 50Hz 2,419 50Hz 2,200Rated Load

(kg) 60Hz 2,148 Rated Load

(kg) 60Hz 1,935 Rated Load

(kg) 60Hz 1,760

10.4 11.5 12.6

50Hz 6.8 50Hz 7.5 50Hz 8.3

12.4 13.8 15.1

Speed

(m/min) 60Hz 8.1

Speed

(m/min) 60Hz 9

Speed

(m/min) 60Hz 9.9

4th

Layer

Rope-Winding Cumulating

Sum (m) 56

5th

Layer

Rope-Winding

Cumulating Sum (m) 75

6th

Layer

Rope-Winding

Cumulating Sum (m) 100

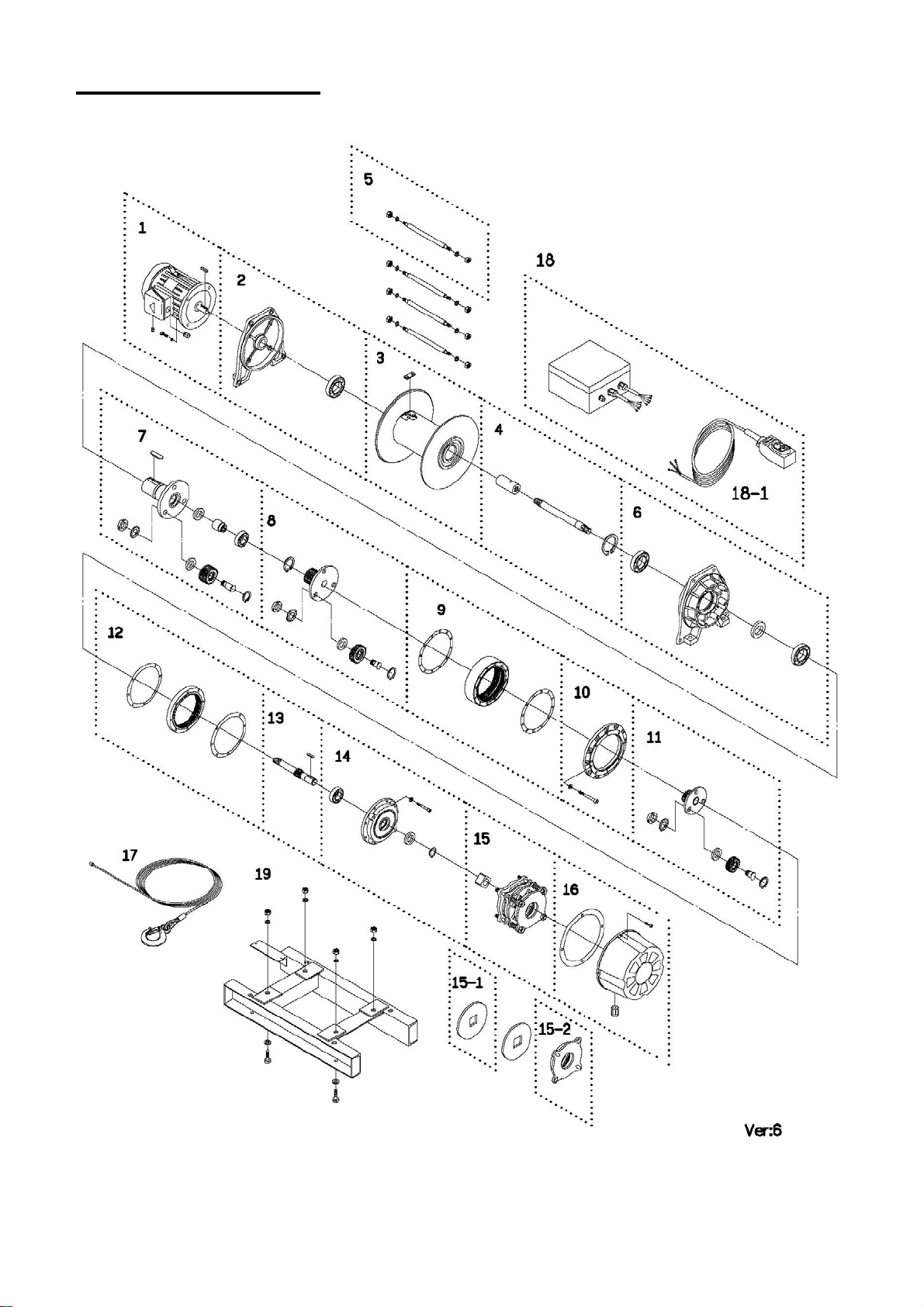

Parts List

Part No. configurations:

Cycle Voltag kw x p Motor kw x p Motor

50 Hz 380 V 5.5 x 4 880637 3.8 x 6 880641

50 HZ 400 V 5.5 x 4 881448

50 Hz 415 V 5.5 x 4 880638

50 Hz 440 V 5.5 x 4 880636

Standard Value for brake coil (50Hz):

Item No. Description Part No. Qty

1 Motor kit As arranged 1

2 Motor support rack kit 880610 1

3 Drum kit 880611 1

4 Connect shaft kit 880612 1

5 Tie bar kit 880613 4

6 Gearbox support rack kit 880614 1

7 3rd stage carrier kit 880616 1

8 2nd stage carrier kit 880618 1

9 2nd & 3rd ring gear kit 880619 1

10 Fix plate kit 880620 1

11 1st stage carrier kit 880622 1

12 1st ring gear kit 880623 1

13 1st shaft kit 880624 1

14 Brake base kit 881638 1

15 Brake kit As arranged 1

15-1 Brake disc 880626 2

15-2 Brake coil As arranged 1

16 Brake rear cover kit 880627 1

Wire rope w/hook 880628 1

17 Wire rope w/hook for PN:151415 882165 1

18 Low voltage control ass’y LV-320 As arranged 1

Remote control,CPB-161 881047 1

18-1 Remote control,CPB-161 for PN 931505

(1.25 mm2x 3C x 6 m) 882386 1

19 Base plate kit 881637 1

Cycle Voltage Brake kit Brake coil LV-320

50 Hz 380 V 881640 880648 881826

50 Hz 400 V 881641 881450 882385

50 Hz 415 V 881642 880649 881831

50 Hz 440 V 881643 880650 882055

Voltage 220V 380V 400V 415V 440V

Black & Blue 28Ω108Ω90Ω117Ω126Ω

Black & Red 12Ω48Ω40Ω52Ω56Ω

Red & Blue 15Ω54Ω50Ω62Ω70Ω

Winch Assembly
