Logos

LS9461M

FULL TECHNICAL MANUAL

Quadra and Logos Handset Kit

art.LS9461M

for Simplebus 2 system

Single-family kit consisting of Quadra series entrance panel art.4893M

and Logos series door entry monitor with handset art.LS8701,

Simplebus 2 system

The entrance panel has call buttons to expand the kit for up to 4

residences

Up to 4 door entry monitors (available to purchase separately) can be

installed in each residence

Plus, the kit can be expanded with additional panels using optional

accessories

The kit is supplied pre-programmed, ready to use and with all the

accessories required to create the system

Suitable for installation in homes, commercial properties or offices.

Think before you

and use the

interactive links

Help us to save the planet.

Think of the planet before printing this document.

You are reading an interactive document: quickly access the

content you are interested in via links.

| Table of contents |

Table of contents

Kit art.

LS9461M 4

Notes for the installer 5

Art. 4893M 6

Description 6

Technical speciﬁcations 8

Installation 9

Programming 12

Art. 1209 19

Description 19

Technical speciﬁcations 20

Art. LS8701 21

Description 21

Technical speciﬁcations 25

Programming the user code 27

Installation 31

Programming 34

Operating distances 40

Wiring diagrams 41

System expansion diagrams 43

Using the entrance panel relay on generic actuator control 46

Table of user codes 47

| Table of contents |

Kit art.

LS9461M

The kit components are supplied pre-programmed to work as a single-family setup.

1216

1214/2C

LS9461M

1209

4893M

LS8701

The door entry monitor has an NFC connection which means it can be programmed

quickly and easily via the MyComelit app, available to download free of charge.

Programming can even take place while the door entry monitor is off!

The door entry monitor can nevertheless be used to program the user code via dip-switch

and change the functions associated with the buttons using the menu.

| Table of contents |

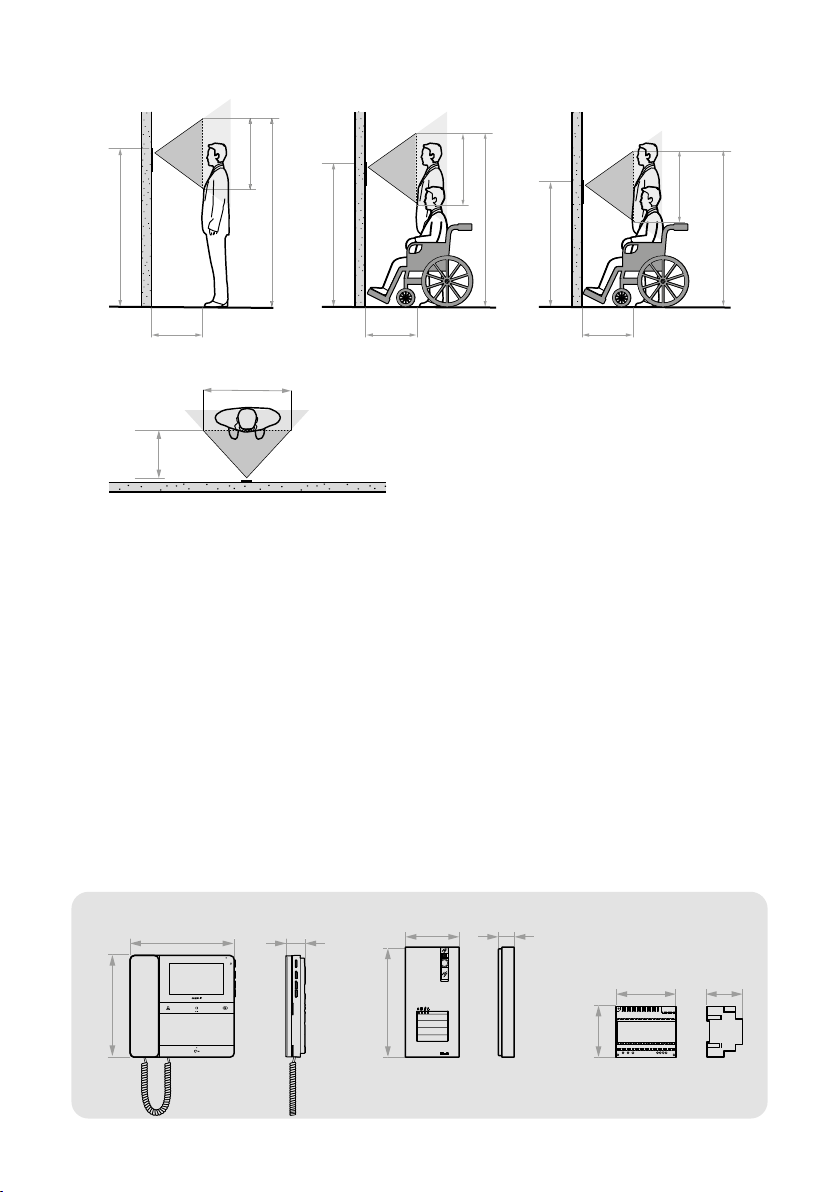

Notes for the installer

165 cm

72 cm

201 cm

72°

50 cm

166 cm

130 cm

50 cm

150 cm

186 cm

50 cm

92 cm

85°

72 cm

The camera must not be installed in front of light sources, or in places where the ﬁlmed subject is against the

light. In dim environments, we recommend additional lighting is provided.

95 mm

195 mm

28 mm

106 mm

89 mm

62 mm

186 mm

180 mm

35 mm

| Table of contents |

Art. 4893M

Description

Wall-mounted external unit for Quadra series door entry monitor. Die-cast aluminium front panel, wide-angle

colour video camera and single LED for lighting at night. Mechanical buttons with the option of setting 1 to 4

call buttons via DIP-switch. Indicator LED for call sent, lock-release activated, audio activated and system busy.

Loudspeaker volume adjustment and audio balancing. Bus line power supply. Dimensions: 95x195x28 mm.

1. Die-cast aluminium cover.

2. Default camera lighting LED, call activated (see Entrance panel settings on page 12).

3. Wide-angle colour video camera.

4. Speaker.

5. Indicator LED:

call sent / lock-release activated

audio activated / system busy.

6. Call button 1 / 2 / 4 users.

7. Microphone.

| Table of contents |

CNF

C NC

JP1

C NC

8. DIP-SWITCH for function programming.

9. PR programming input/output switch.

CNF programming conﬁrmation switch.

10. Terminal block M1:

LL bus line connection.

RTE request to exit button input.

COM common input for RTE and DO contacts.

DO door open indication input.

11. Audio balancing and loudspeaker volume adjustment.

12. Terminal block M2:

SE- SE+ connection for electric door lock.

NC NO C relay contacts.

13. JP1 enabling the RC network for door lock ﬁlter on relay contacts.

14. Microphone volume control.

| Table of contents |

Technical speciﬁcations

GENERAL DATA

Type Complete unit

Height (mm) 195

Width (mm) 95

Depth (mm) 28

Product weight (g) 300

Product colour Grey RAL 9006, Black RAL9005

Surface mounting Ye s

COMPATIBLE SYSTEMS

Simplebus 2 audio/video kit with power

supply unit art. 1209 Ye s

AUDIO SPECIFICATIONS

Microphone 6 mm (ø), Omnidirectional

Loudspeaker 36 mm (ø), 8 Ohm, 1W

CAMERA FEATURES

Camera Colour

Sensor type 1/4" CMOS

Fixed lens dimensions (mm) 2.1

Viewing angle (H x V - °) 85 x 72

Sensitivity (lux) 0.1 (colours)

ELECTRICAL SPECIFICATIONS

Type of power supply Power supply via video entry bus

Power supply voltage 33 VDC

Maximum absorption (W) 8.25

HARDWARE SPECIFICATIONS

Call type Buttons

Type of buttons Mechanical

Number of buttons 4

Backlighting colour White

Terminals LL RTE COM DO SE- SE+C NC NO

Number of inputs 2

Number of outputs 2

Output type Relay (C-NO-NC, 10A@12-24 VAC/VDC), SE: 4A unlock pulse, maintenance

current 200 mA for 12 VAC/DC door locks (maximum impedance 18 Ohm)

SETTINGS

Loudspeaker volume Yes

Mic volume Ye s

ENVIRONMENTAL AND CONFORMITY SPECIFICATIONS

IP protection rating IP54

IK anti-vandal protection rating IK08

Operating temperature -25 to 55

Operating humidity (max. RH) 25 to 95

Environmental class IV

CE certification RoHS II - 2011/65/EU (EN IEC 63000:2018), EMC 2014/30/EU (EN 61000-6-

1:2007, EN 61000-6-3:2007+A1:2011)

MAIN FUNCTIONS

Lock-release Yes

Number of auxiliary relays 1

Input for local lock-release button Yes

Input for door open indication Ye s

| Table of contents |

COM

L L RTE

JOHN DOE

Installation

You

can download the free software (art. 1235A) to print the entrance panel name cards,

using the adhesive pre-cut sheets available in our catalogue (art. 1217A).

OPEN

| Table of contents |

JOHN DOE

CLACK!

Before securing the screw, make sure that you do not need to program the external

unit and make sure that the metal front panel does not rub against other metal parts,

with consequent risk of damage to its insulating coating.

While the system is running, take care not to accidentally call users when replacing

the nameplate labels.

To guarantee the product is

water-tight: fit it properly.
