FULL TECHNICAL MANUAL

People door entry monitor art. PL6721

for Simplebus 2 system

People series colour door entry monitor for Simplebus 2 system.

Hands-free version with 4.3-inch / 16:9 screen.

Even when switched off, the video door entry monitor can be

programmed using a smartphone and the MyComelit app, which can be

downloaded free of charge.

It is supplied with a metal surface-mounted backplate, which ensures it

is firmly and securely anchored, and with a line distribution terminal.

It has 6 mechanical buttons on the front panel with icons identifying the

factory-set function.

3 of the buttons are backlit to ensure ease of use: green for the ‘audio

socket’ function, red for the ‘end communication’ function, and white for

the ‘electric lock’ function.

3 buttons are programmable and pre-configured to call the porter

switchboard, control an actuator, and perform self-ignition.

The buttons at the centre of each row are tactile to guide visually

impaired people.

On the right side of the door entry monitor, on the other hand, there are

buttons to activate the Silent mode with a red indicator light and related

icon, as well as buttons to access the menu for adjusting brightness,

contrast, colour and the ringtone volume.

It comes as standard with the floor door call, which can also be

programmed for other functions.

Dimensions (L x H x D): 135 x 170 x 23 mm.

Think before you

and use the

interactive links

Help us to save the planet.

Think of the planet before printing this document.

You are reading an interactive document: quickly access the

content you are interested in via links.

| Table of contents |

Table of contents

Description 4

Front buttons - factory programming 5

Side buttons 6

Indicator LEDs 7

Technical speciﬁcations 8

Programming the user code 10

Programming the user code via the MyComelit app 10

Programming the user code using the dip-switches 13

Installation 14

Disassembling the door entry monitor 15

Removing and ﬁtting the connection terminals 15

Connections 16

Programming 17

Programming via installer menu 18

Programming via MyComelit app 20

Expansion diagrams 23

Wiring diagrams 24

System with power supply unit art. 1210/1210A and operating distances 24

System with power supply unit art. 4888C and operating distances 27

Warning 29

| Table of contents |

Description

1 7

1. 4.3’’ / 16:9 LCD screen.

2. Mechanical side buttons.

3. Mechanical front buttons, with touch guides for sight impaired users on the middle buttons of each row.

4. NFC detection area.

5. Microphone.

6. Connection terminal block:

L L Terminals for bus line connection.

CFP CFP Terminals for ﬂoor door call connection.

7. Speaker.

8. Dip-switch for programming the user code.

9. CV5 Jumper for video closure.

10. Pin for securing the terminal block.

| Table of contents |

Front buttons - factory programming

Standard call to switchboard

fPress the button to send a call to the porter switchboard.

Generic actuator

fPress the button to activate a generic actuator (art. 1256) or the relay for the external entrance

panel.

Self activation

fPress the button to access real-time viewing of the images on the outdoor entrance panel

camera.

End of communication

fPress the button to end the audio communication.

Lock-release

fPress the button to activate the door lock.

Door opening on call

This button can also be used to enable “Automatic lock-release on receipt of call”, which allows

automatic activation of the lock-release relay on receipt of a call originating from the external

entrance panel.

√ The function must be authorised by the installer via the MyComelit app.

fWhen the door entry monitor is in standby, press for 5 seconds to enable/disable

“Automatic lock-release on receipt of call” mode.

» A confirmation tone will play.

» The steadily lit LED indicates that the function is active.

Start communication

fPress the button to activate communication.

Automatic answer

This button can also be used to enable “Automatic answer”, which allows automatic activation of the

audio on receipt of a call originating from the external entrance panel.

√ The function must be authorised by the installer via the MyComelit app.

fWhen the door entry monitor is in standby, press for 5 seconds to enable/disable “Automatic

answer” mode.

» A confirmation tone will play.

» The steadily lit LED indicates that the function is active.

To change the factory programming for the buttons, please refer to the chapter Programming on page 17.

| Table of contents |

Side buttons

Button for activating “Silent mode”

OK Conﬁrm button

Menu access and navigation button

Buttons for scrolling menus and selecting

values

ACTIVATING “SILENT MODE”

fPress the button to activate/deactivate Silent mode.

» The red LED indicates that the function is active.

ACCESSING AND NAVIGATING MENUS

fPress one of the buttons below to access the user menu.

fPress and to scroll through the menu and/or select the values, then press the confirm button to

confirm the selection.

User menu options

Exit

Call volume adjustment

Select ringtone upon call from external entrance panel

Audio volume adjustment

Brightness control

Contrast adjustment

Colour adjustment

| Table of contents |

Indicator LEDs

Red LED Flashing: communication taking place.

White LED

Flashing: incoming call/communication taking place.

Flashing with door entry monitor in standby: “Door open” indication.

Lit steadily with door entry monitor in standby: “Automatic lock-release on receipt

of call” mode enabled.

Green LED

Flashing: incoming call.

Lit steadily: communication taking place.

Lit steadily with door entry monitor in standby: “Automatic answer” mode

enabled.

Red LED 4 flashes: system busy.

Lit steadily: silent mode enabled

| Table of contents |

Technical speciﬁcations

135 mm

170 mm

23 mm

GENERAL DATA

Product colour White RAL9003, Black RAL9005

Surface mounting Ye s

Desk base mounting Yes, with specific accessory

Product weight 430 grams

Coating material type ABS, PMMA

COMPATIBLE SYSTEMS

Simplebus 2 audio/video with power supply unit art. 4888C

Simplebus 2 audio/video with power supply unit art. 1210/1210A

Simplebus 2 audio/video kit with power supply unit art. 1209

DISPLAY

Display size 4.3''

Aspect ratio 16:9

Resolution (pixels) 480x272

On-screen menu (OSD) Yes

Type of display TFT

AUDIO SPECIFICATIONS

Microphone 6 mm (ø), Omnidirectional

Loudspeaker 36 mm (ø), 40 Ohm, 1W

ELECTRICAL SPECIFICATIONS

Type of power supply Power supply via video entry bus

Power supply voltage 33 VDC

Absorption in standby 0.03 W

Maximum absorption 9.2 W

HARDWARE CHARACTERISTICS

Type of buttons Mechanical

Terminals L L CFP CFP

Removable terminals Yes

Number of inputs 1

Backlighting colour Green, White, Red

Total buttons 6

| Table of contents |

SETTINGS

Loudspeaker volume Yes

Ringtone volume Yes

Screen brightness Yes

Screen contrast Yes

Screen colour Yes

ENVIRONMENTAL AND CONFORMITY SPECIFICATIONS

IP protection rating IP30

Operating temperature (°C) 5 ‐ 40 °

Operating humidity (max. RH) 25 - 75 %

Environmental class I

CE certification RoHS II - 2011/65/EU (EN IEC 63000:2018), EMC 2014/30/EU (EN 61000-6-

1:2007, EN 61000-6-3:2007+A1:2011)

GENERAL FEATURES

Lock-release Yes

Self activation Ye s

Intercom calls Yes

Actuator control Yes

Switchboard call Yes

Input for floor door call Ye s

Silent mode Ye s

Automatic lock-release on receipt of

call Yes

Automatic answer Yes

Door open indication Ye s

Customisable ringtone Yes

Panic call Yes

Selective intercom call Yes

Visual indications Ye s

Acoustic indications Ye s

| Table of contents |

Programming the user code

A user code must be assigned to the door entry monitor. The user code can be programmed via the MyComelit

app or using the dip-switches.

<< OR >>

SOFTWARE VIA MYCOMELIT APP HARDWARE VIA DIP-SWITCH

Programming the user code via the MyComelit app

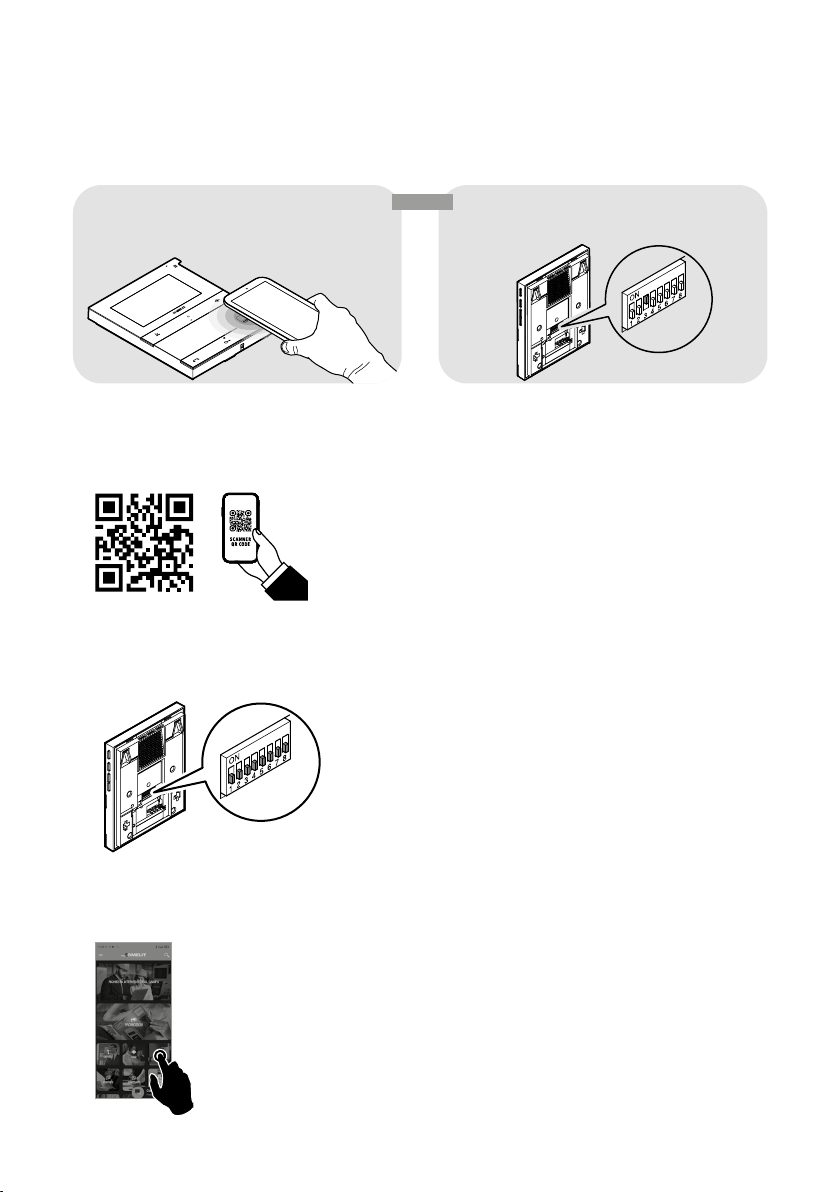

The door entry monitor has an NFC connection which means it can be programmed quickly and easily via the

MyComelit app, available to download free of charge.

Programming can even take place while the door entry monitor is off, and without removing the device from its

packaging! The user code for several door entry monitors can be programmed in sequence!

√ All dip-switches must be set to OFF (factory programming) and should remain OFF even during normal

operation.

OFF !

1. Open the MyComelit app and log in (or create a new account if it is the ﬁrst time you have accessed it).

2. Select "PEOPLE DOOR ENTRY MONITOR SETUP".

| Table of contents |
