1 Front panel elements

Image 1.1 Operator interface of InteliLite 4 AMF20/AMF25

Control buttons

Position


Description

LEFT button. Use this button to move left orto change the mode. The

button can change the mode only if the main screen with the indicatorof

currently selected mode is displayed.

Note: This button will not change the mode if the controller mode is

forced by one of binary inputs listed in the Reference Guide –"Operating

modes" chapter.

RIGHT button. Use this button to move right orto change the mode.

The button can change the mode only if the main screen with the

indicatorof currently selected mode is displayed.

Note: This button will not change the mode if the controller mode is

forced by one of binary inputs listed in the Reference Guide –"Operating

modes" chapter.

HORN RESET button. Use this button to deactivate the horn output without

acknowledging the alarms.

InteliLite 4 AMF20+AMF25 Operator Guide 3

FAULT RESET button. Use this button to acknowledge alarms and

deactivate the horn output. Inactive alarms will disappearimmediately

and status of active alarms will be changed to "confirmed" so they will

disappear as soon as theirreasons dismiss.

UP button. Use this button to move up orincrease value.

PAGE button. Use this button to switch overdisplay pages.

DOWN button. Use this button to move down ordecrease value.

ENTER button. Use this button to finish editing a setpoint ormoving right in

the history page.

START button. Works in MAN mode only. Press this button to initiate the

start sequence of the engine.

STOP button. Works in MAN mode only. Press this button to initiate the

stop sequence of the Gen-set. Repeated pressing of button will cancel

current phase of stop sequence (like cooling)and next phase will

continue.

GCB button. Works in MAN mode only. Press this button to open orclose

the GCB.

MCB button. Works in MAN mode only. Press this button to open orclose

the MCB.

Indicators and others

Position

Description

GENERATOR status indicator. There are two states –Gen-set OK (indicatoris

green)and Gen-set failure (indicatoris red). Green LED is on if the generatorvoltage and

frequency is present and within limits. Red LED starts flashing when Gen-set failure

occurs. After FAULT RESET button is pressed, Red LED goes to steady light (if an

alarm is still active) oris off (if no alarm is active).

MAINS status indicator. There are two states –Mains OK (indicatoris green)and

Mains failure (indicatoris red). Green LED is on, if mains is present and within limits.

Red LED starts blinking when the mains failure is detected and afterthe Gen-set has

started and connected to the load it lights permanently until the mains failure

disappears.

Graphic B/W display, 132 × 64 px.

InteliLite 4 AMF20+AMF25 Operator Guide 4

GCB Status. Consists of 3 green LEDs. The middle green LED is on if GCB is closed. It is

driven by GCB CLOSE/OPEN output orby GCB feedback signal. Side green LEDs are on

in case the generatorstatus indicatoris ok.

LOAD. Green LED is ON if load is supplied by mains orby generator. It means, that

Genset ormains is OK and propercircuit breakeris closed.

MCB Status.Consists of 3 green LEDs. The middle green LED is on if MCB is closed. It is

driven by MCB CLOSE/OPEN output orby MCB feedback signal. Side green LEDs are on

in case the mains status indicatoris ok.

6 back to Front panel elements

InteliLite 4 AMF20+AMF25 Operator Guide 5

2 Display screens and pages

structure

The displayed information is structured into "pages" and "screens". Use PAGE button to switch overthe pages.

The page Measurement consists of screens which display measured values like voltages,

current, oil pressure etc., computed values like i.e. gen-set power, statistic data and the alarm list on the

last screen.

The page Setpoints contains all setpoints organized to groups and also a special group

forentering password.

The page History log shows the history log in the orderthat the last record is displayed first.

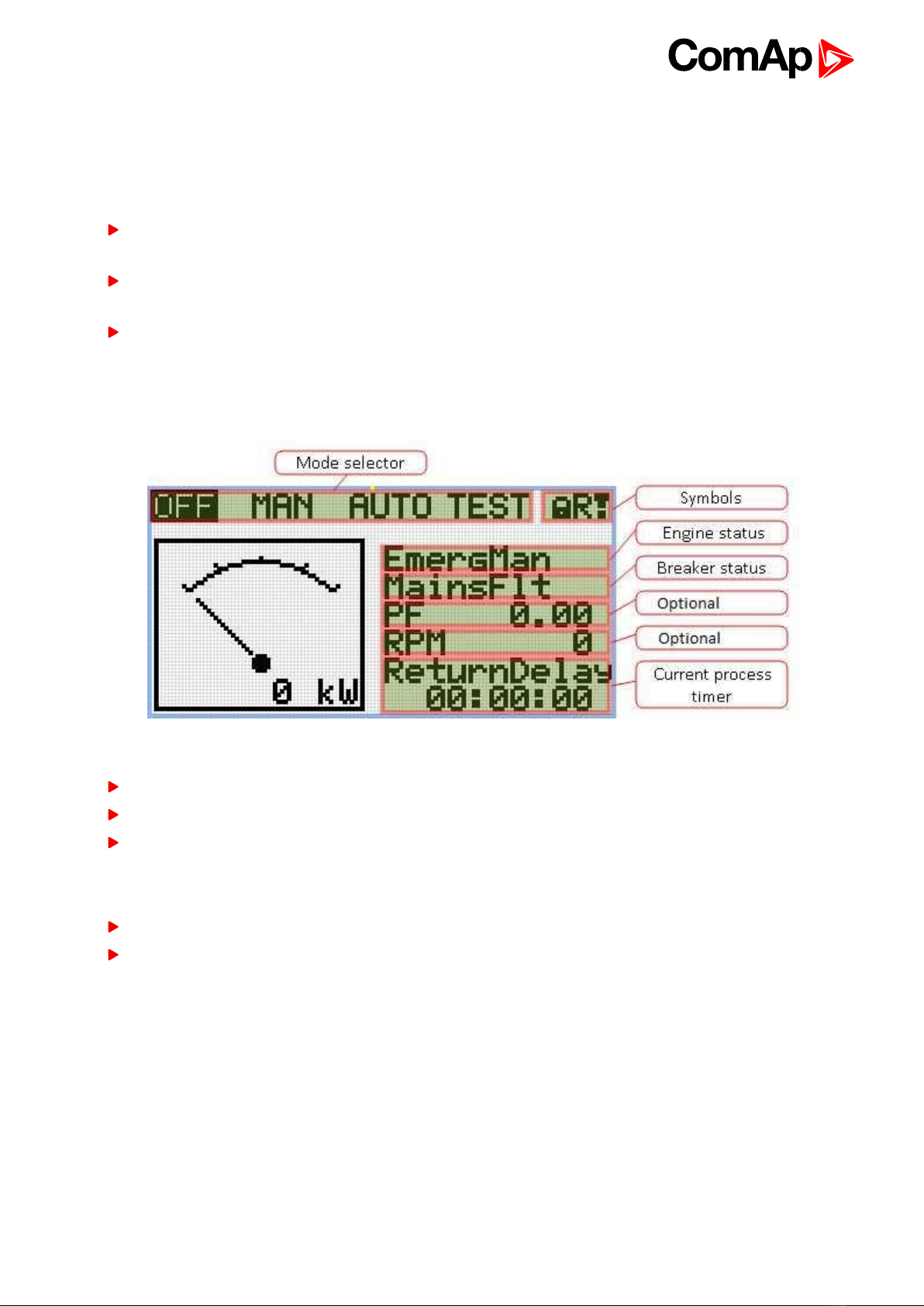

2.1 Main Screen

2.1.1 Symbols

Padlock –active when LBI ACCESS LOCK is active

R –active when there is active remote connection to controller

Exclamation mark –active when there is any alarm in alarmlist

2.1.2 Optional

Value can be chosen via setpoints Main Screen Line 1 (page 1)and Main Screen Line 2 (page 1).

Posibilities are: RPM, PF, Run Hours, ATT, AIN1

2.2 Measurement Screens

InteliLite 4 AMF20+AMF25 Operator Guide 6

Note: Use Up and Down button to

move between measurement

pages.

Note: Use Up and Down button to

move between measurement

pages.

Note: Use Up and Down button to

move between measurement

pages.
