Connect Frame to Tent

–Insert one end of main tent pole end

onto pin of pin & ring system, at tent

corner. (illus. 4)

–Go to opposite end of pole and

gradually apply pressure to the pole

forming an arch until you are able to

insert the pin into the pole.

–Repeat for second and third poles.

TIOGA™12’x8’

1Layout & Positioning

of Tent, Pole Assembly

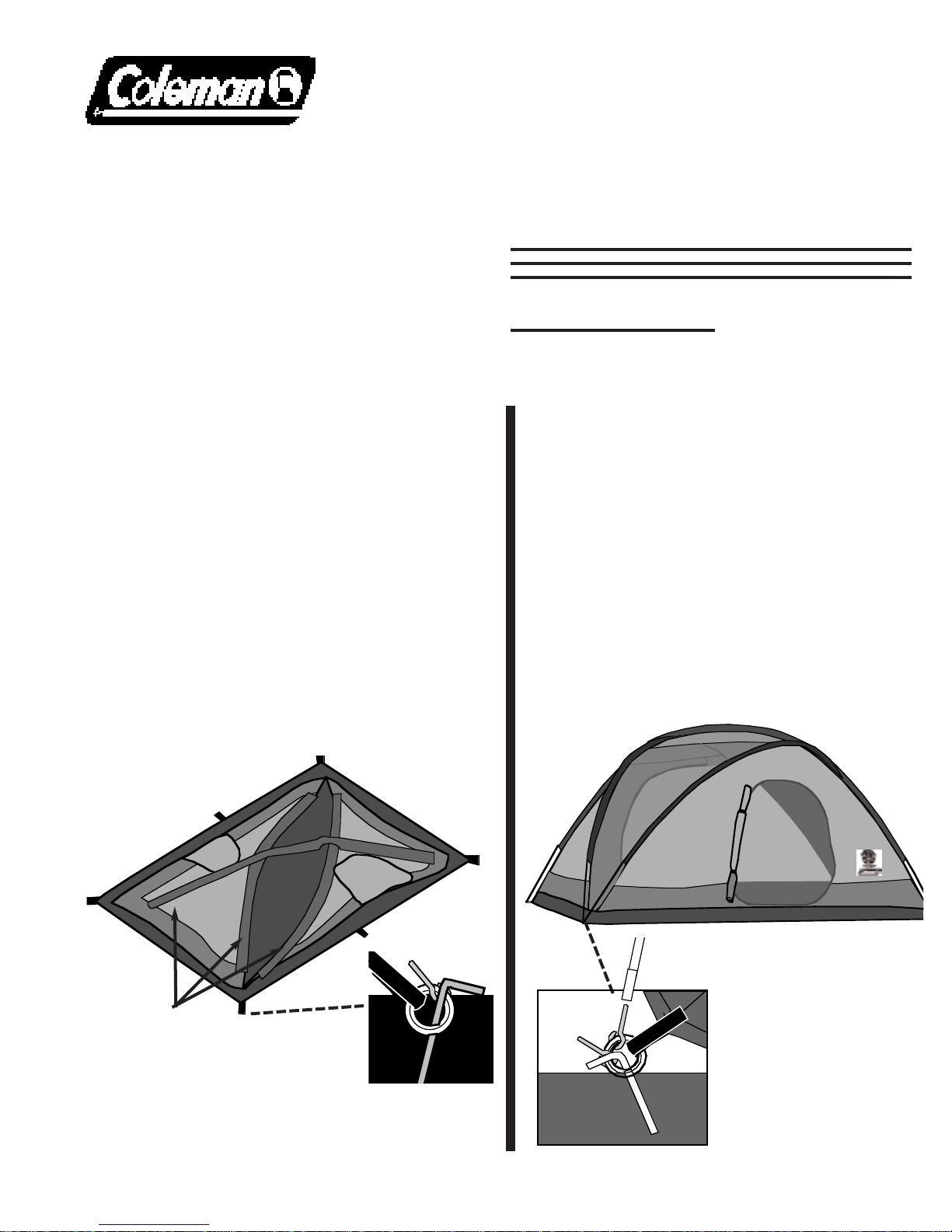

–Layout and position tent with doors

facing desired direction. (illus. 1)

–Unzip doors.

–Stake down tent corners only, using the

rings at the end of the stake loops.

Keep the floor taut. (illus. 2)

–Assemble Frame Poles by

interlocking shock-corded poles.

This will make three long poles.

–Insert the poles diagonally into three

Pole Sleeves. (illus. 1)

WhenYou Are Ready To Set Up

Your Tent

–Select a level campsite clear of rocks,

branches and other hard or sharp objects.

–Do not set up your tent under trees.

–For best results in windy conditions,

do not position the door of tent into

the wind.

–See owners manual for more tips.

Rainfly

Pole Rainfly Part No. 9273B123

Main Tent

Poles

POLE ASSEMBLY PARTS

Insert poles

through

three pole

sleeves

Instructions apply to Part Number 9273B128

illus. 1

Part No. 9273-121

Part No. 9273-122

Tent frame

set-up

illus. 3

illus. 2 Tent stake

through ring

illus.4

Insert pole end onto

pin & ring

4Attach Rainfly

–Assemble rainfly pole by

interlocking shock-corded pole.

–Insert rainfly pole into reinforced

pockets located at the center edges

of the underside of rainfly.

(illus. 5), (illus. 6)

–Tie underside of rainfly to the rainfly

pole with frame ties. (illus. 5)

–Drape rainfly over tent frame, pole

side down. Rainfly pole should

point out over front and back side

of tent.

–Connect the six elastic loops with

“S” hooks, (found at the rainfly

corners) to the four rings.

located at the end of the stake loops

at the corners of the tent.

–Secure rainfly with frame ties

located on underside of rainfly. (illus. 7)

–Stake out tent with two side

guylines. (illus. 7)

illus. 6 Insert Rainfly

Pole piece into

pocket on underside

of Rainfly

illus. 7 Completed tent with Rainfly.

Note where Rainfly Pole pockets ,

“D” rings, and under ties are located

illus. 5

Underside

of Rainfly

ties onto

frame poles

“S” Hooks attach “D”

Rings at the corners

Attach and stake out Guy

lInes. One each side.

Rainfly

pockets

Rainfly Pocket

Frame

Ties

THE COLEMAN CO., INC.

3600 N. Hydraulic • Wichita, Kansas 67219

1-800-835-3278 • www.coleman.com

MADE IN CHINA

PRINTED IN CHINA Rev. 11/03

Things You Should Know

• Under certain conditions (cold weather, high humidity, etc.)

condensation will form on the inside surfaces of your tent. Condensation is

caused by water vapor from your breath, perspiration, or any wet clothing

inside your tent. It is NOT LEAKAGE through the tent fabric. It can be mini-

mized by removing wet clothing from your tent and by providing good ventila-

tion through the tent.

• Never store tent, even for a short period of time, without drying it thorough-

ly and brushing off caked dirt.Do not pack stakes or poles inside your tent.

Use a separate storage bag.

• STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE ITSELF.

NEVER PULL ON THE TENT FABRIC OR TENT STAKE LOOP TO

REMOVE STAKE.

• TENT POLES SHOULD NOT BE LEFT TELESCOPED

TOGETHER DURING STORAGE.

• Seam sealer has not been provided with your tent. We recommend seam

sealing your tent prior to camping. Seam sealer may be purchased through

your local retailer or at your local sporting goods store.

• Do not leave your tent set-up for weeks at a time, be aware that expo-

sure to the ultraviolet rays of the sun can seriously damage material and/or

cause it to become discolored.

• See owners manual for more tips.

WARNING: KEEP ALL FLAME AND HEAT SOURCES

AWAY FROMTHISTENT FABRIC. This tent meets the flammability

requirements of CPAI-84.The fabric will burn if left in continuous contact with

any flame source.The application of any foreign substance to the tent fabric

may render the flame-resistant properties ineffective.
