Cognex DataMan DT150 Manual de usuario

DataMan®150 Series

Quick Reference Guide

2019 November 15

Revision: 6.1.6SR2.2

Precautions

To reduce the risk of injury or equipment damage, observe the following precautions

when you install the Cognex product:

lThis device requires the use of an LPS or NEC class 2 power supply.

lDo not connect or disconnect this device from the I/O module or 15-pin USB

adapter cable when the I/O module or adapter cable is connected to a PC.

lRoute cables and wires away from high-current wiring or high-voltage

power sources to reduce the risk of damage or malfunction from the

following causes: over-voltage, line noise, electrostatic discharge (ESD),

power surges, or other irregularities in the power supply.

lChanges or modifications not expressly approved by the party responsible

for regulatory compliance could void the user’s authority to operate the

equipment.

lEnsure that the cable bend radius begins at least six inches from the

connector. Cable shielding can be degraded or cables can be damaged or

wear out faster if a service loop or bend radius is tighter than 10X the cable

diameter.

lThis device should be used in accordance with the instructions in this

manual.

lAll specifications are for reference purposes only and can change without

notice.

Product Overview

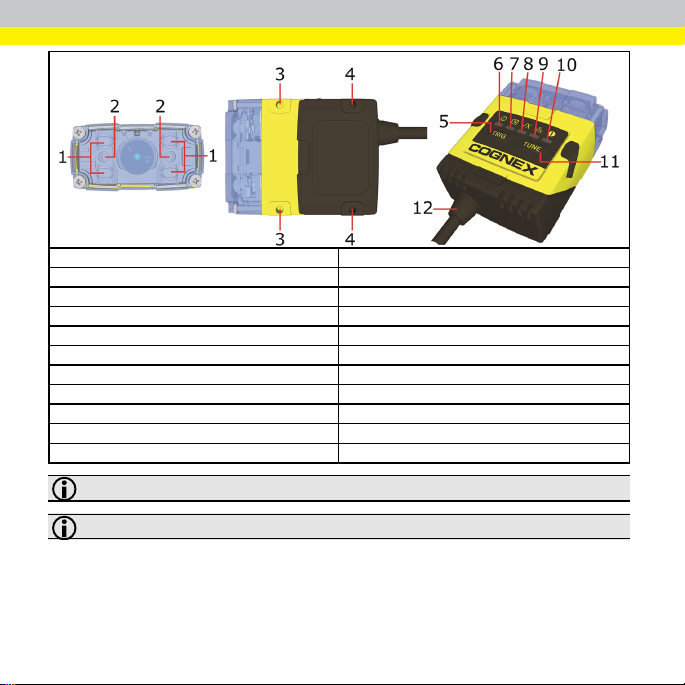

1 Illumination LEDs

2 LED aimers

3-4* Mounting holes (M3 x 3.5mm)

5 Trigger button

6 Power indicator

7 Train status indicator

8Good/bad read indicator

9Communication

10 Error indicator

11 Tune button

12 Power, I/O and RS-232 connector

Note: *Use only one set of mounting holes (either 3 OR 4) for mounting.

Note: The five status LEDs together also function as a peak meter using an orange light.

DataMan 150 Accessories

LENS OPTIONS, COVERS, ILLUMINATIONS AND FILTERS

6.2 mm lens kit DM150-LENS-62

IR 6.2 mm lens kit, 3 -position with IR LED DMA-KIT-IR-62

IR16 mm lens kit DMA-KIT-IR-16

16 mm lens with extended optics mount (requires the

use of an extended front cover and high-powered red

LED)

DM260-LENS-16

UV Light Kit for 6.2 mm lens (365nm) DMA-KIT-UV365-62

Liquid Lens Module (LLM) to be used with 6.2 mm lens

or 16 mm lens

DMA-LLM-150-260

ImageMax kit DM260-KIT-16LL

Clear lens cover* DM150-CVR-CLR

Clear lens cover,ESD safe* DM150-CVR-ESD

Polarized front cover* DM260-LENS-62CVR-

F***

Extended lens cover, un-polarized**

Extended lens cover, half-polarized **

Extended lens cover, fully polarized**

DM260-LENS-16CVR***

DM260-LENS-16CVR-

P***

DM260-LENS-16CVR-

F***

C-mount adaptor, IP40 DM260-CMNT-00

C-mount adaptor, IP65 DM260-CMNT-CVR

Blue bandpass filter DM150-BP470

Red bandpass filter DM150-BP635

Red LED illumination*

White LED illumination*

Blue LED illumination*

DM150-LED-RED

DM150-LED-WHT

DM150-LED-BLU

High Powered red LED illumination** DM260-LED-RED-HP

Note: *Use with a 6.2 mm lens only!

**Use with a 16 mm lens only!

***ESD safe

CABLES ANDOTHER

5-meter extension cable* DM100-EXTCBL-000

RS-232/USB adapter connector DM100-PATCH-000

USB adapter cable with power tap

DM100-USB-000

DM100-USB-030

USB & Flying Leads I/O Cable, 2.0 m DM-USBIO-00

RS-232 & Flying Leads I/O Cable, 2.5 m DM-RS232IO-00

RS-232 adapter cable with power tap DM100-RS232-000

Flying Leads Connection Cable, 5 m DM50-PWRIO-05

Power supply, 6V DM100-PWR-000

Universal Mounting Bracket DM100-UBRK-000

Pivot Mounting Bracket DM100-PIVOTM-00

DataMan Basic I/O Module DM100-IOBOX-000

Note: *USB/RS-232 extension connection is possible with the following limitations:

1. The USB connection is shorter than 5 m.

2. Serial connection is shorter than 15 m.

Dimensional Drawings

Field of View and Reading Distances

Horizontal Field of View values

1 2 3 4

DM150 Short Range: 34

mm [1.3 in]

DM150 Short Range: 50

mm [1.9 in]

DM150 Short Range: 77

mm [3.0 in]

DM150 Long Range: 115

mm [4.5 in]

DM152 Short Range: 37

mm [1.45 in]

DM152 Short Range: 56

mm [2.2 in]

DM152 Short Range: 87

mm [3.4 in]

DM152 Long Range: 123

mm [4.8 in]

5 6 7 8

DM150 Long Range: 144

mm [5.6 in]

DM150 Long Range: 170

mm [6.7 in]

DM150 Long Range: 279

mm [10.9 in]

DM150 Long Range: 370

mm [14.5 in]

DM152 Long Range: 153

mm [6.0 in]

DM152 Long Range: 181

mm [7.1 in]

DM152 Long Range: 297

mm [11.7 in]

DM152 Long Range: 394

mm [15.5 in]

Vertical Field of View values

1 2 3 4

DM150 Short Range: 22

mm [0.86 in]

DM150 Short Range: 32

mm [1.25 in]

DM150 Short Range: 49

mm [1.9 in]

DM150 Long Range: 73

mm [2.8 in]

DM152 Short Range: 28

mm [1.1 in]

DM152 Short Range: 42

mm [1.65 in]

DM152 Short Range: 65

mm [2.5 in]

DM152 Long Range: 92

mm [3.6 in]

5 6 7 8

DM150 Long Range: 92

mm [3.6 in]

DM150 Long Range: 108

mm [4.25 in]

DM150 Long Range: 178

mm [7.0 in]

DM150 Long Range: 236

mm [9.2 in]

DM152 Long Range: 115

mm [4.5 in]

DM152 Long Range: 135

mm [5.3 in]

DM152 Long Range: 223

mm [8.7 in]

DM152 Long Range: 295

mm [11.6 in]

Device

Distances in mm/

2Dmin. code

6.2 mm lens

Long Range

Distances in mm/

1D min. code

6.2 mm lens

Long Range

DM150

150 12 MIL 150 6 MIL

190 15 MIL 190 10 MIL

225 18 MIL 225 10 MIL

375 30 MIL 375 15 MIL

500 35 MIL 500 20 MIL

1000 80 MIL 1000 35 MIL

DM152

150 10 MIL 150 5 MIL

190 12 MIL 190 6 MIL

225 15 MIL 225 6 MIL

375 20 MIL 375 10 MIL

500 25 MIL 500 15 MIL

1000 50 MIL 1000 30 MIL

Device

Distances in mm/

2Dmin. code

6.2 mm lens

Short Range

Distances in mm/

1D min. code

6.2 mm lens

Short Range

DM150

40 4 MIL 40 2 MIL

65 5 MIL 65 3 MIL

105 10 MIL 105 6 MIL

DM152

40 3 MIL 40 2 MIL

65 4 MIL 65 2 MIL

105 7 MIL 105 5 MIL

Horizontal Field of View values

1 2 3 4 5 6 7

DM70: 22 mm

[0.87 in]

DM70: 43 mm

[1.7 in]

DM70: 54 mm

[2.1 in]

DM70: 64 mm

[2.5 in]

DM70: 106

mm [4.1 in]

DM70: 142

mm [5.6 in]

DM70: 283

mm [11 in]

DM72: 24 mm

[0.94 in]

DM72: 45 mm

[1.8 in]

DM72: 58 mm

[2.3 in]

DM72: 68 mm

[2.7 in]

DM72: 113

mm [4.4 in]

DM72: 151

mm [5.9 in]

DM72: 301

mm [12 in]

Vertical Field of View values

1 2 3 4 5 6 7

DM70: 14 mm

[0.55 in]

DM70: 27 mm

[1.1 in]

DM70: 34 mm

[1.3 in]

DM70: 41 mm

[1.6 in]

DM70: 68 mm

[2.7 in]

DM70: 90 mm

[3.5 in]

DM70: 180

mm [7.1 in]

DM72: 18 mm

[0.71 in]

DM72: 34 mm

[1.3 in]

DM72: 43 mm

[1.7 in]

DM72: 51 mm

[2.0 in]

DM72: 85 mm

[3.3 in]

DM72: 113

mm [4.4 in]

DM72: 226

mm [8.9 in]

Device

Distances in mm/

2Dmin. code

16 mm lens

Distances in mm/

1D min. code

16 mm lens

150

80 3 MIL 80 2 MIL

150 5 MIL 150 3 MIL

190 6 MIL 190 4 MIL

225 7 MIL 225 4 MIL

375 12 MIL 375 5 MIL

500 15 MIL 500 10 MIL

1000 25 MIL 1000 15 MIL
