Cognex DataMan 8072 ER Manual de usuario

DataMan®8072 ER

Quick Reference Guide

2020 June 24

Revision: 6.2.0.2

Precautions

WARNING: LASER LIGHT, DO NOT STARE INTO BEAM: CLASS 2

LASER PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS

MAY CAUSE SERIOUS INJURY.

To reduce the risk of injury or equipment damage, observe the following precautions

when you install the Cognex product:

lThis product is intended for industrial use in automated manufacturing or

similar applications.

lThe safety of any system incorporating this product is the responsibility of

the assembler of the system.

lThis product does not contain user-serviceable parts. Do not make

electrical or mechanical modifications to product components.

Unauthorized modifications can void your warranty.

lRoute cables and wires away from high-current wiring or high-voltage

power sources to reduce the risk of damage or malfunction from the

following causes: over-voltage, line noise, electrostatic discharge (ESD),

power surges, or other irregularities in the power supply.

lChanges or modifications not expressly approved by the party responsible

for regulatory compliance could void the user’s authority to operate the

equipment.

lEnsure that the cable bend radius begins at least six inches from the

connector. Cable shielding can be degraded or cables can be damaged or

wear out faster if a service loop or bend radius is tighter than 10X the cable

diameter.

lThis device should be used in accordance with the instructions in this

manual.

lAll specifications are for reference purposes only and can change without

notice.

Product Overview

DataMan 8072 ER Reader

WARNING:LASER LIGHT, DO NOT STARE INTO BEAM

1 Illumination module

2 Laser aimer

3 Illumination LEDs

4 Trigger (press and hold to read)

5 Lanyard hook

6 Indicator light

7 Communication module insertion point

Base Station Overview

1 Base station status indicators

2 PAIR sticker - Reading the code pairs the base station

with the device

3Connection point to the reader:

lpairing reader and base station

lnon-wireless communication

lcharging

4 RS-232

5 USB

6 Power plug (24V, max. 15W)

7 Alternative power supply connector (24V, max. 15W,

polarity marked on the plastic part near the connector).

Recommended wire diameter is 14- 18 AWG

8 Ethernet

DataMan 8072 ER Accessories

Accessory Name Product ID Illustration

Serial/USB slide-in DMCM-SERIALM-00

Ethernet slide-in DMCM-ENETM-00

Bluetooth slide-in DMCM-BTM-00

Charging base station DMA-CBASE-01

Intelligent Bluetooth base station DMA-IBASE-BT-02

Power Supply for base station DMA-24VPWR-xx*

Power Supply for reader DM100-PWR-000

Battery for the wireless reader DMA-HHBATTERY-02

Multi-battery charger DMA-MBC-xx*

POE adapter CPS-24V-POE1

POE adapter CPS-24V-POE4

POE adapter CPS-AC-POE1A-xx*

Wall mount DMA-WALL-8000-00

Wall mount for base station DMA-IBASE-WALL-00

Stand DM-STAND-00

*xx can be US, EN, UK, or JP.

Cables

Accesory Name Product ID Illustration

Coiled RS-232 cable for reader, 2.5 m DM8000-RS232-02

Industrial RS-232 cable for reader, 2.5 m DM8000-RS232IND-02

Coiled RS-232 cable for reader, 4 m DM8000-RS232-05

Coiled USB cable, 2.5 m DM8500-USBC-02

Ethernet cable, 2.5 m DM8000-ECABLE-02

Ethernet cable, 30 m DM8000-ECABLE-30

Ethernet cable, 5 m DM8000-ECABLE-05

USB cable, 2.5 m DM8500-USB-00

Coiled Ethernet cable, 5m DM8000-ECABLEC-05**

RJ25 (RJ12) to DSUB9 cable for base station, 5 m DMA-RS232RJ-05

** Collimated cable length including DM8000-ECABLE-X should not

exceed 50 m.

lUSB cable for base station: Use any standard USB-A to USB-B

2.0 cable up to 3 meters.

lEthernet cable for base station: Use any standard CAT5/5e,

SF/FTP or S/FTP cable.

lDMA-USB-00: Straight 10ft USB cable.

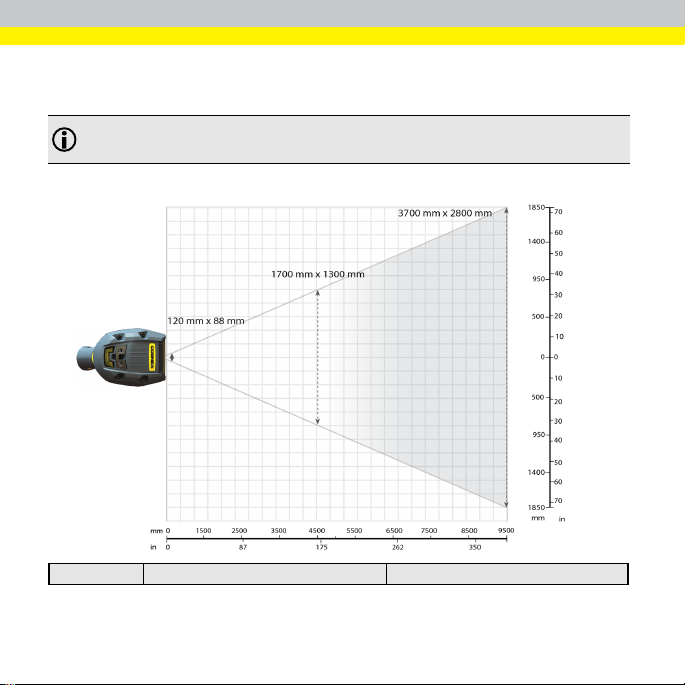

Field of View and Reading Distances

Depth of Field values

Note: All values beginning with 0 denote the minimum distance where the

Field of View is able to see the entire code.

DataMan 8072 ER with a 12 mm Liquid Lens (Long Range, Focused to 8 meters)

Device Distances in mm/1D min. code Distances in mm/1D min. code

DM8072ER 300 4 MIL 300 8 MIL

4000 50 MIL 2250 50 MIL

8000 100 MIL 4750 100 MIL

Connecting the Reader

Bluetooth Readers

1. Connect the slide-in to the reader and tighten the screws to lock the slide-in.

2. Insert the battery.

3. Insert the plug.

Corded Readers

1. Connect the slide-in to the reader and tighten the screws to lock the slide-in.

2. Insert the plug. Slide the cable lock up to the reader and twist the cable lock

in place.

Note: Disconnect the DataMan 8072 ER from powerbefore inserting the communication modules.
