CNB LDC3050IR Manual de usuario

LDC3050IR

Network Dome

Cam

era

Rev.1.1 (Sep. 2014) 2

Caution

Any changes or modifications in construction of this device which are not explicitly

approved by the party responsible for compliance could void the user’s authority to

operate the equipment.

Note

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generate, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into and outlet on a circuit different from that to which

the receiver is connected

 Consult the dealer or an experienced radio/TV technician for help.

Directions

Be careful not to cause any physical damage by dropping or throwing LDC3050IR. Especially

keep the device out of reach from children.

Do not disassemble LDC3050IR. No After Service is assumed when disassembled.

Use only the power adapter provided with LDC3050IR.

Be careful to prevent moisture or water penetration into the unit. Particular attention is

needed when installing LDC3050IR. The screw holes for the installation screws and pipe

should be maintained water tight during the whole life time of the product.

All the electrical connection wires running into the unit should be prepared so that water from

the outside cannot flow into the unit through the surface of the wires. Penetration of the

moisture through the wire for extended period can cause malfunction of the unit or

deteriorated image.

Rev.1.1 (Sep. 2014) 3

Contents

1. Introduction .............................................................................................................................................. 4

1.1. Overview ............................................................................................................................................. 4

1.2. Specification ........................................................................................................................................ 5

1.3. Applications of LDC3050IR .................................................................................................................. 6

2. Product Description ................................................................................................................................. 7

2.1. Contents ............................................................................................................................................. 7

2.2. Product Preview .................................................................................................................................. 7

2.3. Physical description............................................................................................................................. 8

2.3.1. External View ............................................................................................................................ 8

2.3.2. Dimension ................................................................................................................................. 8

2.3.3. Inside ........................................................................................................................................ 9

2.3.4. External Connector .................................................................................................................... 9

3. On Site Installation ................................................................................................................................. 10

4. Getting Started ....................................................................................................................................... 12

4.1. PC Requirement................................................................................................................................ 12

4.2 Quick Installation Guide...................................................................................................................... 12

4.2.1. Connect PC and LDC3050IR to network. ................................................................................. 12

4.2.2. Install IP installer and set IP parameters on LDC3050IR .......................................................... 13

4.2.3. Remote video connection to LDC3050IR ................................................................................. 16

4.2.4. Additional settings through connection to the Admin Page ....................................................... 17

5. Trouble Shooting ................................................................................................................................... 18

5.1. No power is applied ........................................................................................................................... 18

5.2. Cannot connect to the Video ............................................................................................................. 19

5.3. Windows Vista or Windows 7............................................................................................................. 20

5.4. Technical Assistance ......................................................................................................................... 23

Rev.1.1 (Sep. 2014) 4

1. Introduction

1.1. Overview

LDC3050IR is multi-codec (H.264, MJPEG) IP camera (or network camera) built with embedded software and

hardware technology in pancake housing. It enables real time transmission of video of up to 1080P. Remote

clients can connect to LDC3050IR for the real time video data through various client solutions running on PC or

smart device.

LDC3050IR is specialized in video transmission which economic and practical products removing sensor, replay,

etc and the videos can be only available in the field and place where needed.

Embedded PoE (Power over Ethernet, IEEE 802.3af) will enable the owner to reduce TCO (Total Cost of

Ownership) by reducing on-site wiring works for the installation.

Rev.1.1 (Sep. 2014) 5

1.2. Specification

Camera

Image sensor Progressive scan 1/2.9 inch CMOS 2.0M pixels

Full resolution 1,920 x 1,080 pixels (Full HD)

Min. illumination 0.2Lux (Color, DSS On), 0.00 Lux (IR LED On)

S/N Ratio 50dB or more

White Balance Auto/Manual

DSS Supported

WDR Off/ON

Lens Built-in Fixed Mega Pixel Lens, f=3mm, F2.0

Day & Night Supported (TDN & IR LED)

IR LED 18EA (850nm, 45°) Max. 16m

Video

Compression method Simultaneous Dual Codec (H.264 / MJPEG)

Resolution 1920x1080@30fps

Multi-Profile Streaming - 3 simultaneous video profiles

- Select the codec type, resolution and frame rates for each profile.

Intelligent Bit-Rate Control Hybrid Bit Rate control (VBR+CBR)

Image Setting Text overlay, Privacy mask

Motion detection 3 regions

Video Output Select NTSC/PAL 1.0Vp-p (RCA type on board, 75Ω, composite)

Network

Network Protocol

- IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE, RTCP

- RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnP

- NTP, DNS, DynDNS, SOCKS

Dynamic IP Supported (through CNBTEC’s management server)

Security - User ID & Password protection, IP address filtering

- HTTPS encryption, Digest Authentication, User Access Log

Streaming method

- RTSP streaming with proprietary format for control informations

- Standard RTSP streaming

- HTTP streaming

External Terminals

LAN 10/100BaseT LAN (auto MDIX)

Power DC 12V input

Factory Reset Supported

Rev.1.1 (Sep. 2014) 6

Alternate Power

Standard PoE IEEE802.3af Supported

Alarm & Event

Intelligent Video Motion Detection

Alarm Triggers Intelligent Video

Alarm Events video file upload(FTP), still Image(Email)

Alarm Buffer (Video) configurable Pre-alarm (5~10 sec) & Post-alarm (10~30 sec)

Client Software

NVR2 64ch@D1 (free of charge)

Mobile App. Android, iOS (free of charge)

Miscellaneous

Operating Temperature -10



C ~ 40



Operation Humidity 8~80% RH

Power DC 12V Max. 5W

Dimensions Ø135.6mm x102.3mm

Weight 0.35Kg

Approvals FCC, CE, KCC, RoHS

Package information IP camera, CD (User’s guide, Software…)

Optional Items

Adapter DC 12V, 2A

1.3. Applications of LDC3050IR

 Small Office, Home environment, Personal user.

 Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities,

military, etc.)

 Remote monitoring (hospitals, kindergartens, traffic, public areas, etc.)

 Weather and environmental observation

Rev.1.1 (Sep. 2014) 7

2. Product Description

2.1. Contents

The product package contains followings :

Contents Description Remarks

LDC3050IR IP camera LDC3050IR main unit

GUIDE PATTERN Guide Pattern

CD Software & User’s Guide

Accessory Wall Anchors 3ea, Screw 3ea

2.2. Product Preview

LDC3050IR IP-Installer CMS Software (NVR2)

Pancake IP Camera PC software to allocate an IP

address to the IP Camera

PC software to view and record the

streaming data transmitted from IP

camera.

(Simultaneous support of up to 64

IP cameras@D1)

Rev.1.1 (Sep. 2014) 8

2.3. Physical description

Figure 2-1. External view of LDC3050IR

Figure 2-2. Dimension

Rev.1.1 (Sep. 2014) 9

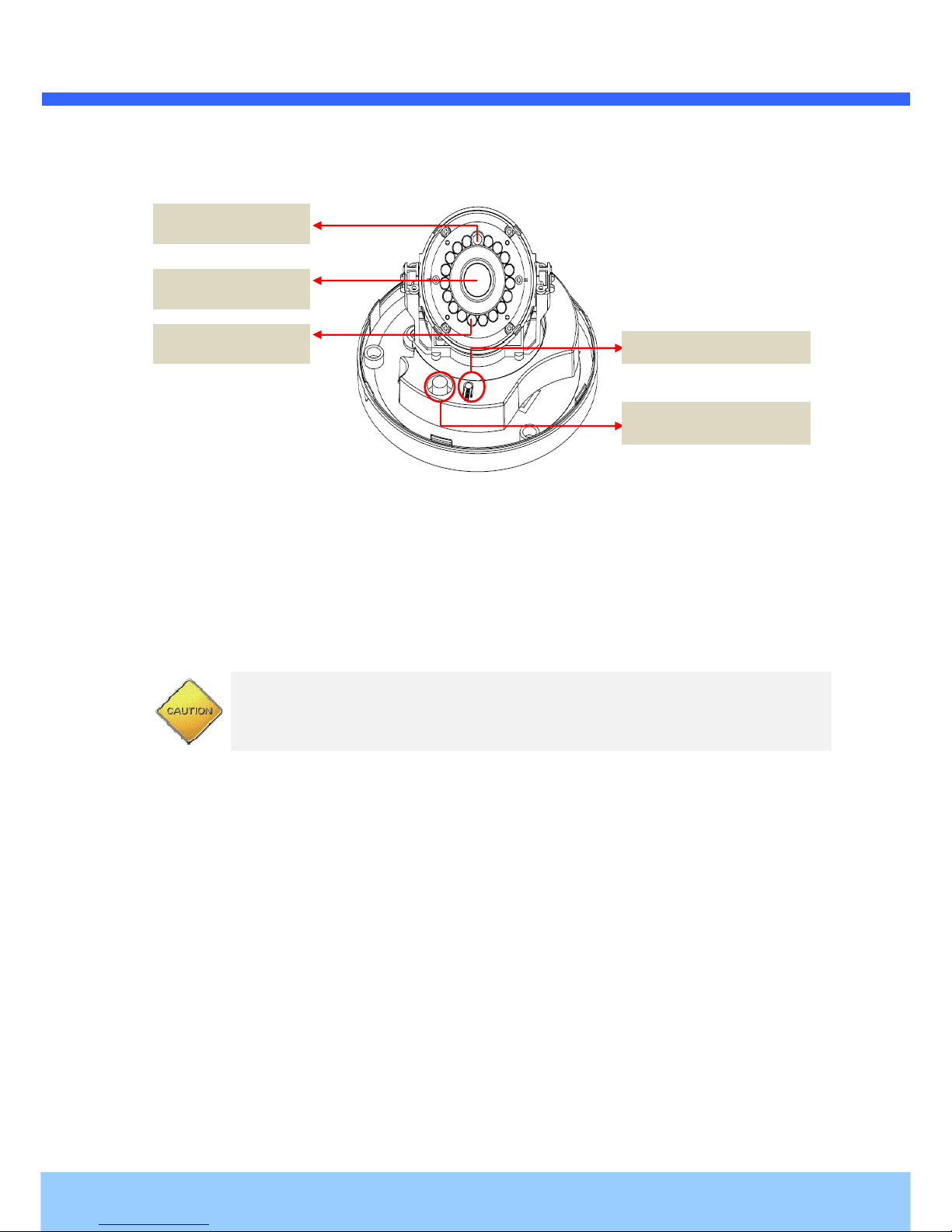

 Factory Default Switch

Factory default switch is provided for returning the IP camera to factory default state. Unscrew the cover

to access the switch. Press the switch about 5 seconds while power is applied to return to factory default

state

 Power : Power input for supplying 12V DC power.

Caution : If LDC3050IR is powered by PoE, do not plug in DC Jack with active DC

power into DC power connector.

 Network (LAN)

100Mbps Ethernet connector (RJ-45) with PoE standard (802.3af). LED on the Ethernet connector shows

the status of LDC3050IR as the followings:

Factory Reset

RCA JACK

Analog Video Output

LENS

MEGA Fixel Fxed LENS

LED

IR LED

CDS SENSOR

CDS Sensor

Rev.1.1 (Sep. 2014) 10

3. On Site Installation

Use cables and conduits that are suitable for the installation. Particular attention should be paid in the

installation so that no moisture is allowed to penetrate into the unit through the cables or conduits during the life

time of the product. Products of which the internal parts are exposed to moisture because of improper

installation are not covered by warranty

1. Remove the top cover.

2. Fix the base on the wall.

3. Adjust the rotational position of the camera for desired viewing of the site.
