Page 2

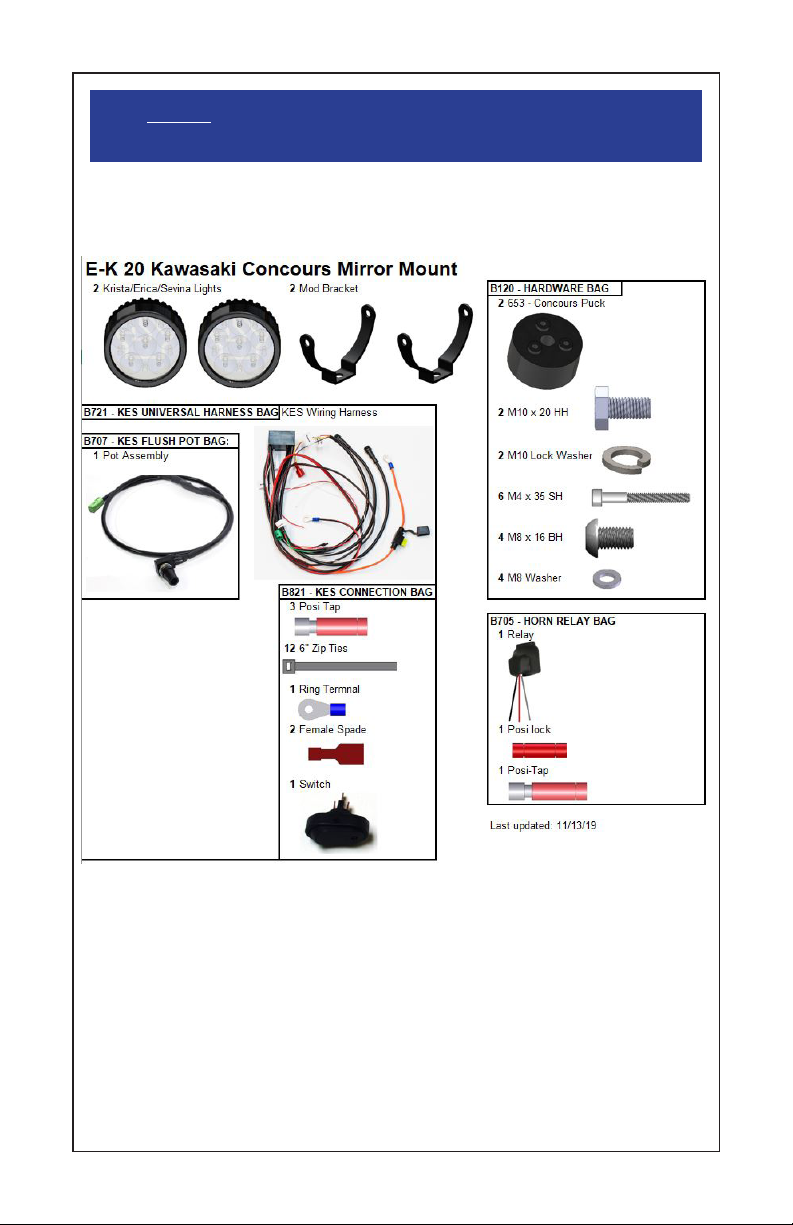

Step 1: Parts List

Please review entire manual before starting. Verify your kit is complete and agrees

with kit below. If something is missing, please call us at (916) 852-7029.

Please be sure to read our instructions thoroughly

before attempting installation.

Clearwater lights include a simple and high quality means of connecting to the

motorcycle’s electrical system. “Posi”devices made by Posi-Products are used

to securely and safely make electrical connections on the bike. You can view

instructions on the proper installation of the Posi-Products on the manuals page of

our website or on Posi-Product’s web site at http://www.posi-lock.com. They simply

screw together and mate the wires.

Page 3

Step 1: Parts List and Bike Preparation

Bike Preparation:

• First, park the motorcycle on hard pavement or concrete to insure the

bike will be stable during the installation. If you can mount the bike on a

stand with tie-down straps, this will help secure the motorcycle.

• Follow the manufacturers guidelines for disconnecting the battery. This is

important to prevent damage to the electrical system.

Step 2: Disassembly

Disassembly:

• Minimal disassembly is required. Removal of the side panel cover and

center cover to access the Kawasaki headlight connector is required. Follow

the pictures below for locating the points of disassembly.

Page 4

Step 3: Mounting The Lights

Under Mirror Mount:

• The Clearwater Lights Concours Puck mount is easy and seamless. Utilizing

the three hole pattern on the bottom of the mirror, the puck adapts this

patern to a M10 threaded hole. Follow the pictures below for assembly.

Aligning the Lights:

Adjustment is up to the user depending on

your needs. Ask an assistant to help you with

this procedure. Make sure the bike is on level

ground and have an assistant sit on the bike.

Use a bubble level to set the lights such that

the face of the light is perpendicular to the

ground. You may nd that a slight downward

angle (5 degrees) is helpful. Often times it is

helpful to angle the right side light toward

the right side of the road. This helps with

identifying road terrain and potential critters.

Page 5

Step 4: Mounting The Switch and Dimmer

Step 5: Wiring

Wire Routing:

• Be sure to route wires so that they cannot become tangled or caught

in either a suspension part or steering part. Check movement of both

steering and suspension before riding the bike.

• It is sometimes helpful to follow existing wire routing.

Electrical:

• Run the red and black power wires directly to the battery. The fuse will

protect the system in the event of a short.

• Locate the power relay box in a safe location. Secure with a zip tie. It is

a good idea to face the relay box with the wires coming out the bottom.

This helps keep everything dry.

(Continued on the next page)

• Any location can be used for the

switch, be careful not to interfere

with movement of front forks. Refer

to the steps below if you need

assistance.

• On left side of dash there is a round

plastic blanking cover.

• Drill 9/32” hole in center of

blanking cover.

• Insert the ush mount switch

Mounting The Switch

Mounting The Dimmer (Handlebar)

• If possible, the dimmer should

be mounted at an existing fastener

point on the left side of the

handlebar cluster.

If a ush-mounted dimmer was

requested/included in your kit,

mount it next to your switch that

was panel mounted.

Page 6

Step 5: Wiring

Wiring Continued:

• Route the two black connectors for the lights to a convenient location

where they will not interfere with steering or any other moving parts.

• Install the switch in a convenient location. Refer to the sticker on the

switch for proper placement.

• Switch - Crimp spade lugs to red, yellow and black wires from relay

box. Attach to corresponding tabs on switch. (See wiring diagram)

• Using Posi-tap, attach red (turn on wire) to a switched 12v wire. See

wiring diagram for your motorcycle.

• Install connectors as shown in the wiring diagram on page 7.

• Note: extra crimp on connectors provided in connection kit for if you would

like to shorten the wires.

Horn Feature:

• Locate the Horn’s hot (+) lead. This will make your lights ash to full

when you sound your horn. Use a Posi-tap to connect one of the white

wires from the relay box to this wire. It does not matter which white

wire you use, both trigger the same way. If you do not want to use this

feature, simply tuck the white wire away in a neat fashion.

High Beam Feature:

• If you are going to install the high beam feature (and we hope you do),

locate the high beam headlight wire. This will be on only when the high

beam is illuminated. This will trigger the volume control knob to control the

brightness of the lights. Connect the white wire from the volume control

knob to this high beam circuit wire. (See wiring diagram for details)

• On left side behind main

connector bundle are 3

relays. The rear relay is

high beam relay.

• Tap into the red/black

striped wire with Posi-tap

connector.

Signal for Optional High/Low Feature:

Red/Black Striped Wire

Page 7

Step 5: Wiring

Glenda/ Darla Option:

Darla wires coming from harness

will be shorter than Krista/Erica/

Sevina wires.

High Beam Option:

use a posi-tap to con-

nect one of the white

wires to the high

beam hot.

Horn Option:

use a posi-tap

to connect the

other white

wire to the

horn hot.

Note: it does not matter

which white wire you

hook up to the horn or

high beam. Both trigger

the same way. If you do

not want the high beam or

horn option, just simply

tuck the unused white

wire(s) away.

Switch: Connect the Yellow wire mar ked “Switch

Load” to the “load” terminal (Middle terminal) on the

switch. Connect the Red wire marked “12V+ to

switch” to the “supply” terminal (Opposite side of the

LED light terminal) on the switch. Connect the Black

wire marked “Ground” to the “earth” terminal (Under

the LED light terminal) on the switch.

Turn On Wire: use a posi-tap to

connect to low beam or switched

accessory hot. (Do not connect to

low beam wire if you have H4

headlight Bikes)

Power: Connect

the red wire from

the fuse to the

hot (+) on the

battery. Connect

the black wire to

ground (-).

Wiring Diagram for Krista/ Erica/ Sevina

Fuse

15A

Posi-lock:

joins fuse to

relay box

8/3/2018

Volume Control

POT

4/9/2012

Do Not Kink The Grommet

Do Not Kink The

Grommet

To maintain the integrity

of the water sealing

grommet, do not kink,

deform or put pressure

on the grommet when

dressing the wires during

install of Clearwater Lights.

Thank you for purchasing your Clearwater lights. We hope this product

will help make you a safer rider. Please feel free to send us comments

or suggestions at any time. We learn from you. Visit our website for more

exciting products to help you see better at night.

Ride safe!

Sincerely,

Glenn and the team at Clearwater.

The Clearwater Company | 2546 Mercantile Dr. Ste B | Rancho Cordova, CA 95742

Phone: (916) 852-7029 | Fax: (916) 852-9410 | www.clearwaterlights.com

Revised 6/16/20
