Clearaudio Innovation Wood Manual de usuario

Hi-Fi Components clearaudio electronic®GmbH

Spardorfer Str. 150 D-91054 Erlangen Tel. +49 9131/40 300 100 FAX +49 9131/40 300 119

www.clearaudio.de www.analogshop.de info@clearaudio.de copyright clearaudio2014

User manual

Upgrade

Innovation to Master Innovation

Version 1.2_02-04-14_E

Master Innovation Wood

with:

clearaudio tonearm „Universal“ and

clearaudio cartridge

„Goldfinger Statement“.

Made in Germany

Innovation Wood

with

clearaudio tonearm „Universal“ and

clearaudio cartridge „da Vinci“.

Master Innovation Wood

Upgrade

Innovation to Master Innovation

User manual

Page 1 clearaudio electronic GmbH 2014

Dear clearaudio customer,

Congratulations to your choice to upgrade your

Innovation

to a

Master Innovation

turntable,

a world class turntable, handmade in Germany by clearaudio electronic GmbH.

Like the model

Innovation

the

Master Innovation

has a resonance minimizing chassis

construction in a sandwich combination with the innovative motor unit (low noise level and

high turning moments), which guarantees total isolation of resonances from the turntable

chassis, providing the best music reproduction and authentic High End imaging.

The clearaudio patented CMB-Bearing-Technology, an inverted bearing with jewelled and

polished ceramic bearing shaft and a bronzed liner, provides frictionless analogue

enjoyment.

This user manual described the reconstruction from the turntable

Innovation

to the turntable

Master Innovation

. For more information regarding the

Master Innovation

you will get a

separate user manual.

We wish you a lot of musical enjoyments with your new

clearaudio

Master Innovation

-turntable.

clearaudio electronic GmbH

This section must be read before any connection is made to the mains supply.

CE-MARKING

The clearaudio

Master Innovation

meets the regulations concerning

electromagnetic disturbance (EMC) and low-voltage appliances.

EQUIPMENT MAINS WORKING SETTING

Your clearaudio product has been prepared to comply with the household power and safety

requirements that exist in your area. This product can be connected to 230 V or 110 V AC

(50 Hz and 60 Hz).

Recording und reproduction of any sound-material may require the consent of the creator.

Please acknowledge the information given in the

-Copyright Act 1956,

-Dramatic and Musical Performers Act 1958,

-Performers Protection Acts 1963 and 1072,

-any more recent legal regulations.

WARNINGS

Don’t expose your turntable to rain or humidity.

Don’t handle the mains leads with wet hands.

Don’t place or insert anything into the equipment or through ventilation holes.

No naked flame sources, such as lighted candles, should be placed on the equipment.

Upgrade

Innovation to Master Innovation

User manual

Page 2 clearaudio electronic GmbH 2014

Contents

1. Packing overview 3

2. Part list 4

3. Reconstruction

Innovation

Master Innovation

4. Fine adjustment of the motor 15

5. Service and special instructions 16

6. Technical data 17

Warranty –information 18

Upgrade

Innovation to Master Innovation

User manual

Page 3 clearaudio electronic GmbH 2014

1. Packing overview

Box 1 of 2:

Box 2 of 2:

Drive unit,

already pre –mounted at

factory;

accessories

Stainless steel platter,

drive platter (38 mm)

Upgrade

Innovation to Master Innovation

User manual

Page 4 clearaudio electronic GmbH 2014

2. Part list

Clearaudio has developed a special and secure packing for your

Master

Innovation

turntable that ensures a safe transportation.

Please keep this original packing, if you need to ship the turntable.

Below you find the part list of the clearaudio

Master Innovation

turntable:

First drive unit, pre-mounted

(Box 1 of 2)

Stainless steel sub-platter

(Box 2 of 2)

Platter with magnets (38 mm)

(Box 2 of 2)

Drive bearing

Accessories:

Pulley, white gloves, 2 x drive belts,

allen wrench (# 8), bearing oil, user

manual, QCQ –Card, warranty card

Upgrade

Innovation to Master Innovation

User manual

Page 5 clearaudio electronic GmbH 2014

3. Reconstruction

Innovation

Master Innovation

The reconstruction of the turntable

Innovation

to Master Innovation is easy as most parts of

the turntable chassis are already pre-assembled and has been tested at the factory.

Please use the enclosed white gloves in order to avoid scratches or unwanted fingerprints on

the turntable parts or platters.

After the reconstruction the

Master Innovation

turntable requires a space for set-up of at

least (in inch): 18.9 x 19.3.

49 cm / 19.3

48 cm / 18.9

Pic. 1: Required set - up space (with clearaudio tonearm Unify)

Upgrade

Innovation to Master Innovation

User manual

Page 6 clearaudio electronic GmbH 2014

Before you can start to reconstruct the

Innovation

turntable to the

Master Innovation

please

pay attention that all bases of the

Innovation

turntable have the height of 40 mm!

If one of your bases has not the height of 40 mm, please contact the dealer, where you

have purchased your Innovation turntable.

1.)

Take off the tonearm base and the blind screw on the other base at your

Innovation

turntable (as shown in pic. 2).

2.)

In the next step take off carefully the drive platter of your

Innovation

Please keep all platters with you, as you need the platters again for the upgrade to the

Master Innovation

Pic. 3: Taking off the drive platter

Pic. 2:

Innovation

turntable backside.

Upgrade

Innovation to Master Innovation

User manual

Page 7 clearaudio electronic GmbH 2014

3.)

Now remove carefully the stainless steel platter with the mounting clip (accessory of

Innovation

turntable).

Avoid major side forces to avoid any damages to the ceramic bearing!

4.)

Next please remove the bearing of your

Innovation.

For that unscrew carefully the screw on

the lower side of the turntable and pull the bearing out of the chassis.

Pic. 4: Taking off the stainless steel platter

Pic. 5: Removing the bearing

Screw on the lower side

Upgrade

Innovation to Master Innovation

User manual

Page 8 clearaudio electronic GmbH 2014

5.)

Take out the delivered drive bearing for the

Master Innovation

Please remove carefully any protective security tape from the bearing.

Now you can put the new bearing into the chassis (see pic. 6) and arm the bearing with the

delivered screw on the lower side of the turntable.

6.)

Now please exchange the pulley of the

Innovation

turntable with the delivered pulley.

Pic. 6: Set –up of the drive bearing

Pic. 7: Exchange of the pulleys.

Pulley

Innovation

Upgrade

Innovation to Master Innovation

User manual

Page 9 clearaudio electronic GmbH 2014

Please pay attention that the exchanged

Master Innovation

pulley is flush mounted with the

axis of the motor.

Now the upgrade from the

Innovation

to the

Master Innovation

is completed and you can

switch over to the set –up of the

Master Innovation

In the user manual for the

Master Innovation

you will find the packing –list, packing

overview and of course the whole description for the set –up of the Master Innovation.

To make it easier for you, you can also go ahead with the following description:

7.)

In the next step remove carefully the lamination of the sensor on the upper surface of the

turntable chassis.

Please remove the lamination extreme carefully and avoid any soiling and

scratches.

Take the stainless steel sub - platter again carefully with both hands and put it onto the

bearing. The lower side must show to the bearing.

Through a lightly (!!) up and down movement the platter will slip onto the bearing upper

part (pic. 8 and 9).

Please remove the lamination extreme carefully and avoid any soiling and

scratches.

Pulley for

Master Innovation

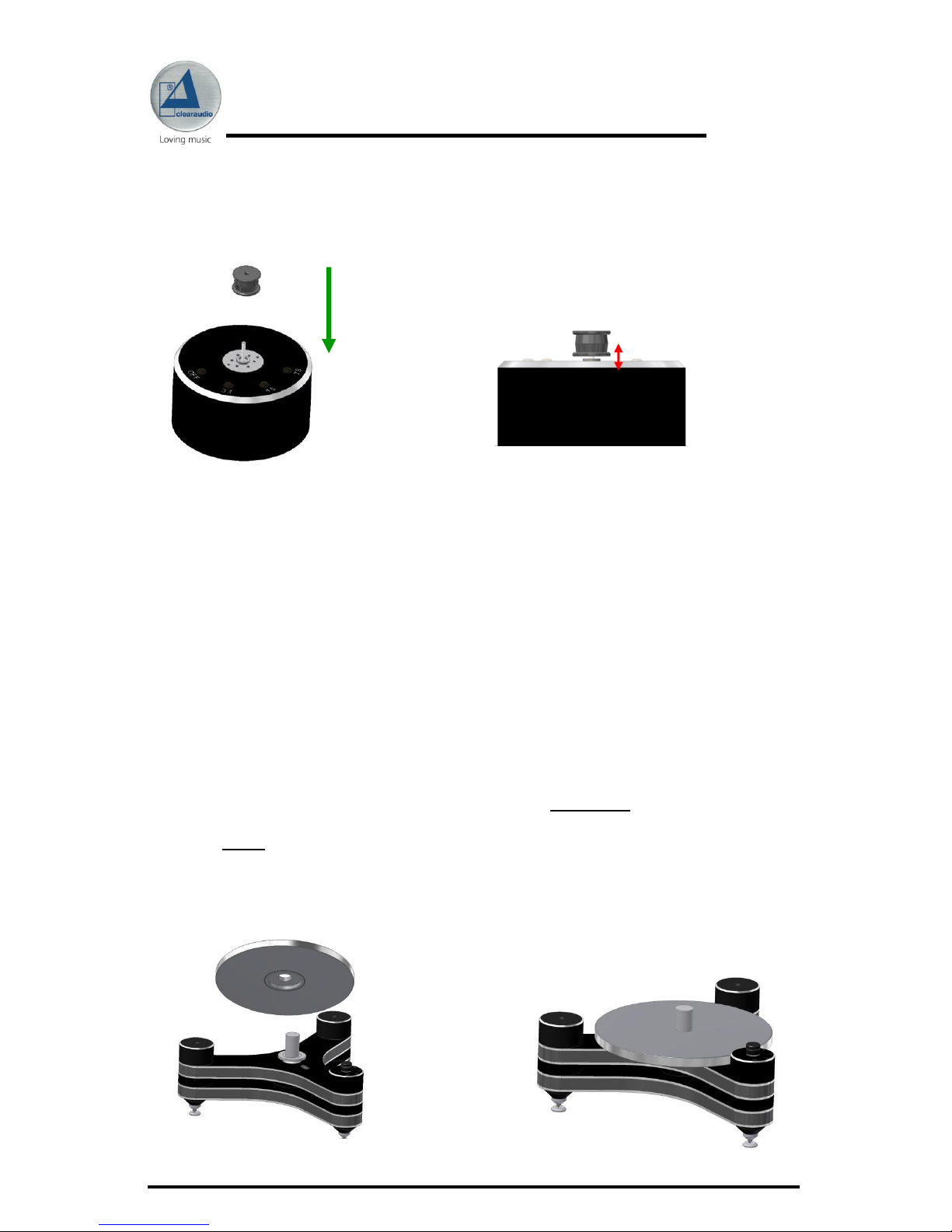

Pic. 7: Set –up of the

Master Innovation

pulley

Distance is approx. 1,2 mm

Pic. 8: Set –up of the sub - platter

Pic. 9: Set –up of the sub - platter
