Clarke CCRT266 Manual de instrucciones

WARNING: Read these instructions before using the machine

OPERATION & MAINTENANCE

INSTRUCTIONS

LS0911

CORDLESS ROTARY TOOL KIT

MODEL NO: CCRT266

PART NO: 6461901

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this cordless rotary tool kit.

Please read this manual thoroughly, before attempting to operate, and carefully follow

all instructions given.

It is vitally important that ALL precautions are taken, as specified, which will not only

provide protection for yourself and that of others around you, but will also ensure that

the product will give you long and satisfactory service.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt as proof of purchase.

This guarantee is invalid if the product is found to have been abused or tampered with

in any way, or not used for the purpose for which it was intended.

Faulty goods should be returned to their place of purchase, no product can be

returned to us without prior permission.

This guarantee does not effect your statutory rights.

SPECIFICATIONS

Operating Voltage: 9.6 V-DC

Battery charge time 3 Hours

No-Load Speed 8000-20000 rpm

Collet Capacity 1 x 1/16”

1 x 3/32”

2 x 1/8” (3.175 mm)

Sound Pressure Level LpA 88.5 dB

Sound Power Level LWA 99.5 dB

Vibration Less than 2.5 m/s2

Dimensions (L x W x H) 235 x 60 x 45 mm

Weight (kg) 1.7 kg

Part Number 6461901

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SAFETY PRECAUTIONS

WORK AREA

1. Keep work area clean and well lit. Cluttered and dark areas invite accidents.

2. Do not operate power tools in explosive atmospheres, such as in the

presence of flammable liquids, gases or dust. Power tools create sparks which

may ignite the dust or fumes.

3. Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

ELECTRICAL SAFETY

1. Avoid body contact with earthed or grounded surfaces such as pipes,

radiators, ranges or refrigerators. There is an increased risk of electric shock if

your body is earthed or grounded.

2. Do not expose power tools to rain or wet conditions. Water entering a power

tool will increase the risk of electric shock.

3. When operating a power tool outdoors, use an extension cord suitable for

outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric

shock.

PERSONAL SAFETY

1. Stay alert, watch what you are doing and use common sense when

operating a power tool. Do not use a power tool while you are tired or under

the influence of drugs, alcohol or medication. A moment of inattention while

operating power tools may result in personal injury.

2. Use safety equipment. Always wear eye protection. Safety equipment such as

dust mask, non-skid safety shoes, or hearing protection used for appropriate

conditions will reduce personal injuries.

3. Avoid accidental starting. Ensure the switch is in the off position before

inserting the battery.

4. Remove any adjusting key or wrench before turning the power tool on. A

wrench or a key left attached to a rotating part of the power tool may result in

personal injury.

WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL

INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/

OR SERIOUS INJURY. THE TERM “POWER TOOL” IN ALL WARNINGS LISTED

BELOW REFERS TO YOUR BATTERY OPERATED (CORDLESS) POWER TOOL.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

5. Do not overreach. Keep proper footing and balance at all times. This enables

better control of the power tool in unexpected situations.

6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair,

clothing and gloves away from moving parts. Loose clothes, jewellery or long

hair can be caught in moving parts.

POWER TOOL USE AND CARE

1. Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate which it was

designed.

2. Do not use the power tool if the switch does not turn it on and off. Any power

tool that cannot be controlled with the switch is dangerous and must be repaired.

3. Disconnect the battery before making any adjustments, changing

accessories, or storing power tools. Such preventive safety measures reduce

the risk of starting the power tool accidentally.

4. Store idle tools out of the reach of children and do not allow persons

unfamiliar with the power tool or these instructions to operate the power

tool. Power tools are dangerous in the hands of untrained users.

5. Maintain power tools. Check for misalignment or binding of moving parts,

breakage of parts and any other condition that may affect the power tools

operation. If damaged, have the power tool repaired before use. Many

accidents are caused by poorly maintained power tools.

6. Keep cutting tools sharp and clean. Poorly maintained cutting tools with sharp

cutting edges are less likely to bind and are easier to control.

7. Use the power tool, accessories and tool bits etc., in accordance with these

instructions and in the manner intended for the particular type of power tool,

taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from intended could result in a

hazardous situation.

SERVICE

1. Have your power tool serviced by a qualified repair person using only

identical replacement parts. This will ensure that the safety of the power tool is

maintained.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ADDITIONAL SAFETY INSTRUCTIONS FOR ROTARY

TOOLS

1. Only use accessories supplied for use with this tool.

2. Never use worn or cracked accessories.

3. Hold the tool away from your face when switching on.

4. Keep your fingers away from rotating accessories.

5. Be careful not to accidently hit any foreign objects in the workpiece.

6. If an accessory jams, switch the tool off and disconnect the battery before

attempting to free the accessory.

7. Clamp the workpiece whenever possible especially when using cutting discs.

8. Always wear a dust mask and eye protection.

9. Thoroughly remove all dust after sanding.

10. Take special care when sanding paint which is possibly lead based or when

sanding some woods (e.g. MDF) and metal which may produce toxic dust:

• Wear a dust mask specifically designed for protection against lead paint dust

and fumes and ensure that persons within or entering the work area are also

protected.

• Do not let children or pregnant women enter the work area.

• Do not eat, drink or smoke in the work area.

• Dispose of dust particles and other debris safely.

11. Abrasive wheels should be stored and handled with care. (when not in use,

accessories should be stored in the box provided for protection).

12. Inspect grinding wheels/accessories before use. Do not use chipped, cracked or

otherwise defective products.

13. Ensure that all accessories are fitted in accordance with the manufacturers

instructions.

14. Ensure that the abrasive accessory is correctly mounted and tightened before

use. Run the tool with no-load for 30 seconds in a safe position and stop

immediately if there is vibration or if other defects are detected. If this condition

occurs, check the machine to determine the cause.

15. Check that the work piece is properly supported.

16. Do not use a cut-off wheel for side grinding.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

17. Ensure that sparks resulting from use do not create a hazard e.g. do not hit

persons, or ignite flammable substances.

18. Ensure ventilation openings are kept clear when working in dusty conditions. If it

should become necessary to clear dust, first disconnect the battery from the

rotary tool.

19. Personal protective equipment such as dust masks and gloves should be worn as

appropriate.

20. Remember the wheel continues to rotate after the tool is switched off.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

THE BATTERY

NOTES ON CHARGING

• During use, the battery pack may become warm. Allow it to cool before

recharging.

• Never store the battery pack when it is discharged, recharge it fully before

storage.

TO REMOVE THE BATTERY

• Press either side of the battery

and pull it out of the rotary tool.

TO CHARGE THE BATTERY

1. Slide it into the charger unit.

• Make sure that the battery is fully

inserted.

• The red LED will light to show that

the battery is charging.

2. When the battery has been fully

charged, the red LED will extinguish

and the green LED will light.

• The charger will continue to deliver

a slow charge to maintain the battery until the charger is disconnected from the

mains supply.

• Whilst charging, the battery pack and charger may become warm. This is

normal and should be expected.

3. When charging is complete, remove the battery from the charger and disconnect

the charger from the mains supply.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

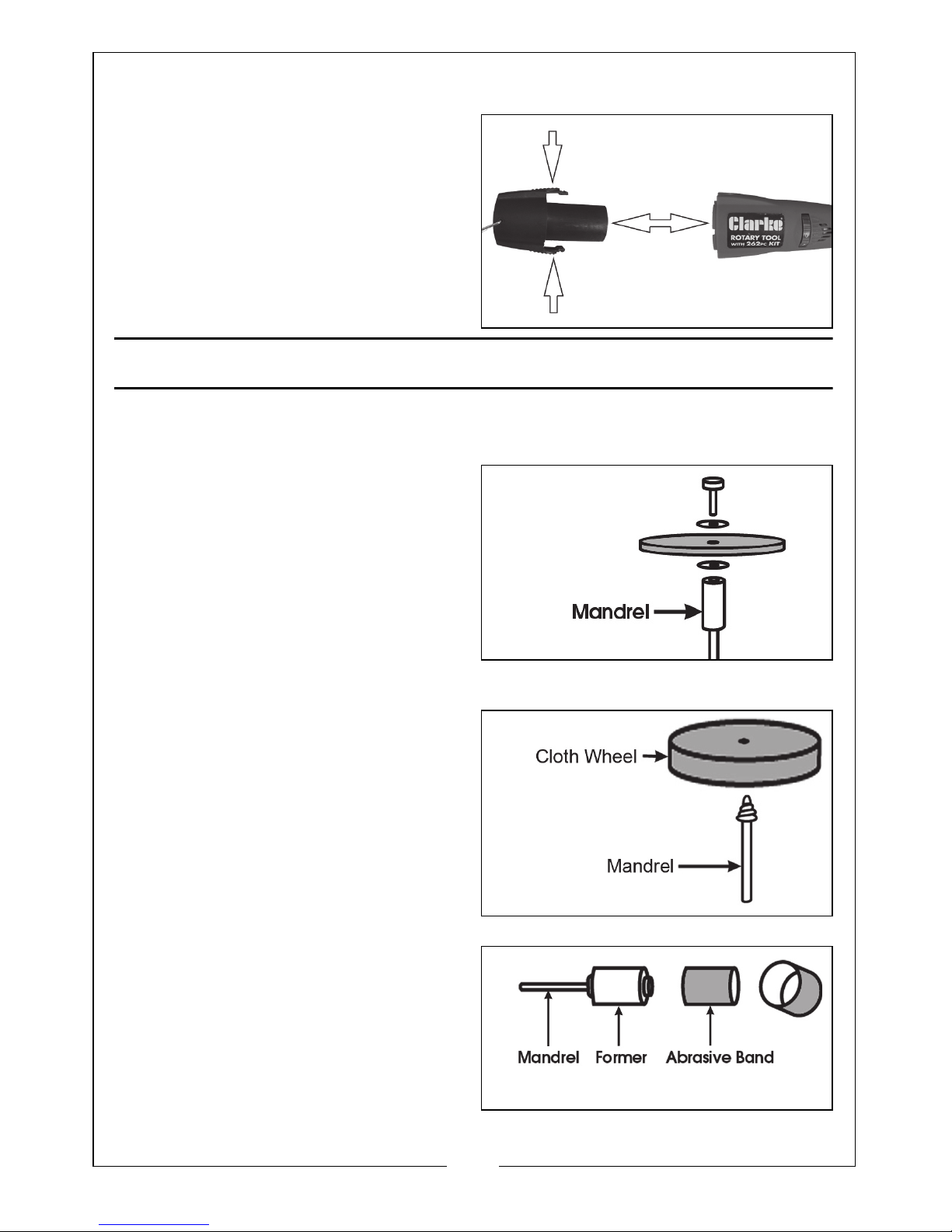

INSERTING THE BATTERY

1. Align the battery with the base of the

handle and slide it into the locating

clip.

• Make sure that the battery pack is

fully located and clicks into place.

BEFORE USE

FITTING DISCS & GRINDING STONES TO THE MANDREL

Mount the selected disc on to the

mandrel as shown, ensuring the two

washers are in place.

• DO NOT overtighten the screw.

ASSEMBLING POLISHING CLOTH WHEELS

Screw the cloth wheel on to the mandrel

firmly, but do not overtighten it.

ASSEMBLING SANDING BANDS

Slacken the screw on the end of the

mandrel and slide the appropriate

abrasive band on to the rubber former,

fully.

• Tighten the screw to secure the

band to the former.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

FITTING A COLLET

The rotary tool is supplied with 4 interchangeable collets; 0.8mm - 1.6mm - 2.4mm

and 3.2mm (fitted to the rotary tool).

Select the collet to be fitted according to the shaft size of the mandrel or accessory to

be used.

To fit a collet, proceed as follows.

1. Press and hold down the spindle lock.

It may be necessary to rotate the

chuck to fully engage the spindle lock.

2. Remove the chuck by rotating the

chuck sleeve in an anti-clockwise

direction. A spanner is supplied for

this purpose.

3. Pull the collet out of the spindle.

4. Insert the collet required, pushing it

into the spindle as far as it will go.

5. Refit the chuck, pressing the spindle

lock to tighten it.

WARNING: MAKE SURE THAT THE BATTERY HAS BEEN REMOVED FROM THE

ROTARY TOOL BEFORE REMOVING, OR FITTING A COLLET OR ACCESSORY

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

FITTING AN ACCESSORY

IMPORTANT: Ensure the tool is switched OFF

TO FIT AN ACCESSORY, PROCEED AS FOLLOWS.

1. Make sure that the correct size collet has been fitted.

2. Press and hold down the spindle lock.

• It may be necessary to rotate the

chuck to fully engage the spindle

lock.

3. Rotate the chuck sleeve in an

anticlockwise direction until the collet

jaws are open sufficiently to accept

the accessory.

4. Insert the accessory into the collet as

far as it will go.

5. Press and hold down the spindle lock

and tighten the chuck sleeve using

the spanner supplied.

TO REMOVE THE ACCESSORY FROM THE COLLET, PROCEED AS FOLLOWS.

1. Press and hold down the spindle lock.

2. Using the spanner supplied, rotate the chuck sleeve in an anti-clockwise direction.

3. When the accessory is released, remove it.

Tabla de contenidos

Otros manuales de Herramientas eléctricas de Clarke

Clarke

Clarke CTILG 5060287 Instrucciones de instalación

Clarke

Clarke CSA20FBT Manual de instrucciones

Clarke

Clarke Strong-Arm CSA50FPB Manual de instrucciones

Clarke

Clarke Strong-Arm GC0915 Manual de instrucciones

Clarke

Clarke CAT108 (1/2) Manual

Clarke

Clarke Metalworker CDP202B Manual de instrucciones

Clarke

Clarke Strong-Arm CSA20F Manual de instrucciones

Clarke

Clarke Air CAT217 Manual de instalación y operación

Clarke

Clarke CAT50 Manual de instalación y operación

Clarke

Clarke CAT113 Guía de instalación

Clarke

Clarke CDP152B Manual de instrucciones

Clarke

Clarke Strong-Arm ARBOR PRESS Series Manual de usuario

Clarke

Clarke Metalworker CDP501F Manual de instalación y operación

Clarke

Clarke CAT126 Manual de instalación y operación

Clarke

Clarke CAT21B Manual de instalación y operación

Clarke

Clarke CBM 2 Manual de instalación y operación

Clarke

Clarke CAT108 Manual de instalación y operación

Clarke

Clarke CJS380 Manual de instalación y operación

Clarke

Clarke CMFT300QR Manual de instrucciones

Clarke

Clarke CHG1600 Manual de usuario

Clarke

Clarke Contractor CON15 Manual de instalación y operación

Clarke

Clarke Air TPG30PTC Manual de usuario

Clarke

Clarke CWS250 Manual de instalación y operación

Clarke

Clarke Air 25C Manual de instalación y operación

Manuales populares de Herramientas eléctricas de otras marcas

AEG

AEG OMNI-JS Manual de usuario

SIP

SIP 01533 Manual de usuario

Ribimex

Ribimex PRS499 Manual de usuario

3M Fiber Optic Connector Crimp Tool Manual de usuario

Ryobi

Ryobi P524 Manual de usuario

ROJEK

ROJEK FSN 300A Manual de usuario

Kemper

Kemper 1740PRO Manual de usuario

WABCO

WABCO OptiTire Manual de usuario

EINHELL

EINHELL TE-MS 18/210 Li Manual de usuario

Orgapack

Orgapack OR-T 85 Guía rápida

TOUGHCUT

TOUGHCUT Diamond 400 Manual de usuario

Yaros

Yaros PB-3603 Manual de usuario

Fein

Fein BSS 2.0 E Guía de configuración

Baileigh Industrial

Baileigh Industrial SS-2725 Manual de usuario

Milwaukee

Milwaukee 2674-20 Manual de usuario

Fein

Fein BLs 1.6 Manual de usuario

Princess

Princess Electric Multi Sharpener Manual de usuario

FOREDOM

FOREDOM K.1050 Manual
